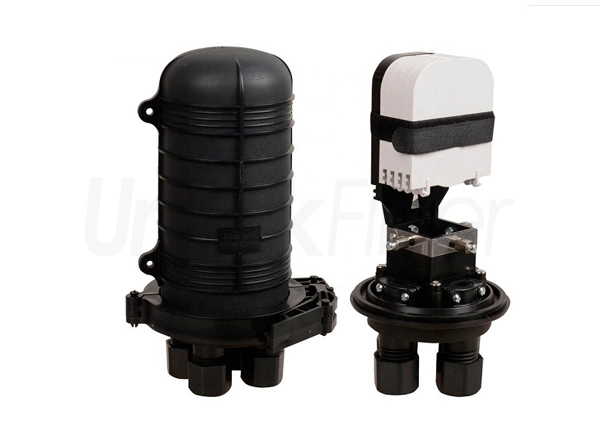

Outdoor Waterproof Mini Type Vertical Fiber Optic Splice Closure with 1 Inlet and 3 Outlet 24 Core

Part Number: UNFOSC-VH48-01

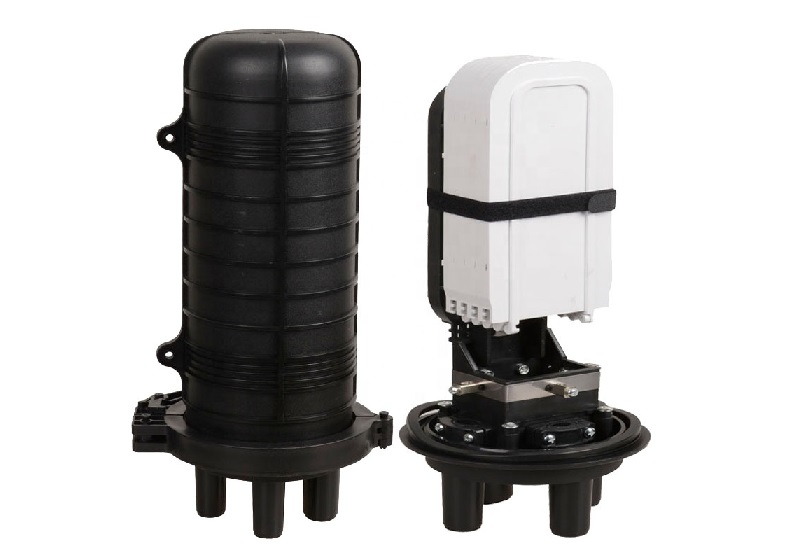

The mini type vertical fiber optic splice closure can accommodate 48 fibers with 1 oval input and 3 round output ports. The shell is made of high-strength engineering plastics, which has the characteristics of anti-aging, corrosion resistance, high and low temperature resistance, and high mechanical strength. The mini type joint box is popular among customers.


Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Outdoor Waterproof Mini Type Vertical Fiber Optic Splice Closure with 1 Inlet and 3 Outlet 24 Core

Applications:


Fiber optic splice closure plays a role in protecting the optical cable connetion, which can meet the requirements of overhead, pipeline installatin methods. It is one of the main equipment for user access points. It mainly completes the indoor/outdoor connection of the distribution optical cable and the household line optical cable. It is widely used in communications, Network system, CATV cable TV, optical cable network system, etc.


Features:


lThe fiber optic splice closure can be used for fusion splicing of part of the main optical cable and branch optical cable, part of the main optical cable and pigtail .

lThe increase or decrease of the fiber splice tray is quick and time-saving. The turning angle of the splice tray can reach above 90℃, which provides convenience for expansion and maintenance in the future.

lThe splice closure has the characteristic of innovative structural design, convenient and reliable installation. The whole set of plastic parts adopts scientifically formulated high-strength PP, PC engineering plastics. The injection molding can be used in a natural environment of 40℃~+65℃ for a long time.

lThe elastomer sealing member can be repeatedly opened and still maintain good sealing performance.

lThe fiber optic joint box can be mounted on the wall, pole, pipe, overhead. For the construction of optical fiber network, FTTH access reduces costs and improves communication quality


Packing & Delivery


Outdoor Waterproof Mini Type Vertical Fiber Optic Splice Closure with 1 Inlet and 3 Outlet 24 Core

Production


Outdoor Waterproof Mini Type Vertical Fiber Optic Splice Closure with 1 Inlet and 3 Outlet 24 Core

Outdoor Waterproof Mini Type Vertical Fiber Optic Splice Closure with 1 Inlet and 3 Outlet 24 Core

Part number

UNFOSC-VH48-01

structure

Vertical Mechanical seal

Material

PP+GF,PC+APC

Dimension (mm):

300.5(H)×146(Φ)mm

Max Capacity

48Core

Max splice tray(pcs)

4

Ports

2 inlet 2 outlet


FAQs

How many inlets and outlets does the fiber splice closure have?

The joint box have 2 inlets and 2 outlets.

What is the shell material of the fiber optic splice closure?

The shell material of the splice closure can be made of PP,PC+ABS.

What is the protection level of the fiber optic splice closure?

The protection level of the splice closure is IP68.

How many fiber cores can you choose for this fiber optic splice closure?

You can choose 12,24,48 cores,the maximum number of cores is 48.

Whether the fiber splice closure is use for outdoors or indoors?

The splice enclosure can be used for both outdoors and indoors.

What is the installation method of the fiber joint closure?

The optic joint closure can be laid overhead, pipes and poles.

What's the sealing method of the fiber optic splice closure?

This splice closure adopts mechanical sealing.
