Indoor Fiber Optic Cable GJFJV 2.0mm 3.0mm Simplex G657 G655 Single Mode Multimode LSZH|PVC

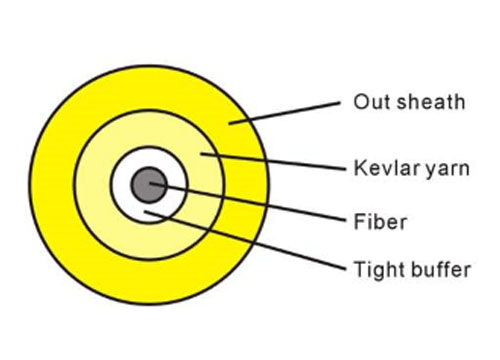

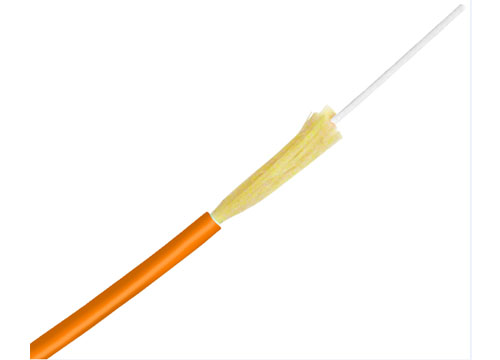

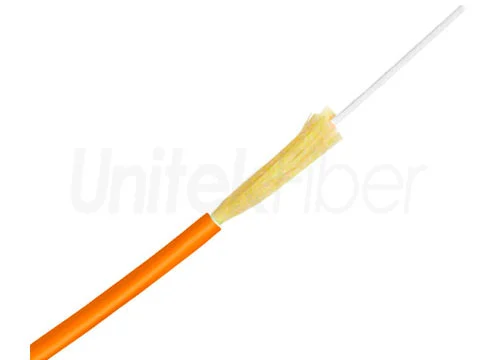

Indoor Fiber optic cable is consist of 0.9mm tight buffered cable, Kevlar yarn and an outer jacket with LSZH or PVC material. This fiber cable is mainly used for termination assembling. The fiber cable can be simplex core and duplex cores.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Indoor Fiber Optic Cable GJFJV 2.0mm 3.0mm Simplex G657 G655 Single mode Multimode LS

The cable is usually cut at different length and terminated with SC, LC, FC or ST connectors at the one end to become a pigtail.


Features


  • High strength Kevlar yarn member

  • High quality tight buffered or loose tube.

  • Soft and easy to strip

  • Round construction


Application


  • Adopted to Indoor distribution

  • As patchcord of communication equipment

  • Suitable for communication equipment served

  • Can be installed conveniently and operated simply

Parameter of Indoor Fiber Optic Cable GJFJV 2.0mm 3.0mm Simplex G657 G655 Single mode Multimode LSZH


No. of fiber1
Fiber ModelG.657A1(Corning)
Strength MemberMaterialAramid yarn
Tight bufferMaterialPVC
Diameter(±0.06)mm0.9
Thickness(±0.03)mm0.32
Outer SheathMaterialPVC
Thickness(±0.05)mm0.300.35
Cable Diameter(±0.1)mm2.03.0
Cable Weight(±2)kg/km46
Min. bending radiusWithout Tension10.0×Cable-φ
Under Maximum Tension20.0×Cable-φ
Temperature range


(℃)

Installation-20~+60
Transport&Storage-40~+70
Operation-40~+70



Fiber Color

Fiber Color

Is indoor fiber optic cable 3.0mm?

If you are asking about the outer diameters, we have many types of cable diameter, such as 2.0mm and 3.0mm.

What is the fiber type of indoor fiber optic cable?

We have single mode and multi mode indoor fiber cables as per your requests.

What are the features of indoor fiber optic cable?

Good mechanical and environmental characteristics, soft, flexible, easy to lay and splice, and with big capacity data transmission.

What color is the outer sheath of the indoor optical cable?

Usually, single mode fiber optic cable is yellow, multi-mode is orange, pink. We can produce according to your design.

I want to ask how many fiber cores in the indoor fiber optic cable?

UnitekFiber provides 2-288 fiber cores for the indoor fiber optic cable.

Do you offer guarantee for the products?

Yes, we offer 25 years warranty to our formal products.
