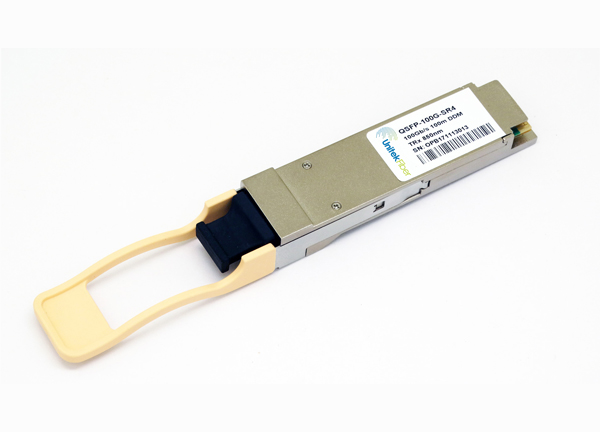

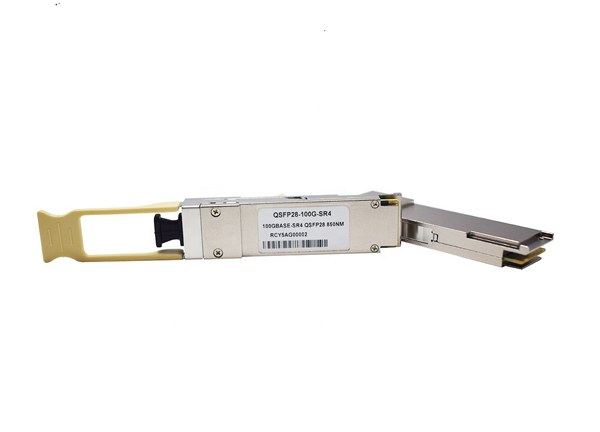

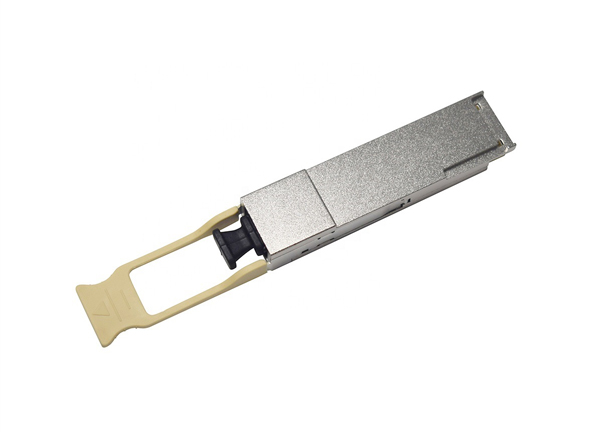

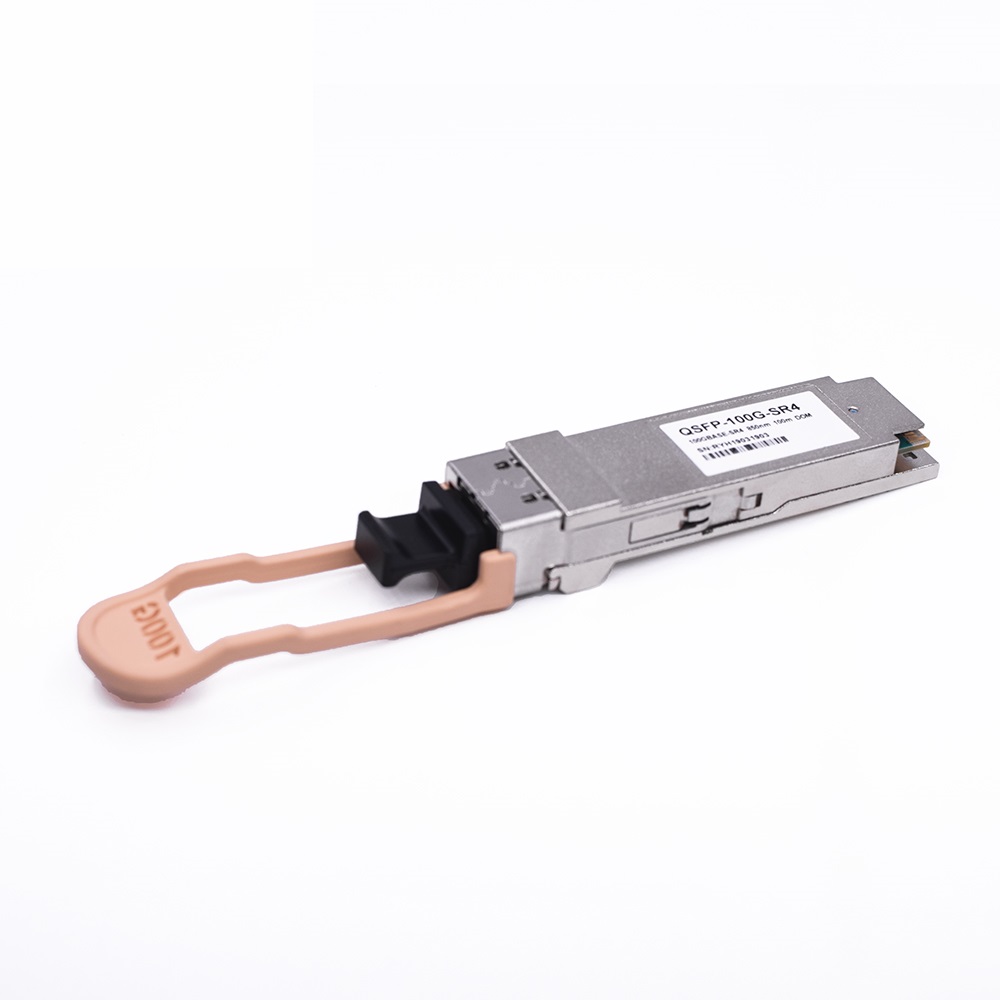

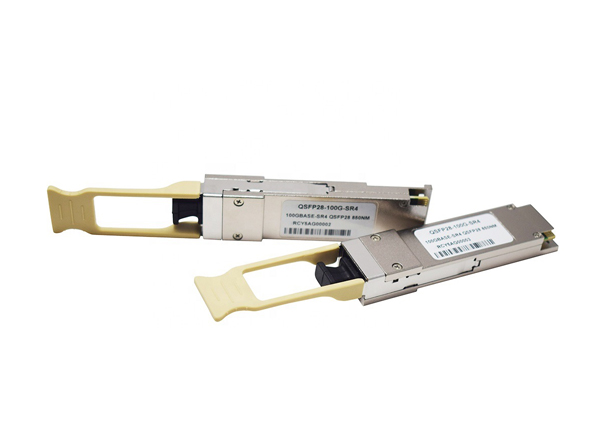

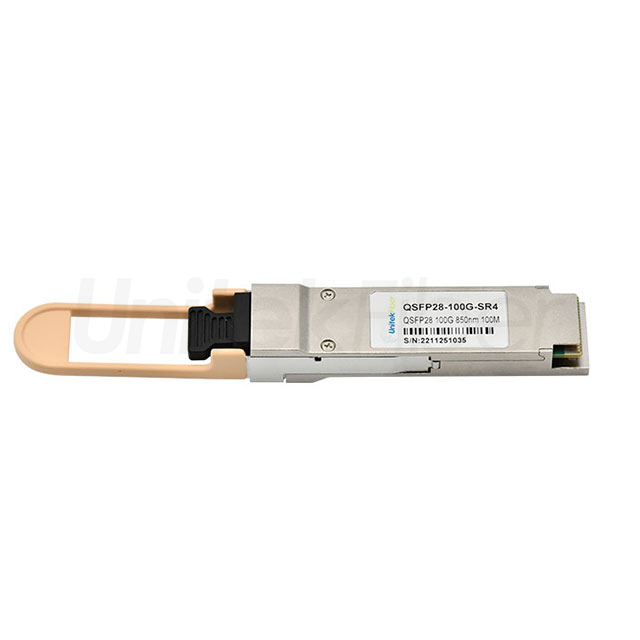

High Quality QSFP28 100G Optical Transceiver for Ethernet and Data Center 850nm 100m

Features of the QSFP28 100G optic transceiver solution: The interface model is exactly the same as 40GBase optic transceiver, and the MTP/MPO fiber connector is used for docking. The original physical fiber link can remain intact, saving fiber input costs. Conventional OM3 and OM4 multimode fiber can transmit 70 m, 100 m distance.

Distance
SFP Types
Fiber Optic
Description
Parameter
FAQ
Download
Review
Video

Details of High Quality QSFP28 100G Optical Transceiver for Ethernet and Data Center 850nm 100m

High Quality QSFP28 100G Optical Transceiver for Ethernet and Data Center 850nm 100m

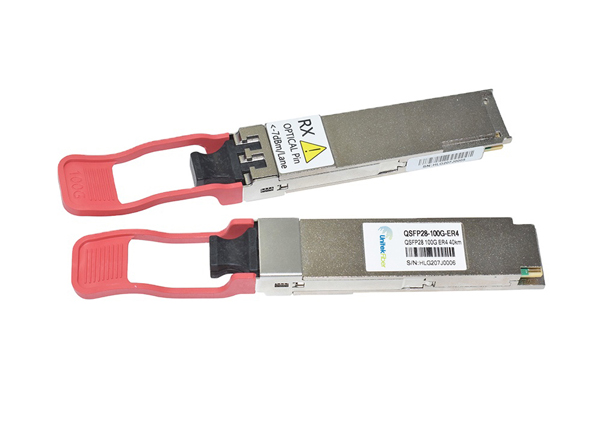

The Cisco QSFP-100GE-ER4 Compatible QSFP+ Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 40km over single mode fiber (SMF) using a wavelength of 1310nm via MPO connectors. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.


Network Connectivity

Connection for 100G QSFP+ ER4 Transceivers with Cassettes and Enclosures


High Quality QSFP28 100G Optical Transceiver for Ethernet and Data Center 850nm 100m

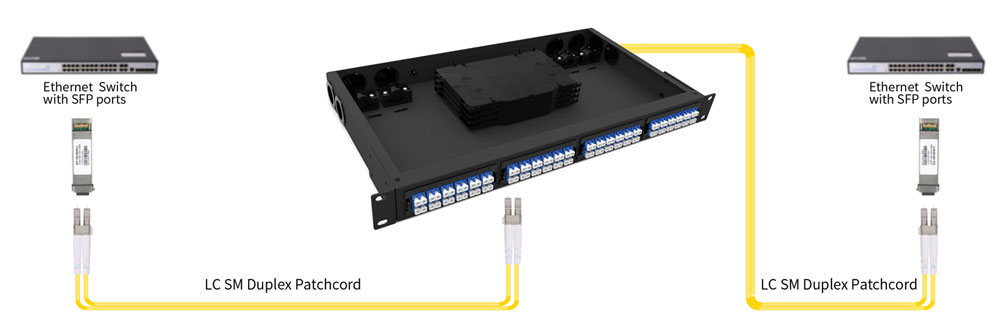

Direct Connection for 10G QSFP+ ER4 Transceivers with FAPs and Enclosures


High Quality QSFP28 100G Optical Transceiver for Ethernet and Data Center 850nm 100m


Product Highlights



100G QSFP Optical Transceivers Connectivity for Data Cent

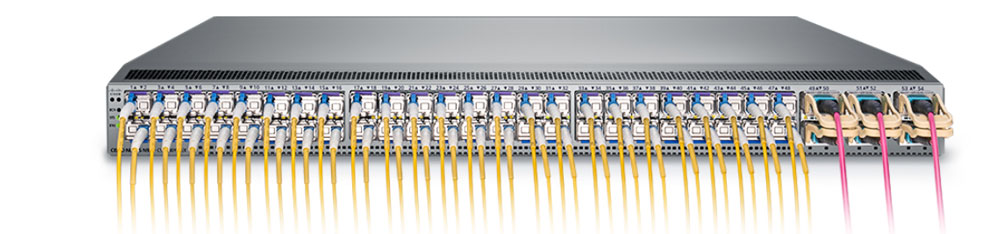

100G QSFP optical transceiver can be connected to MPO/MTP optical fiber connectors for 100G transmission applications. When used together with MPO fiber patch cords, the transmission distance can reach 150m.



High Quality QSFP28 100G Optical Transceiver for Ethernet and Data Center 850nm 100m


Tested in Host Devices for Proven Interoperability

100G optical transceiver has four data transmission channels, and the transmission rate of each channel is about 10Gbps, and the simultaneous transmission of four channels can achieve a transmission rate of 100Gbps.


High Quality QSFP28 100G Optical Transceiver for Ethernet and Data Center 850nm 100m


UnitekFiber provides a variety of cost-effective and practical 100G QSFP+ optical modules, and also provides reliable system solutions to help users build low-cost, high-efficiency, and easy-to-manage network systems.

Parameter of High Quality QSFP28 100G Optical Transceiver for Ethernet and Data Center 850nm 100m

PART NUMBER

FORM FACTOR

DATA RATE

WAVELENGTH

LASER

DISTANCE

MEDIUM

CONNECTOR

TEMPERATURE

UFQP28-100G-SR4

QSFP28

103G

850nm

VCSEL/PIN

100m

MMF

MPO

0℃~70℃

UFQP28-100G-LR4

QSFP28

103G

1310nm

DML/PIN

10km

SMF

Duplex LC

0℃~70℃

UFQP28-100G-LR4-A

QSFP28

112G

1310nm

EML/PIN

10km

SMF

Duplex LC

0℃~70℃

UFQP28-100G-LR4-B

QSFP28

112G

1310nm

DML/PIN

10km

SMF

Duplex LC

0℃~70℃

UFQP28-100G-CWDM4

QSFP28

103G

1310nm

DML/PIN

2km

SMF

Duplex LC

0℃~70℃

UFQP28-100G-PSM4

QSFP28

103G

1310nm

DML/PIN

500m

SMF

MPO

0℃~70℃


What is a QSFP28 Optic Transceiver Module?

QSFP28 is a hot-pluggable transceiver module designed for 100G data rate.

What are the main application scenarios of 100G optical modules?

100G connectivity for switches and routers in the data center.

What connection ports do 100G optical modules have?

Usually, QSFP28 100G optical modules have MPO port and LC port.

What is the farthest transmission distance of a 100G optical module?

QSFP28-ZR4 100G optical transceiver module can transmit 80KM.

Which brands of equipment are 100G QSFP28 optical modules compatible with?

Unitekfiber's optical modules are compatible with Fiberhome, Huawei, ZTE, Cisco, Ericsson, Nokia and other brands.

Can this 100G QSFP28 module be used in temperatures other than commercial temperature?

Usually, the optical transceiver modules we produce are commercial temperature, suitable for 0-70 degrees.
