Direct Buried Fiber Cable|GYXTW53 Fiber Optic Cable 12 Core Armored Central Loose Tube Double Jacket PE

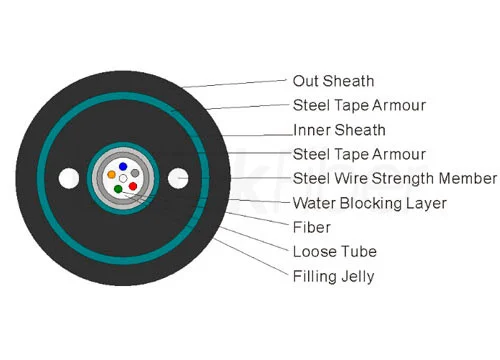

GYXTW53 cable is a central loose tube fiber cable with double steel tape and double PE jacket.GYXTW53 fiber cable is a small size and light weight, which makes the cable with superior bending resistance and is convenient for installation work.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Direct Buried Fiber Cable|GYXTW53 Fiber Optic Cable 12 core Armored Central Loose Tub

The steel tape armor layer enhances the anti-side pressure and moisture resistance of the cable. Two steel wire reinforcements with good tensile properties. Double-sided coated steel strip (PSP) improves the moisture resistance of the cable. The unique process control and high-quality materials make the cable with excellent mechanical and environmental performance.


Features:


  • Full section water blocking structure ensures good water and moisture resistance

  • Loose sleeve filled with special ointment for critical fiber protection

  • Two parallel round wires resist tension and side pressure

  • Optical fiber cable with small outside diameter, light weight, excellent bending performance

  • The loose tube is located in the physical center of the cable, convenient for construction and operation.

  • Polyethylene sheath makes the cable have good UV resistance

  • Double armored jacket makes cable better side pressure resistant

  • Product life more than 30 years


Application:


  • Core Network, Metropolitan Area Network, and Access Network Outdoor Optical Cable

  • Laying method: Buried directly, pipeline

  • Working temperature: -40℃~+60℃

  • Bend radius: Static 10 times the cable diameter

  • Dynamic 20 times optical cable diameter


Packaging & Shipping


Air Blown Fiber Optic Cable

Production


Blown Fibre


Parameter of Direct Buried Fiber Cable|GYXTW53 Fiber Optic Cable 12 core Armored Central Loose Tube

No. of cable

4

Fiber Model

G.652D

Strength Member

Material

Steel Wire

Diameter(±0.05)mm

0.9

Loose Tube

Material

PBT

Diameter(±0.06)mm

2.0

Thickness(±0.03)mm

0.32

The Max.Core NO./Tube

4

Colour

White

Water Blocking layer(Material)

Water Blocking Tape

Armoring

Material

Steel Strip

Thickness(±0.03)mm

0.25

Inner

Sheath

Material

MDPE

Thickness(±0.2)mm

0.9

Outer Sheath

Material

MDPE

Thickness(±0.2)mm

1.8

Cable Diameter(±0.2)mm

13.0

Cable Wetght(±5)kg/km

165

Min. bending radius

Without Tension

12.5×Cable-φ

Under Maximum Tension

25×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

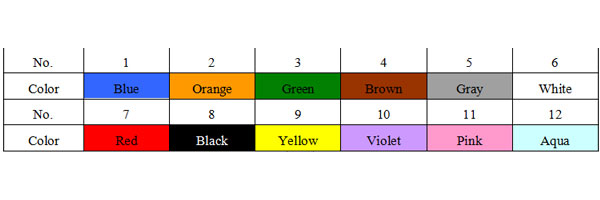

Fibre & Loose Tube Color

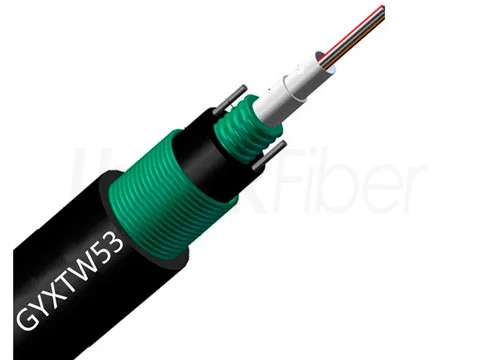

GYXTW53 Armored Central Loose Tube Direct Buried Fiber Cable


What is Fiber Optic Direct-Burial Cable?

Fiber optic direct-burial cable is a cable that has passed insulation water absorption and crush-resistance tests.

Are these definitely for direct burial? Is this an armored cable?

Armored, you can directly bury just keep the ends clean.

Why can the direct buried optical cable be directly buried in the ground for installation?

Because direct bury fiber optic cable has steel tape or steel wire armored on the outside to protect the fiber optic cable.

Can I get this in 96core direct bury fiber optic cable?

Yes, you can. Please contact us with your request.

What is your delivery time?

Lead time is 15-20days, according to order quantities.

How will you deliver my goods to me?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
