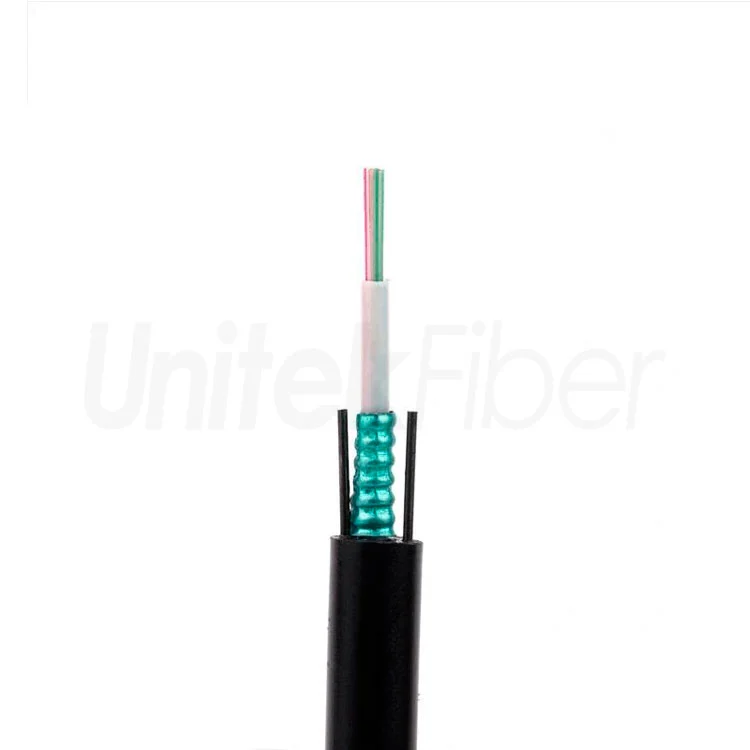

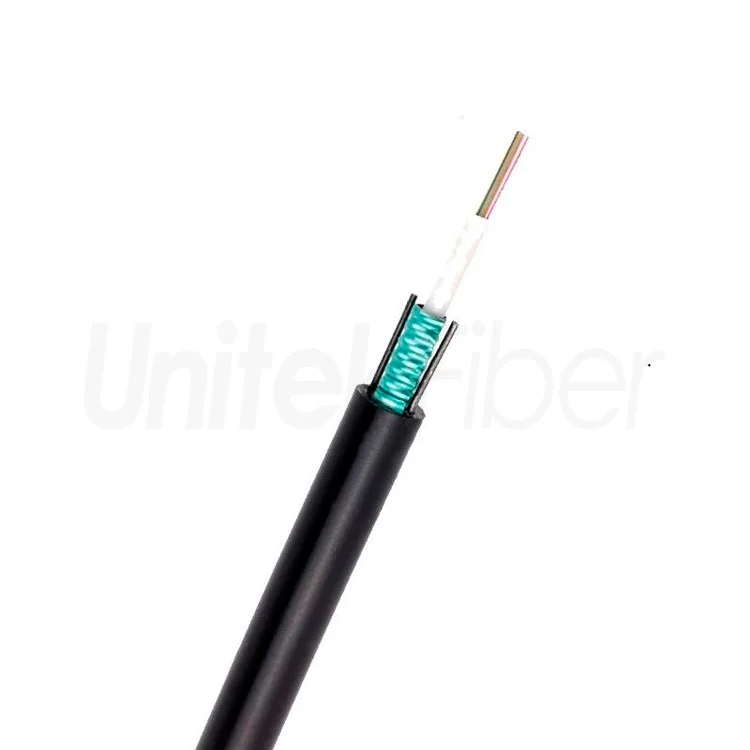

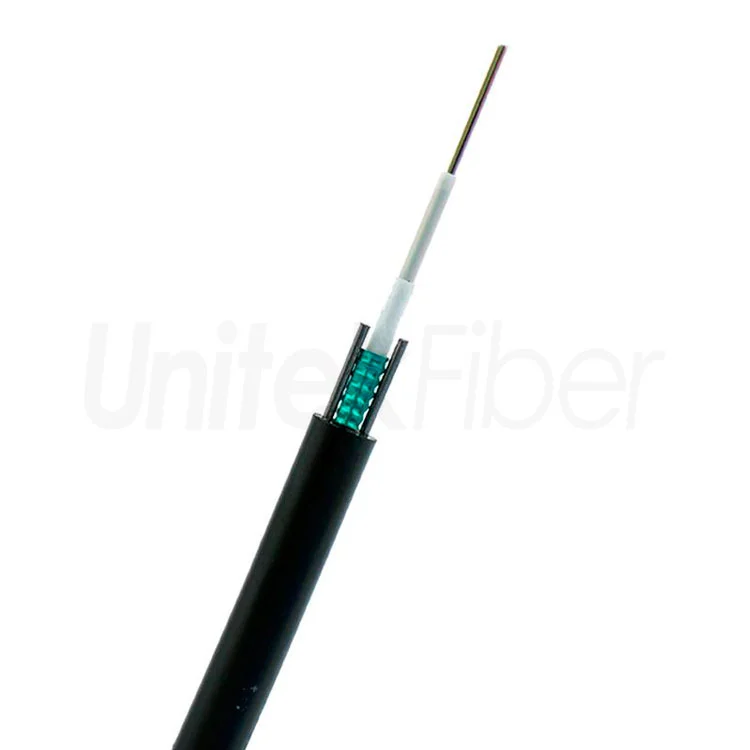

Outdoor Fiber Optical Cable Direct Bury GYXTW Central Loose Tube Armored SM G652D 8 16 24 Core MDPE

GYXTW fiber optic cable is suitable for outdoor application, which is greatly used for aerial and duct applications. UnitekFiber produces single mode and multimode fiber cable types. The fiber counts is from 2 cores to 24 cores.

Fiber Optic
Description
FAQ
Specification
Reviews
Video

Outdoor Fiber Optical Cable Direct Bury GYXTW Central Loose Tube Armored SM G652D 8 16 24 Core MDPE

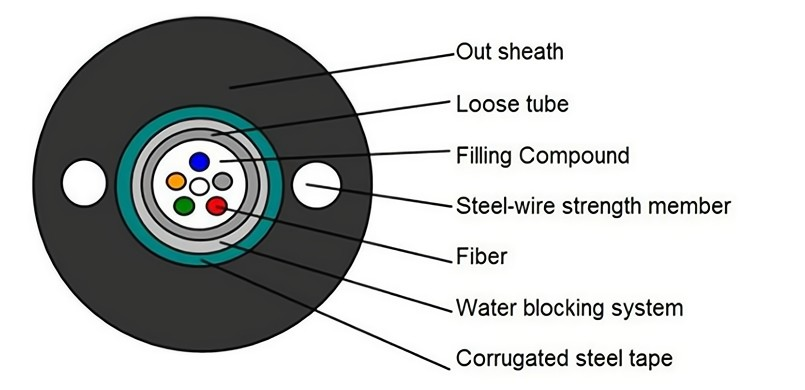

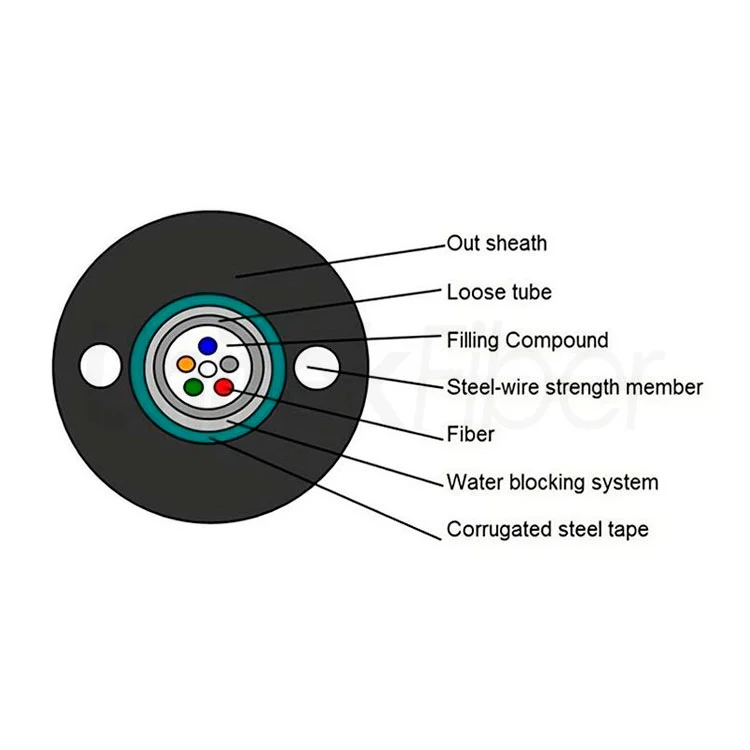

Basic structure of GYXTW fiber optical cable


1. Strength member: This are two parallel high-strength steel wire, providing mechanical support and preventing the fiber optic cable from stretching under tension.

2. Loose tubes: The loose tube are placed around the central strength member, each containing one or more optical fiber. These tubes help to protect the optical fiber from moisture, physical damage, and other environmental factors.

3. Optical fiber: The core component of the fiber optic cable, optical fiber transmit data in the form of light signals.

4. Filling compound: A gel-like substance fills the space between the loose tubes and the central strength member, helping to cushion the optical fiber against physical stress and protect them from moisture and water penetration.

5. Steel tape: Two layers of steel tape are wrapped around the fiber optic cable, providing additional mechanical protection against crushing, impact, and other external forces.

6. Outer sheath: The entire fiber optic cable is covered with a polyethylene (PE) outer sheath, which offers resistance against abrasion, weathering, and other environmental factors.


Outdoor Fiber Optical Cable Direct Bury GYXTW Central Loose Tube Armored SM G652D 8 16 24 Core MDPE


Advantages of GYXTW fiber optical cable


1. High bandwidth capacity: GYXTW fiber optical cable can support high-speed data transfer rates, making it ideal for applications that require high bandwidth.

2. Long transmission distance: The optical fibers used in GYXTW fiber optical cable can transmit data over long distances without inducing signal loss or degradation.

3. Durability: GYXTW fiber optical cable is designed to withstand harsh outdoor environments, and can resist a variety of physical and environmental stresses such as moisture, temperature fluctuations, and UV light exposure.

4. Flexibility: GYXTW fiber optical cable can be installed in various ways, including aerial, duct, and direct-buried installations, making it a versatile choice for a wide range of applications.

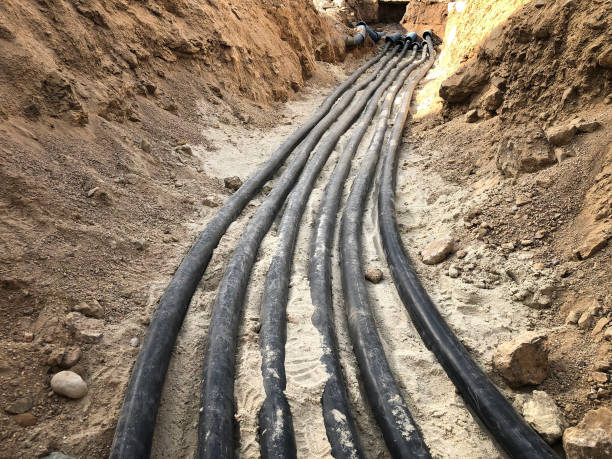

Application range of GYXTW fiber optical cable


GYXTW fiber optic cable commonly used in telecommunication networks as both backbone and distribution networks, as well as in CATV networks to deliver video, internet, and telephone services to customers. GYXTW fiber optic cable is also used in security and surveillance applications to transmit high-resolution video footage over long distances, in industrial automation applications to connect sensors and other devices in harsh environments, and in power utilities to monitor electricity transmission and distribution systems.


Outdoor Fiber Optical Cable Direct Bury GYXTW Central Loose Tube Armored SM G652D 8 16 24 Core MDPE

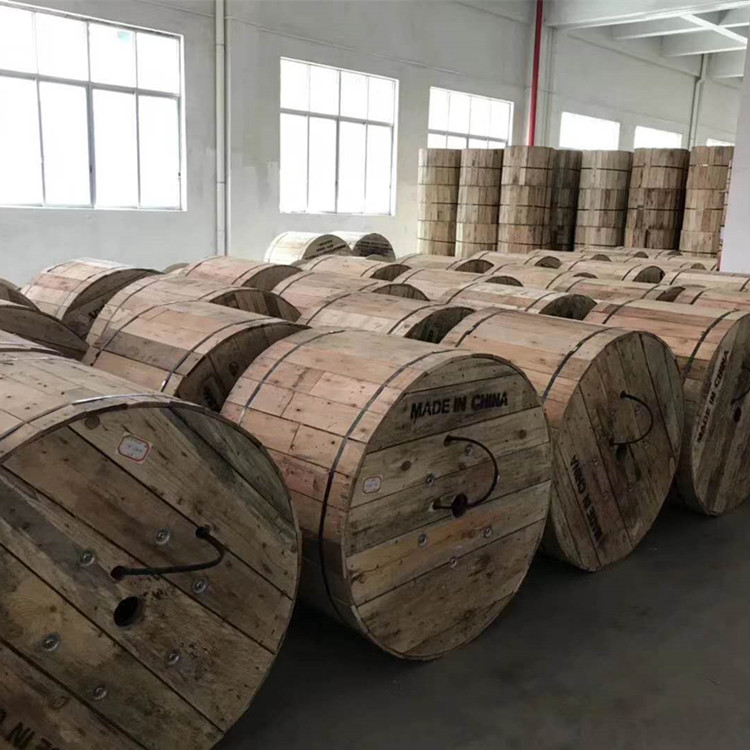

Packing & Delivery of GYXTW fiber optical cable


During the transportation of fiber optic cables, the packaging and transportation conditions need to be strictly controlled to ensure the integrity and safety of the pipeline. Optical cables usually use wooden boxes and cardboard boxes as outer packaging materials. These materials should have the characteristics of moisture-proof, shock-proof, and protection, and can protect the internal structure and core of the optical cable.


Outdoor Fiber Optical Cable Direct Bury GYXTW Central Loose Tube Armored SM G652D 8 16 24 Core MDPE


Can you supply customized products and logo?

Yes,we supply OEM&ODM service.


How can I get some samples?

We have the samples service,if you need any support please contact sales@unitekfiber.com.

What is the maximum transmission distance for GYXTW fiber optic cable?

In general, GYXTW cable can transmit data over distances of up to 80 kilometers or more.

What is the typical warranty period for GYXTW fiber optic cable?

It typically ranges from 10 to 25 years or more.


Can GYXTW fiber optic cable be installed aerial?

It can also be installed in ducts or buried underground.
