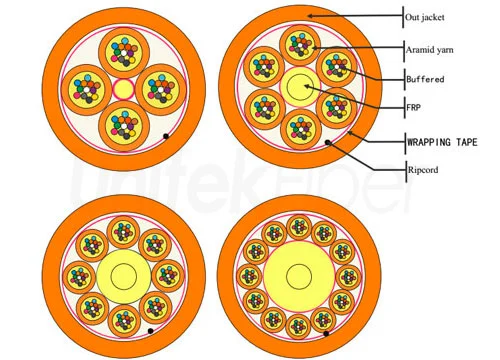

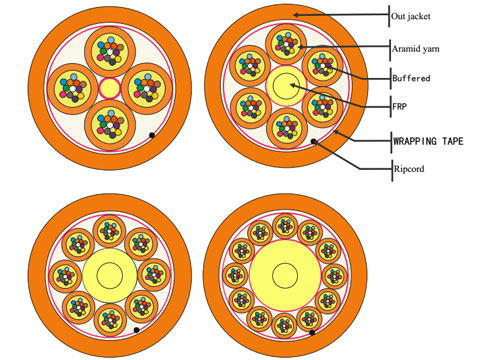

The structure of breakout multi-core indoor fiber cable is 4-12 loose tube inside with 12 cores of 0.9mm or 0.6mm fiber cables as a sub-unit. A fiber reinforced plastic (FRP) locates in the center of cable core as a non-metallic strength member.
The cable outer jacket is completed with PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) material. This fiber core of the breakout cable can reach 144 cores.
High strength Kevlar yarn member
Tight buffered design
Round construction
Adopted to Indoor distribution
As patchcord and pigtail of communication equipment
Suitable for communication equipment served
Can be installed conveniently and operated simply
No. of cable | 24 | ||
Fiber Model | G.652D | ||
Strength Member | Material | Aramid yarn | |
Tight lines | Material | PVC | |
Diameter（±0.06）mm | 0.9 | ||
Thickness（±0.03）mm | 0.30 | ||
Outer Sheath | Material | PVC | |
Thickness（±0.1）mm | 1.2 | ||
Cable Diameter（±0.2）mm | 8.5 | ||
Cable Weight（±5）kg/km | 73 | ||
Min. bending radius | Without Tension | 10.0×Cable-φ | |
Under Maximum Tension | 20.0×Cable-φ | ||
Temperature range （℃） | Installation | -20~+60 | |
Transport&Storage | -40~+70 | ||
Operation | -40~+70 | ||

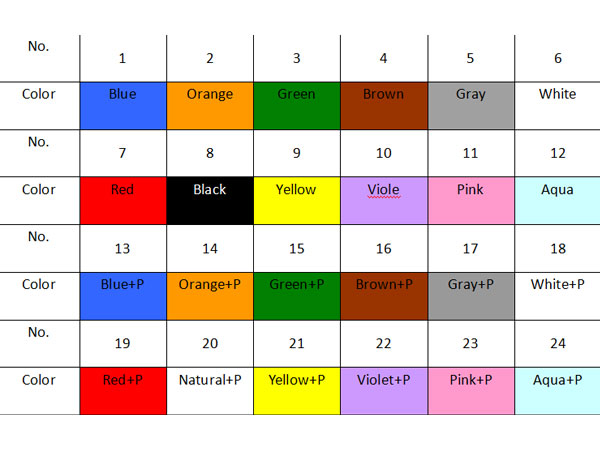

Fiber Colors

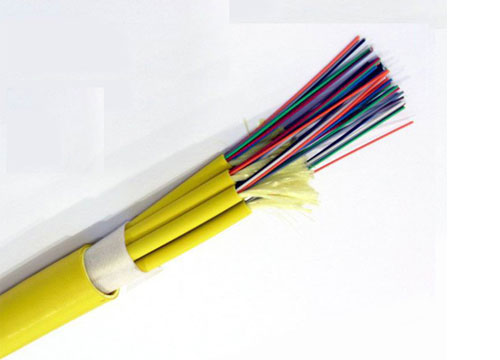

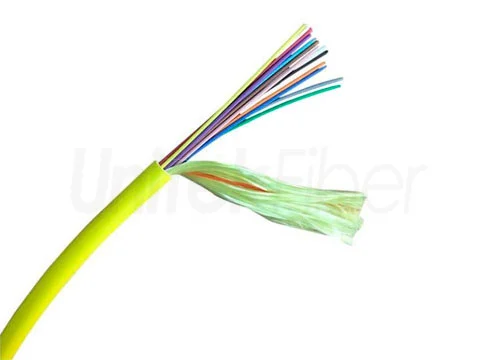

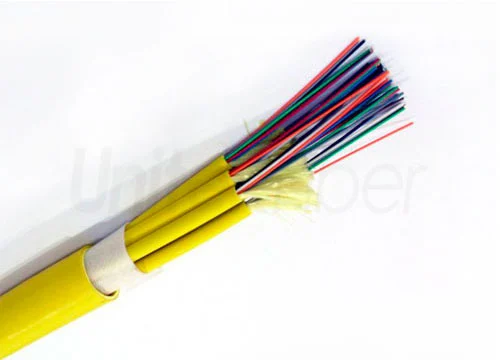

Breakout fiber optic cable consist of two or more simplex cables bundled with a strength member and central member covered with an outer jacket.
The sheath material of breakout indoor fiber optic cable is LSZH, PVC, and OFNP.
It has the features of corrosion resistance, waterproof, ultraviolet protection, flame retardant, environmental protection.
The indoor optical cable uses aramid yarn as a reinforcing member to protect the optical fiber.
2-288cores.
