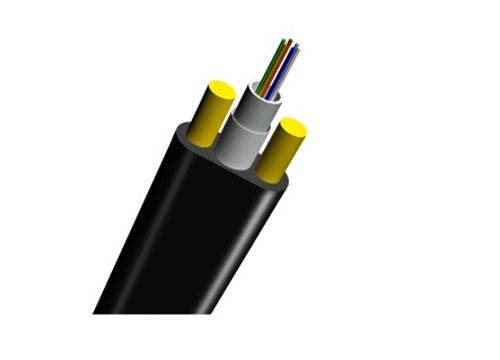

Mini Span ADSS Fiber Optic Cable GYFXTBY 12-24 fibers Flat Drop Self-Supporting GYFXTY

Mini Span GYFXTBY ADSS fiber optic is applied for aerial telecom project of 80m 100m 120m span. This fiber cable is also applied for duct application. The structure of mini ADSS fiber optic cable is flat type central loose tube, Kevlar and glass yarn is usually used as reinforcement in the tube.

Cores
1
2
4
8
12
Series
Fiber Optic
Details
Parameter
FAQ
Download
Reviews
Video

Details of Mini Span ADSS Fiber Optic Cable GYFXTBY 12-24 fibers Flat Drop Self-Supporting GYFXTY

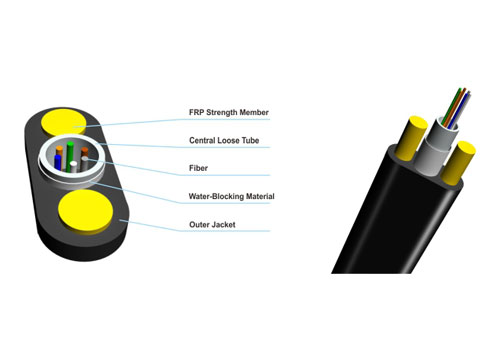

The fiber cable filling is to prevent water and moisture. And the ripcord is for peeling sheath easily. There are FRP strength members between the central tube for self-supporting system. The outer sheath is LSZH or MDPE material.


Features:


  • Good mechanical and temperature resistant performance.

  • Uni-tube gel-filled construction for superior fiber protection.

  • Two parallel steel wires ensure tensile strength.

  • PE sheath protects cable from ultraviolet radiation.

  • Light weight and small diameter, easy to installation and operation.


Applications:


  • Adopted to Outdoor Aerial, Duct installation

  • Adopted to trunk power transmission system.

  • Access network and local network

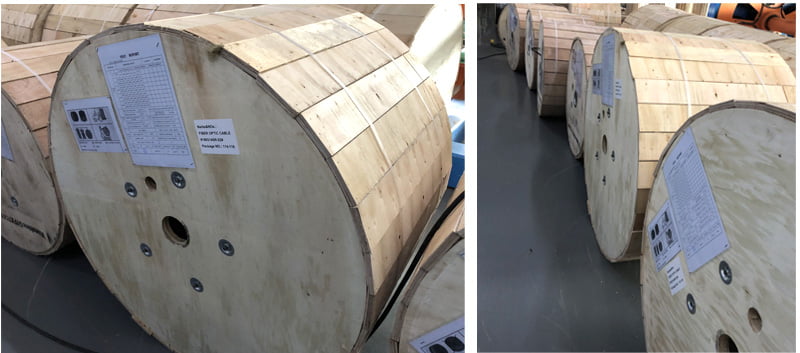

Packing and Shipping


Air Blown Fiber Optic Cable

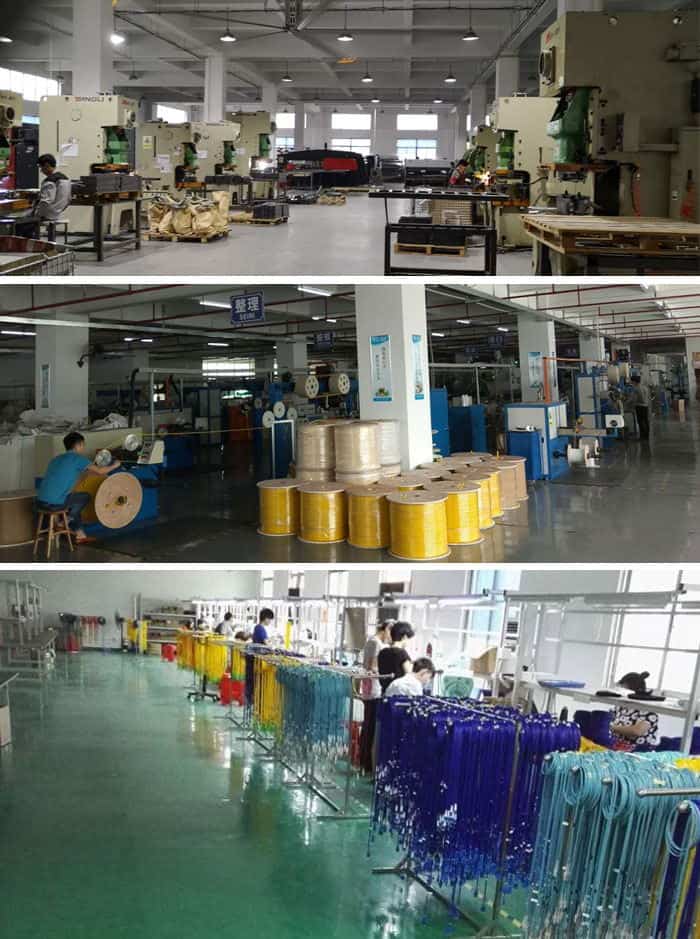

Production

Blown Fibre

Parameter of Mini Span ADSS Fiber Optic Cable GYFXTBY 12-24 fibers Flat Drop Self-Supporting GYFXTY

No. of cable

1

Fiber Model

G.652D

subelement

Tight line

Material

PVC

Thickness

0.32(±0.05)mm

Diameter

0.9(±0.1)mm

Strength Member

Material

Aramid Yarn

Inner Sheath

Material

LSZH

Thickness

0.45(±0.05)mm

Diameter

2.9(±0.1)mm

Color

White

Strength Member

Material

FRP

Diameter

1.5(±0.05)mm

No.

2

Water Blocking Layer(Material)

Special Water Blocking material used for

Effecive water blocking and ease of installation

Ripcord(Material)

Nylon

Outer Sheath

Material

MDPE

Color

Black

Cable Diameter

(4.5±0.2)×(8.1±0.2)mm

Cable Wetght

31(±2)kg/km

Max. allowable tension

(Short-term)

1350N

Max. allowable tension

(Long-term)

300N

Crush resistance test

2000N/10cm

Min. bending radius

Static

100mm

dynamic

150mm

Temperature range

(℃)

Installation

-30~+60

Transport&Storage

-40~+75

Operation

-40~+70

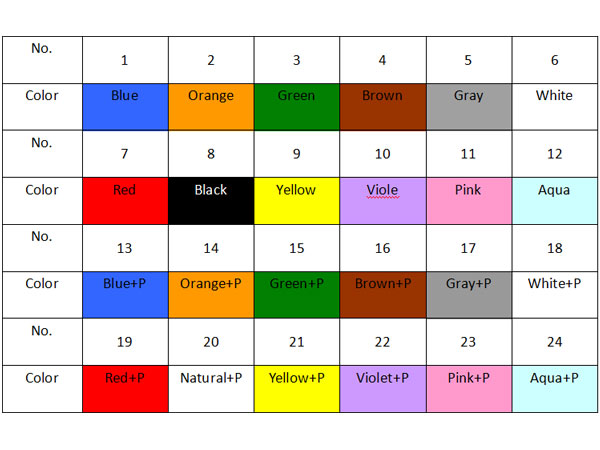

Fibre Colors
Fibre Colors
* "P" means Point mark


What is ADSS fiber optic cable?

All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements.

How about the pole span for ADSS fiber optic cable?

UnitekFiber can supply ADSS fiber optic cable with 100-800 meter pole span.

Why does fiber optic cable need all-dielectric material?

Dielectric means it has non-conducting properties of a non-metallic, insulating material that resists the passage of electric current.

Can ADSS be installed underground?

ADSS cables should be placed in Aerial and duct, but can not be direct-buried.
