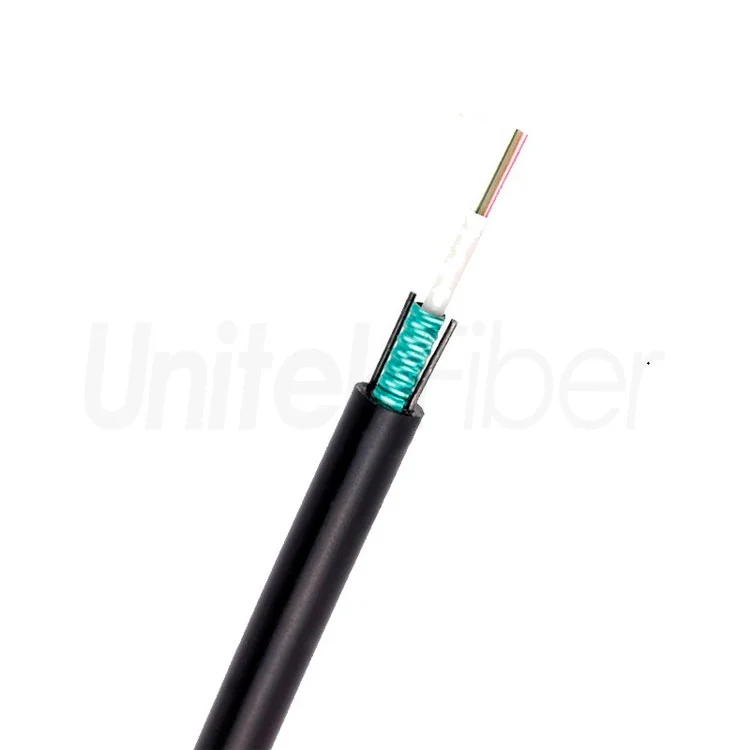

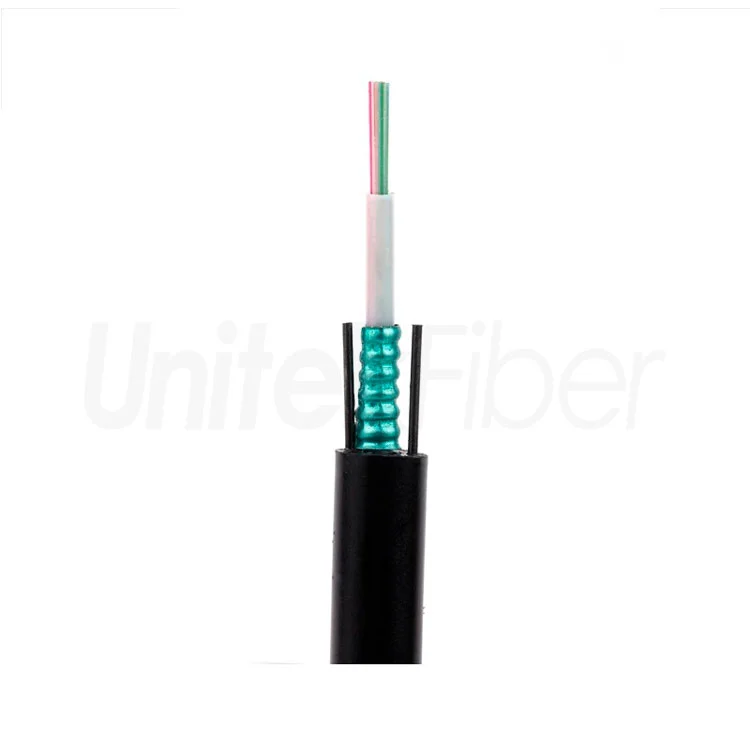

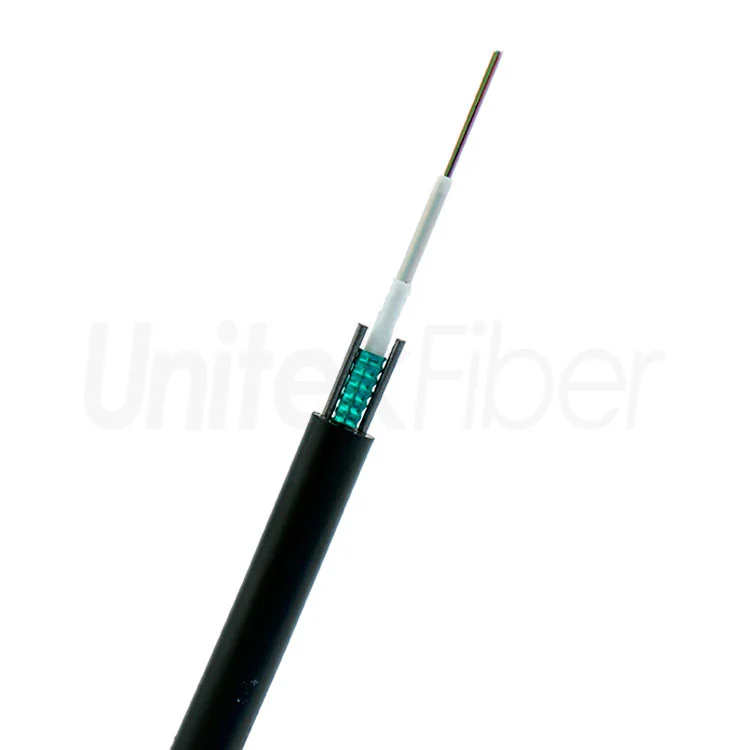

Customized Outdoor GYXTW Fiber Optic Cable 4 Core Single Mode G652D Waterproof Armored Jacket PE

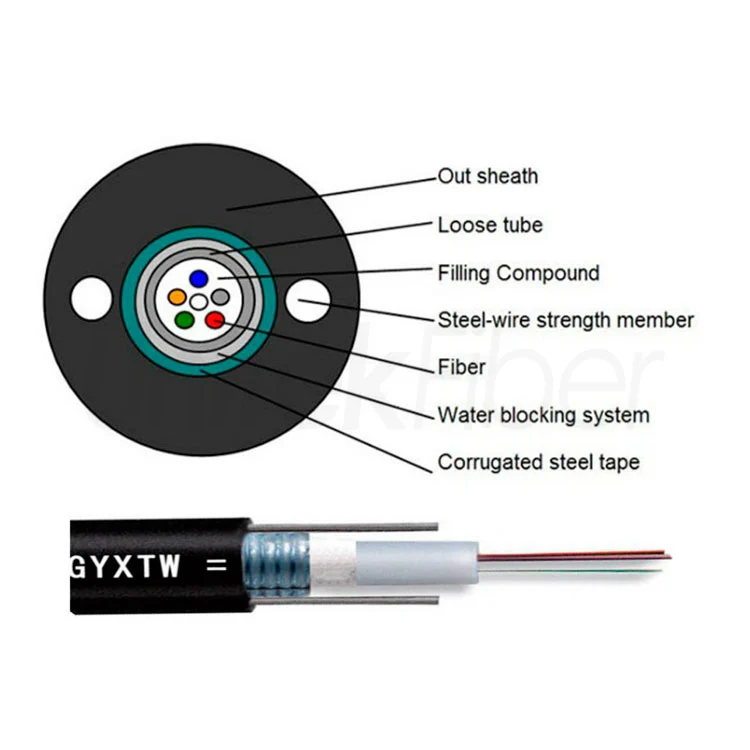

The loose tube of GYXTW fiber optic cable is filled with waterproof compound, which is covered with a double-sided plastic-coated steel longitudinal coating. Water material is added between the steel tape and the loose tube to ensure the compactness and longitudinal water resistance of the optical cable. Two parallel steel wires are placed on both sides to form a fiber cable with polyethylene (PE).

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Customized Outdoor GYXTW Fiber Optic Cable 4 core Single Mode G652D Waterproof Armor

Features


GYXTW optical cable is of compact structure, light weight and easy to lay, and has good environmental and mechanical properties. The structure of the GYXTW optical cable adopts parallel metal strengthening members and a central loose tube structure, with steel tape armor. The material of the optical cable is PE, LSZH.


Application:


  • Outdoor wiring.

  • Long-distance communication, inter-office communication.

  • Overhead and pipeline laying.


Packaging & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre


Parameter of Customized Outdoor GYXTW Fiber Optic Cable 4 core Single Mode G652D Waterproof Armored

No. of cable

2~8

10~12

14~24

Fiber Model

G.652D

Strength Member

Material

Steel Wire

Diameter(±0.05)mm

1.0

1.0

1.2

Loose Tube

Material

PBT

Diameter(±0.06)mm

2.1

2.4

3.0

Thickness(±0.03)mm

0.32

0.35

0.4

The Max.Core NO./Tube

8

12

24

Water Blocking layer(Material)

Water Blocking Tape

Armoring

Material

Steel Strip

Thickness(±0.03)mm

0.25

Outer Sheath

Material

MDPE

Thickness(±0.2)mm

2.0

Cable Diameter(±0.2)mm

8.1

8.3

9.6

Cable Wetght(±5)kg/km

63

65

95

Min. bending radius

Without Tension

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70


Fibre & Loose Tube Colors

No.

1

2

3

4

5

6

Color

Blue

Orange

Green

Brown

Gray

White

No.

7

8

9

10

11

12

Color

Red

Black

Yellow

Violet

Pink

Aqua



Can you supply OEM products under our brand?

Yes, we are manufacturer, we accept OEM service, we can print your LOGO on fiber cable and fiber cable drums.

How many types of Aerial fiber optic cable you can provide?

The Figure 8 fiber optic cable, GYXTW fiber optic cable, ADSS cable are all strong outdoor fiber cables for Aerial Application.

Can your fiber optic cable be bent without damaging the fiber?

Our fiber cable can be bent with diameters of 2.5cm or less.

What are the main products in your company?

We provides fiber optic cables, ADSS Fiber optic cable, Aerial fiber optic cable of GYTA, GYTC8S, GYFTY, GYTS, underground fiber cable and so on.

Where is the aerial fiber optic cable used?

Mostly used in Local Area Network (LANs), high density data center, FTTH Telecommunication.

If the high temperature will damage the aerial fiber optic cable?

Don't worry, the aerial fiber optic cable can handles the most challenging telecommunications data transmission requests.
