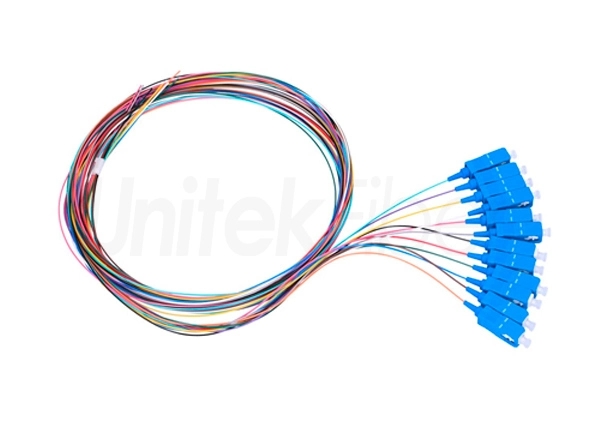

12 Colors Fibers Bulk Fiber Optic Pigtails SC APC 0.9mm LSZH PVC SM MM

UnitekFiber is a manufacturer producing fiber cables, patch panels, patchcords and pigtails.

Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of 12 Colors Fibers Bulk Fiber Optic Pigtails SC APC 0.9mm LSZH PVC SM MM

We are Providing arious types and wavelengths of fiber pigtails, which typical are 9/125 single mode, 50/125 multimode and 62.5/125 multimode. The termination fiber connector can be SC, LC, FC, ST, MTRJ etc with PC, UPC, and APC polish types. And the cable diameter can be 0.9 / 1.8 / 2.0 / 3.0 / mm.

PC, UPC, and APC polish types. All our fiber pigtails are with good packing, competitive prices and very fast delivery. OEM service is avaibable


Characteristics:


  • Low Insertion loss

  • High return loss

  • Good Repeatability

  • Good Interchange

  • Excellent Environmental Adaptability


Application:


  • Communication rooms

  • FTTH (Fiber to The Home)

  • LAN (Local Area Network)

  • FOS (fiber optic sensor)

  • Fiber Optic Communication System

  • Optical fiber connected and transmitted equipment

  • Defense combat readiness


Packaging and Shipping


12 Colors Fibers Bulk Fiber Optic Pigtails SC APC 0.9mm LSZH PVC SM MM

Production


12 Colors Fibers Bulk Fiber Optic Pigtails SC APC 0.9mm LSZH PVC SM MM




Parameter of 12 Colors Fibers Bulk Fiber Optic Pigtails SC APC 0.9mm LSZH PVC SM MM

Parameter

Unit

Mode Type

PC

UPC

APC

Insertion Loss

dB

SM

≤0.3

≤0.3

≤0.3

MM

≤0.3

≤0.3

-----

Return Loss

dB

SM

≥50

≥50

≥60

MM

≥35

≥35

-----

Fiber cable

Diamete

PVC, LSZH

Material

PVC, LSZH

Connector type


SC, LC. ST. FC

Repeatability

dB

Additional loss<0.1db,return loss< 5 dB

Interchangeability

dB

Additional loss<0.1db,return loss< 5 dB

Connection times

times

>1000

Operating Temperature

-40℃- +75℃

Storage Temperature

-40℃- +85℃


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Reviews

Bradley
Jul 25, 2022

Great fiber. Keep me regular. Worked as intended.

Verified Purchase
Helpful 1
