Customized ADSS Fiber Optic Cable Single Mode 24 Fibers Non-metal Stranded Loose Tube Long Span Double Jacket

The ADSS fiber optic cable uses all-dielectric materials because the fiber cable is applied in a high-voltage strong current environment and must be able to withstand the influence of strong electricity. Since it is used overhead on a power tower, ADSS fittings must be used to fix the ADSS cable on the tower.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

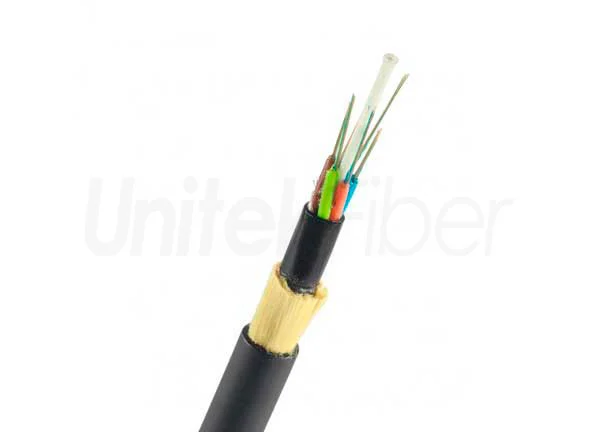

Description of Customized ADSS Fiber Optic Cable Single Mode 24 Fibers Non-metal Stranded Loose Tube

Optical Cable for Sale

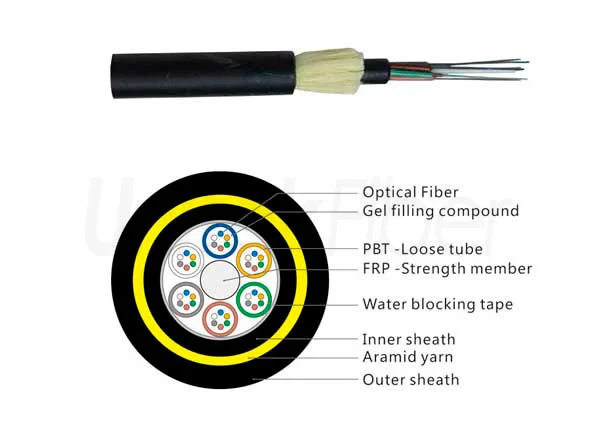

All-dielectric self-supporting ADSS optical cable (All Dielectric Self Supporting) provides a fast and economical transmission channel for power communication systems due to its unique structure, good insulation and high-temperature resistance, and high tensile strength. The double jacket ADSS fiber cable has an extra layer of the jacket, which improved compressive strength, it also is in a stranded structure design, the inner optical fibers and water-blocking grease are added into the fiber loose tube, and different loose tubes are wound around the central reinforcement (usually FRP).


Optical Cable Price


The Fiber Cores of ADSS Fiber Cable is 2-288Cores

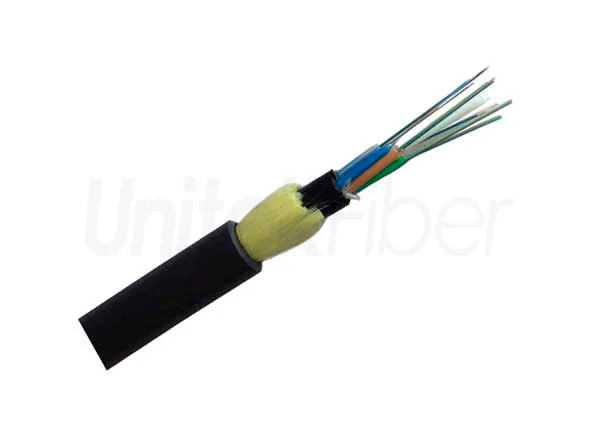

Features of ADSS Fiber optic Cable


Optical Cable Wire


Specially designed for power systems, it is a self-supporting aerial optical cable with a full insulation medium. Aramid Yarn is an important part of fiber optic cable for tensile resistance. They provide tensile strength to the finished cable assembly (they are crimped to the connector body so that any pull stress applied to the cable after it is connectorized will be taken by the aramid yarn, and not the fiber itself. ADSS optical cable has a wide temperature adaptability range and a small linear expansion coefficient, which meets the requirements of harsh environments.

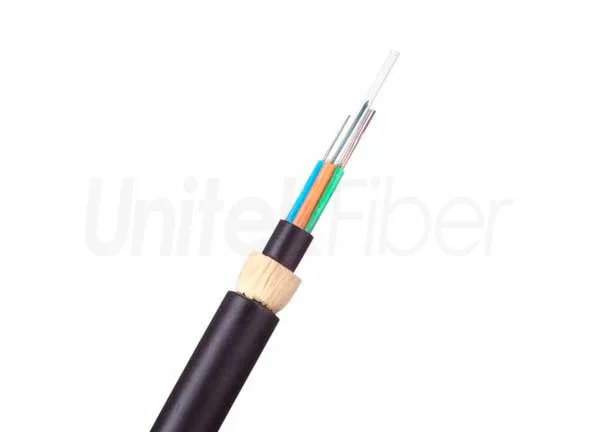

Applications of ADSS Fiber optic Cable


Optical Fibre Price


This ADSS fiber optic cable type is aimed to be used for voice, data, broadband and CATV transmission in Long Distance, Backbone and Local Area Networks with Aerial installation method. The special design of ADSS fiber cable suitable for installation on Power Transmission Lines and nearby Power Utilities.


Professional Assistant For ADSS Fiber Optic Cabling System


OFC Cable Price

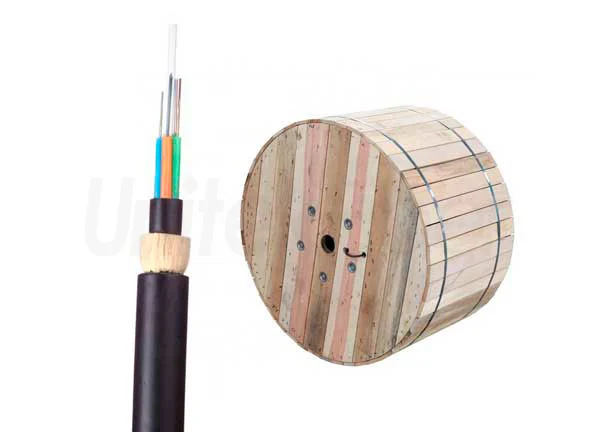

Packaging & Shipping


Air Blown Fiber Optic Cable

Parameter of Customized ADSS Fiber Optic Cable Single Mode 24 Fibers Non-metal Stranded Loose Tube L

No. of cable

/

24~30

32~60

62~72

96

Design

(StrengthMember+Tube&Filler)

/

1+5

1+5

1+6

1+8

Fiber type

/

G.652D

Central Strength Member

Material

mm

FRP

Diameter

(±0.05mm)

1.5

1.5

2.1

2.1

Loose Tube

Material

mm

PBT

Diameter

(±0.05mm)

1.8

2.1

2.1

2.1

Thickness

(±0.03mm)

0.32

0.35

0.35

0.35

MAX.NO./per

6

12

12

12

Water Blocking Layer

Material

/

Flooding Compound

Inner Sheath

Material

mm

MDPE

Thickness

0.9(nominal)

colour

black.

Additional Strength Member

Material

/

Aramid Yarn

Outer Sheath

Material

mm

MDPE

Thickness

1.8(nominal)

colour

black.

Cable Diameter(±0.2mm)

mm

11.1

11.7

12.3

14.1

Cable Wetght(±10.0kg/km)

kg/km

100

111

122

135

Attenuation coefficient

1310nm

dB/km

≤0.35

1550nm

≤0.21

Cable breaking strength(RTS)

kn

≥12.0

Working Tension (MAT)

Kn

≥5.0

Wind velocity

m/s

30

Icing

mm

5

Span

M

200

Crush Resistance

Short Term

N/100mm

≥2200

Long Term

≥1100

Min. bending radius

Without Tension

mm

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70


Fibre & Loose Tube Colors

 Fibre & Loose Tube Colors


What is ADSS fiber optic cable?

All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements.

How about the pole span for ADSS fiber optic cable?

UnitekFiber can supply ADSS fiber optic cable with 100-800 meter pole span.

Why does fiber optic cable need all-dielectric material?

Dielectric means it has non-conducting properties of a non-metallic, insulating material that resists the passage of electric current.

Can ADSS be installed underground?

ADSS cables should be placed in Aerial and duct, but can not be direct-buried.
