4U Jack Mounted Box MPO & MTP Fiber Optical Patch Panel 288 Cores

The 4U jack mounted 288F MPO & MTP fiber optical box is mainly used for fiber cable wiring management in computer centers, computer rooms, databases, etc.


Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

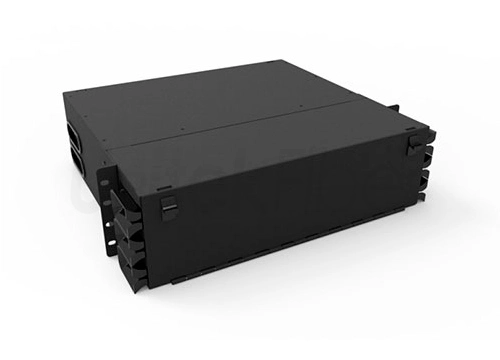

4U Jack Mounted Box MPO & MTP Fiber Optical Patch Panel 288 Cores

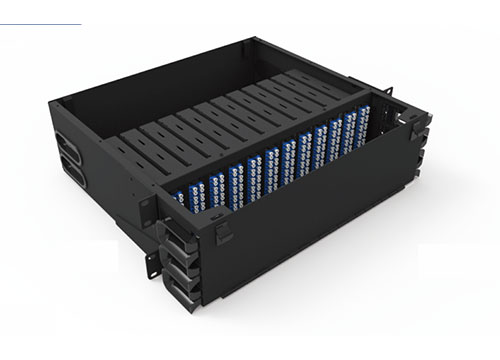

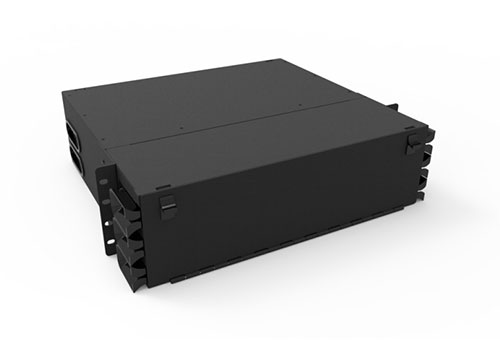

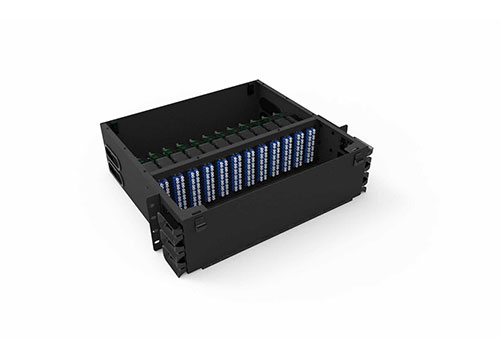

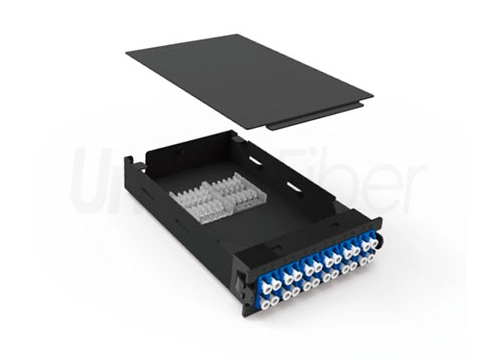

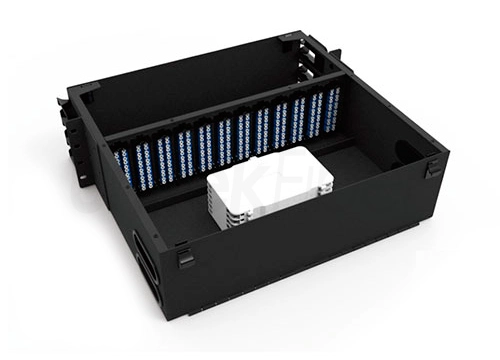

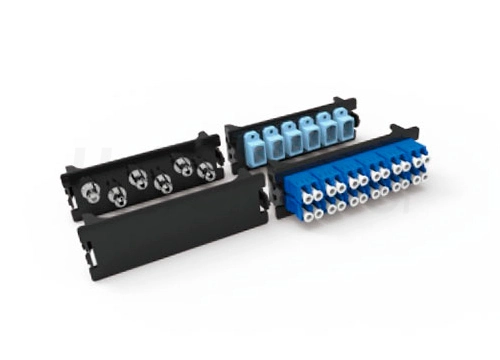

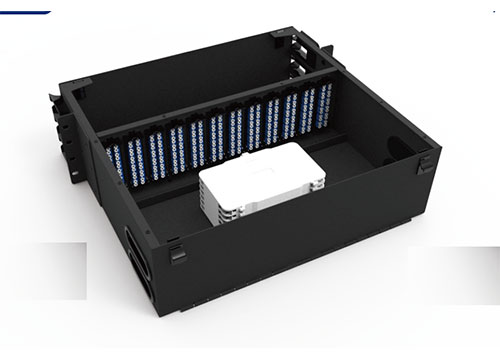

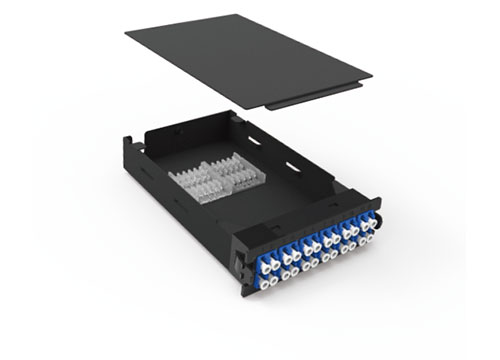

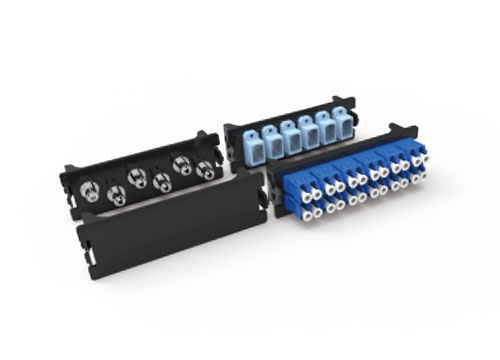

This panel box is an MPO/MTP and fiber fusion dual functions of fiber distribution box with a 19-inch standard and 4U fixed type installation. There are 12 MPO module boxes can be installed upright, up to 288 cores. There are three wiring methods: MPO module box, adapter panel and fuse box. Module splitting or splice fiber splitting is possible with MPO module boxes or duplex LC, SC, ST and FC adapter panels and splice trays. The MPO panel box applies for high-density data base systems and fusible fiber splitting occasions. The MPO module box is ABS material. The splicing module box is made of aluminum and has two heat-shrinkable tube holders to complete the fuse in the module box. This MPO/MTP box can be equipped with pre-terminated brackets to complete the installation and maintenance of the wiring box by one person.


Features:


  • High density wiring application condition

  • Standard 19''

  • High-density, 4U 288 fibers

  • Fixed type design, high-strength cold-rolled metal is durable

  • Lightweight ABS MPO module box

  • Sprayed surface treatment process

  • Customizable color and LOGO


Application:


  • Applied in the computer center and computer room

  • Suitable for high density date center

  • Suitable for base station cabling construction.

  • Applied for high density wiring occasions.


Packaging & Shipping


4U Jack Mounted Box MPO & MTP Fiber Optical Patch Panel 288 Cores


Production


4U Jack Mounted Box MPO & MTP Fiber Optical Patch Panel 288 Cores



4U Jack Mounted Box MPO & MTP Fiber Optical Patch Panel 288 Cores

Packing information:

Model

Product Size

(cm)

Max.Fiber

Outer CTN(cm)

Color


UF-FM288


48.26*42.6*13


288

50.2*48.5*19.5

Black(RAL9005)  Beige(RAL1001)
