Standard LGX Metal Box 1X32 Ports Fiber Optic Splitter for Passive Networks

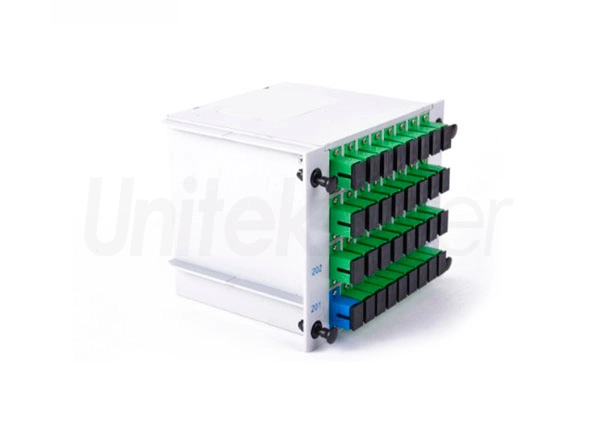

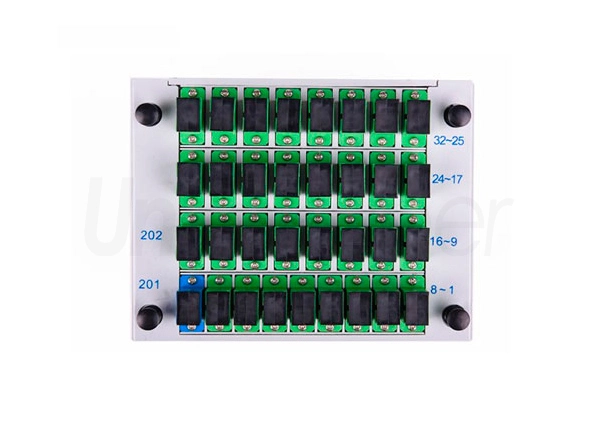

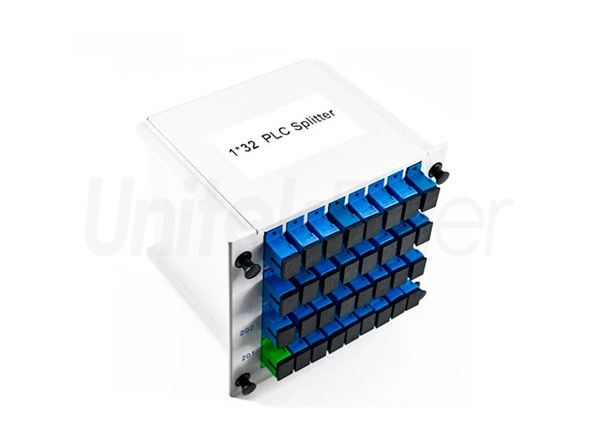

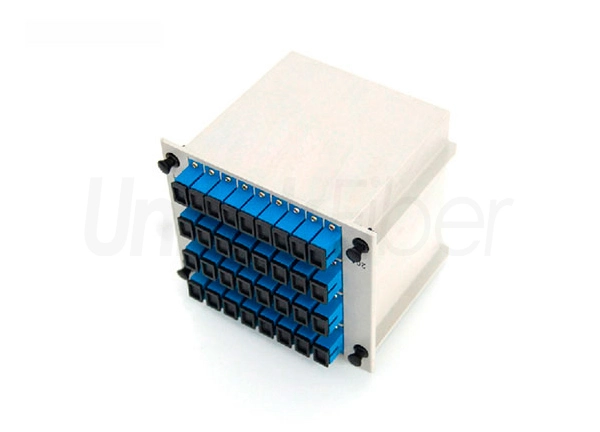

UnitekFiber provides standard LGX metal type and ABS type box of PLC splitter. The LGX box adopts modular design and has two to four (eight) expansion slots. The slot is used to insert optical PLC splitter. The storage of fiber pigtail is fixed by adapter. The LGX box type of PLC splitter is mainly used in the FTTH access mode of the corridor splitting points.


Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Standard LGX Metal Box 1X32 Ports Fiber Optic Splitter for Passive Networks

Features:


lLow Insertion loss

lLow PDL

lCompact Design

lGood channel-to-channel uniformity

lWide Operating Wavelength:

lFrom 1260nm to 1650nm

lWide Operating Temperature

lHigh Reliability and Stability


Applications:


lFTTX Systems

lPON Networks

lCATV Links

lOptical Signal Distribution


Compliance:


lTelcordia GR-1209-CORE

lTelcordia GR-1221-CORE


LGX Box PLC Spltter


Packaging and Shipping:


Standard LGX Metal Box 1X32 Ports Fiber Optic Splitter for Passive Networks


Production:


Standard LGX Metal Box 1X32 Ports Fiber Optic Splitter for Passive Networks

Standard LGX Metal Box 1X32 Ports Fiber Optic Splitter for Passive Networks

Table 1 – 1×N PLC Splitter

Parameters

1×2

1×4

1×6

1×8

1×12

1×16

1×32

1×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G657A or customer specified

Insertion Loss (dB)(Min/Max)

3.8/4.0

7.2/7.4

9.5/9.8

10.5/10.7

12.1/12.6

13.5/13.7

16.5/16.9

20.5/21.0

Loss Uniformity (dB)

0.6

0.6

1.0

0.8

1.1

1.2

1.5

2.5

Return Loss (dB)

55

55

55

55

55

55

55

55

Polarization Dependent Loss(dB)

0.2

0.2

0.3

0.3

0.3

0.3

0.3

0.4

Directivity (dB)

55

55

55

55

55

55

55

55

Operating Temperature(℃)

-40~+85

Storage Temperature(℃))

-40~+85

Operating Humidity

5% ~ 85% RH

Storage Humidity

5% ~ 85% RH

Device Dimension (mm)   (L×W×H)

40×4×4

40×4×4

40×4×4

40×4×4

60×7×4

60×7×4

60×7×4

60×12×6

Module Dimension (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

100×80×10

120×80×18

120×80×18

120×80×18

140×115×18

Mini-Module Dimension (mm)   (L×W×H)

60×7×4

60×7×4

60×7×4

60×7×4

60×7×4

60×12×4

80×20×6

100×40×6


Table 2 – 2×N PLC Splitter

Parameters

2×2

2×4

2×8

2×16

2×32

2×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G657A or customer specified

Insertion Loss (dB)(Min/Max)

3.9/4.2

7.5/7.8

11.2/11.5

14.2/14.5

17.2/17.7

21.0/21.5

Loss Uniformity (dB)

0.8

1.5

1.5

1.8

2.0

2.5

Return Loss (dB)

55

55

55

55

55

55

Polarization Dependent Loss(dB)

0.2

0.2

0.4

0.4

0.4

0.4

Directivity (dB)

55

55

55

55

55

55

Operating Temperature(℃))

-40~+85

Storage Temperature(℃))

-40~+85

Operating Humidity

5% ~ 85% RH

Storage Humidity

5% ~ 85% RH

Device Dimension (mm)   (L×W×H)

50×4×4

50×4×4

50×4×4

60×7×4

60×7×4

N/A

Module Dimension (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

120×80×18

120×80×18

140×115×18

Mini-Module Dimension (mm)   (L×W×H)

60×7×4

60×7×4

60×7×4

80×12×4

80×20×6

N/A
