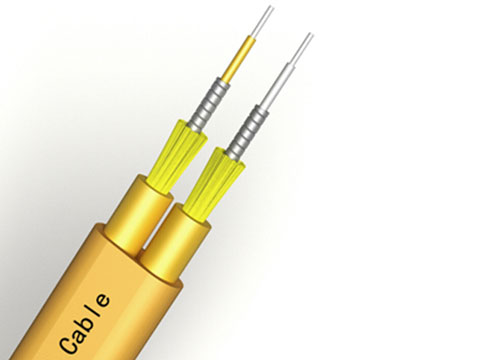

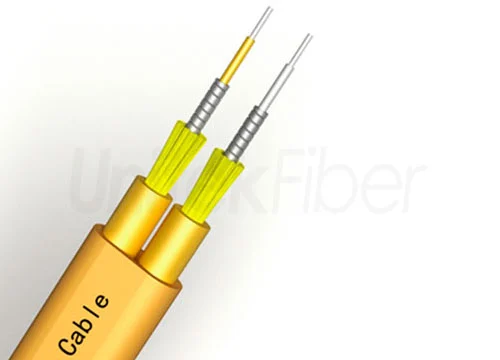

Indoor Figure Zero Flat Twin Armored Fiber Optic Cable GJFJV 0.9mm Tight Buffered LSZH PVC

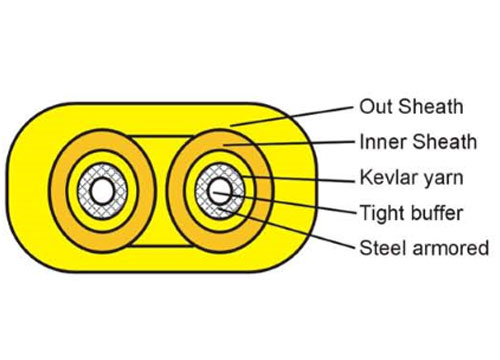

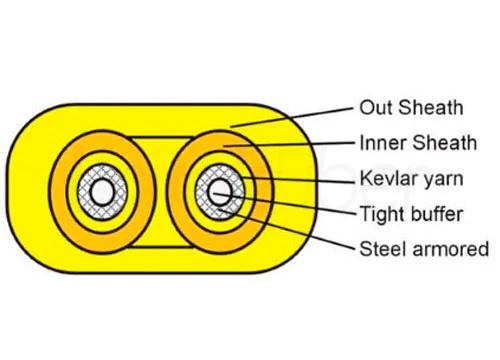

Figure Zero Flat Twin Cable is paralleled two 0.9mm tight buffered fiber cable. A steel tape is wrapped around the tight buffered fiber cable.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Indoor Figure Zero Flat Twin Armored Fiber Optic Cable GJFJV 0.9mm Tight Buffered LSZ

And a layer of Kavlar yarn is the steel tape as tensile strength support ,and then extruded with PVC or LSZH material as inner jacket.Then the cable is completed with a layer of flat PVC or LSZH(Low smoke,Zero halogen,Flame-retardant) as outer jacket.


Features:


  • Two single-fiber

  • Flat twin configuration

  • High strength Kevlar yarn member

  • Steel armored flexible tube

  • Single-fiber with independent strength member

  • Excellent mechanical and environmental performance


Application:


  • Adopted to Indoor distribution

  • As patchcord and pigtail of communication equipment

  • Suitable for communication equipment served

  • Can be installed conveniently and operated simply


Packaging & Shipping


Indoor Figure Zero Flat Twin Armored Fiber Optic Cable GJFJV 0.9mm Tight Buffered LSZH PVC


Parameter of Indoor Figure Zero Flat Twin Armored Fiber Optic Cable GJFJV 0.9mm Tight Buffered LSZH

No. of Cable

2

Fiber Model

G.652D

Tight buffer

Material

PVC

Diameter(±0.06)mm

0.9

Thickness(±0.03)mm

0.32

Inner Sheath

Material

PVC

Diameter(±0.06)mm

2.0

Thickness(±0.03)mm

0.35

Color

Yellow

Outer Sheath

Material

PVC

Thickness(±0.06)mm

0.6

Color

Yellow

Cable size(±0.2)mm

3.2×5.6

Cable Weight(±2)kg/km

24

Allowable Tensile Strength

Short Term

N

800

Long Term

300

Allowable Crush Resistance

Short Term

N/100mm

1000

Long Term

500

Min. bending radius

Without Tension

10×Cable-φ

Under Maximum Tension

20×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70


Fiber Colors

Fiber Colors

What is the fiber type for this indoor armored fiber optic cable?

We usually use G652D, G657A1, G657A2 fiber type, also can according to your request.

How many fiber cores for this indoor armored fiber optic cable?

2-24 Cores.

What's the outer jacket material for this indoor armored fiber optic cable?

The cable outer jacket is completed with PVC or LSZH (Low smoke, Zero halogen, Flame-retardant) material.

What's strength member for indoor armored fiber optic cable?

The strength members are usually Kevlar yarn and steel tape to support the whole fiber cable.

Why do indoor optical cables need to be armored?

In order to better protect the optic fiber cable, it has the effect of preventing moisture and anti-rodent.

May I have a sample order?

Yes! You are welcome to place sample order to test our superior quality and services.
