Outdoor All-dielectric Self-supporting ADSS Fiber Optic Cable G652D SM 96cores 200m Span Single Jacket PE

All-dielectric Self-supporting ADSS fiber optic cable has a different structure from overhead conductors. Its tensile strength is borne by aramid yarn. The elastic modulus of aramid yarn is smaller than that of steel-more than half, and the coefficient of thermal expansion is a fraction of that of steel, which determines that the sag of the ADSS fiber optic cable is more sensitive to external load changes.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

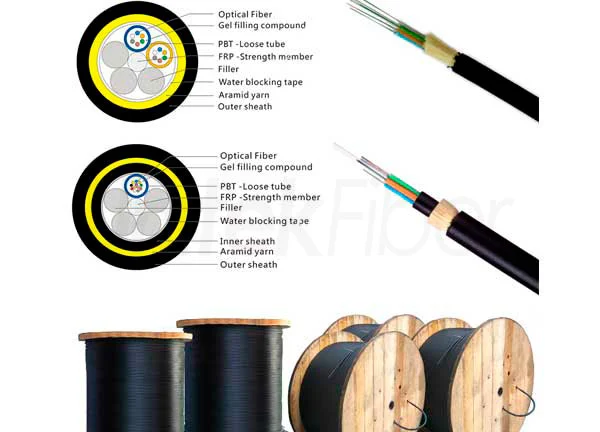

Description of Outdoor All-dielectric Self-supporting ADSS Fiber Optic Cable G652D SM 96cores 200m S

Optical Cable for Sale

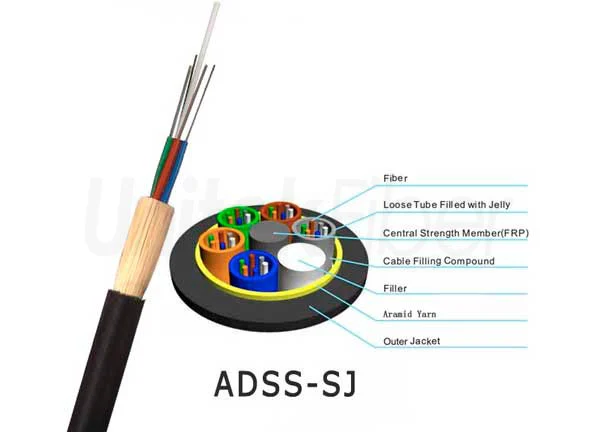

This type is able to obtain longer fiber lengths. Although the diameter and weight are relatively big, ADSS cables with this structure are better to be deployed for large span applications. The structure of ADSS fiber cable can be in a stranded structure design, the inner optical fibers and water-blocking grease are added into the fiber loose tube, and different loose tubes are wound around the central reinforcement (usually FRP). The rest parts are basically similar to the central tube structure.


Optical Cable Price


The Fiber Cores of ADSS Fiber Cable is 2-288Cores

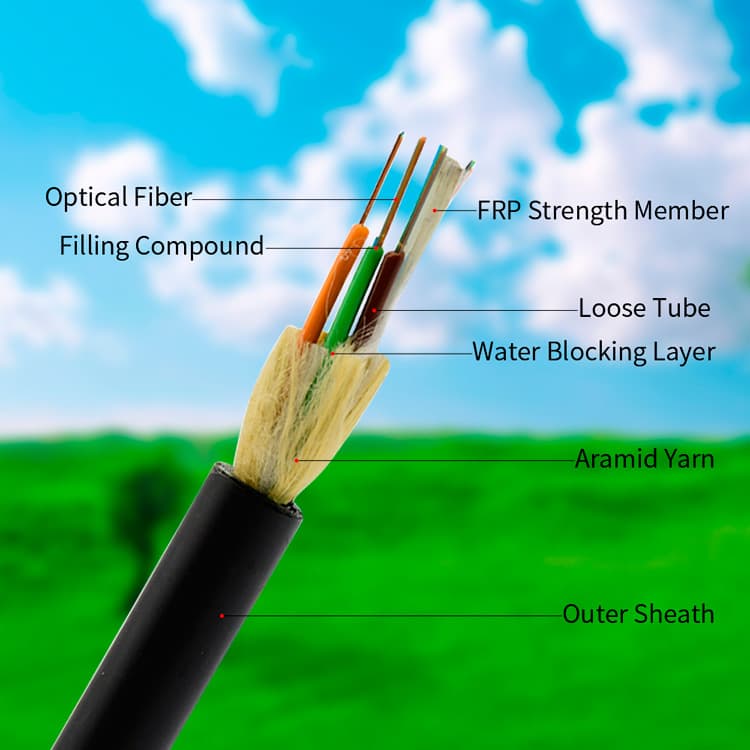

Features of ADSS Fiber optic Cable


Optical Cable Wire



ADSS Fiber optic cable of aramid yarn is a important part for fiber optical cable for tensile resistance. The ADSS fiber cable have a wide temperature range(-40℃ ~+80℃) and small cable diameter, it is more convenient to reduces ice and wind loads and maintains stable transmission. The inner structure use a water-blocking layer for better waterproofing. They provide tensile strength to the finished cable assembly. It is very convenient line installation and maintenance.


Applications of ADSS Fiber optic Cable


Optical Fibre Price


As a kind of self-supporting aerial fiber optic cable, ADSS (All-dielectric Self-supporting) cable is designed for aerial installation and deployment, which is suitable for various outdoor applications. ADSS fiber optic cables have become the first choice of special optical cables for power system networking.


Professional Assistant For ADSS Fiber Optic Cabling System


OFC Cable Price

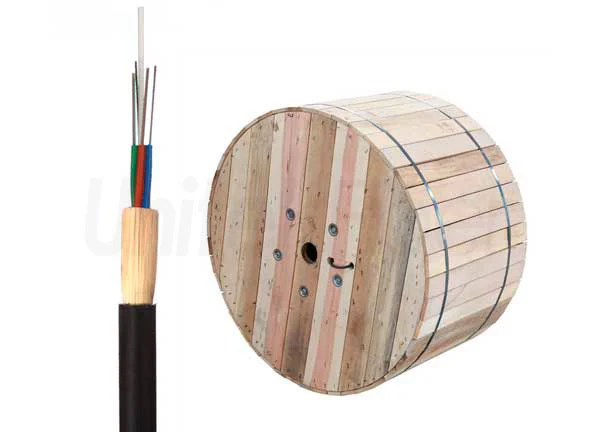

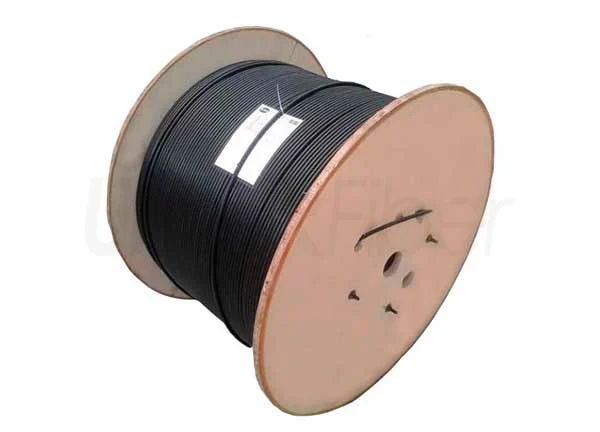

Packaging & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre

Parameter of Outdoor All-dielectric Self-supporting ADSS Fiber Optic Cable G652D SM 96cores 200m Spa

No. of cable

/

24~30

32~60

62~72

96

Design

(StrengthMember+Tube&Filler)

/

1+5

1+5

1+6

1+8

Fiber type

/

G.652D

Central Strength Member

Material

mm

FRP

Diameter

(±0.05mm)

1.5

1.5

2.1

2.1

Loose Tube

Material

mm

PBT

Diameter

(±0.05mm)

1.8

2.1

2.1

2.1

Thickness

(±0.03mm)

0.32

0.35

0.35

0.35

MAX.NO./per

6

12

12

12

Water Blocking Layer

Material

/

Flooding Compound

Inner Sheath

Material

mm

MDPE

Thickness

0.9(nominal)

colour

black.

Additional Strength Member

Material

/

Aramid Yarn

Outer Sheath

Material

mm

MDPE

Thickness

1.8(nominal)

colour

black.

Cable Diameter(±0.2mm)

mm

11.1

11.7

12.3

14.1

Cable Wetght(±10.0kg/km)

kg/km

100

111

122

135

Attenuation coefficient

1310nm

dB/km

≤0.35

1550nm

≤0.21

Cable breaking strength(RTS)

kn

≥12.0

Working Tension (MAT)

Kn

≥5.0

Wind velocity

m/s

30

Icing

mm

5

Span

M

200

Crush Resistance

Short Term

N/100mm

≥2200

Long Term

≥1100

Min. bending radius

Without Tension

mm

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70


Fibre & Loose Tube Colors

 Fibre & Loose Tube Colors


What is ADSS fiber optic cable?

All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements.

How about the pole span for ADSS fiber optic cable?

UnitekFiber can supply ADSS fiber optic cable with 100-800 meter pole span.

Why does fiber optic cable need all-dielectric material?

Dielectric means it has non-conducting properties of a non-metallic, insulating material that resists the passage of electric current.

Can ADSS be installed underground?

ADSS cables should be placed in Aerial and duct, but can not be direct-buried.
