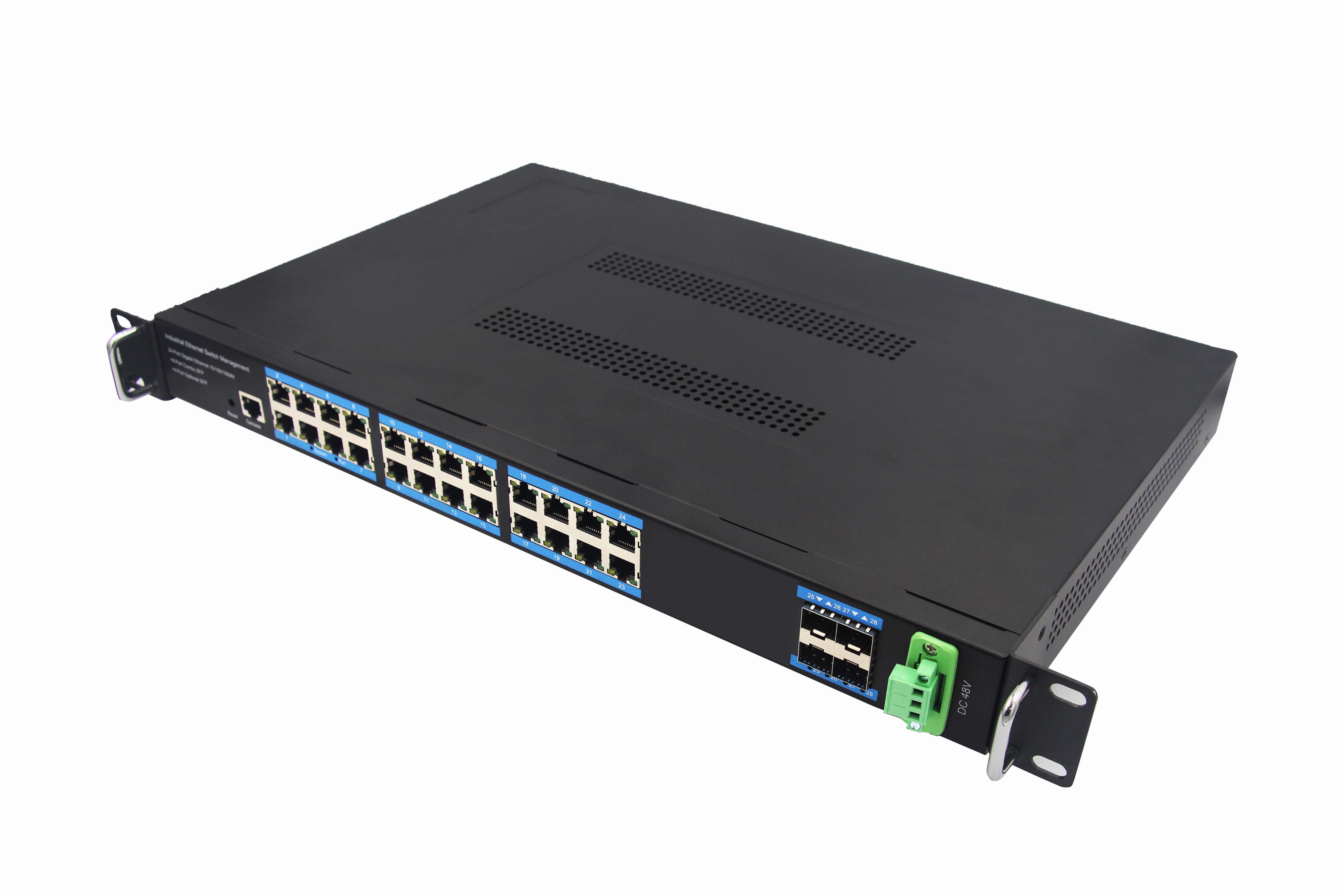

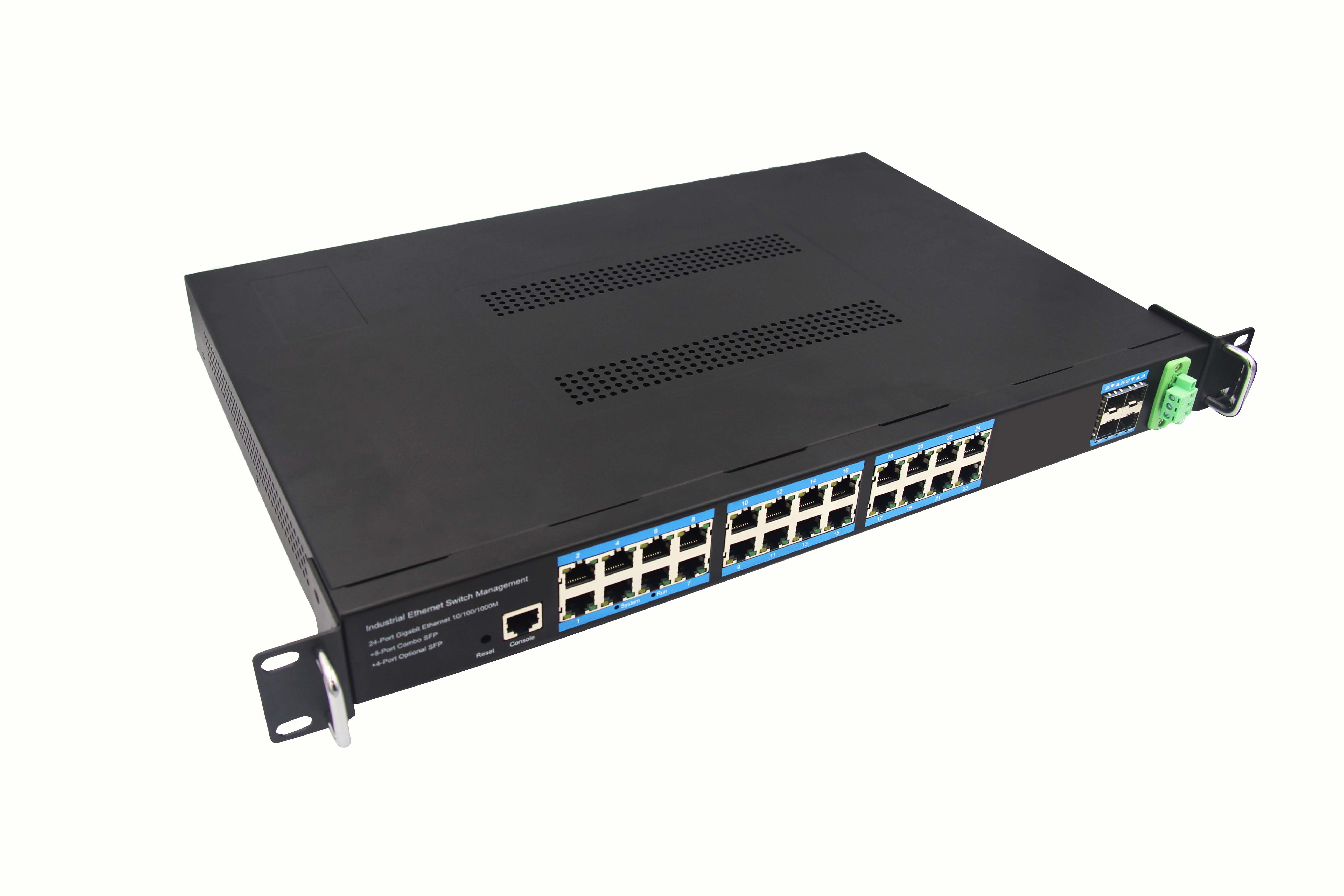

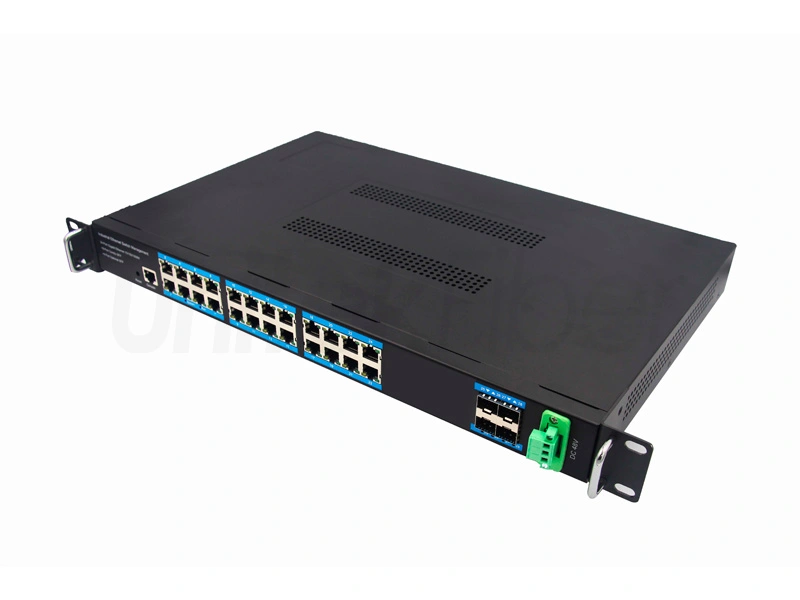

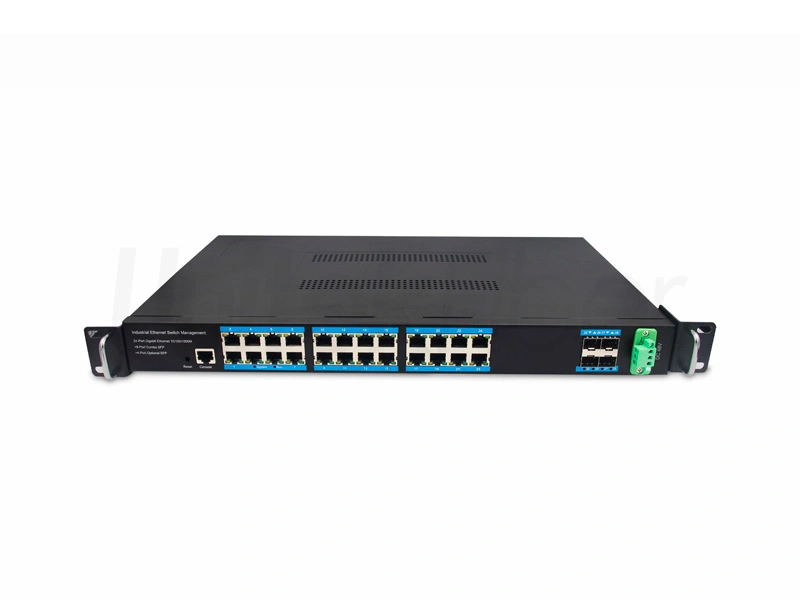

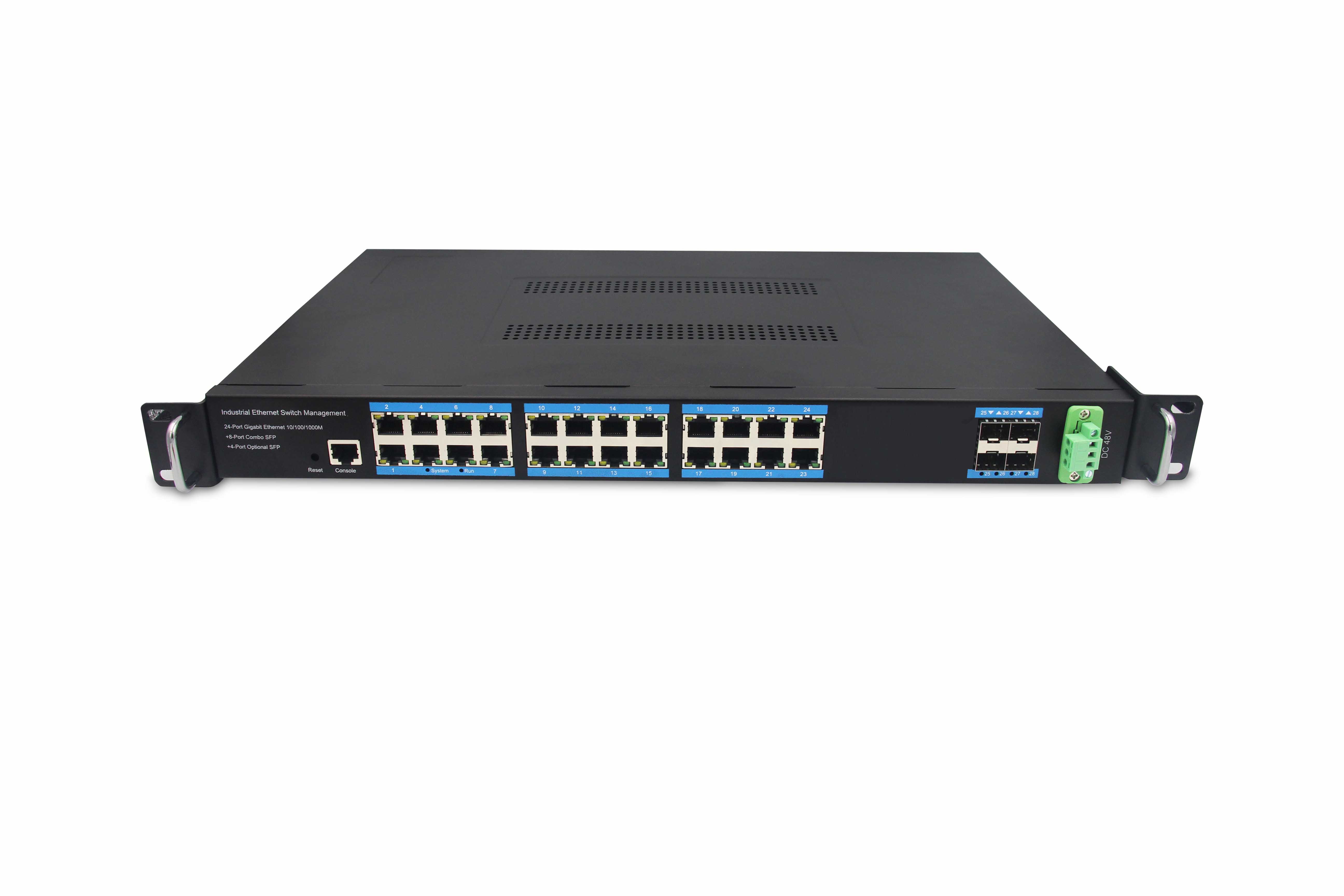

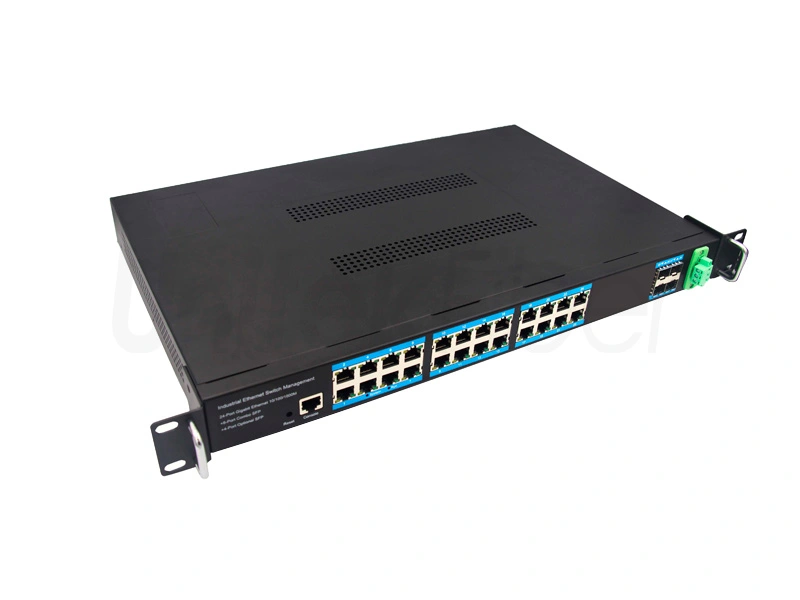

Hot Sale Full Gigabit Industrial Ethernet Switch 24-Port 10M 100M 1000Mbps 4 SFP Ports SFP 4 Combo Ports

The 4 optical 24 electrical Ethernet switch is an industrial-grade managed Ethernet switch. This produc supports 4 Gigabit SFP optical ports and 24 Gigabit electrical ports. The product complies with FCC, CE, EMS (anti-electromagnetic interference), EMI (electromagnetic interference) standards, supports -40°C ~85°C operating temperature and 4KV network port surge protection, and can adapts to harsh working environment.


Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Hot Sale Full Gigabit Industrial Ethernet Switch 24-Port 10M 100M 1000Mbps 4 SFP Ports SFP 4 Combo P

Features


l4 optical ports, and 24 electrical  ports, built-in power

lIEEE 802.3, IEEE 802.3u, IEEE 802.3af/at PoE compliant

lSupport PoE IP cameras, PoE WIFI AP, and PoE IP phones

lFluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure

lUp to 30W per port (total power budget: 120W) for powering PoE-enabled devices

lAll ports support wire speed switching, jumbo frame transmission

lSupport upstream ports lightning protection

lDynamic power control to ensure stable output power (Enhanced)

lImproved anti-interference capability, to solve problems in the installation of grounding devices (Enhanced, twice as good as other manufacturers' products)

lReliable short-circuit protection to ensure safety (Enhanced)

lOver-voltage and under-voltage protection (Some other manufacturers' products don't support this


Application:


lThe industrial ethernet switch is applied in Security system, video multiplexers, IP or CCTV Video Applications, Fiber Optic Solutions and so on.



Connection Diagram:


Hot Sale Full Gigabit Industrial Ethernet Switch 24-Port 10M 100M 1000Mbps 4 SFP Ports SFP 4 Combo Ports

Packaging and Shipping


Hot Sale Full Gigabit Industrial Ethernet Switch 24-Port 10M 100M 1000Mbps 4 SFP Ports SFP 4 Combo Ports



Production

Hot Sale Full Gigabit Industrial Ethernet Switch 24-Port 10M 100M 1000Mbps 4 SFP Ports SFP 4 Combo Ports


Hot Sale Full Gigabit Industrial Ethernet Switch 24-Port 10M 100M 1000Mbps 4 SFP Ports SFP 4 Combo P

Product Description

1000M 24xRJ45 ports,1000M 4xSFP ports Managed Industrial Ethernet Switch

Network Protocols

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T; IEE802.3z 100Base-X; IEEE802.3x;

RJ45 Interface

10/100/1000BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive

Optic Fiber Interface

1000BaseFX port (SC/FC/ST/SFP optional)

Copper Cable

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)

Optic Fiber Cable

MM:850nm  0~550M

SM:1310nm  0~2KM, 1310nm  0~40KM,1550nm  0~120KM

Switch properties

Application level: Layer 3

Total backplane bandwidth: 449.2Gbps

MAC address table: 16K

Packet buffer: 8Mbits

VLAN data: 1~4094

Exchange delay:<5us



Exchange method: store-forward



Protection Level

IP40

LED indicator

Power indicator: PWR

Interface indicator: electrical port, optical port (Link/ACT)

Power Supply

Input voltage: DC48-57V (dual power supply redundant backup)

Access terminal: Phoenix terminal

Support dual power supply redundancy

Support built-in overcurrent 4.0A protection

Support reverse connection protection

Working Environment

Working temperature: -40~85℃ ;  Storage temperature: -40~85℃

Relative Humidity: 5%~95 %( no condensation)

Industrial Standard

MI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:

IEC(EN)61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

IEC(EN)61000-4-3(RS): 10V/m(80~1000MHz)

IEC(EN)61000-4-4(EFT): Power cable: ±4kV; Data cable: ±2kV

IEC(EN)61000-4-5(Surge): Power cable: ±4kV CM/±2kV DM; Data cable: ±2kV

IEC(EN)61000-4-6 (Radio Frequency Conduction): 3V(10kHz~150kHz), 10V(150kHz~80MHz)

IEC(EN)61000-4-16 (common mode conduction): 30V cont. 300V, 1s

IEC(EN)61000-4-8

Shock: IEC 60068-2-27

Freefall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Mechanical properties

Shell: metal material

Installation: DIN rail type, wall-mounted installation

Weight: 5Kg

Size:  440×285×44.5mm

MTBF

300,000 hours

Warranty

5 years
