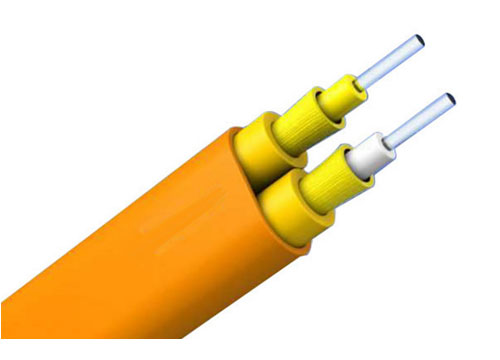

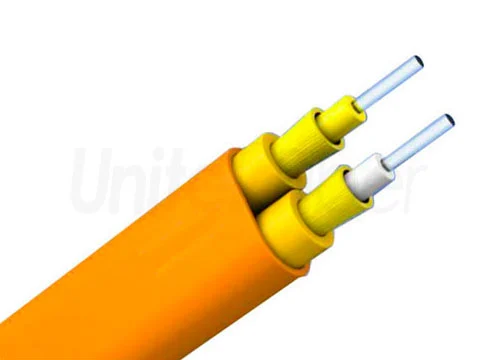

Figure Zero Flat Twin Fiber Optic Cable GJFJV 2.0mm 3.0mm Simplex G657 G655 Single Mode Multimode

Figure Zero Flat Twin Cable is paralleled two 2.0mm or 3.0mm flame retardant fiber cables together which is used 0.9mm or 0.6mm tight buffer fiber cable.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Figure Zero Flat Twin Fiber Optic Cable GJFJV 2.0mm 3.0mm Simplex G657 G655 Single Mo

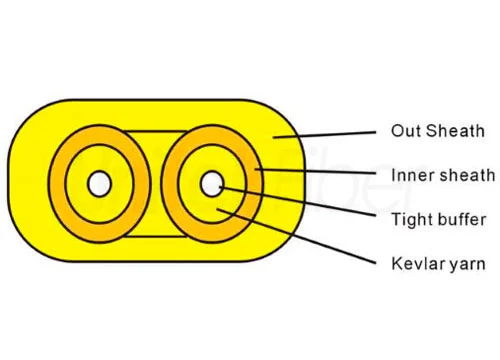

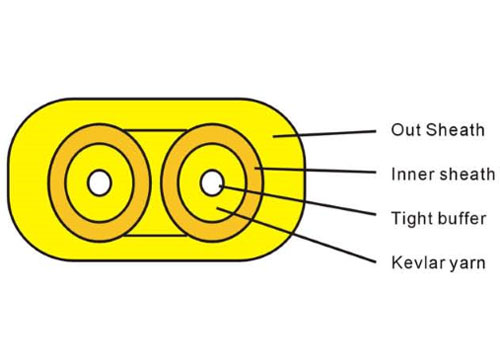

The tight buffer fiber is wrapped with Kavlar yarn as tensile strength support ,and then extruded with PVC or LSZH material as inner jacket.Then the cable is completed with a layer of flat PVC or LSZH(Low smoke,Zero halogen,Flame-retardant) as outer jacket.


Features:


  • Two single-fiber

  • Flat twin configuration

  • High strength Kevlar yarn member

  • Single-fiber with independent strength member

  • Excellent mechanical and environmental performance


Application:


  • Adopted to Indoor distribution

  • As patchcord and pigtail of communication equipment

  • Suitable for communication equipment served

  • Can be installed conveniently and operated simply


Packaging & Shipping


Figure Zero Flat Twin Fiber Optic Cable GJFJV 2.0mm 3.0mm Simplex G657 G655 Single Mode Multimode


Parameter of Figure Zero Flat Twin Fiber Optic Cable GJFJV 2.0mm 3.0mm Simplex G657 G655 Single Mode

No. of Cable

2

Fiber Model

G.652D

Tight buffer

Material

PVC

Diameter(±0.06)mm

0.9

Thickness(±0.03)mm

0.32

Inner Sheath

Material

PVC

Diameter(±0.06)mm

2.0

Thickness(±0.03)mm

0.35

Color

Yellow

Outer Sheath

Material

PVC

Thickness(±0.06)mm

0.6

Color

Yellow

Cable size(±0.2)mm

3.2×5.6

Cable Weight(±2)kg/km

24

Allowable Tensile Strength

Short Term

N

800

Long Term

300

Allowable Crush Resistance

Short Term

N/100mm

1000

Long Term

500

Min. bending radius

Without Tension

10×Cable-φ

Under Maximum Tension

20×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70


Fiber Color

Fiber Color

Is indoor fiber optic cable 3.0mm?

If you are asking about the outer diameters, we have many types of cable diameter, such as 2.0mm and 3.0mm.

What is the fiber type of indoor fiber optic cable?

We have single mode and multi mode indoor fiber cables as per your requests.

What are the features of indoor fiber optic cable?

Good mechanical and environmental characteristics, soft, flexible, easy to lay and splice, and with big capacity data transmission.

What color is the outer sheath of the indoor optical cable?

Usually, single mode fiber optic cable is yellow, multi-mode is orange, pink. We can produce according to your design.

I want to ask how many fiber cores in the indoor fiber optic cable?

UnitekFiber provides 2-288 fiber cores for the indoor fiber optic cable.

Do you offer guarantee for the products?

Yes, we offer 25 years warranty to our formal products.

Download

Reviews

Delbert
Jul 14, 2022

Good service, products came quickly and were exactly what I needed. Thank you!

Verified Purchase
Helpful 0

Video
Contact UnitekFiber
Contact UnitekFiber

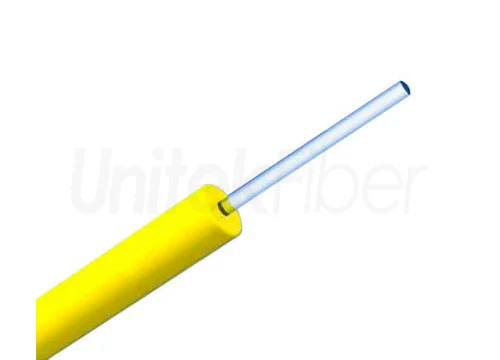

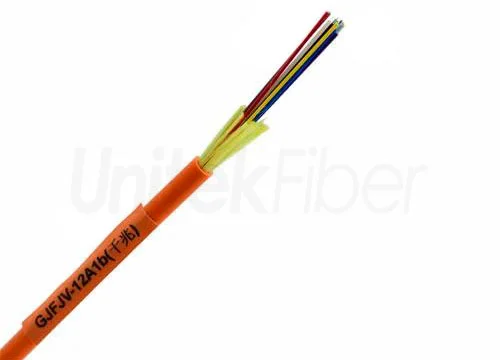

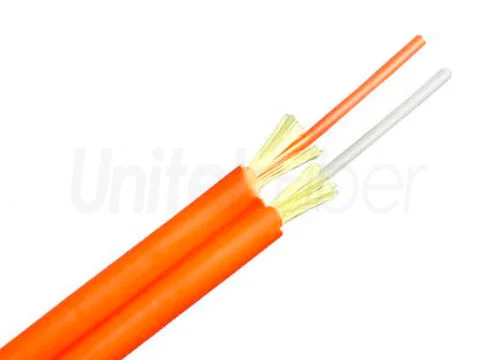

Other Indoor Fiber Optic Cable Products
