Hot MPO-MPO Fiber Optic Jumper 24 Cores OM3 OM4 LSZH 3m for Data Center Installation

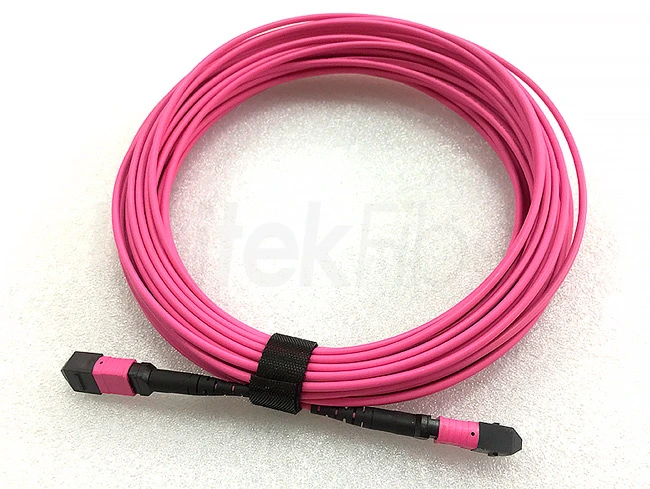

Considering the continuous demand of increasing bandwidth, 24 cores MPO-MPO OM4 LSZH jumper is contributing immensely. This jumper is constructed with LSZH sheath anti fire 3mm diameter cable and high quality 2 MPO connectors on both sides. The fiber cores with cable length can be customized as per customer request.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Details of Hot MPO-MPO Fiber Optic Jumper 24 cores OM3 OM4 LSZH 3m for Data Center Installation

MTP/MPO cable is specifically designed for fast ethernet, fiber channel, ATM and gigabit ethernet applications. Save time and money with MTP/MPO's increased ease of installation - simply pull one cable rather than twelve. Each MTP/MPO fiber assembly consists of twelve 9/125 single-mode fibers under one PVC (OFNR-rated) jacket.


Fiber Color Code


Network Connectivity


Hot MPO-MPO Fiber Optic Jumper 24 cores OM3 OM4 LSZH 3m for Data Center Installation


The easiest parallel fiber optic transmission link of Base-8 MTP/MPO cabling is to directly connect two QSFP+ transceivers like 40GBASE-LR4 with an 8-fiber MTP/MPO cable. This type of direct connectivity is only suggested for short distances within a given row of racks or cabinets.



Product Highlights



Superior Workmanship Guarantees Stable Transmission


Hot MPO-MPO Fiber Optic Jumper 24 cores OM3 OM4 LSZH 3m for Data Center Installation

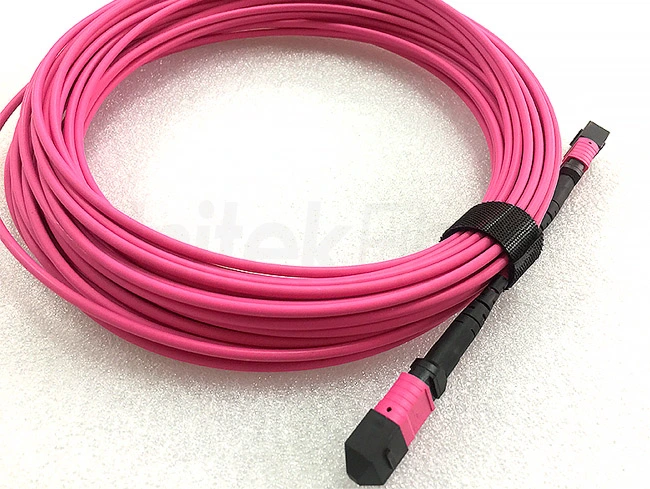

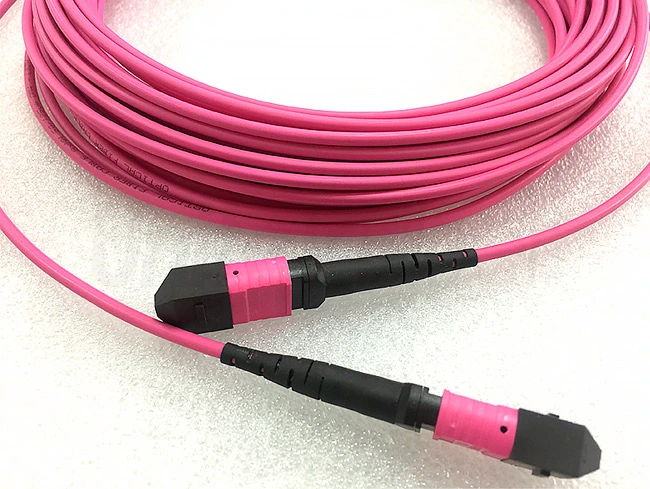

MPO connectors are the proven and trusted MPO style format,MTP/MPO cable offering state-of-the-art multi-fiber and mechanical performance.


Perfect High-performance Fiber

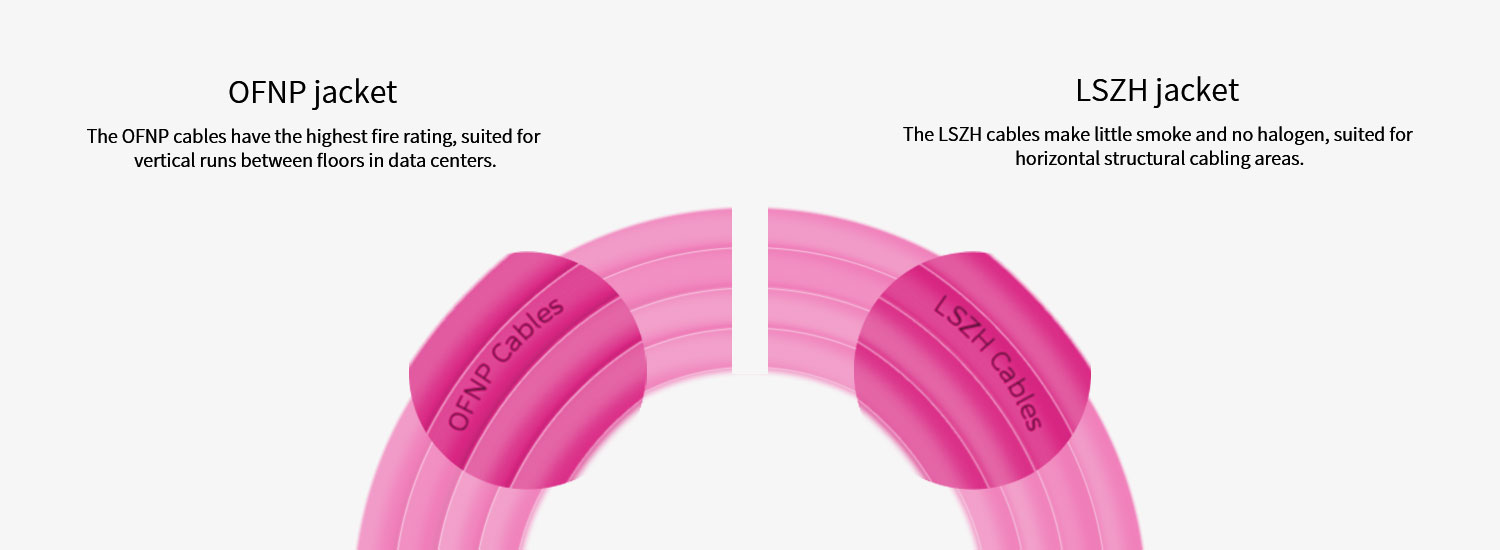

Excellent bending and compression resistance make it an ideal choice for high density cabling


Hot MPO-MPO Fiber Optic Jumper 24 cores OM3 OM4 LSZH 3m for Data Center Installation


Hot MPO-MPO Fiber Optic Jumper 24 cores OM3 OM4 LSZH 3m for Data Center Installation



Hot MPO-MPO Fiber Optic Jumper 24 cores OM3 OM4 LSZH 3m for Data Center Installation

Parameter of Hot MPO-MPO Fiber Optic Jumper 24 cores OM3 OM4 LSZH 3m for Data Center installation

Model

SM

MM

Connector A:MPO/MTP

Connector Fiber Count

8,12,24,48 Core

Polish

PC,APC

PC

Insertion Loss

Standard

≤0.70dB

≤0.50dB

Elite Low Loss

≤0.35dB

≤0.30dB

Return Loss

PC≥50dB,APC≥60dB

≥30dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

Connector B:LC,LC Uniboot,SC,FC,ST

Polish

PC,APC

PC

Insertion Loss

≤0.2dB

≤0.2dB

Return Loss

PC≥50dB,APC≥60dB

≥35dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm


Fiber Color Code

Fiber Color Code


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Reviews

Catherin
Jul 25, 2022

Pulling this through ceilings and in conduit - this is fantastic cable. Flexible doesn't hold shape. Very nice to crimp as well.

Verified Purchase
Helpful 0
