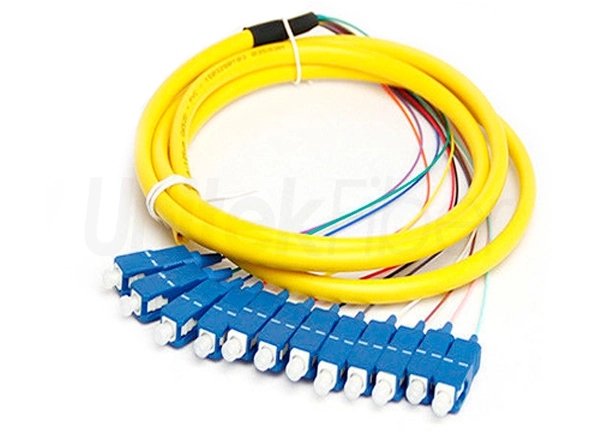

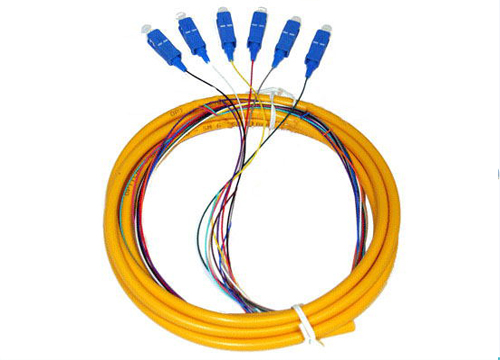

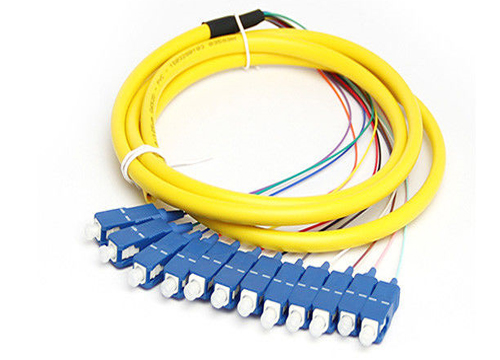

SC, LC, FC UPC Fanout Fiber Optic Pigtails SM MM OM3 OFNR Jacket 12 Fibers

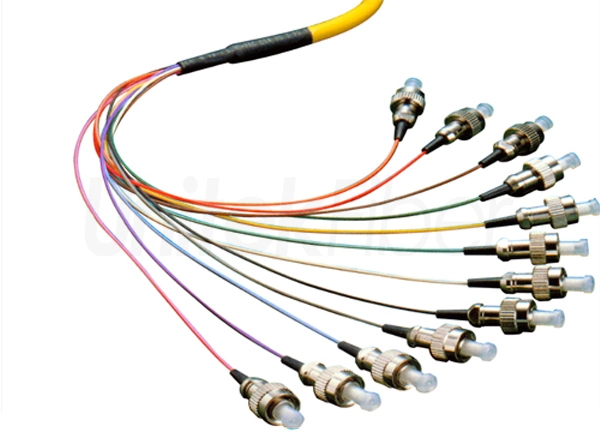

The 12 cores fanout bundled pigtail, also known as the 12 fibers pigtail bundle. Fanout bundled pigtails is a breakout fiber indoor cable with SC, FC, LC or ST connectors at one end, which is connected to the core of the other cable by welding.

Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of SC, LC, FC UPC Fanout Fiber Optic Pigtails SM MM OM3 OFNR Jacket 12 Fibers

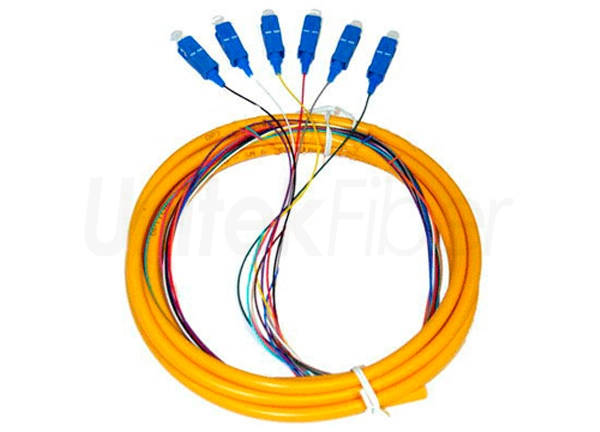

It is often found in patch panels, boxes, and boxes for connecting fiber optic cables to terminal equipment. The pigtails are divided into multi-mode pigtails and single-mode pigtails. The multimode pigtail is orange with a wavelength of 850 nm and a transmission distance of 500 m for short-distance interconnection. The single-mode pigtail is yellow with two wavelengths, 1310nm and 1550nm, and the transmission distance is 10km and 40km respectively.


Characteristics:


  • Low Insertion loss

  • High return loss

  • Good Repeatability

  • Good Interchange

  • Excellent Environmental Adaptability


Application:


  • Communication rooms

  • FTTH (Fiber to The Home)

  • LAN (Local Area Network)

  • FOS (fiber optic sensor)

  • Fiber Optic Communication System

  • Optical fiber connected and transmitted equipment

  • Defense combat readiness


Packaging and Shipping


SC, LC, FC UPC Fanout Fiber Optic Pigtails SM MM OM3 OFNR Jacket 12 Fibers


Production


SC, LC, FC UPC Fanout Fiber Optic Pigtails SM MM OM3 OFNR Jacket 12 Fibers


Parameter of SC, LC, FC UPC Fanout Fiber Optic Pigtails SM MM OM3 OFNR Jacket 12 Fibers

Parameter

Unit

Mode Type

PC

UPC

APC

Insertion Loss

dB

SM

≤0.3

≤0.3

≤0.3

MM

≤0.3

≤0.3

-----

Return Loss

dB

SM

≥50

≥50

≥60

MM

≥35

≥35

-----

Fiber cable

Diamete

PVC, LSZH

Material

PVC, LSZH

Connector type


SC, LC. ST. FC

Repeatability

dB

Additional loss<0.1db,return loss< 5 dB

Interchangeability

dB

Additional loss<0.1db,return loss< 5 dB

Connection times

times

>1000

Operating Temperature

-40℃- +75℃

Storage Temperature

-40℃- +85℃


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
