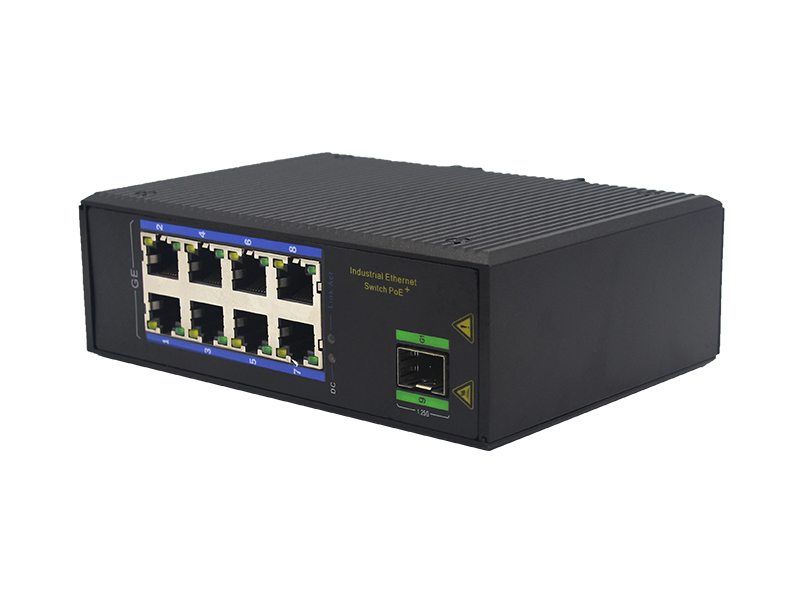

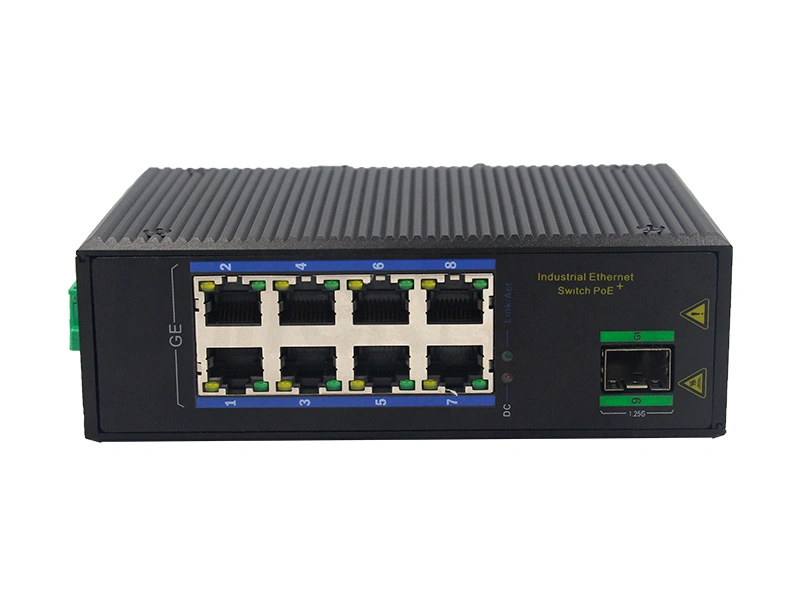

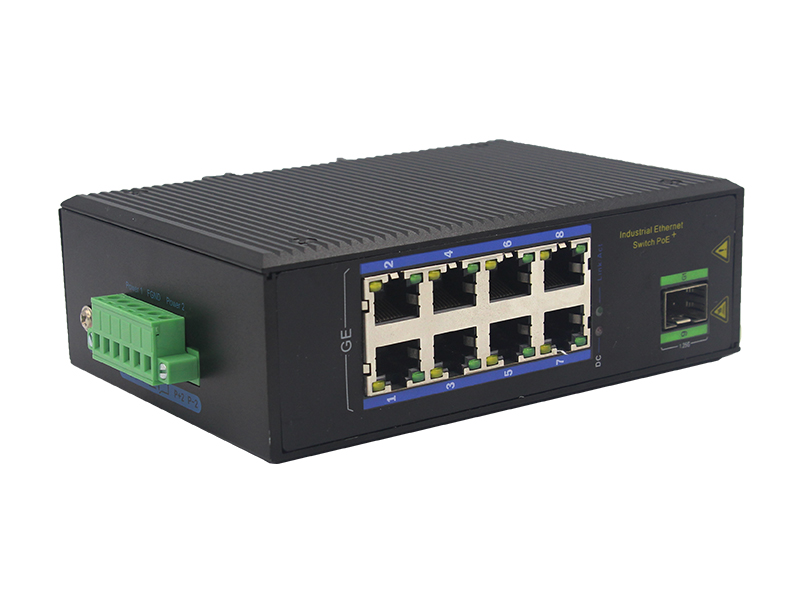

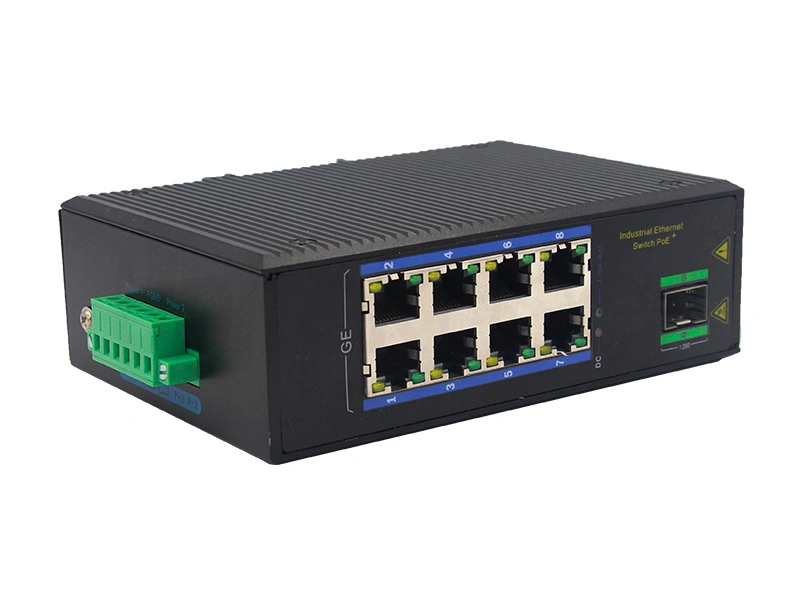

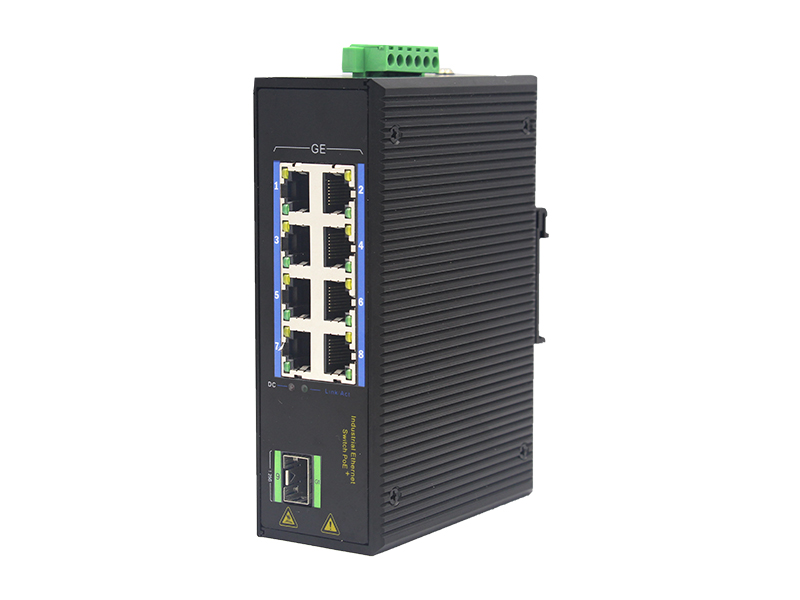

The 1 optical 8 electrical gigabit switch provides eight electrical ports and one optical port, which can automatically adapt to the environment of 10Mbps, 100Mbps and 1000Mbs, which is convenient for network upgrade. It supports multiple fiber port options of dual fiber multimode, dual fiber single mode and single fiber single mode , extending the needs of users.
1 Gigabit optical PoE ports, and 8 1000Mbps electrical ports, built-in power
IEEE 802.3, IEEE 802.3u, IEEE 802.3af/at PoE compliant
Support PoE IP cameras, PoE WIFI AP, and PoE IP phones
Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure
Up to 30W per port (total power budget: 120W) for powering PoE-enabled devices
All ports support wire speed switching, jumbo frame transmission
Support upstream ports lightning protection
Dynamic power control to ensure stable output power (Enhanced)
Improved anti-interference capability, to solve problems in the installation of grounding devices (Enhanced, twice as good as other manufacturers' products)
Power-on in order of the PoE port, effectively reduce current strike, and reduce the transient voltage surge to PoE switch and other connected devices at the startup (Unique)
Reliable short-circuit protection to ensure safety (Enhanced)
Over-voltage and under-voltage protection (Some other manufacturers' products don't support this)
Product Description | 8 channel 100M PoE electrical port + 1 channel 100M FX optical port industrial-grade Ethernet POE switch |
Interface | 8xRJ45 ports, 1 fiber optic ports |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab1000Base-T;IEEE802.3z1000Base-X;IEEE802.3x;IEEE802.3af; IEEE802.3at; |
POE Standards | Standard PoE: IEEE802.3af/ IEEE802.3at |
PoE interface:1 port suport PoE | |
Output power: Maximum power15.4W (IEEE 802.3af) Maximum power30W (IEEE 802.3at) POE port automatic identify af/at | |
Output voltage: DC48~57V | |
Power supply mode: 1/2+;3/6- | |
RJ45 Interface | 10/100/1000BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive |
Fiber Interface | 1000BaseFX port (SC/FC/ST /SFP optional) |
Switch properties | Application level: Layer 2 Total backplane bandwidth: 15.2Gbps Whole machine packet forwarding rate: 11.3088Mpps MAC address table: 1K Packet buffer: 512K Exchange delay:<3µs Exchange method: store-forward Power consumption:<3W |
Protection Level | IP40 |
LED indicator | Power indicator: PWR Interface indicator: electrical port, optical port (Link/ACT) |
Power Supply | Input voltage: 48~57V (dual power supply redundant backup) Access terminal: Phoenix terminal Support dual power supply redundancy Support built-in overcurrent 4.0A protection Support reverse connection protection |
Working Environment | Working temperature: -40~85℃ ; Storage temperature: -40~85℃ Relative Humidity: 5%~95 %( no condensation) |
Industrial Standard | MI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: IEC(EN)61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC(EN)61000-4-3(RS): 10V/m(80~1000MHz) IEC(EN)61000-4-4(EFT): Power cable: ±4kV; Data cable: ±2kV IEC(EN)61000-4-5(Surge): Power cable: ±4kV CM/±2kV DM; Data cable: ±2kV IEC(EN)61000-4-6 (Radio Frequency Conduction): 3V(10kHz~150kHz), 10V(150kHz~80MHz) IEC(EN)61000-4-16 (common mode conduction): 30V cont. 300V, 1s IEC(EN)61000-4-8 Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
Mechanical properties | Shell: metal material Installation: DIN rail type, wall-mounted installation Weight: 0.36Kg Size:118 x 86 x 39mm(length×width×height) |
MTBF | 300,000 hours |
Warranty | 5 years |
