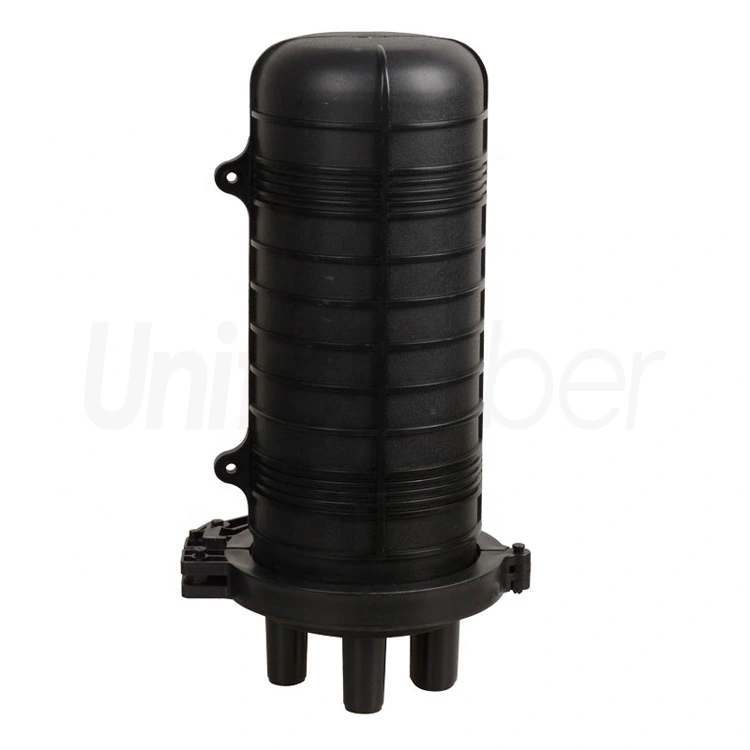

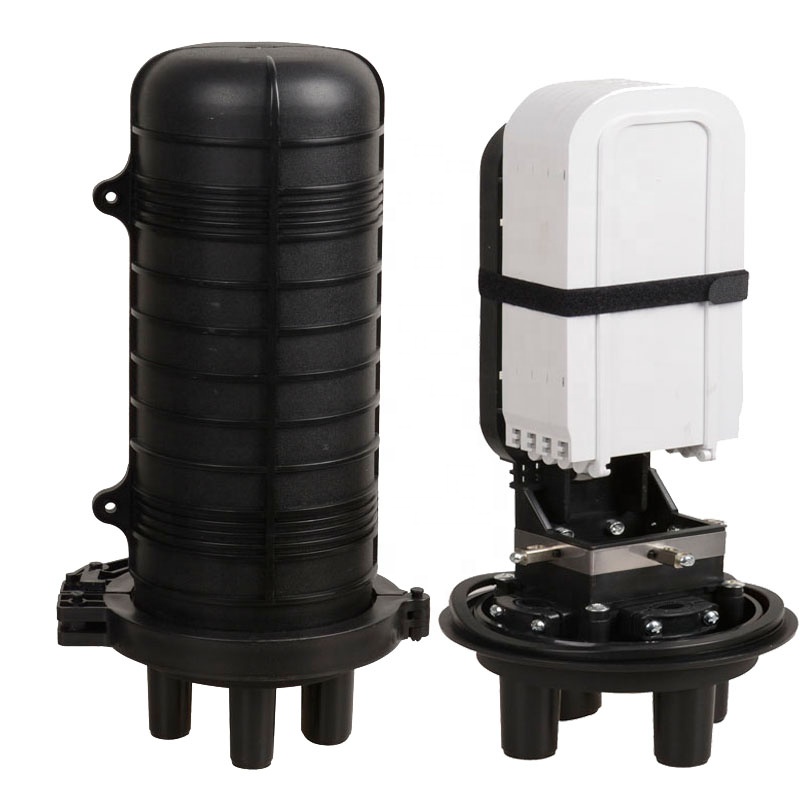

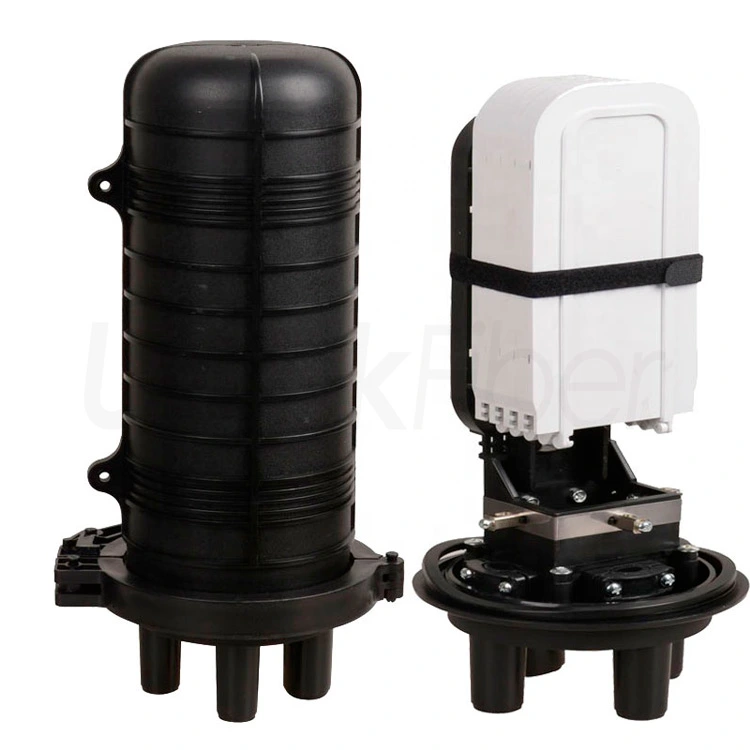

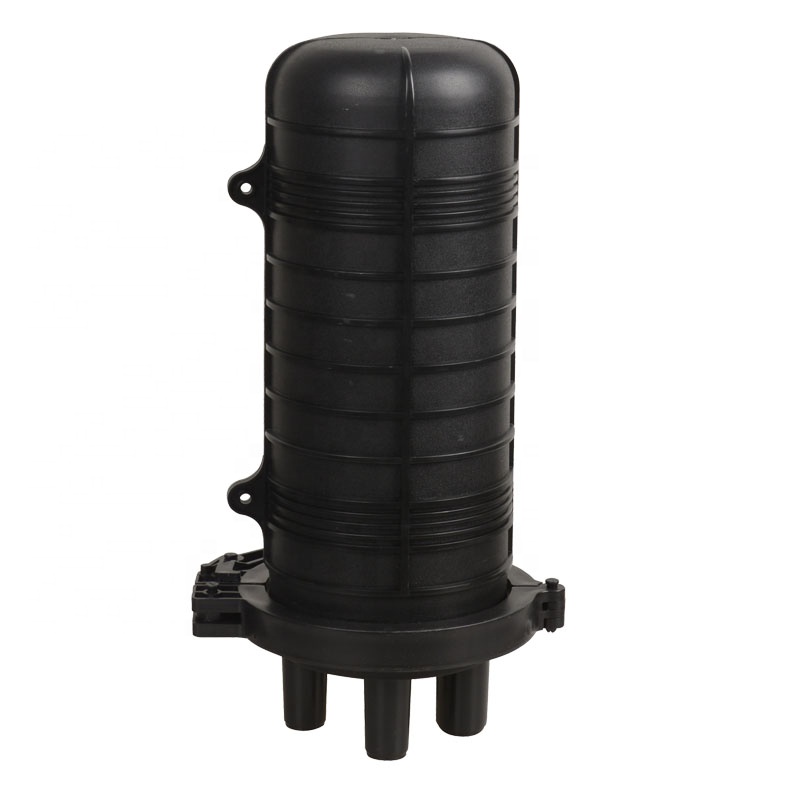

High Quality Outdoor Waterproof Dome Fiber Optic Splice Closure 96 Core 4 Cable Ports

Part Number: UNFOSC-VH96-02

UNFOSC-VH96-02 dome fiber optic splice closure is hold up to 96 cores with 1 oval inlet and 3 round outlet. The fiber optic splice closure has the features of waterproof, flame retardant and anti-impact effects because of it’s high-strength material and installation parts. With all these feature, the fiber optic splice closure can ensure the excellent communication quality under harsh natural environment.


Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

High Quality Outdoor Waterproof Dome Fiber Optic Splice Closure 96 Core 4 Cable Ports

Applications:


The fiber optic joint closure has a wide application range, good sealing performance, and easy installation.It can be install in underground, overhead, pipeline, and wall hanging. The structure design is simple and the opening is convenient, no special tools are needed. The splicing efficiency of the fiber splice closure is high.


Features:


lThe fiber optic splice closure can be used for fusion splicing of part of the main optical cable and branch optical cable, part of the main optical cable and pigtail .

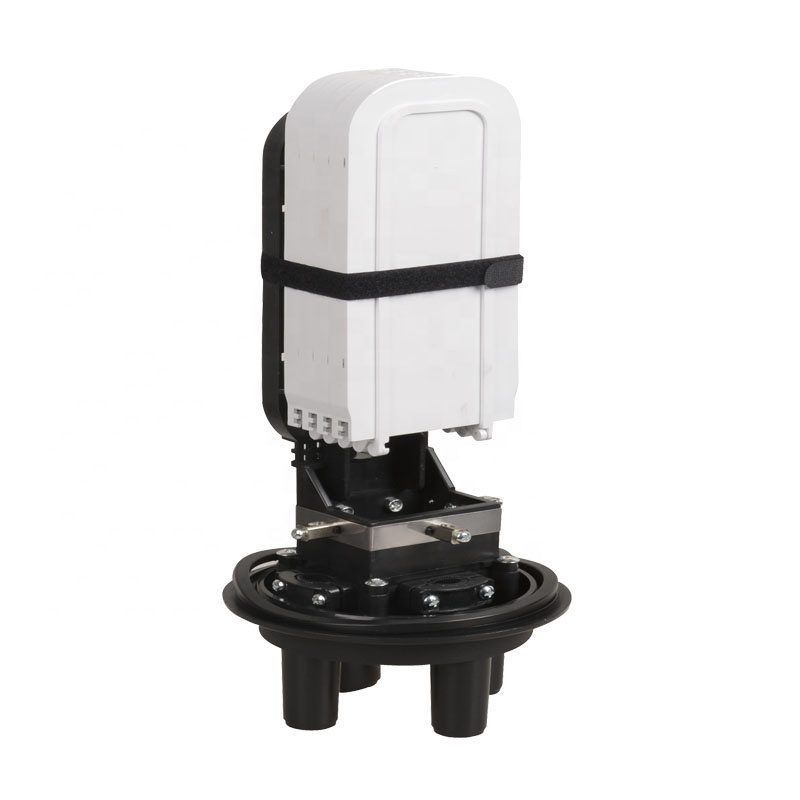

lThe increase or decrease of the fiber splice tray is quick and time-saving. The turning angle of the splice tray can reach above 90℃, which provides convenience for expansion and maintenance in the future.

lThe splice closure has the characteristic of innovative structural design, convenient and reliable installation. The whole set of plastic parts adopts scientifically formulated high-strength PP, PC engineering plastics. The injection molding can be used in a natural environment of 40℃~+65℃ for a long time.

lThe elastomer sealing member can be repeatedly opened and still maintain good sealing performance.

lThe fiber optic joint box can be mounted on the wall, pole, pipe, overhead. For the construction of optical fiber network, FTTH access reduces costs and improves communication quality

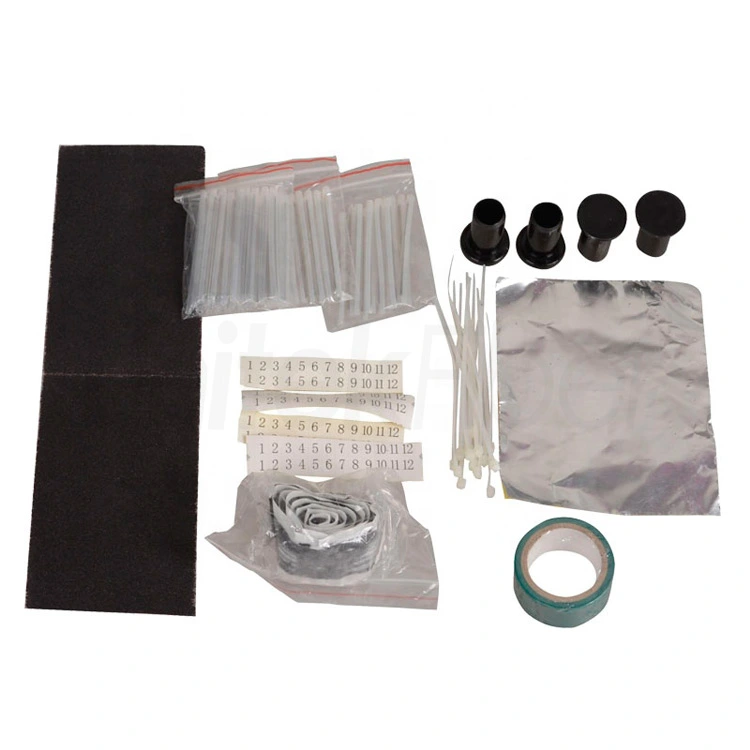

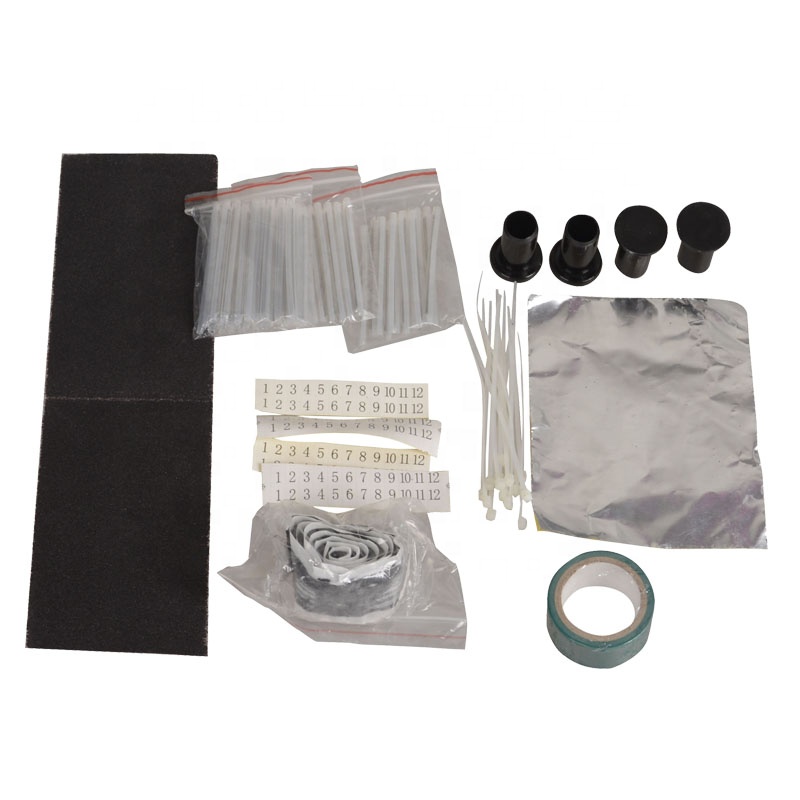

Packing & Delivery


High Quality Outdoor Waterproof Dome Fiber Optic Splice Closure 96 Core 4 Cable Ports


Production


High Quality Outdoor Waterproof Dome Fiber Optic Splice Closure 96 Core 4 Cable Ports

High Quality Outdoor Waterproof Dome Fiber Optic Splice Closure 96 Core 4 Cable Ports

Part Number

UNFOSC-VH96-02

structure

Vertical heat shrinkable seal

Material

PP, PC+ABS

Dimension (mm):

420(H)×140(Φ)mm

Max Capacity

96Core

Maximum install tray Number

4

Ports

1 inlet 3 outlet

Suitable Dia of cable

3 small round ports(16mm) and 1 large oval port(25mm)


FAQs

How many inlets and outlets does the fiber splice closure have?

 The joint box have 1 inlets and 3 outlets.

What is the shell material of the fiber optic splice closure?

The shell material of the splice closure can be made of PP,PC+ABS.

What is the protection level of the fiber optic splice closure?

The protection level of the splice closure is IP68.

How many fiber cores can you choose for this fiber optic splice closure?

You can choose 12,24,48 cores,the maximum number of cores is 96.

Whether the fiber splice closure is use for outdoors or indoors?

The splice enclosure can be used for both outdoors and indoors.

What is the installation method of the fiber joint closure?

The optic joint closure can be laid overhead, pipes and poles.

What's the sealing method of the fiber optic splice closure?

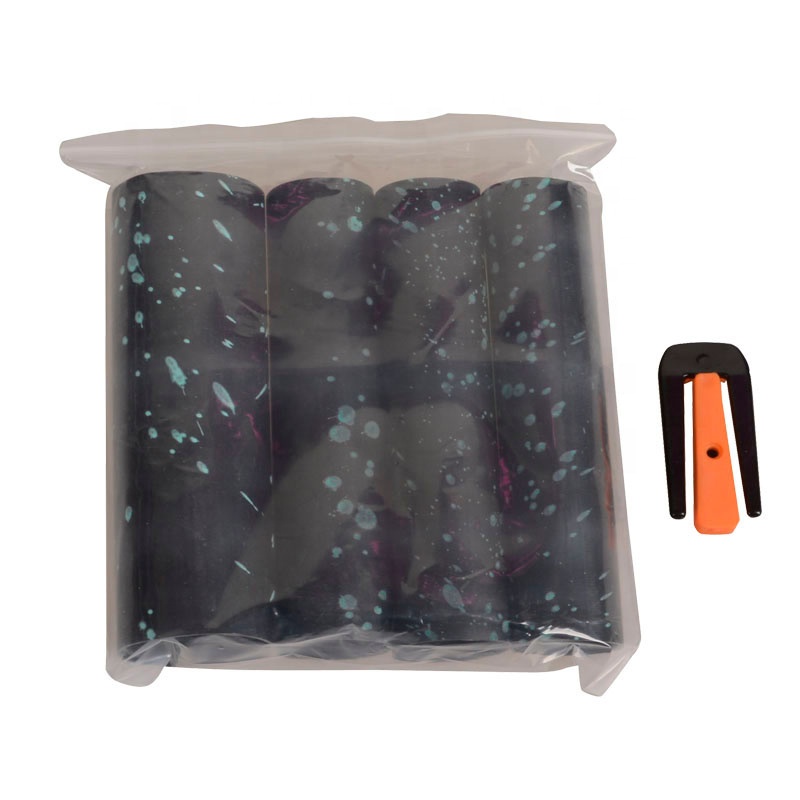

This splice closure adopts heat shrinkable sealing.
