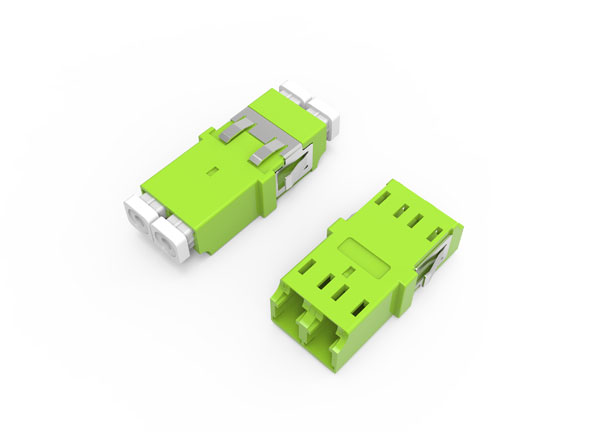

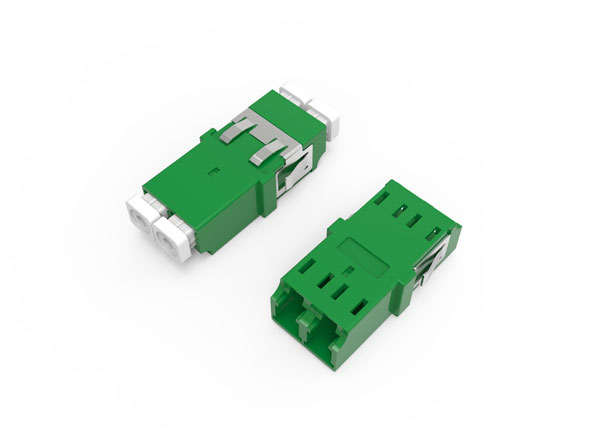

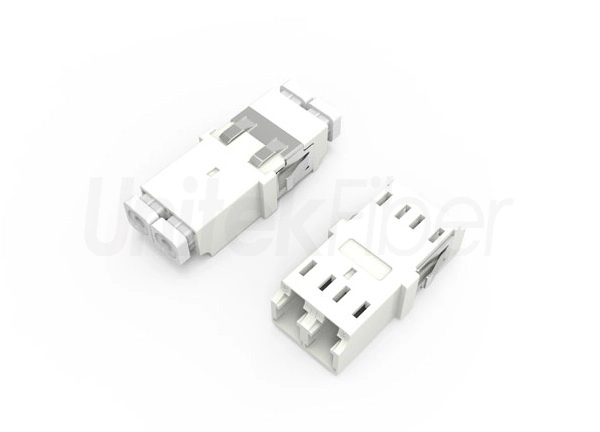

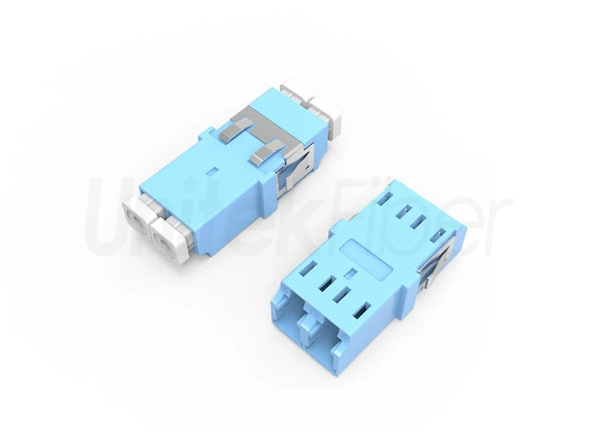

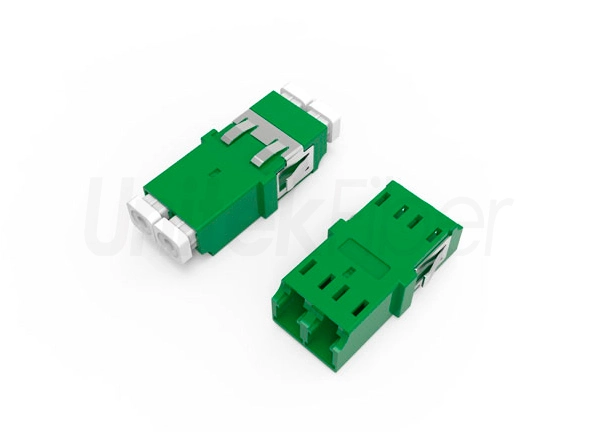

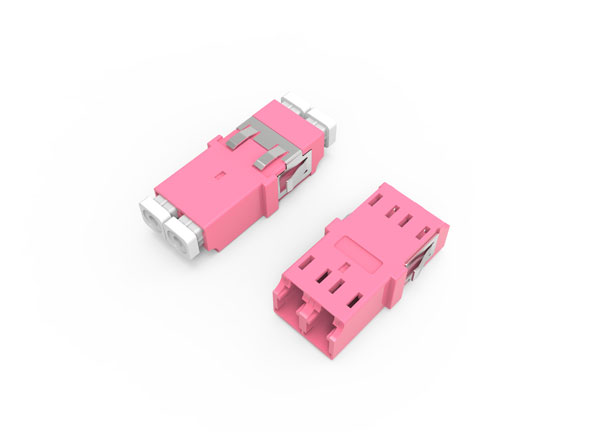

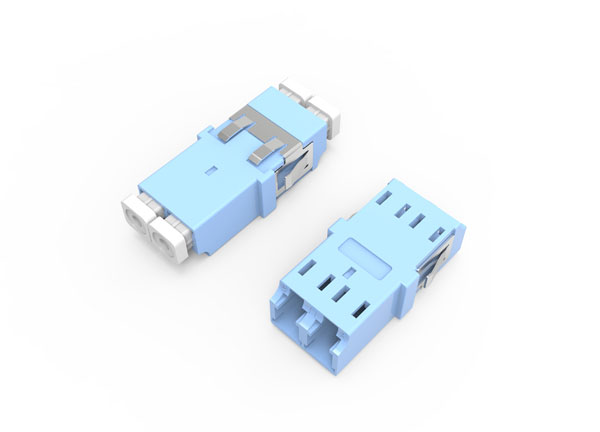

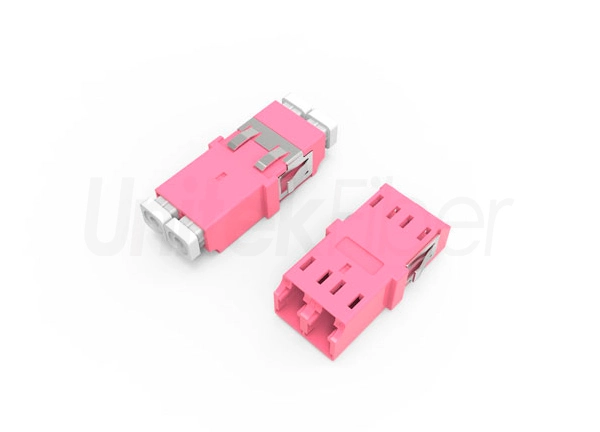

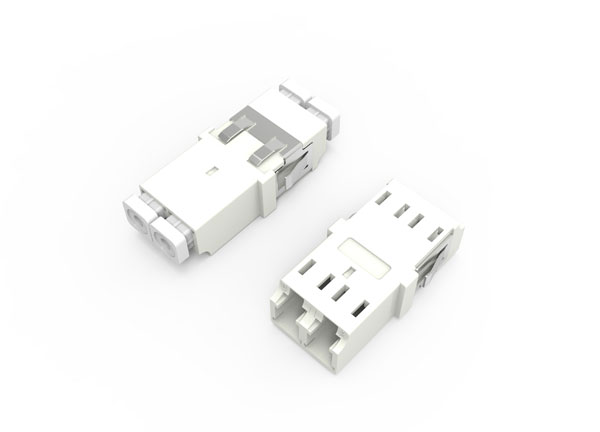

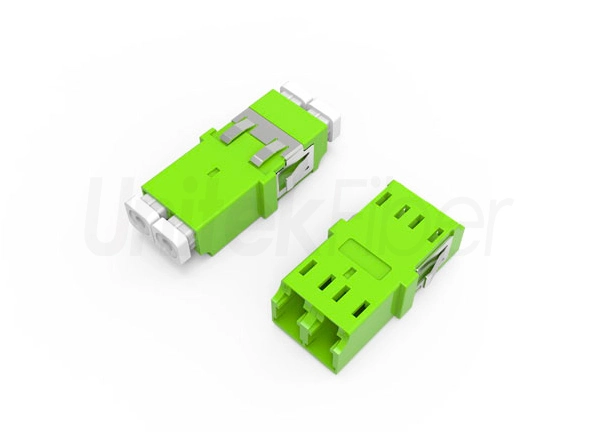

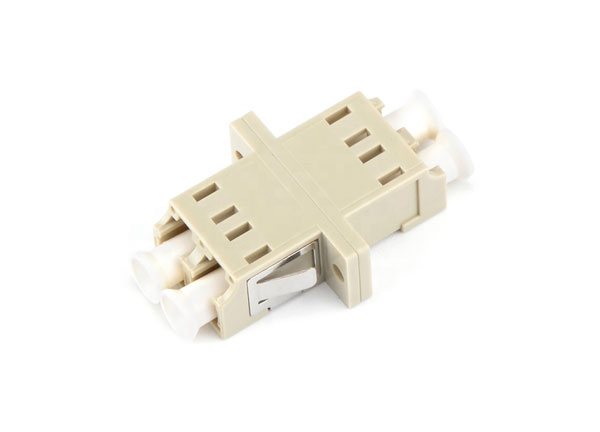

High Quality Flangeless Fiber Optic Mating Sleeve LC to LC Female Duplex

The optical fibers are connected by the fiber optic mating sleeves through the internal open sleeve to ensure the highest connection performance between the optical fiber jumpers. In order to fix on various panels, a variety of fine fixing flanges are also designed.
LC fiber adapters adopts small sizh pins and sleeves, which increases the density of fiber cores in fiber distribution frames.


Fiber Optic
Details
Parameter

Details of High Quality Flangeless Fiber Optic Mating Sleeve LC to LC Female Duplex

Features


  • Low insertional loss and back reflection loss

  • High prcision alignment

  • Telcordia, ANSI, TIA/EIA, NTT and JIS compliance

  • Compact design

  • Plastic housing


Application


  • CATV

  • Telecommunication networks

  • Test equipment

  • Metro

  • Local Area Networks(LANs)

  • Data processing networks

  • Multimedia

  • Gigabit Ethernet

  • Active device/Transceiver


The Application of Fiber Optic Adapter in Fiber Network Cabling


Unitekfiber provides 1U fiber optical panel with 96cores. There are 4pcs of dismounted adapter plates with 48pcs of duplex LC fiber optical mating sleeves. This designe of patch panel is suitable for high density data center solutions.


The Application of Fiber Optic Adapter in Fiber Network Cabling


Packaging and Shipping:


High Quality Flangeless Fiber Optic Mating Sleeve LC to LC Female Duplex


Production


High Quality Flangeless Fiber Optic Mating Sleeve LC to LC Female Duplex


Parameter of High Quality Flangeless Fiber Optic Mating Sleeve LC to LC Female Duplex

Specification


Data

Unit

Adapter Type

SC/LC/FC/ST


Insertion Lose

≤0.2

dB

Interchangeability

≤0.2

dB

Repeatability

≤0.1

dB

Temperature

-40~+85


Contact UnitekFiber
Contact UnitekFiber

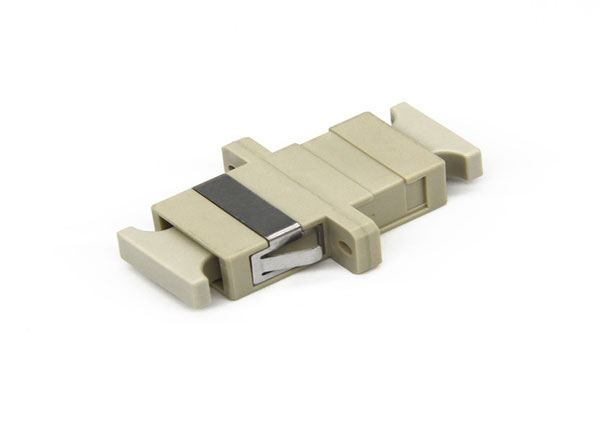

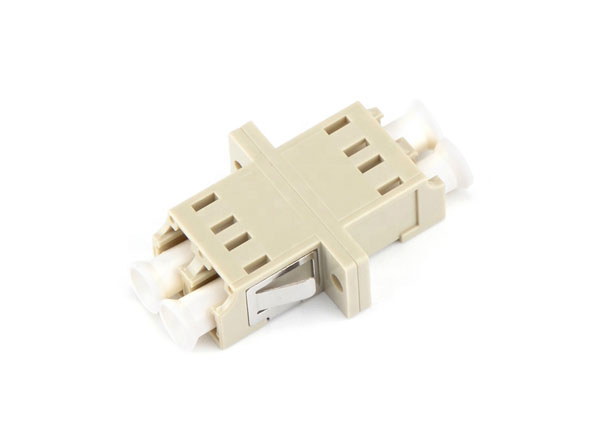

Other Fiber Optical Adapter Products
