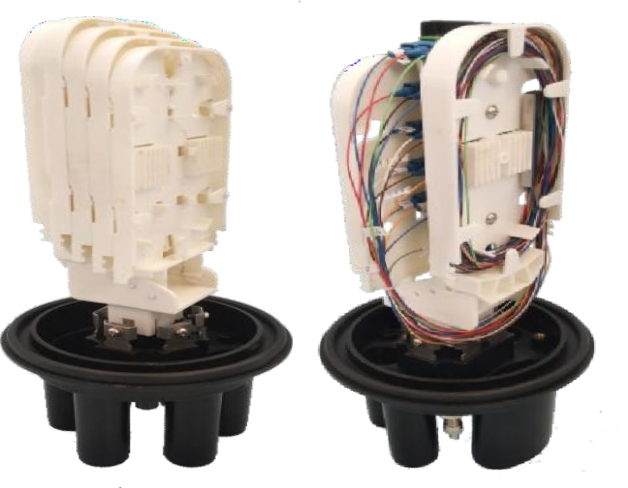

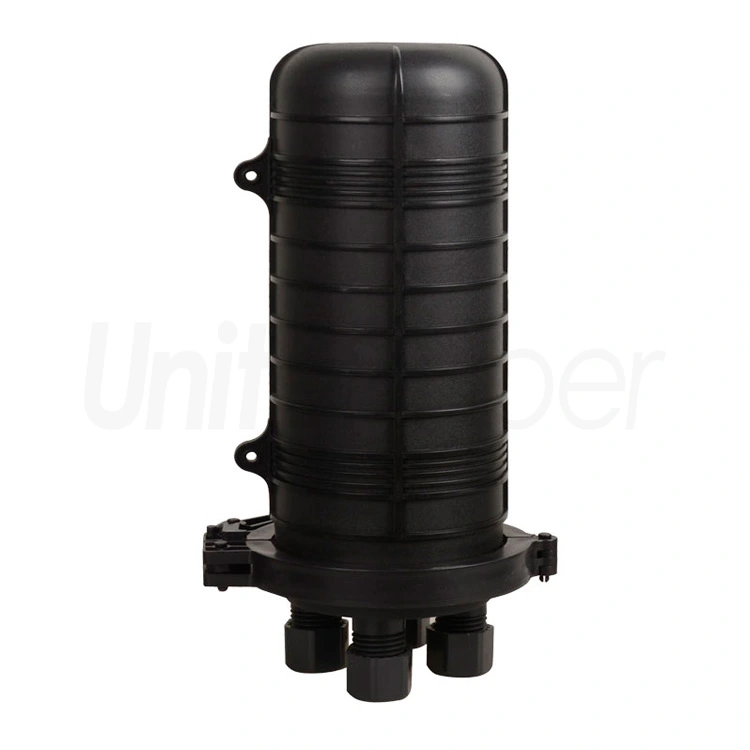

Heat Shrinking Vertical Fiber Optic Splice Closure 96cores 1 Input 7 Output

Part number: UNFOSC-H-M5D96

H-GJS-M5/RS-AS Fiber Optic Dome Closure is used for direct connection during optical fiber transmission, and provides joint connection protection, with 4 small round holes and 1 large hole. Heat sealing with heat shrinkable casing can be used for overhead, pole, wall and buried installations. With good sealing performance, simple installation and wide application range are the best choice for optical fiber solution.






Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Heat Shrinking Vertical Fiber Optic Splice Closure 96cores 1 Input 7 Output

Features:


lAll functional indicators are in line with the national YD814.1-2004 standard for distribution box.

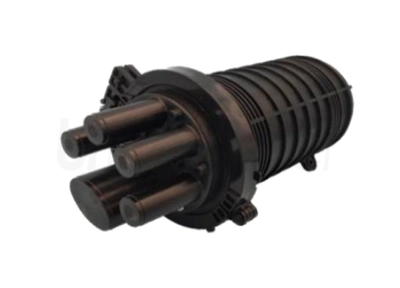

lFour-in and four-out cable ports; there are 4 round holes

land one oval hole, which suits for Φ7~Φ20cables.

lThe outer box body is made of high-strength engineering plastics, It has features of light weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life.

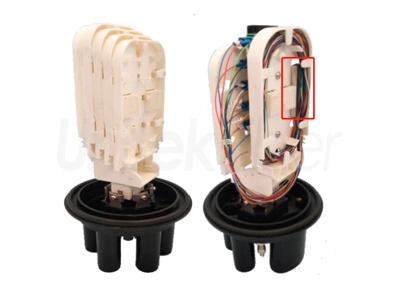

lStacked structure splice tray makes it flexible, convenient and safe for the optical fiber core configuration, expansion and the cable grounding.

lSpecial slot in the splice tray for fixing 1:4 and 1:8 or 1:16 PLC splitter.


Technical Index:


lFiber radius of curvature: ≥40mm

lOptical disk additional loss: ≤ 0.01dB

lTemperature Range: - 20°C ~ + 60°C

lAnti lateral pressure: ≥2000N / 10 cm

lShock resistance: ≥20N.m

lProtection level: IP68


Packing & Delivery



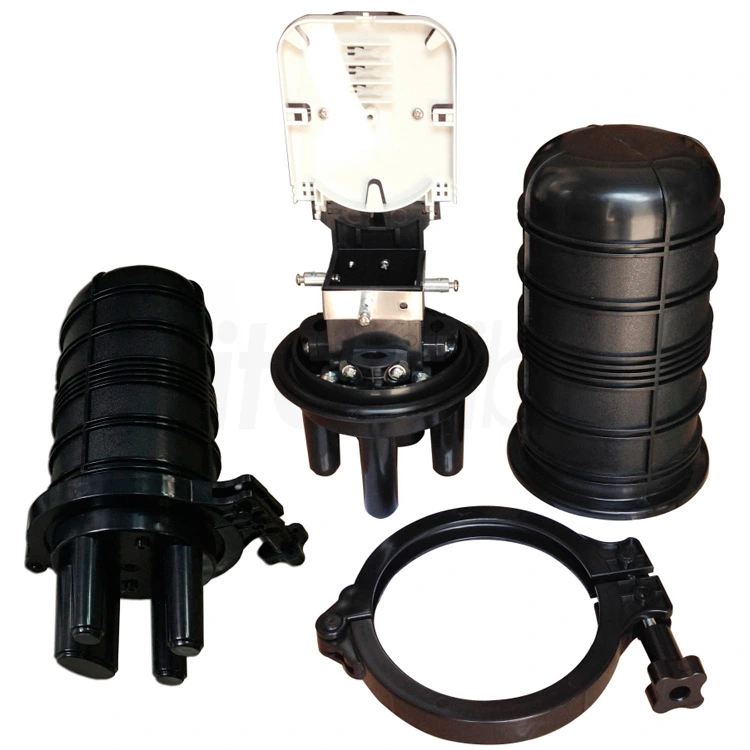

Heat Shrinking Vertical Fiber Optic Splice Closure 96cores 1 Input 7 Output

Production


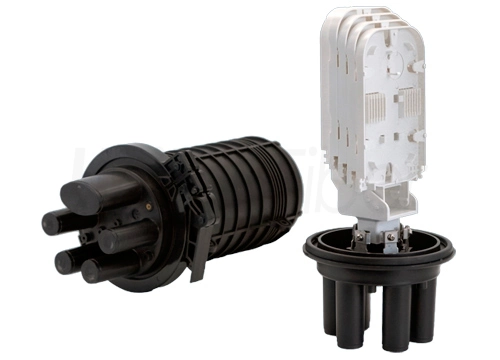

Heat Shrinking Vertical Fiber Optic Splice Closure 96cores 1 Input 7 Output

Heat Shrinking Vertical Fiber Optic Splice Closure 96cores 1 Input 7 Output

Type

H-GJS-M5/RS-AS

Size

F190*316

Cable ports (inlet/outlet)

3  in/ 3 out

Cable diameter (mm)

F7~F20

Splice tray capacity

24 (single core)

Max splice tray number

4

Max core capacity

96 (single core)

Max splitting

1:4 (4pcs), 1:8(2pcs), 1:16(1pc)

Sealing type

Heat shrinkable sleeve, silicon rubber


FAQs

How many inlets and outlets does the joint box have?

The fiber optic splice closure have 1 inlet and 4 outlets.

What is the shell material of the splice closure?

The shell material of the fiber splice joint closure is be made of PP,PC or PC+ABS.

What is the protection level of the optic splice closure?

The protection level of the fiber splice joint closure box is IP68.

What is the core count of the joint box?

 You can choose 24 ,48 ,72 and 96 cores,etc, the maximum number of cores is 96.

Whether the splice enclosure is use for outdoors or indoors?

The fiber optic splice closure can be used for both outdoors and indoors.

What is the installation method of the joint closure?

The fiber splice joint closure can be laid overhead, pipes ,poles,duct.

What's the sealing method of the fiber optic splice closure?

This fiber splice joint closure adopts heat sealing.
