ADSS Fiber Optic Cable Outdoor Aerial 96cores Single Mode 100m 150m 200m Span Double Jacket

ADSS fiber optical cable is All-dielectric Self-supporting Cable for Aerial applicatiion. ADSS fiber cable is cheaper than OPGW (Optical Fiber Composite Overhead Ground Wire). It is advisable to use power lines or nearby towers to overhead laying application, and even in some places it is necessary to use ADSS fiber optic cable.




Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of ADSS Fiber Optic Cable Outdoor Aerial 96cores Single Mode 100m 150m 200m Span Double

Optical Cable for Sale

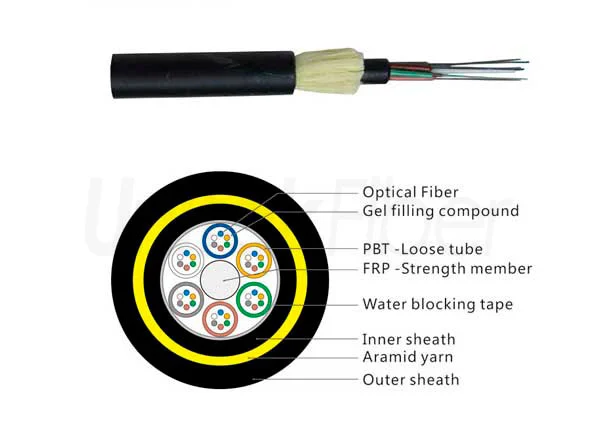

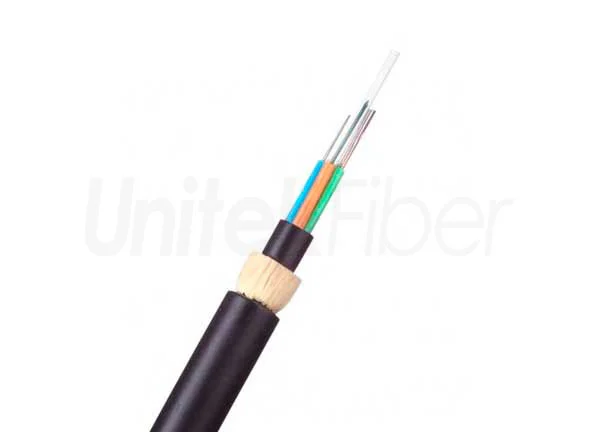

The structure of the double-sheathed ADSS optical cable is to add an additional layer of sheath to improve the compressive strength, and it is also a stranded structure design. In addition to requiring the same resistance to ultraviolet radiation as ordinary optical cables, its surface is also required to withstand the test of high-voltage and strong electric environments for a long time. An inner layer of fiber and water blocking grease is added to the fiber optic loose tube, and the different loose tubes are wrapped around the central rebar (usually FRP).


Optical Cable Price


The Fiber Cores of ADSS Fiber Cable is 2-288Cores


Features of ADSS Fiber optic Cable


Optical Cable Wire

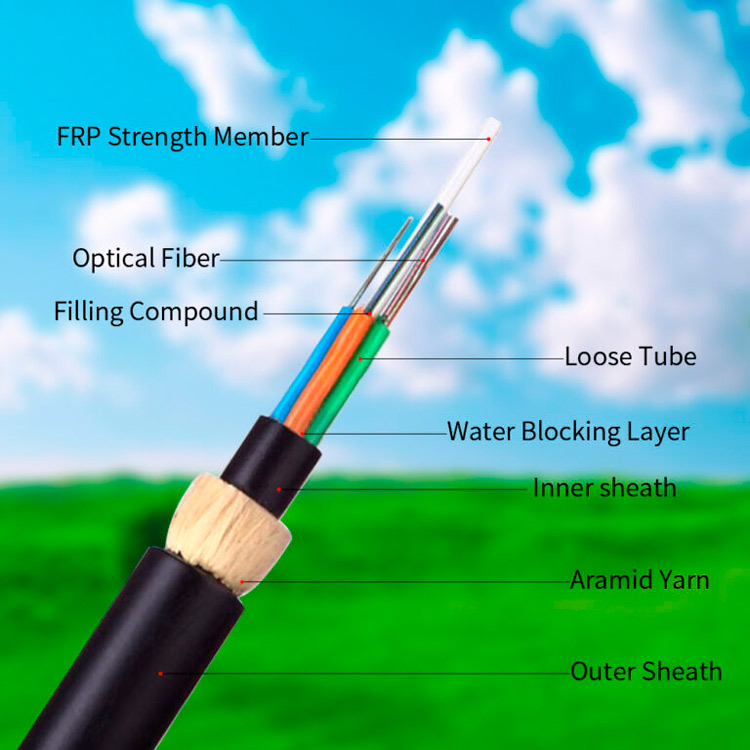

ADSS fiber optic cable is an all-dielectric self-supporting wire, specially designed for power system, it is a self-supporting aerial optical cable with all-insulation medium, and its structure does not contain any metal material. Aramid yarn, because of its high breaking strength, high elastic modulus, softness, light weight, and good temperature resistance, is a very important tensile element of ADSS optical cable, which is used as the central component or placed outside the cable core. The internal structure adopts a water-blocking layer, and the waterproof effect is better.


Applications of ADSS Fiber optic Cable


Optical Fibre Price


This ADSS fiber optic cable structure has no metal substance inside, suitable for lightning area, high voltage area, designed for voice, data, broadband and CATV transmission in long distance, backbone and local area network by aerial installation method. ADSS fiber optic cables are specially designed for installation on transmission lines and nearby electrical utilities.


Professional Assistant For ADSS Fiber Optic Cabling System


OFC Cable Price

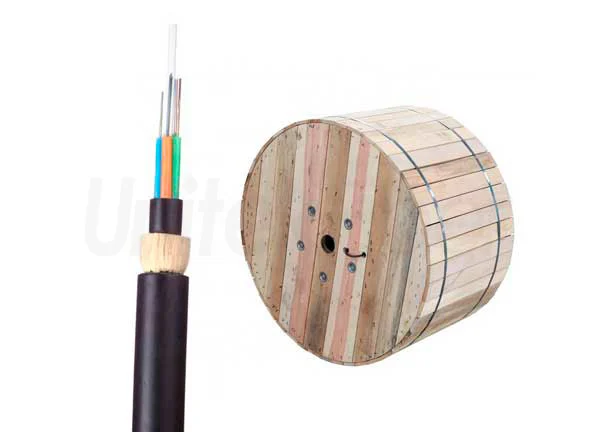

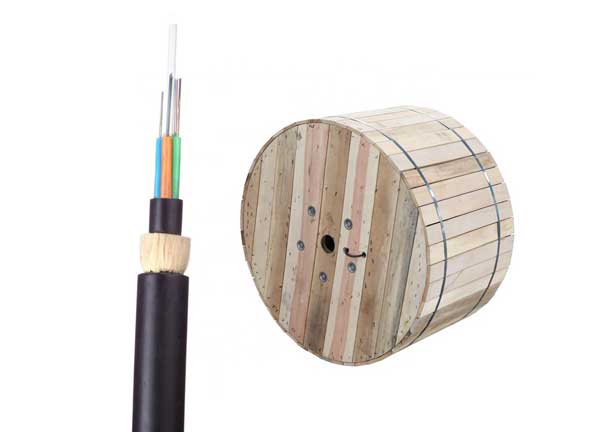

Packaging & Shipping


Air Blown Fiber Optic Cable


Production

Blown Fibre

Parameter of ADSS Fiber Optic Cable Outdoor Aerial 96cores Single Mode 100m 150m 200m Span Double Ja

No. of cable96
Fiber ModelG.652D
Design(StrengthMember+Tube&Filler)1+8
Central Strength MemberMaterialFRP
Diameter(±0.05)mm2.1
Additional


Sheath

MaterialMDPE
Diameter(±0.05)mm3.4
Loose TubeMaterialPBT
Diameter(±0.06)mm2.10
Thickness(±0.03)mm0.35
The Max.Core NO./Tube12
Water Blocking layer(Material)Flooding Compound
Inner sheathMaterialMDPE
Thickness(±0.1)mm0.7
Strength Member(Material)Aramid yarn
RipcordMaterialNylon
No.2
ColorRed
Outer SheathMaterialHDPE
Thickness(±0.1)mm1.5
Cable Diameter(±0.2)mm13.0
Cable Weight(±5)kg/km135
Rated tensile strength(RTS)20kn
Maximum operation stress8kn
Every day stress(EDS)5kn
Ultimate operation stress(UOS)12kn
E-midulus13kn/mm2
Thermal expansion copercient5.3×10-6/℃
Min. bending radiusWithout Tension10.0×Cable-φ
Under Maximum Tension20.0×Cable-φ
Temperature range


(℃)

Installation-20~+60
Transport&Storage-40~+70
Operation-40~+70


Fibre & Loose Tube Colors

 Fibre & Loose Tube Colors

What is ADSS fiber optic cable?

All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements.

How about the pole span for ADSS fiber optic cable?

UnitekFiber can supply ADSS fiber optic cable with 100-800 meter pole span.

Why does fiber optic cable need all-dielectric material?

Dielectric means it has non-conducting properties of a non-metallic, insulating material that resists the passage of electric current.

Can ADSS be installed underground?

ADSS cables should be placed in Aerial and duct, but can not be direct-buried.
