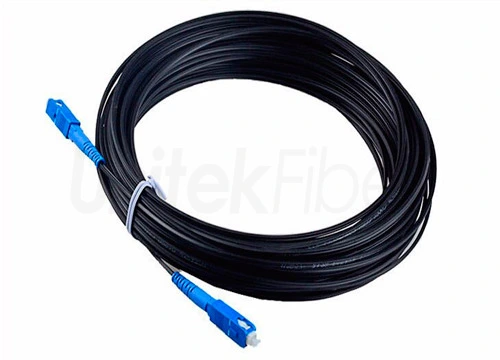

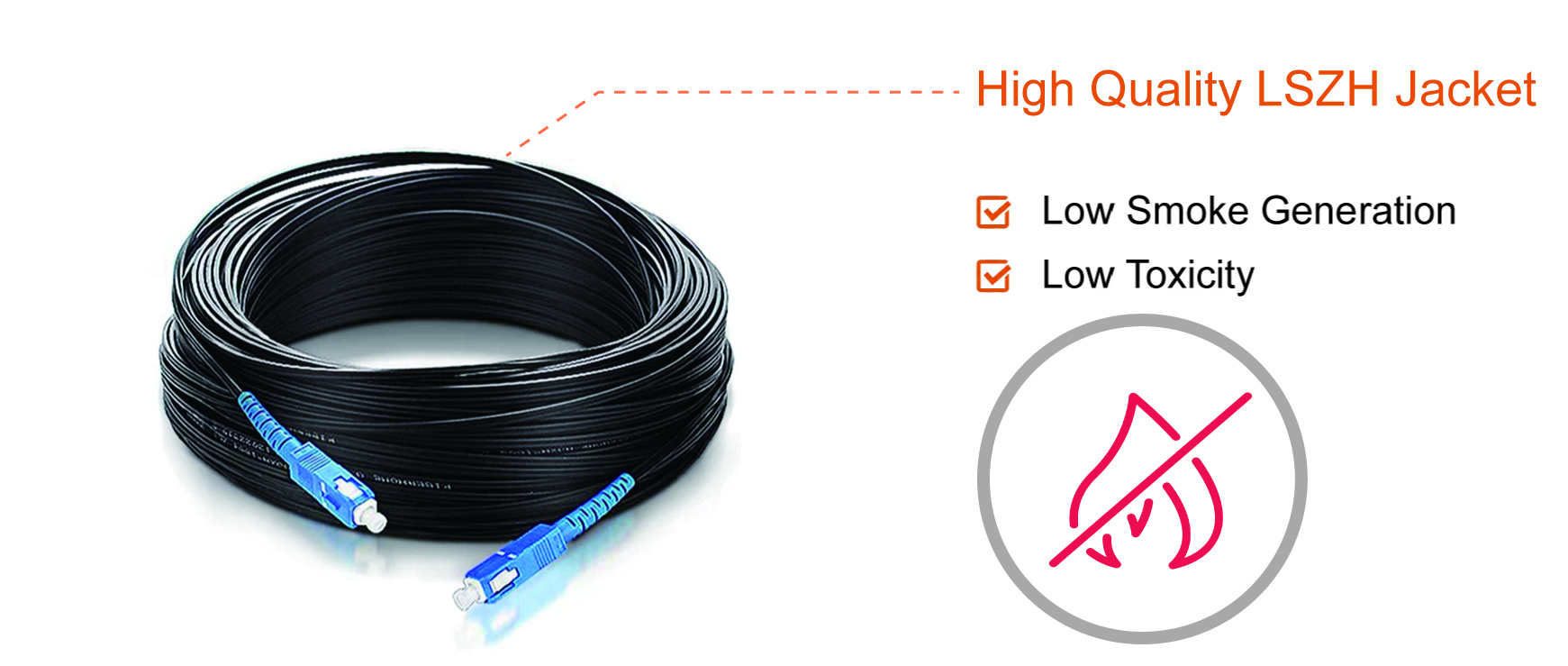

FTTH Drop Cable SC-SC Fiber Optical Patch Cord Simplex SM MM G657A LSZH Black

Fiber optical patchcord is also called as fiber optical jumper or fiber optic patch lead.UnitekFiber provides FTTH drop cable patchcords. The pactchcord is made by FTTH cable cable with SC connector at the both ends.

Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of FTTH Drop Cable SC-SC Fiber Optical Patch Cord Simplex SM MM G657A LSZH Black

Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC, UPC, APC profile and convex spherical end.


Characteristics:


  • High reliability ;

  • CE & RoHS compliant ;

  • 100% connectors tested ;

  • Repeatability: >1000 times ;

  • Deliery 100% passed products ;

  • Insertion Loss(SM): Typical<0.2dB, Max<0.3dB ;

  • Return Loss: UPC>50dB, APC>60dB ;

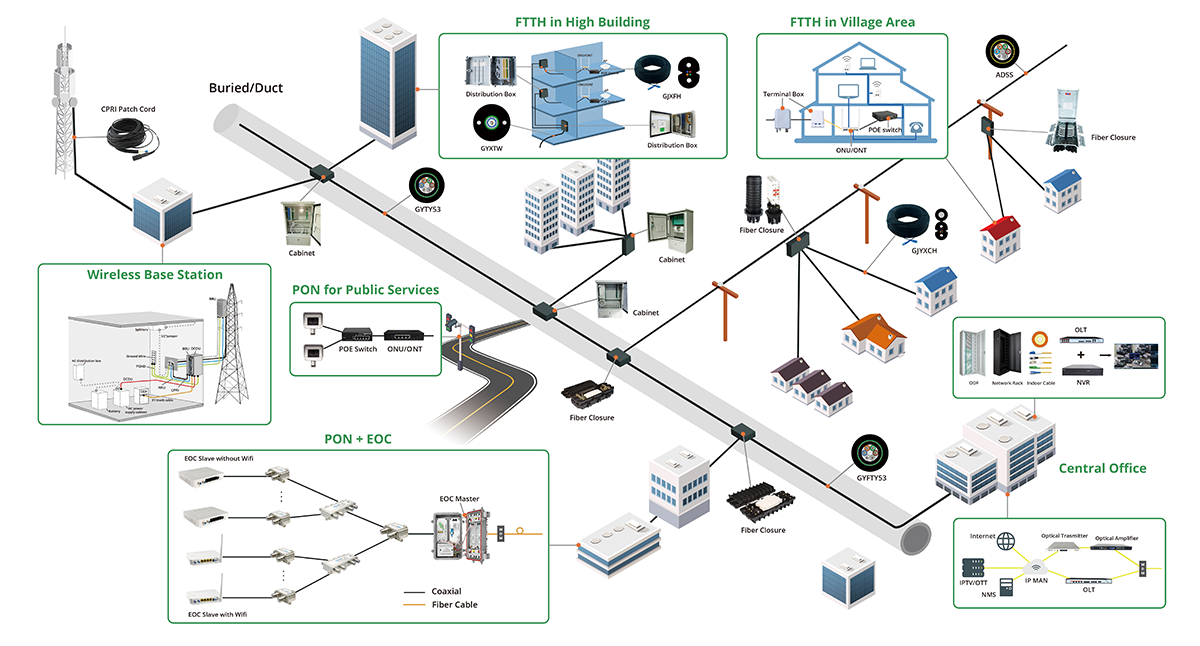

Applications:


  • Telecommunications

  •  Local Area Network (LAN)

  •  Fiber to the home (FTTH)

  •  Optical patch panels

  •  Testing Instruments

  •  CATV



Packaging & shipping


FTTH Drop Cable SC-SC Fiber Optical Patch Cord Simplex SM MM G657A LSZH Black


Production


FTTH Drop Cable SC-SC Fiber Optical Patch Cord Simplex SM MM G657A LSZH Black

Parameter of FTTH Drop Cable SC-SC Fiber Optical Patch Cord Simplex SM MM G657A LSZH Black

Item

Unit

FC,SC,LC

ST,MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

UPC

PC

PC

PC

UPC

PC

PC

UPC

Insertion loss(typical)

dB

≤0.3

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

nm

1310,1510

1310,1510

1310,1510

1310,1510

Exchengeability

dB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

≤0.2

Operating temperature

°C

-40~75

-40~75

-40~75

-40~75

Storage temperature

°C

-45~85

-45~85

-45~85

-45~85

Cable Diameter

mm

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
