Aerial Fiber Optic Cable|GYXTW Fiber Optic Cable 2 Core SM Armored Central Loose Tube G652D PE

GYXTW fiber optic cable is suitable for outdoor application, which is greatly used for aerial and duct applications. UnitekFiber produces single mode and multimode fiber cable types. The fiber counts is from 2 cores to 24 cores.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Aerial Fiber Optic Cable|GYXTW Fiber Optic Cable 2 core SM Armored Central Loose Tube

Optical Cable for Sale

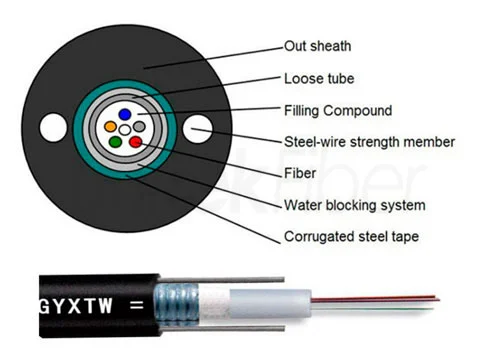

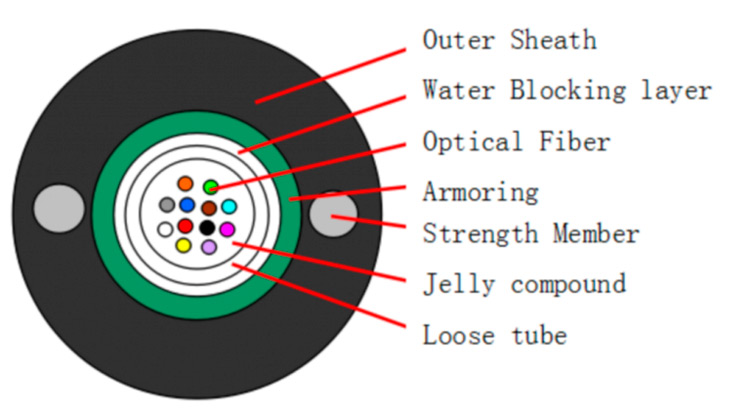

GYXTW armored fiber optical cable is central loose tube structure.This cable fiber are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Two parallel steel wires are placed at the two sides of the steel tape. The armored fiber optic cable is completed with a polyethylene (PE) sheath.


Optical Cable Price


The Fiber Cores of GYXTW Fiber Cable is 2-24Cores


Features of GYXTW Fiber optic Cable


Fiber Optic Wire Cable

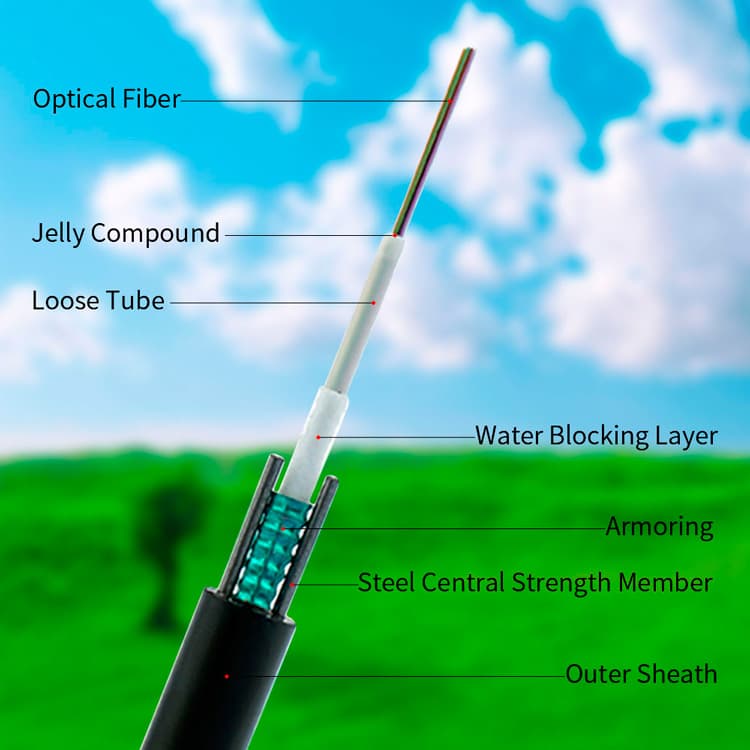

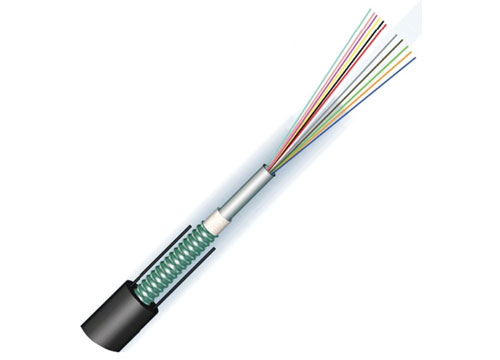

GYXTW fiber optic cable is a central loose tube type armored cable with good mechanical properties and temperature performance. The fiber optic cable adopts hydrolysis-resistant high-strength loose tube, which is filled with compound to ensure full protection of the fiber which be better compression resistance and flexibility of the fiber optic cable. The PSP in the fiber optic cable enhances waterproof and moisture resistance and two parallel steel wires ensure tensile strength. GYXTW fiber optic cable has the advantages of small diameter, light weight, and easy installation.


Applications of GYXTW Fiber optic Cable


Fiber Optic Wire for Sale


GYXTW fiber optic cable is a type of fiber optic cable that is widely used in aerial application or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for the situation where high-density fibers is expected. This fiber optic cable type has been praised due to its exceptional performance in Long Distance Symmetric role. As a matter of fact, This fiber optic cable plays an important role in the telecommunication industry and it's highly recommended by many technician.


Professional Assistant For GYXTW Fiber Optic Cabling System


Fo Cable Type


Packaging & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre

Parameter of Aerial Fiber Optic Cable|GYXTW Fiber Optic Cable 2 core SM Armored Central Loose Tube G

No. of cable

2~8

10~12

14~24

Fiber Model

G.652D

Strength Member

Material

Steel Wire

Diameter(±0.05)mm

1.0

1.0

1.2

Loose Tube

Material

PBT

Diameter(±0.06)mm

2.1

2.4

3.0

Thickness(±0.03)mm

0.32

0.35

0.4

The Max.Core NO./Tube

8

12

24

Water Blocking layer(Material)

Water Blocking Tape

Armoring

Material

Steel Strip

Thickness(±0.03)mm

0.25

Outer Sheath

Material

MDPE

Thickness(±0.2)mm

2.0

Cable Diameter(±0.2)mm

8.1

8.3

9.6

Cable Wetght(±5)kg/km

63

65

95

Min. bending radius

Without Tension

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

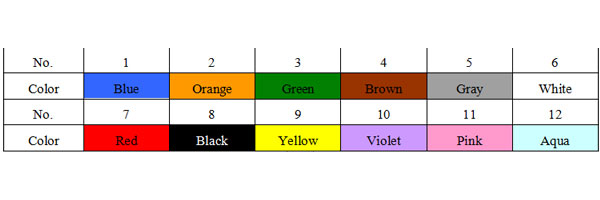

Fibre & Loose Tube Colors

Fibre & Loose Tube Colors


Can you supply OEM products under our brand?

Yes, we are manufacturer, we accept OEM service, we can print your LOGO on fiber cable and fiber cable drums.

How many types of Aerial fiber optic cable you can provide?

The Figure 8 fiber optic cable, GYXTW fiber optic cable, ADSS cable are all strong outdoor fiber cables for Aerial Application.

Can your fiber optic cable be bent without damaging the fiber?

Our fiber cable can be bent with diameters of 2.5cm or less.

What are the main products in your company?

We provides fiber optic cables, ADSS Fiber optic cable, Aerial fiber optic cable of GYTA, GYTC8S, GYFTY, GYTS, underground fiber cable and so on.

Where is the aerial fiber optic cable used?

Mostly used in Local Area Network (LANs), high density data center, FTTH Telecommunication.

If the high temperature will damage the aerial fiber optic cable?

Don’t worry, the aerial fiber optic cable can handles the most challenging telecommunications data transmission requests.
