Duct Outdoor Cables|GYFTY Fiber Optic Cable 48 Cores SM G652D Stranded Loose Tube Non-Armored PE

GYFTY Fiber Cable is stranded filling Loose tube with non-metallic reinforcing member is the central of the cable.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Duct Outdoor Cables|GYFTY Fiber Optic Cable 48 cores SM G652D Stranded Loose Tube Non

Optical Cable for Sale

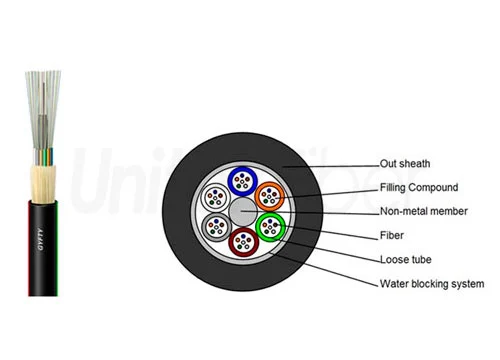

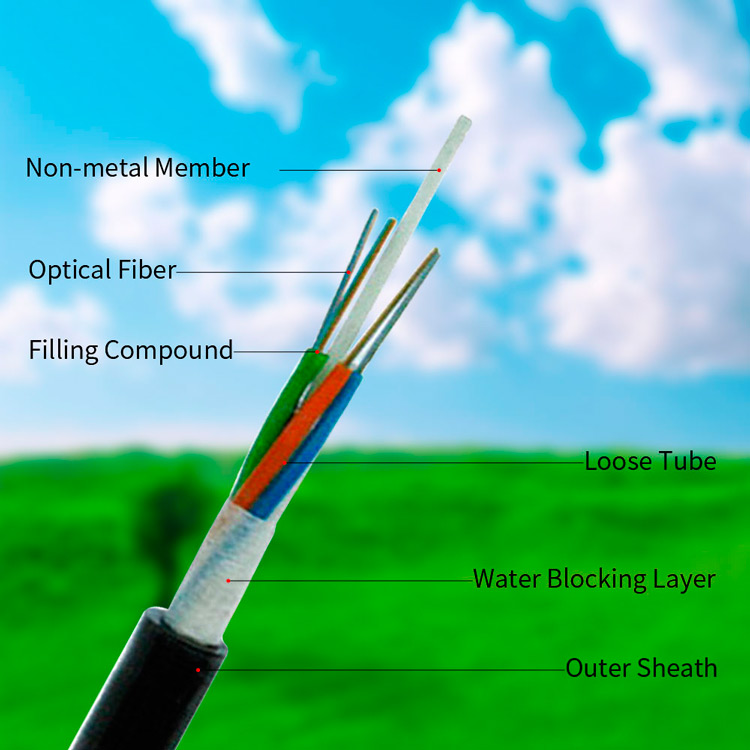

GYFTY fiber optic cable is a stranded non-metallic structure. Optical fibers are protected in loose tubes filled with Gel jelly.FRP locates in the center of cores as a non-metallic strength member. These loose tubes are stranded around a central strength member. The optical fiber cable core is water proof with water blocking material, GYFTY fiber optic cable is completed with a PE sheath for mechanical protection.


Optical Cable Price


The Fiber Cores of GYFTY Fiber Cable is from 2 cores to 288 cores


Features of GYFTY Fiber optic Cable

Fiber Optic Wire Cable


GYFTY fiber optic cable is used precise control of the excess length of the optical fiber ensures that the optical cable has good tensile performance and temperature characteristics.PBT loose tube material has good hydrolysis resistance, and the tube is filled with special grease to protect the cable optic fiber. GYFTY fiber optical cable has excellent flexibility and bending resistance. Optical cables are all non-metallic structures, light in weight, easy to lay, and excellent in electromagnetic resistance. Smooth outer sheath enables the optical cable to have a smaller coefficient of friction during installation.PE sheath has good resistance to solar radiation.


Applications of GYFTY Fiber optic Cable


Fiber Optic Wire for Sale

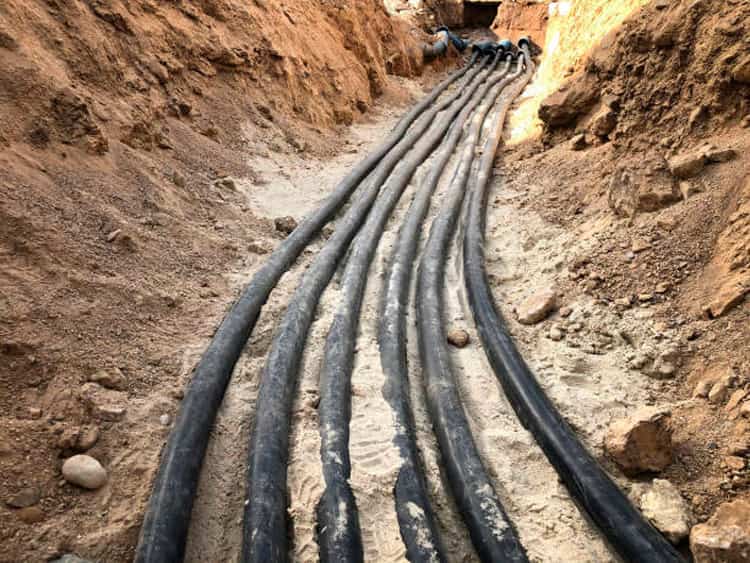

GYFTY Fiber Optic Cable Aerial and Duct is a non-metallic cable used for power transmission system, excessive thunder areas and high electromagnetic interface. Its mainly application is for aerial or duct installation applications.


Professional Assistant For GYFTY Fiber Optic Cabling System


Fo Cable Type


Packaging & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre

Parameter of Duct Outdoor Cables|GYFTY Fiber Optic Cable 48 cores SM G652D Stranded Loose Tube Non-A

No. of cable

12

24

Fiber Model

G.652D

Design(StrengthMember+Tube&Filler)

1+5

Central Strength Member

Material

FRP

Diameter(±0.05)mm

1.5

Loose Tube

Material

PBT

Diameter(±0.06)mm

1.8

Thickness(±0.03)mm

0.32

The Max.Core NO./Tube

6

Filler Rope

Material

LDPE

Colour

White

Diameter(±0.06)mm

1.8

Water Blocking layer(1)(Material)

Flooding Compound

Water Blocking layer(2)(Material)

Water blocking tape

Outer Sheath

Material

MDPE

Thickness(±0.2)mm

1.8

Cable Diameter

9.1

Cable Wetght


Min. bending radius

Without Tension

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

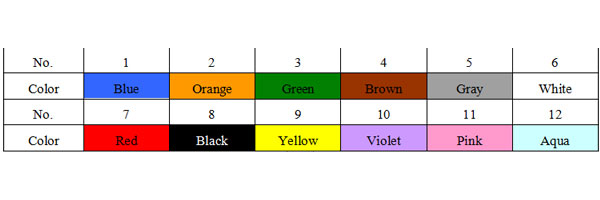

Fibre & Loose Tube Colors

Fibre & Loose Tube Colors


Do you have certificate for raw material?

Yes, with qualified ISO9001, ROHS, UL raw material suppliers.

What is the cable structure for this duct fiber optic cable?

This duct fiber optical cable is usually in Stranded loose tube structure.

How many cores for the duct fiber optical cable?

2-288cores.

What's the MOQ for duct fiber optic cable?

The MOQ of duct fiber optic cable is 2km.

Can you supply customized products and logo?

Yes, we supply OEM&ODM service, please feel free to contact us.
