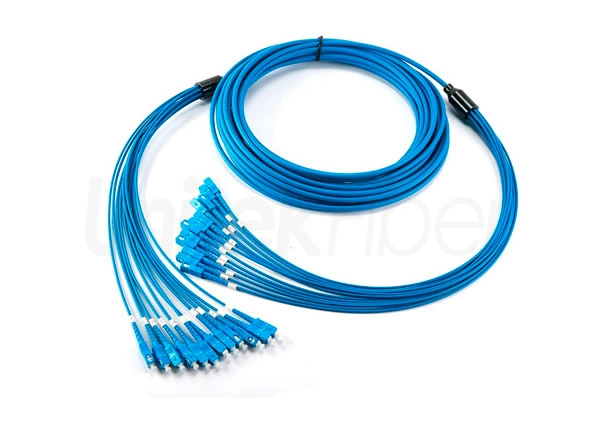

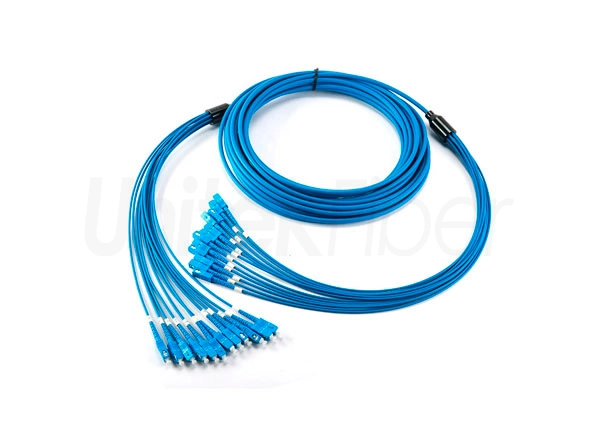

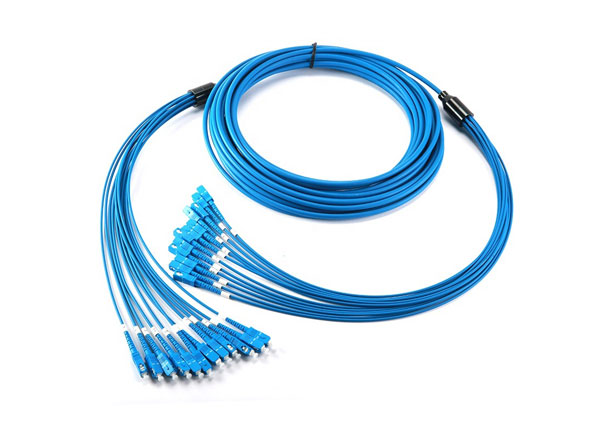

Patchcord SC to SC Breakout Armored Fiber Optic Jumper 12cores SM MM G657A2 PVC OFNP 3m

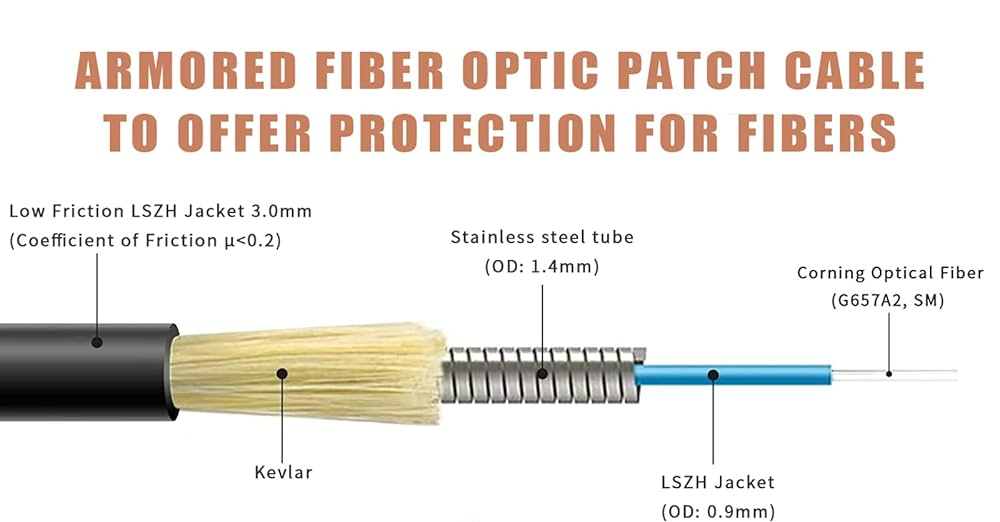

The armored optical fiber patchcord(jumper) mainly adds a layer of micro-caliber spiral stainless steel sheath tube outside the optical fiber, which enhances the pressure resistance, and also ensures the same flexibility as the standard optical fiber jumper and the various superior optical properties of the optical fiber . The micro-caliber stainless steel hose serves as the protective layer closest to the optical fiber and can prevent damage caused by mechanical force.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Patchcord SC to SC Breakout Armored Fiber Optic Jumper 12cores SM MM G657A2 PVC OFNP

Characteristics


  • High reliability;

  • CE & RoHS compliant;

  • 100% connectors tested;

  • Repeatability: >1000 times;

  • Deliery 100% passed products;

  • Insertion Loss(SM): Typical<0.2dB, Max<0.3dB;

  • Return Loss: UPC>50dB, APC>60dB;


Applications


  •  Telecommunications

  •  Local Area Network (LAN)

  •  Fiber to the home (FTTH)

  •  Optical patch panels

  •  Testing Instruments

  •  CATV


Packaging and Shipping


Patchcord SC to SC Breakout Armored Fiber Optic Jumper 12cores SM MM G657A2 PVC OFNP 3m


Production


Patchcord SC to SC Breakout Armored Fiber Optic Jumper 12cores SM MM G657A2 PVC OFNP 3m


Parameter of Patchcord SC to SC Breakout Armored Fiber Optic Jumper 12cores SM MM G657A2 PVC OFNP 3m

Item

Unit

FC,SC,LC

ST,MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

UPC

PC

PC

PC

UPC

PC

PC

UPC

Insertion loss(typical)

dB

≤0.3

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

nm

1310,1510

1310,1510

1310,1510

1310,1510

Exchengeability

dB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

≤0.2

Operating temperature

°C

-40~75

-40~75

-40~75

-40~75

Storage temperature

°C

-45~85

-45~85

-45~85

-45~85

Cable Diameter

mm

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
