Customized Outdoor Fiber Optic Drop Cable GYFXTBY 2-24 Cores G657 G652D PE|LSZH Black

GYFXTBY customized outdoor Fiber Optic Drop Cable is a so popular fiber cable in the market. The bare optical fibers are in the central PBT tube and two parallel FPR are paralleled at the two sides. Finallly the drop cable squeezes with LSZH or PE outer sheath.The structure of fiber optic drop cable is relatively soft, and has a certain tensile force. It can be used for indoors and outdoors, overhead, and through the pipe.




Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Video
Reviews

Description of Customized Outdoor Fiber Optic Drop Cable GYFXTBY 2-24 cores G657 G652D PE|LSZH Black

FTTH Cable Price

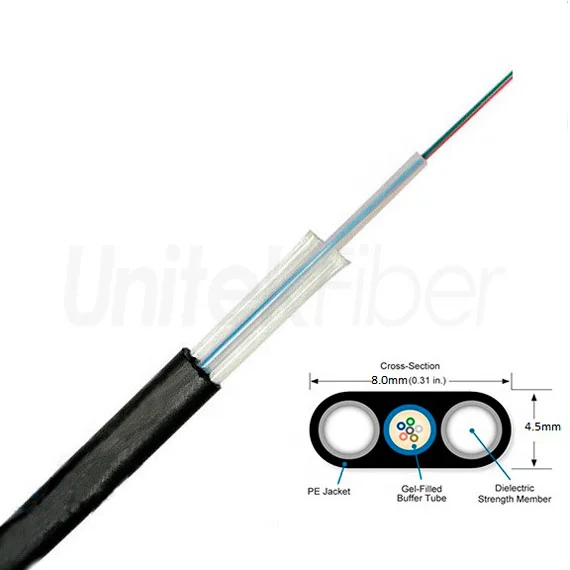

Outdoor GYFXTBY Flat Cable Single Mode Fiber Optic Cable is Non-Armored Uni-Tube optical cable with fibers placed in loose buffer tube. The cable core is protected with jelly to prevent water intrusion and migration, and cover with a black polyethylene out jacket. Two embedded FRP or metallic wire provide desire tension. The cable consists of a central loose tube, filled with a synthetic oil based jelly, non-nutritive to fungus, electrically non-conductive, homogeneous and free from dirt and foreign matter, containing up to 12 optical fibres. Two Fiber Reinforced Plastics (FRP) elements are longitudinally applied parallel with the tube, and an outer black PE sheath, UV resistant.


FTTH Drop Cable Price

The Fiber Cores of Flat Fiber Cable is 2-24Cores


Features of GYFXTBY Fiber optic Cable


Fiber FTTH

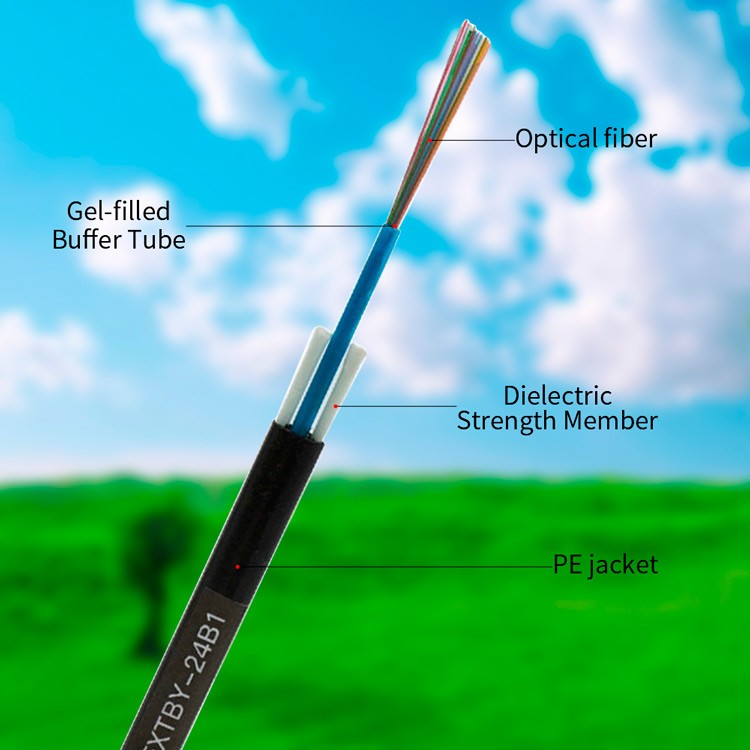

The PBT loose tube material has good hydrolysis resistance, and the tube is filled with special ointment to protect the optical fiber; The flat optical cable is all non-metallic structure, light in weight, easy to lay, and has better anti-electromagnetic and lightning protection effects; Drop cable has the advantages of corrosion resistance, UV protection and environmental protection; Precise control of the excess length of the fiber cable ensures that the optical cable has good tensile performance and temperature characteristics.


Applications of  Flat Fiber optic Cable

FTTH Fiber Optic

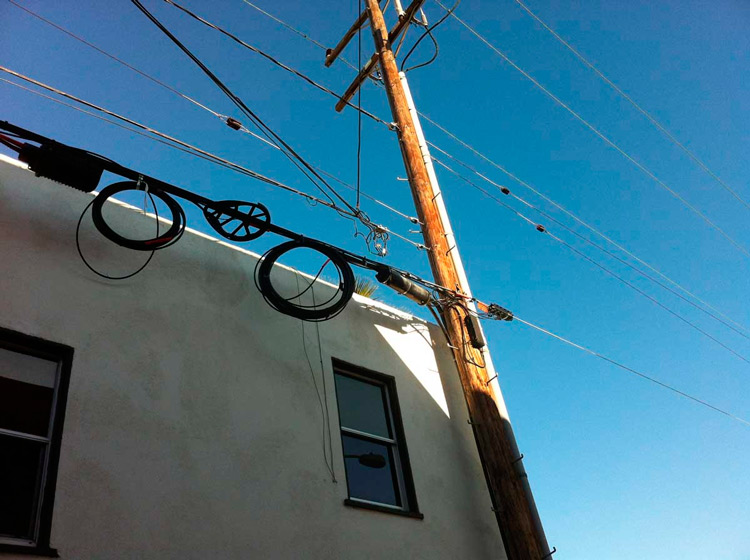

The flat fiber optic cable is end of the household access, the agricultural network lightning distribution area overhead ,also can application indoor and outdoor wiring in open areas. Mainly used for building pipelines or overhead drop cables, and can also be used for access networks, outdoor to indoor drop cables.


Professional Assistance For Flat Fiber Optic Cabling System.


FTTH Fiber to the Home

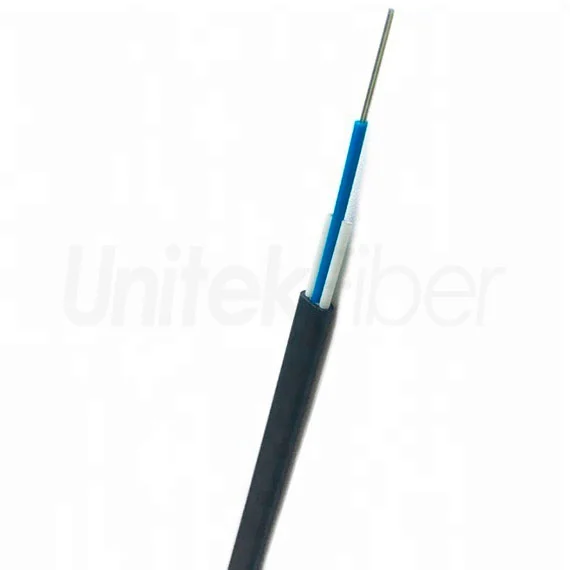

The optical cable layout is generally led from the entrance hole in front of the office to the optical transceiver through the underground access room. Due to the complexity of routing, manual deployment should be adopted. When laying, there should be a special person at the upper and lower corridors and each corner to pull according to the unified command, keep the fiber drop in a slack state during the pulling, and flat optic cable is strictly forbidden to make small circles and dead bends.

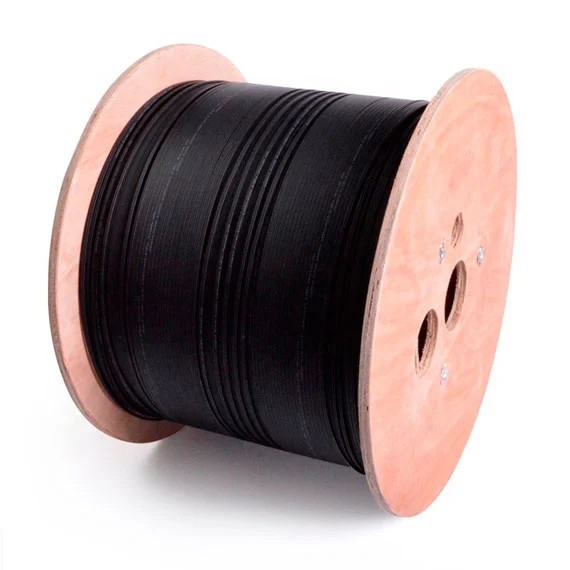

Packaging & Shipping


Fiber Drop Cable Price

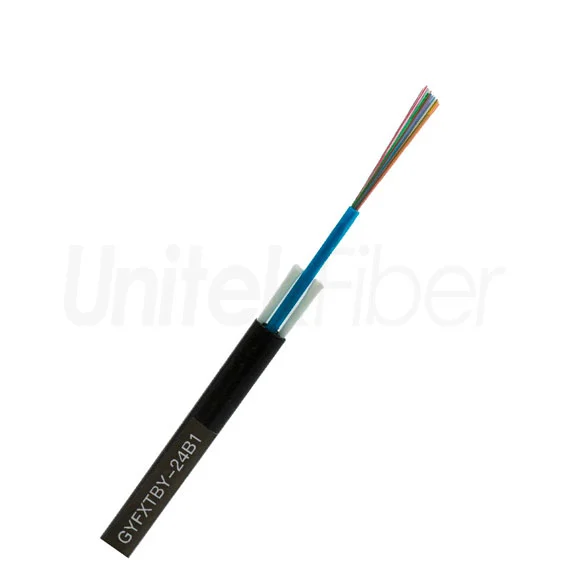

Parameter of Customized Outdoor Fiber Optic Drop Cable GYFXTBY 2-24 cores G657 G652D PE|LSZH Black

Item

paramater

Fiber

9/125 (G.652D or G.657A1)

Cable

1-24F

Size

8.0*4.5mm±0.2 mm

Loose Tube

PBT - polybutylene terephthalate

Diameter

2.1±0.05mm

Waterblocking Yarn

SZS-15.0 ×4 Root

Strength Member

FRP - Glass fiber reinforced plastic rods

Diameter

1.5± 0.05mm

Outer Sheath

PE - Polyethylene

Thickness

1.0±0.1 mm

Fibre Colours

No.

1

2

3

4

5

6

7

8

9

10

11

12

Color

Red

Blue

Green

Yellow

Violet

White

Orange

Gray

Brown

Light Green

aqua

pink














No.

13

14

15

16

17

18

19

20

21

22

23

24

Color

Red

Blue

Green

Yellow

Violet

White

Orange

Gray

Brown

Light Green

aqua

pink



Faqs

What is the function of FRP?

FRP is a Fiberglass-Reinforced Plastic material that has the strength of steel at the fraction of the weight, the FRP makes cable strong tension and anti-bend advantages.

How to terminate the FTTH Drop cable?

This cable can work with single mode or multimode LC/SC fast connectors and also can be pre-terminated by LC/SC/ST/FC connectors.

Does FTTH Drop Cable work with singlemode upc 9-125 micro fiber?

Yes, the optical fiber usually is single mode (9/125) G657. It is also can be G652D. You can use cold splicing tool to add fast connectors LC/SC/ST/FC(UPC/APC) to it.

Do any LC fast connectors work with FTTH drop cable?

Yes, UnitekFiber can provide LC fast connectors to terminate FTTH drop cable.

What is the main application for FTTH drop cable?

The main application for FTTH drop cable is Fiber to The Home project.

Is FTTH drop cable suitable for outdoor runs?

Yes, it is suitable for outdoor application with 70meters pole span.

What is the strength members for FTTH drop cable?

The strength member for FTTH drop cable can be FRP or steel wire.
