Manufacturer Indoor|Outdoor Fiber Optic Cable Micro-tube 12 24 48 96 144 288 Cores GJXZY SM G652D G657 PE|LSZH

Indoor/outdoor Fiber optic cable GJXZY is our newly developed fiber cable which is designed to meet both the harsh environment of outdoors but also can be applied in indoors.



Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Video
Reviews

Description of Manufacturer Indoor|outdoor Fiber Optic Cable Micro-tube 12 24 48 96 144 288 cores GJ

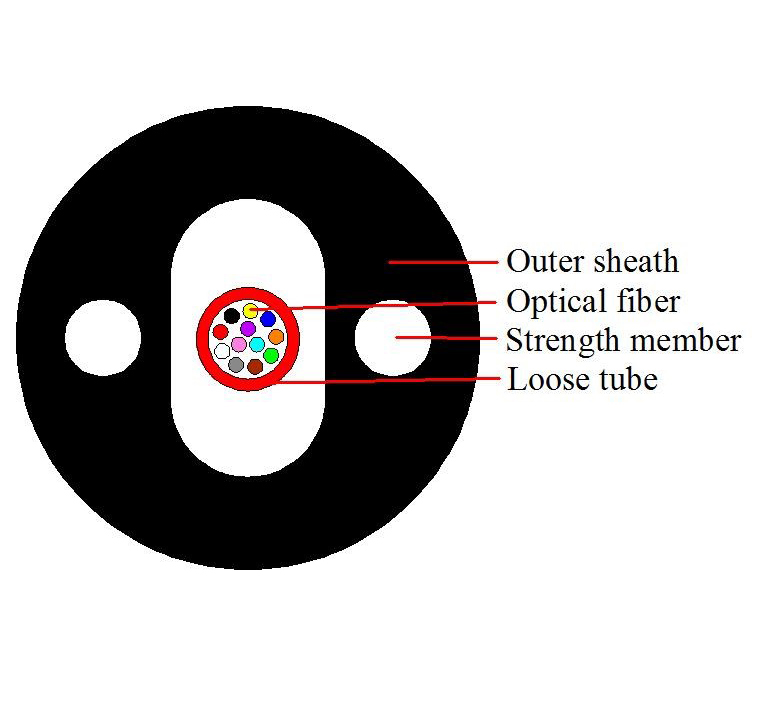

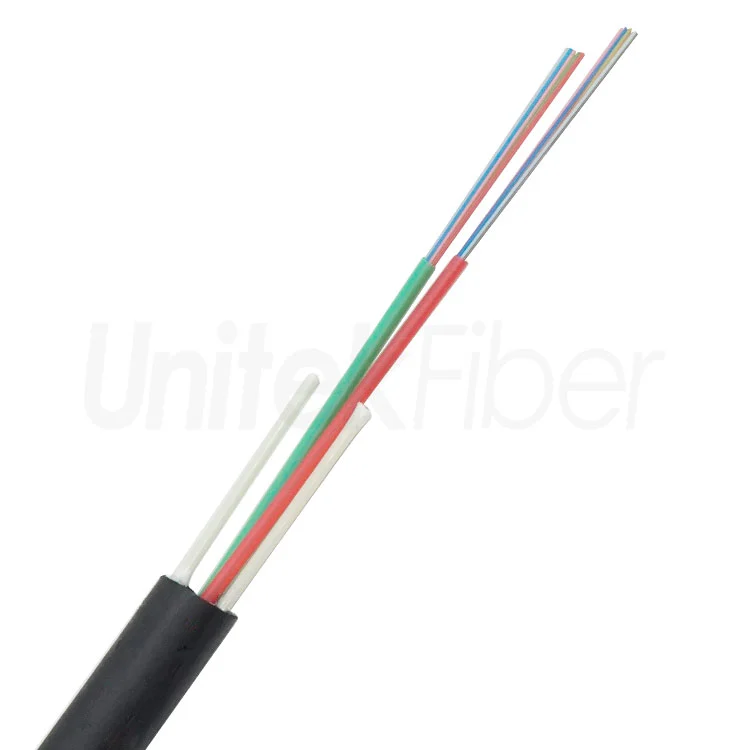

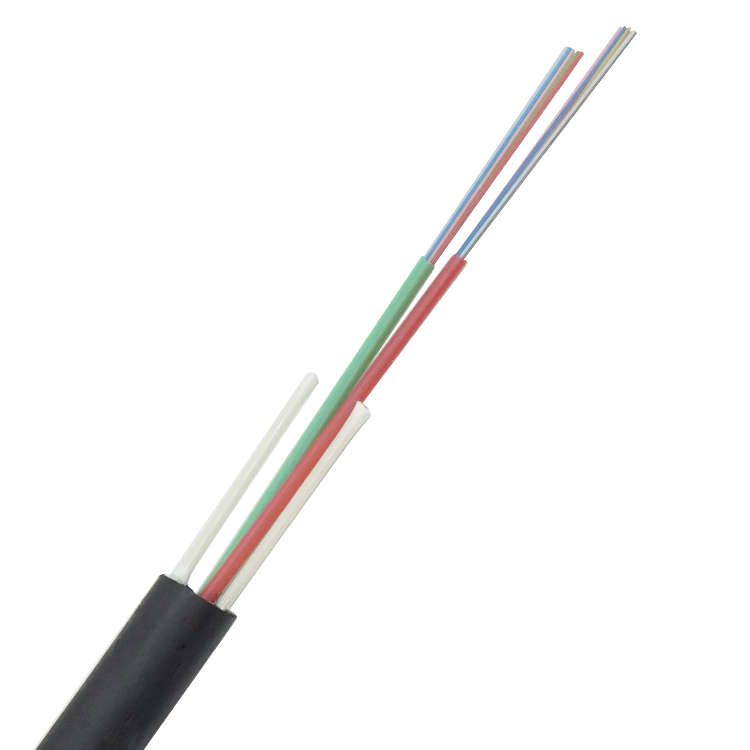

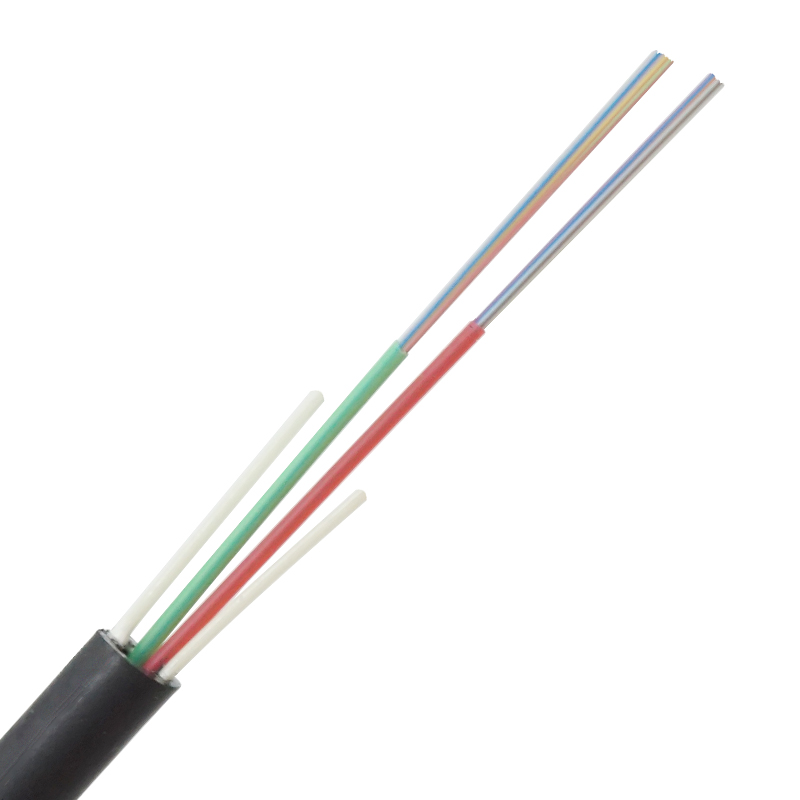

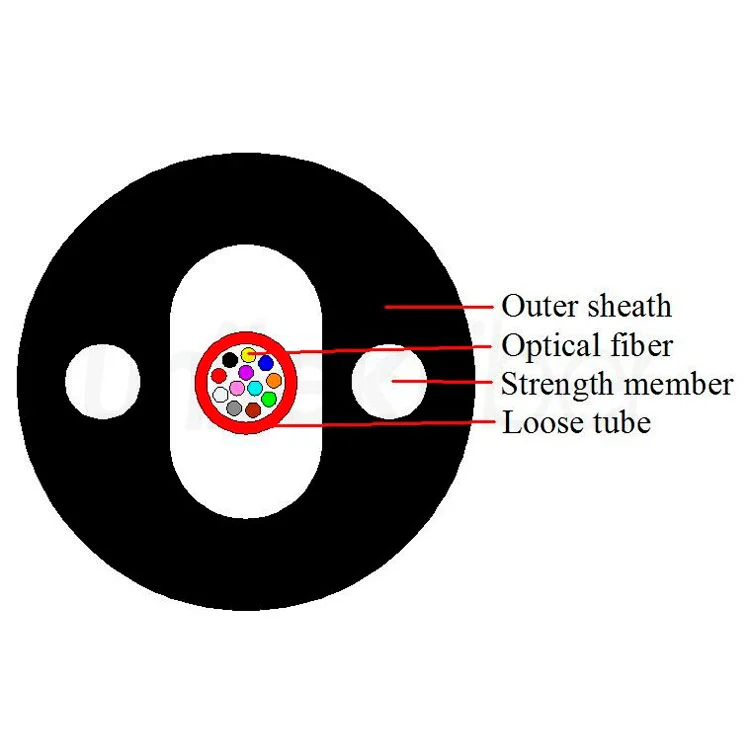

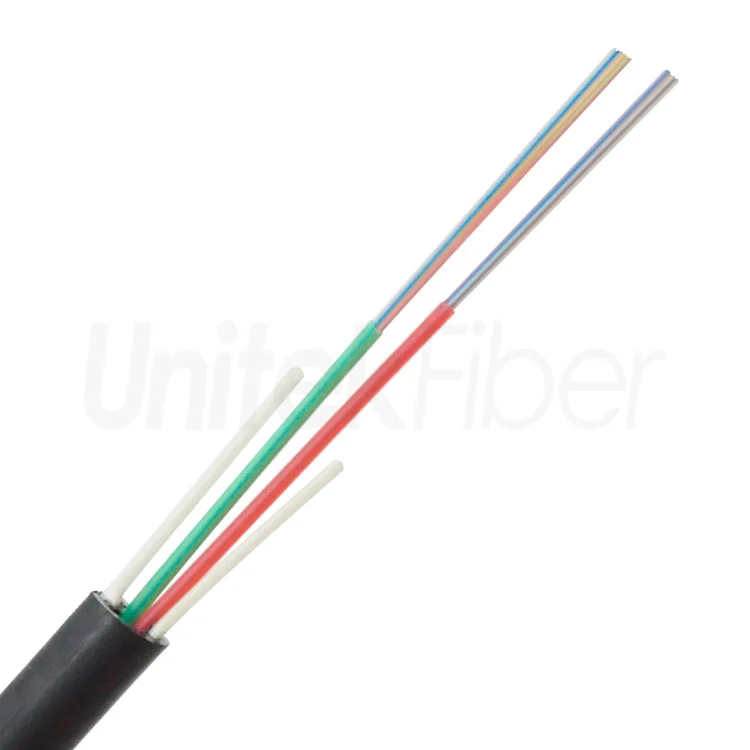

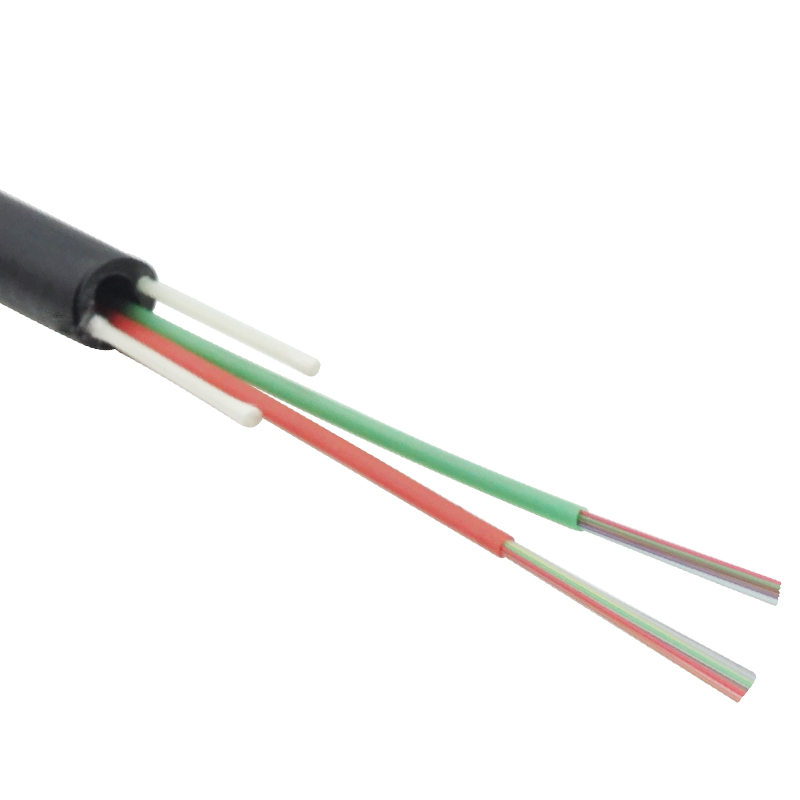

Indoor/outdoor Fiber optic cable GJXZY is our newly developed fiber cable which is designed to meet both the harsh environment of outdoors but also can be applied in indoors. The structure of the GJXZY indoor/outdoor fiber cable is to insert 250um colored optical fibers into a loose tube made of high modulus materials and fill the loose sleeve with waterproof compounds. There are two parallel FRPs are placed at the both sides of the fiber cable. Finally the fiber cable is extruded with frame-retardant LSZH sheath.


Features:

  • Fiber type: G657A fiber, G657B fiber

  • Up to 24 fibers.

  • Uni-tube gel-filled construction for superior fiber protection.

  • Two parallel FRP wire to enhance tensile resistant and protect cable from mechanical damage.

  • Designed for use with inexpensive attachment hardware.

  • Self-supported no messenger needed.

  • Flame-retardent LSZH jacket

  • Small size, Low cost.


Application:

  • This fiber cable is applied in Duct, Aerial FTTx, Access installations.

  • Used in access network or as access cable from outdoor to indoor in customer premises network.

  • Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.


Packaging & Shipping

Fiber Drop Cable Price

Parameter of Manufacturer Indoor|outdoor Fiber Optic Cable Micro-tube 12 24 48 96 144 288 cores GJXZ

No. of cable

12-24

Fiber Model

G.657A1

Strength Member

Material

FRP

Diameter(±0.05)mm

1.0

Loose Tube

Material

LSZH

Diameter(±0.05)mm

1.4

Thickness(±0.03)mm

0.15

The Max.Core NO./Tube

12

Outer Sheath

Material

LSZH

Thickness(±0.1)mm

2.0

Cable Diameter(±0.2)mm

7.0

Cable Weight(±3kg)

36

Min. bending radius

Without Tension

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range
(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70


NO.

Item

Requirement

1

Allowable Tensile Strength

Short Term

600 N

Long Term

200 N

2

Allowable Crush Resistance

Short Term

1000 (N/100mm)

Long Term

300 (N/100mm)


Fibre Colours

Fibre Colours

How to terminate the FTTH Drop cable?

This cable can work with single mode or multimode LC/SC fast connectors and also can be pre-terminated by LC/SC/ST/FC connectors.

Does FTTH Drop Cable work with singlemode upc 9/125 micro fiber?

Yes, the optical fiber usually is single mode (9/125) G657. It is also can be G652D. You can use cold splicing tool to add fast connectors LC/SC/ST/FC(UPC/APC) to it.

Do any LC fast connectors work with FTTH drop cable?

Yes, UnitekFiber can provide LC fast connectors to terminate FTTH drop cable.

What is the main application for FTTH drop cable?

The main application for FTTH drop cable is Fiber to The Home project.

Is FTTH drop cable suitable for outdoor runs?

Yes, it is suitable for outdoor application with 70meters pole span.

What is the strength members for FTTH drop cable?

The strength member for FTTH drop cable can be FRP or steel wire.

What is the function of FRP?

FRP is a Fiberglass-Reinforced Plastic material that has the strength of steel at the fraction of the weight, the FRP makes cable strong tension and anti-bend advantages.
