Outdoor Fiber Optical Cable | OSP Non-metal GYFTY Fiber Cable Stranded loose tube 48 96 144 Core G652D PE

UnitekFiber manufacturing OSP fiber optic cables GYFTY. The optical cable is made of non-metallic materials.It is suitable for pipeline and overhead laying, mainly used in places with strong electromagnetic hazard.

Products
Description
FAQ
Specification
Reviews
Video

Outdoor Fiber Optical Cable | OSP Non-metal GYFTY Fiber Cable Stranded loose tube 48 96 144 Core G65

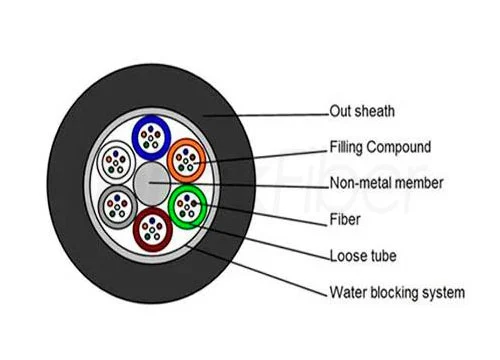

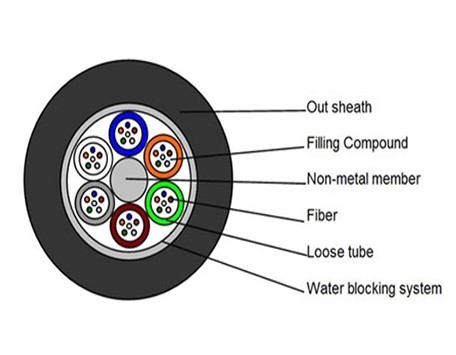

Basic structure of GYFTY fiber optical cable

1. Optical fiber: GYFTY optical cable contains 2-288 core optical fibers, which can meet the application requirements of different specifications and capacities.

2. Sub-cable unit: Each sub-cable unit is composed of twisted optical fiber and adopts loose tube structure to provide good waterproof performance.

3. FRP fiber reinforced core: It is a new type of high-performance engineering composite material prepared by pultrusion after mixing in proportion with resin as the matrix material and glass fiber as the reinforcement material.

4. Fiber core filler: In order to protect the optical fiber, the fiber optic cable is filled with polymer material to prevent any gaps between the optical fibers.

5. Sheath: The outer layer is covered with a polyethylene (PE) sheath to resist scratches, weathering, and UV resistance.


Outdoor Fiber Optical Cable | OSP Non-metal GYFTY Fiber Cable Stranded loose tube 48 96 144 Core G65

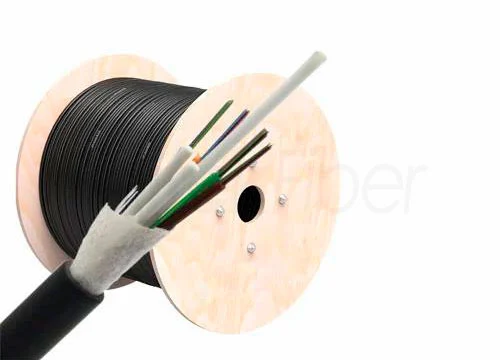

Advantages of GYFTY fiber optic cable

1. High bandwidth: GYFTY optical cable adopts optical fiber transmission and has the characteristics of high bandwidth, which can meet the growing transmission needs of high-speed data transmission, voice communication, high-definition video, etc.

2. Good anti-interference performance: The outer sheath of GYFTY optical cable is made of high-strength material, which has good tensile strength and compression resistance, and can effectively resist external interference and damage.

3. Good flexibility: GYFTY optical cable has good flexibility and bending radius, which can adapt to different installation environments and is not limited by traditional cable installation methods.

4. Economical and practical: the cost of GYFTY optical cable is relatively low, which can meet the needs of large-scale laying and reduce the cost of network construction and operation.

5. Safe and reliable: GYFTY optical cable has good corrosion resistance and waterproof performance, and can run stably for a long time in harsh environments to ensure the safety and stability of the network.

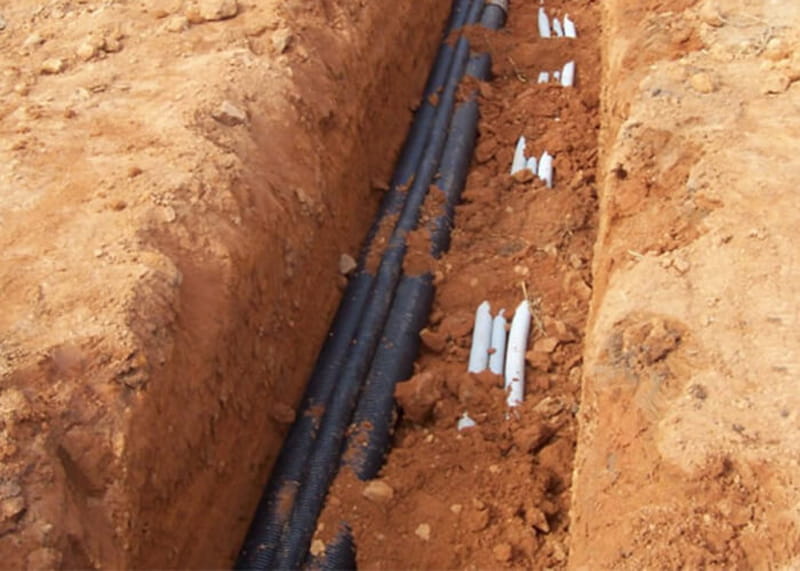

Application range of GYFTY fiber optical cable

1. Telecommunications: GYFTY fiber optic cable can be used to provide long distance communication links between different locations, such as between buildings in a campus or between cities.

2. CATV: GYFTY fiber optic cable is also used in cable television applications where high bandwidth is required to transmit multiple channels and high definition video signals.

3. Data centers: GYFTY fiber optic cable is used to connect servers and storage devices within a data center to form a high-speed backbone network.

4. Internet service providers: GYFTY fiber optic cable is used by internet service providers to provide high-speed internet access to homes and businesses.

5. Surveillance systems: GYFTY fiber optic cable can be used to transmit video signals in surveillance systems, such as CCTV cameras in public places.


Application range of GYFTY Fiber Optical Cable

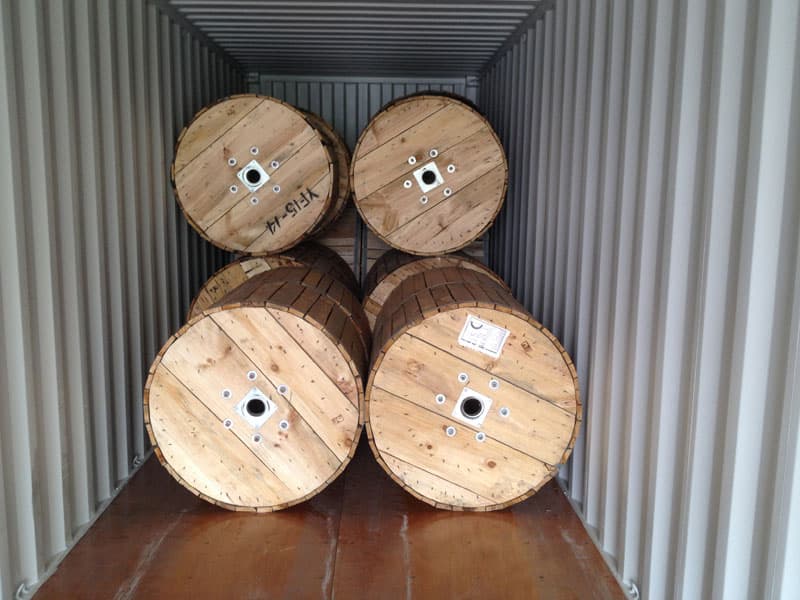

Packing & Delivery of GYFTY fiber optical cable

During the transportation of fiber optic cables, the packaging and transportation conditions need to be strictly controlled to ensure the integrity and safety of the optical cable. Optical cables usually use wooden boxes and cardboard boxes as outer packaging materials. These materials should have the characteristics of moisture-proof, shock-proof, and protection, and can protect the internal structure and core of the optical cable.



Packing & Delivery of GYFTY Fiber Optical Cable

Where is the duct fiber optic cable used?

Mostly used in Local Area Network (LANs), high density data center, FTTH Telecommunication.

Can your fiber optic cable be bent without damaging the fiber?

Our fiber cable can be bent with diameters of 2.5cm or less.

Can you supply customized products and logo?

Yes,we supply OEM&ODM service.

What's the delivery time for bulk cable order?

Normally 7-20 days depends on products and order quantities.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
