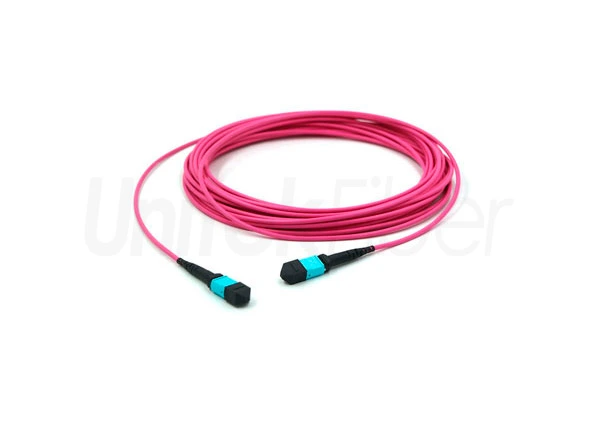

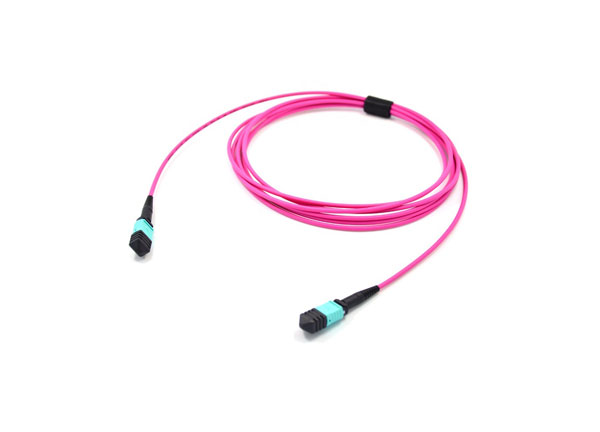

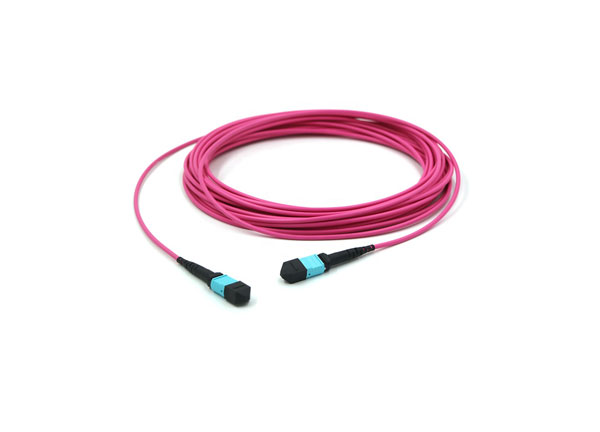

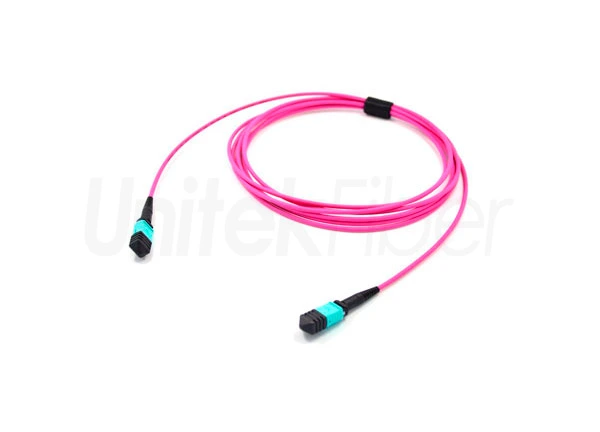

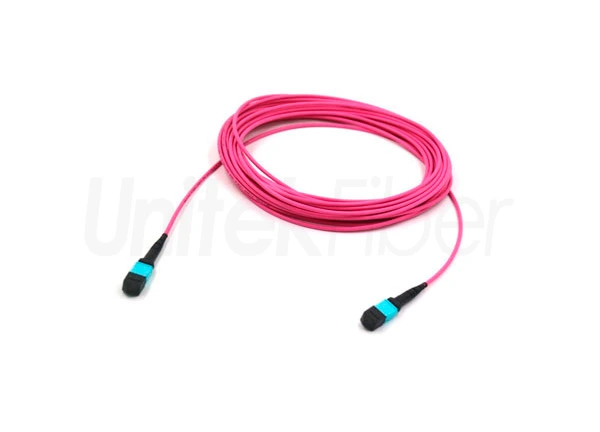

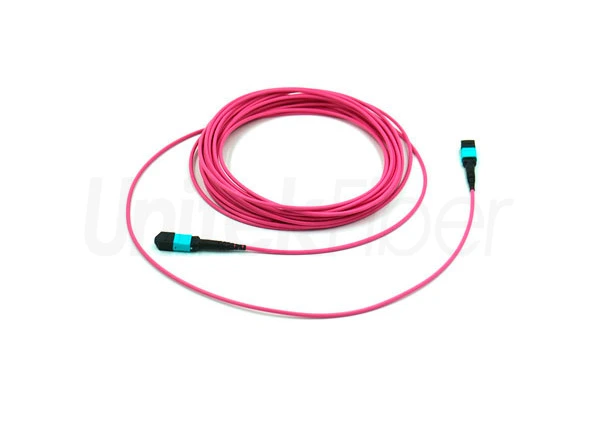

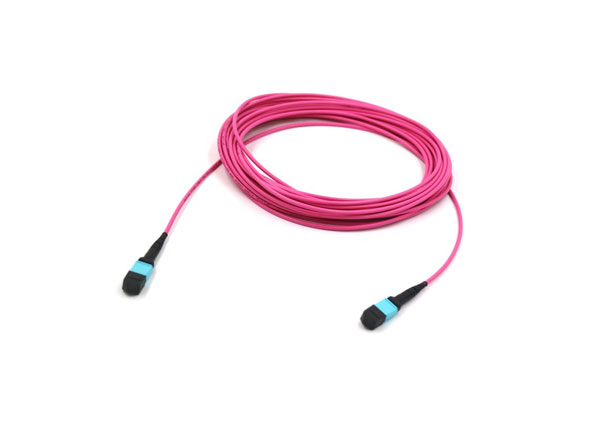

MPO MTP Fiber Cable|MTP MPO Type B Fiber Optic Patchcord OM3 OM4 12 Cores 24 Cores

The B-type MPO/MTP optical jumper has the opposite arrangement of the fiber cores at both ends of the jumper, and the position of the core 1 at one end is 12 at the other end, and the positioning keys at both ends have the same direction.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Details of MPO MTP Fiber Cable|MTP MPO Type B Fiber Optic Patchcord OM3 OM4 12 Cores 24 Cores

With our MTP/MPO, it's possible to run a single cable that automatically terminates twelve fibers in one easy plug-in. Plus, the small form factor of an MTP/MPO connector provides a higher port density. With its push-pull release mechanism, the MTP/MPO connector is easy to engage and disengage. Plus, its latch design prevents the plug from snagging when jumper cables are being routed. Straight-through pinning; immune to electrical interference.



Network Connectivity


MPO MTP Fiber Cable|MTP MPO Type B Fiber Optic Patchcord OM3 OM4 12 Cores 24 Cores


Network Connectivity


MPO MTP Fiber Cable|MTP MPO Type B Fiber Optic Patchcord OM3 OM4 12 Cores 24 Cores

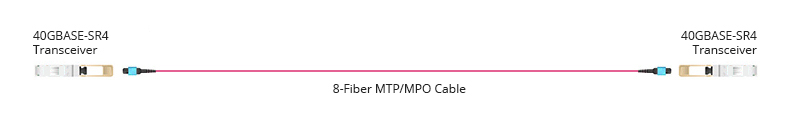

The easiest parallel fiber optic transmission link of Base-8 MTP/MPO cabling is to directly connect two QSFP+ transceivers like 40GBASE-SR4 with an 8-fiber MTP/MPO cable. This type of direct connectivity is only suggested for short distances within a given row of racks or cabinets.



Product Highlights



Perfect High-performance Fiber

Excellent bending and compression resistance make it an ideal choice for high density cabling





MPO MTP Fiber Cable|MTP MPO Type B Fiber Optic Patchcord OM3 OM4 12 Cores 24 Cores


MPO connectors are the proven and trusted MPO style format,MTP/MPO cable offering state-of-the-art multi-fiber and mechanical performance.

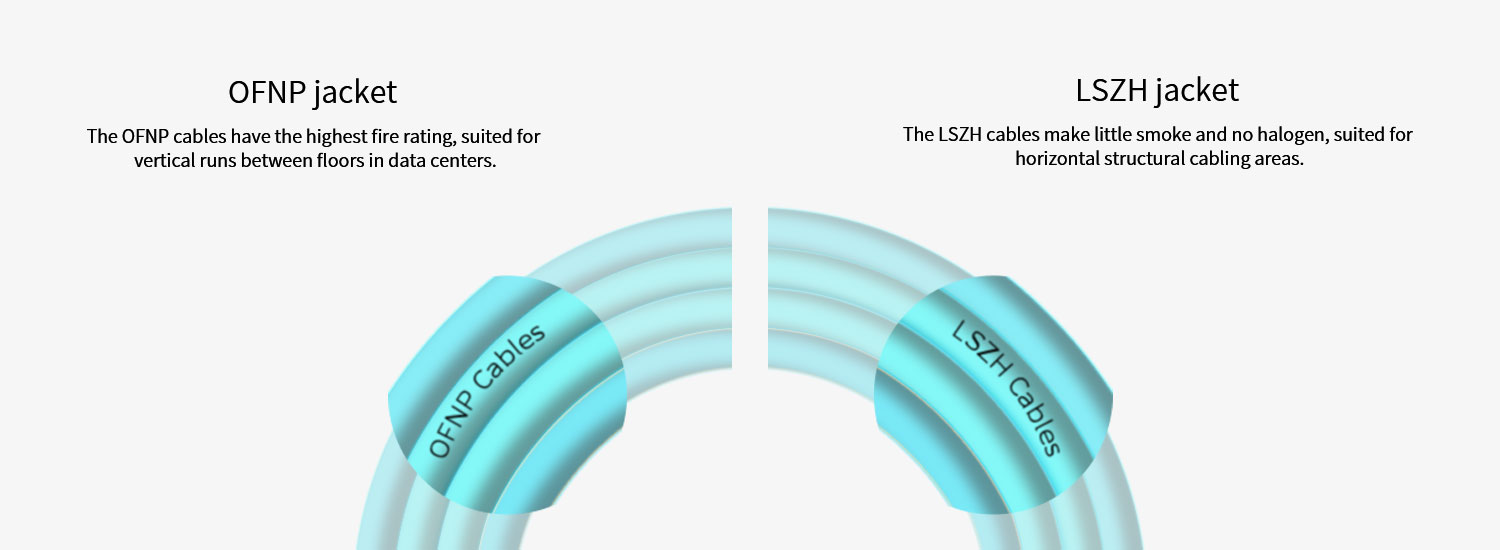

2 Custom Cable Jacket


MPO MTP Fiber Cable|MTP MPO Type B Fiber Optic Patchcord OM3 OM4 12 Cores 24 Cores

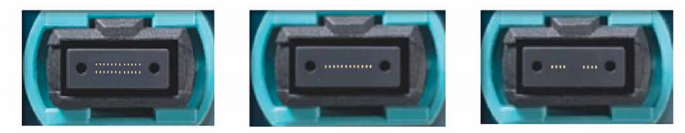

3 Custom MPO Connectors



Parameter of MPO MTP Fiber Cable|MTP MPO Type B Fiber Optic Patchcord OM3 OM4 12 Cores 24 Cores

Model

SM

MM

Connector A:MPO/MTP

Connector Fiber Count

8,12,24,48 Core

Polish

PC,APC

PC

Insertion Loss

Standard

≤0.70dB

≤0.50dB

Elite Low Loss

≤0.35dB

≤0.30dB

Return Loss

PC≥50dB,APC≥60dB

≥30dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

Connector B:LC,LC Uniboot,SC,FC,ST

Polish

PC,APC

PC

Insertion Loss

≤0.2dB

≤0.2dB

Return Loss

PC≥50dB,APC≥60dB

≥35dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

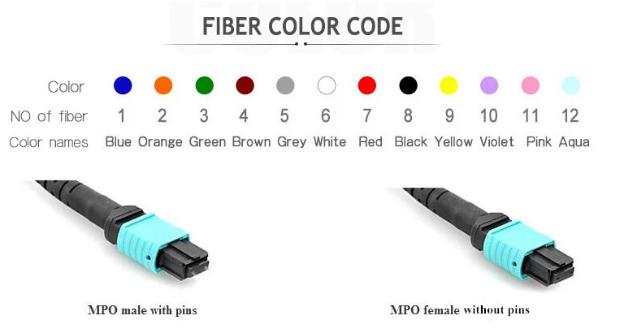

Fiber Color Code

Fiber Color Code


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
