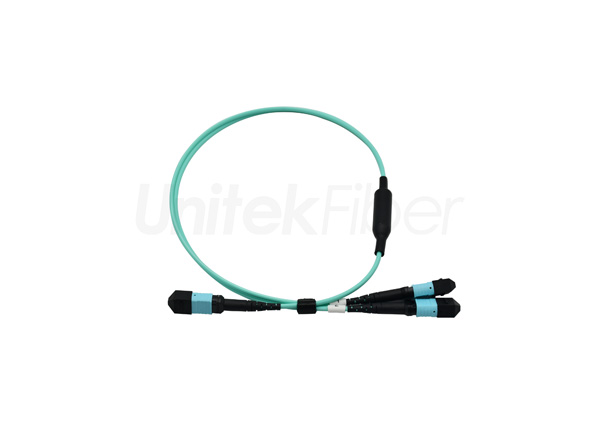

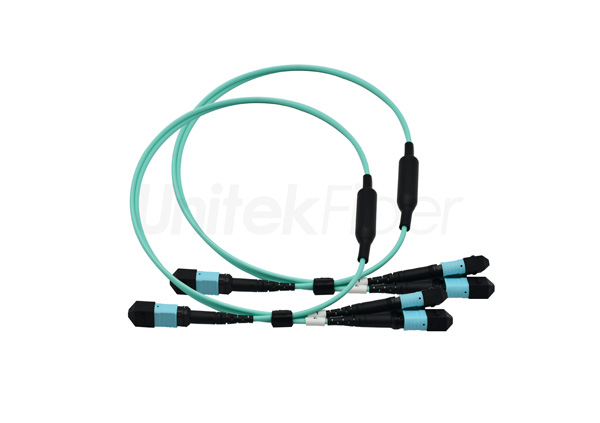

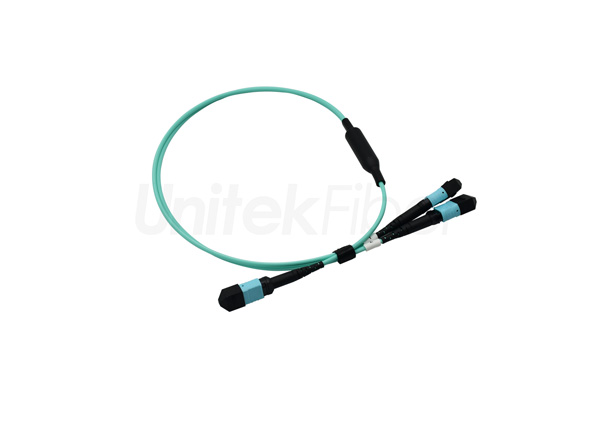

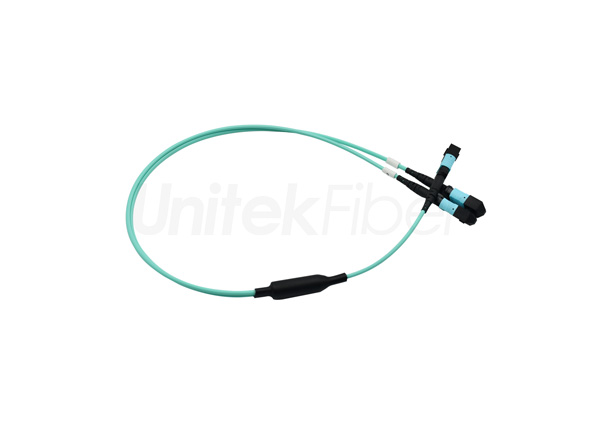

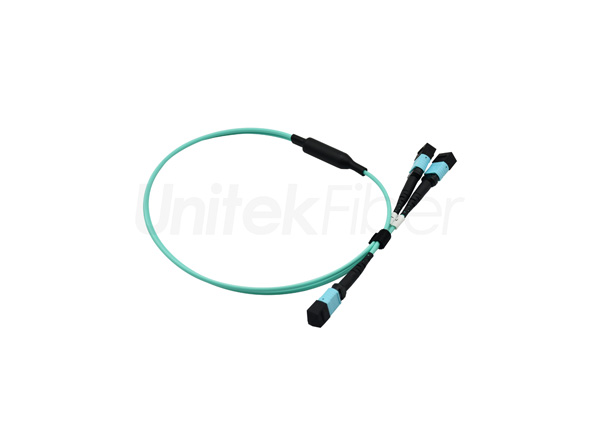

MPO/MTP Fiber Cable|Fiber Optic Patch Cord MPO/MTP - 2MPO/MTP 24 Cores OM3 3.0mm LSZH Aqua

This riser-rated OM3 Laser Optimized Multi-mode MPO/MTP fiber patch cord can be deployed in any multi-mode 50/125 MPO/MTP network. OM3 is fully backwards compatible with existing OM2 or OM1 systems. This MPO/MTP fiber patch cord is a 24 cores MPO/MTP connector connected to 2*12 cores MPO/MTP connectors. The MPO/MTP connector's push-pull release mechanism makes it easy to engage and disengage, and its latch design also prevents the plug from becoming jammed when routing jumper cables.

Products
Description
FAQ
Specification
Reviews
Video

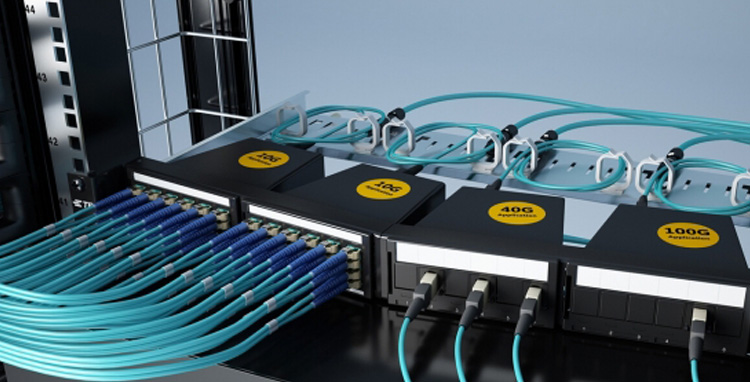

MPO/MTP fiber patch cord is designed to provide a more flexible multi-fiber cabling system based on MTP/MPO products. This 24core MPO/MTP fiber patch cord is assembled with a 24cores MPO/MTP connector on one end, and 2*12core MPO/MTP connector on the other end. This conversion is to accommodate the needs of multi-mode fiber connections between different devices. The compact design of the MPO/MTP connector allows fiber patch cords to have a high core count and small size. MPO/MTP fiber patch cord are widely used in applications that require high-density integrated optical fiber line environments during wiring, and in internal and external connection applications of transceiver modules or equipment such as FTTX and 40/100G SFP, SFP+.





High Quality Jacket of MPO/MTP Fiber Optic Patch Cable Meet Your Need

MPO/MTP fiber optic patch cord is available with different jacket materials, UnitekFiber provides PVC, LSZH, OFNR, OFNP, and more. The jackets of MPO/MTP fiber optic patch cord can have different fire ratings, ensuring compliance with safety standards. UnikedFiber can also provides the customized outer jacket of MPO/MTP fiber patch cord, which is  based on specific requirements, including cable length, jacket material, and more.

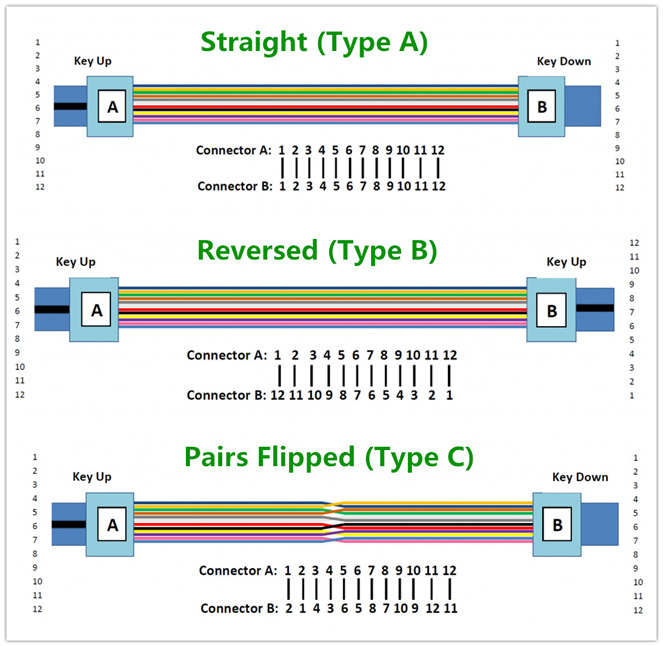

Three Polarities of MPO/MTP Fiber Patch Cord

MPO/MTP fiber patch cord have different polarity types that determine the proper alignment of transmit (Tx) and receive (Rx) signals across the fiber network. Maintaining correct polarity ensures that the transmit signal from one piece of active equipment is directed to the receive port of another piece of active equipment, and vice versa.There are three commonly used polarity types for MPO/MTP fiber patch cord: Type A, Type B, and Type C .

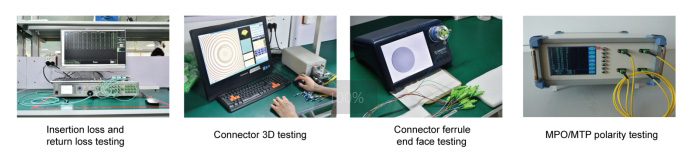

Rigorous Testing Guarantees High Quality of Fiber Optic Patch Cord

We are committed to providing high quality fiber optic patch cord that undergo 100% testing procedures. From careful choose of materials to strict performance evaluation, we are strictly according the testing in every step of the process. By adhering to these high standards, our MPO/MTP fiber optic patch cord provide reliable, high-performance data transmission in the most demanding network environments. Using top-of-the-line components and consistently rigorous testing process, UnitekFiber MPO/MTP fiber optic patch cord have become the trusted choice for network professionals seeking unparalleled quality and performance.




What's the difference between MTP and MPO connector?

MTP is a kind of high performance MPO connector with multiple innovative design.

Can I change the MPO polarity and pins of this cable?

The polarity and pins of this cable can not be changed, but the MTP pro cable can support what you want.

Can you provide customized products and logo?

Yes. We supply OEM service. You could send us your drawing. Any concern, please feel free to contact us.

Do you test all products?

Before shipping, we have professional QC,and we will test the item strictly.

What is the polarity types for MPO|MTP patch cords?

Type A/ Type B/ Type C

Cathy
Dec 20, 2023

The MPO cable was exactly what I needed. The shipping was fast and packaged extremely well.


Verified Purchase
Helpful 0
Cora
Dec 20, 2023

Worked as expected, cable quality seems good.


Verified Purchase
Helpful 0
Horace
Dec 20, 2023

Seems to be well-built and was properly packaged. Was able to push 100Gb/s at line rate through this cable in back-to-back testing.

Verified Purchase
Helpful 0
Charlotte
Dec 20, 2023

I've continuously used this cable (5m length) for several days. Seems well-built. No issues hitting full 40GbE as expected.

Verified Purchase
Helpful 0
Bonnie
Dec 20, 2023

Our data center was in dire need of a more efficient cabling solution, and the MPO/MTP fiber optic jumpers delivered exactly that.

Verified Purchase
Helpful 0
