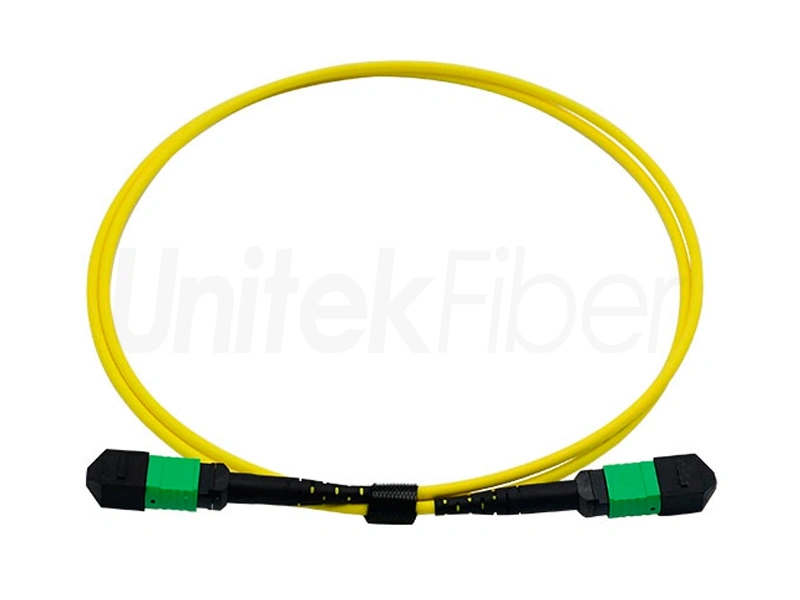

Compared with other fiber patch cords, MTP MPO fiber patch cord has the most important features of compact design and large number of fiber cores. MTP MPO fiber patch cord can greatly save cabinet wiring space. At present, MTP MPO connectors are designed with 8 cores, 12 cores, 24 cores, and 48 cores, among which 12 and 24 cores MPO fiber patch cords are more common.

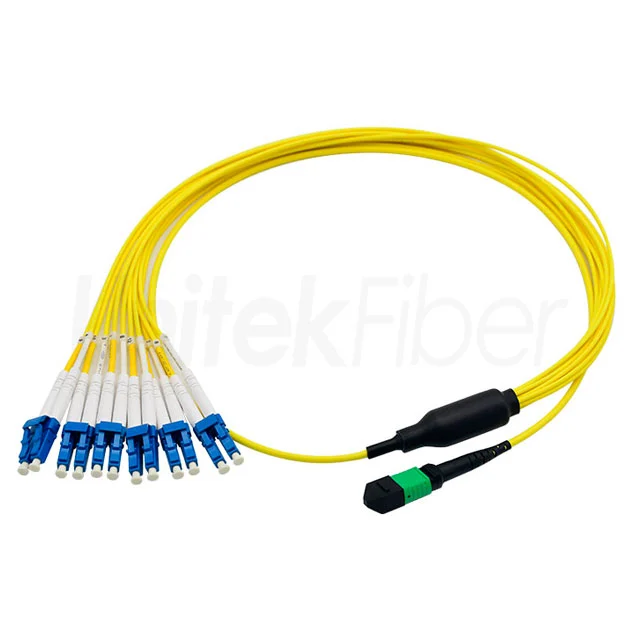

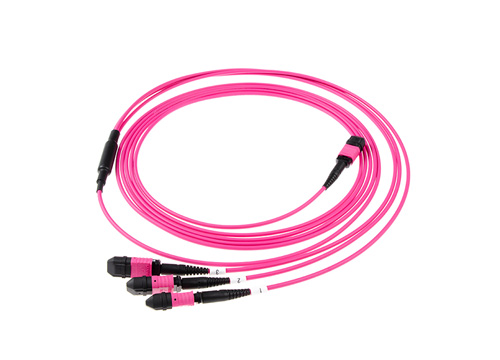

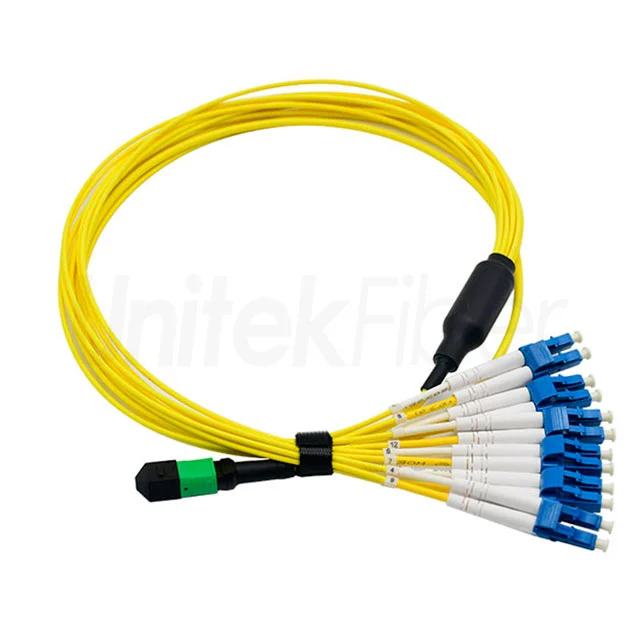

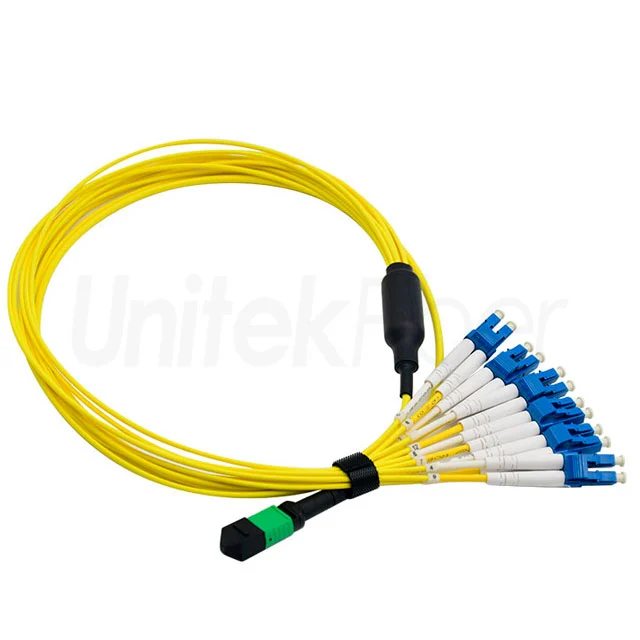

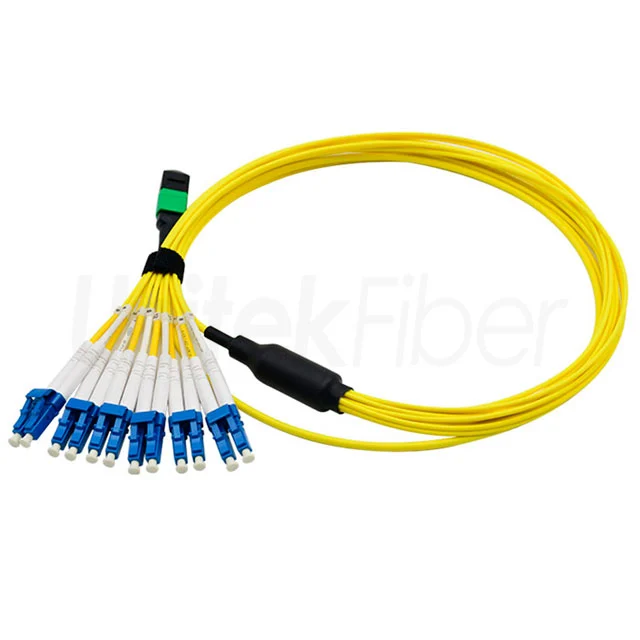

MTP MPO fiber patch cord can be divided into breakout type according to the connector type. There are many types of breakout MTP MPO fiber cable. Generally, The optical fiber mpo lc sm cable assembly can be 2~24 core 0.9mm or 2.0mm. The type of fiber connector is specified by the customer, and FC, LC, SC and other types can be selected. The total length of MTP MPO fiber patch cord is specified by the customer. The breakout part length can be customized for the customer within a certain range. Due to the limitation of the process, the breakout length generally does not exceed 3 meters.
MTP MPO Fiber Patch Cord Cabling Solution

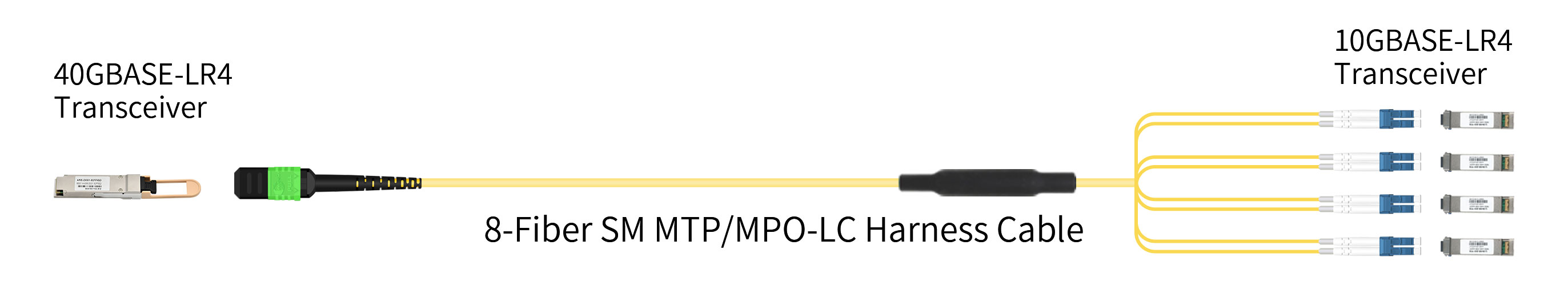

The MTP/MPO Fiber cabling can be used for direct connection of 40G-40G, 100G-100G, 200G-200G, 400G-400G, and can also be used for upgrade and uplink connection.
Carrier-grade of MTP MPO Fiber Cables Ensures Transmission Quality

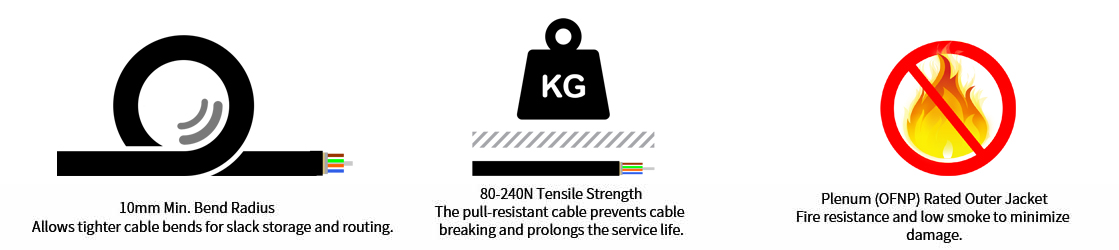

The Corning optical fiber and YOFC optical fiber has excellent bending resistance and compression resistance, making them ideal choice for high-density cabling.

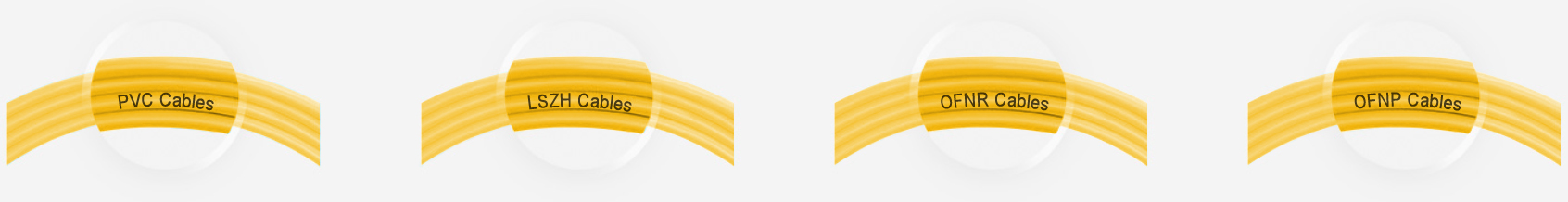

UnitekFbier provides OFNR Riser Rated fiber cable and OFNP Plenum fiber cable.
High-quality MTP MPO Fiber Optic Patch Cord Meet Your Larger Network Solution
The traditional LC fiber cabling system has long been unable to meet the high transmission rate and high density requirements of large data centers, so some IT designers have turned to MTP MPO fiber cabling solutions. The specific advantages of MTP MPO fiber cabling are as follows:
1. Stable and durable
2. High Density and Scalability
3. Time-saving and worry-free, high deployment efficiency
4. Prepare for network upgrade

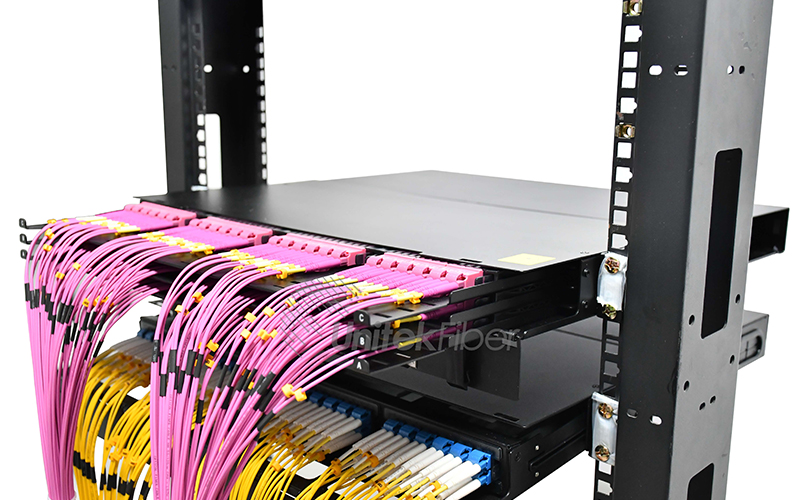

5. Structured rack cabling

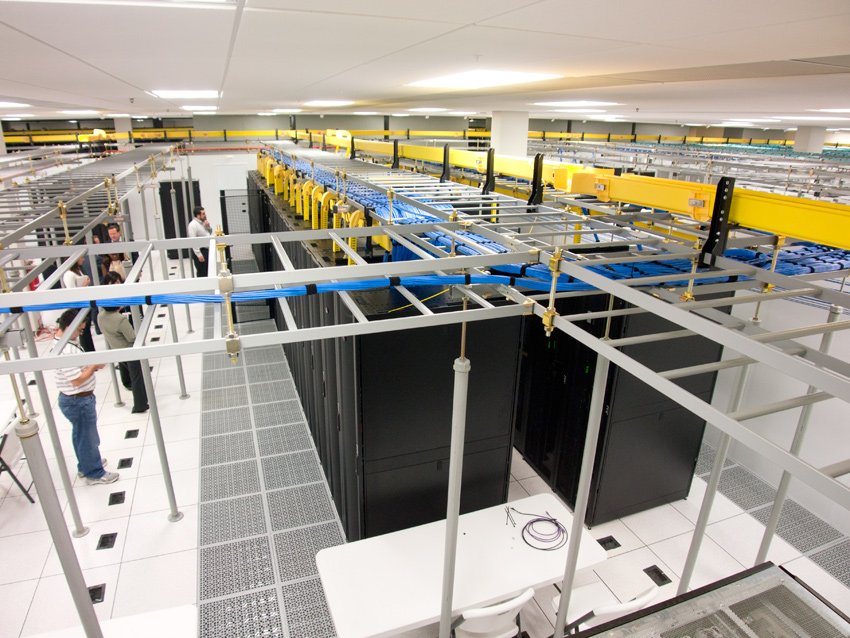

Indoor Fiber Cable Installation
UnitekFiber produces all range of indoor fiber optic cables for your indoor fiber cable installation.
2.0mm, 3.0mm fiber optic cable in duplex and simplex;
Breakout fiber optic cables from 4-144cores;
Indoor Armored fiber cables.
Type A MPO adapters all have a key up on one side and the mating connector key down on the other side. Type B trunk cable uses key up connector on both ends. This type of array mating results in an inversion, which means the fiber positions are reversed at each end.
Yellow jacket shows that cable has a Single-Mode, and Beige, Aqua, Pink, Green jacket shows that cable has a Multi-mode. Jacket Color Table shows most used equipment cable category and corresponding color.
Type A MPO adapters all have a key up on one side and the mating connector key down on the other side. Type B trunk cable uses key up connector on both ends. This type of array mating results in an inversion, which means the fiber positions are reversed at each end.
MTP is a kind of high performance MPO connector with multiple innovative design.

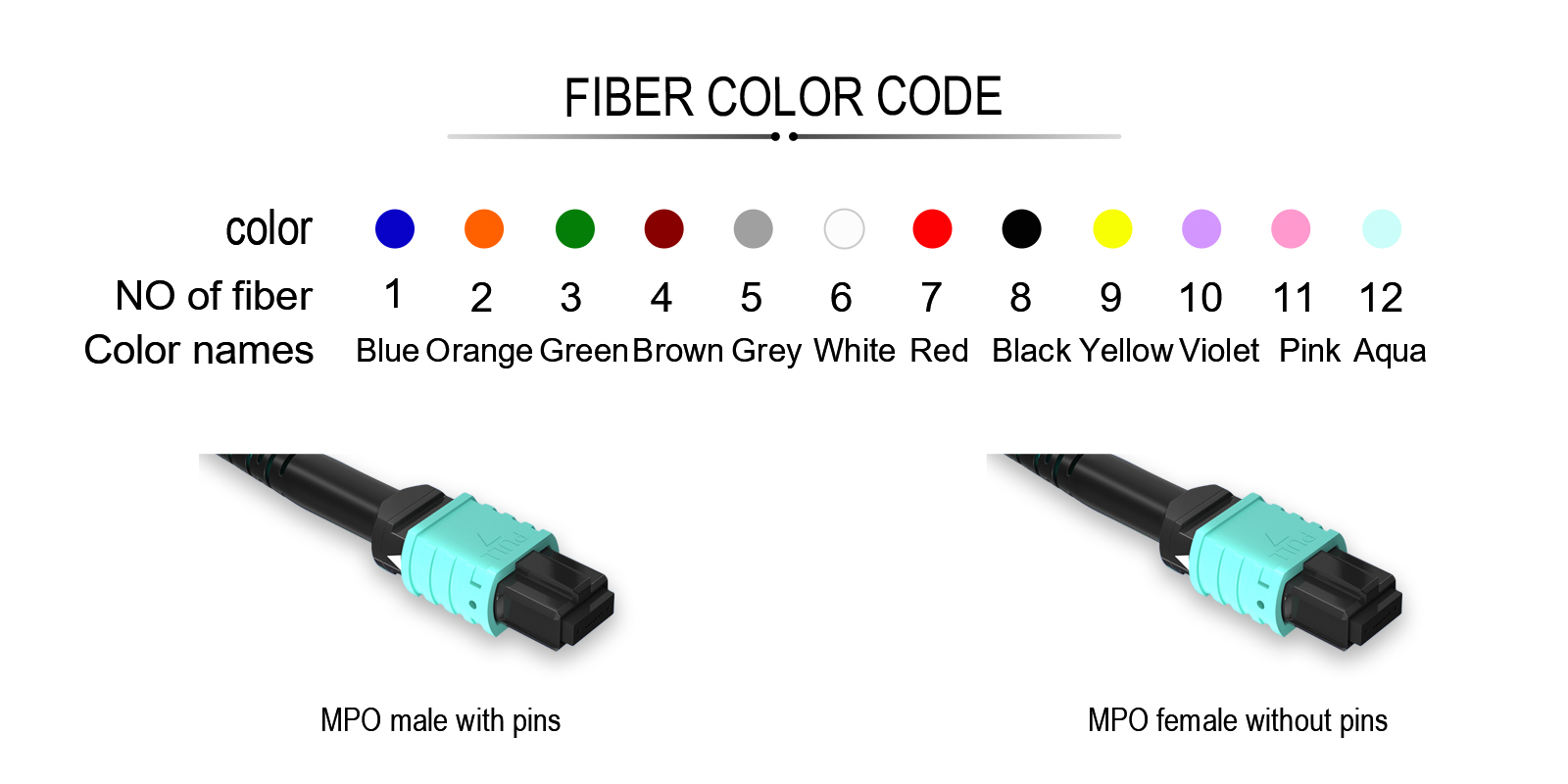

MTP connectors can either be male or female, often referred to as the gender type of a connector. The male connector has pins, whereas the female connector has no pins. No pins need to be combined with pins to connect. So if you use adapters to connect two cables, they must be one male and one female.
