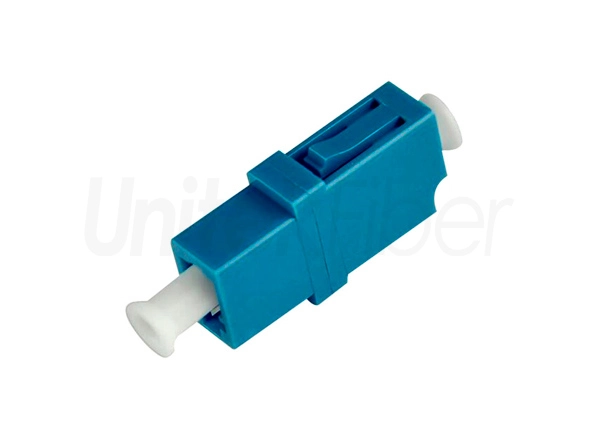

Fiber Optical Adapter Coupler LC/UPC - LC/UPC Simplex Single Mode Blue

LC/UPC to LC/UPC Fiber Optic Adapter Simplex Single Mode 0.2dB

Fiber optic adapters are also called Fiber Couplers and Fiber mating sleeves are one of the most commonly used and very necessary product used in the fiber optic network. The function of the fiber optical adapter is to connect fiber pigtails and patch cords together. Then the light will pass by and the signal is worked. Fiber optical adpaters are including FC, SC, ST, LC, E2000 ets.


Fiber Optic
Details
Parameter

Details of Fiber Optical Adapter Coupler LC/UPC - LC/UPC Simplex Single Mode Blue

Features


  • Low insertional loss and back reflection loss

  • High prcision alignment

  • Telcordia, ANSI, TIA/EIA, NTT and JIS compliance

  • Compact design

  • Plastic housing


Application


  • CATV

  • Telecommunication networks

  • Test equipment

  • Metro

  • Local Area Networks(LANs)

  • Data processing networks

  • Multimedia

  • Gigabit Ethernet

  • Active device/Transceiver



Components of Fiber Optic Adapter


Components of Fiber Optic Adapter


The Application of Fiber Optic Adapter in Fiber Network Cabling


The main function of the adapters is for connection between various fiber optic connectors, fiber optic patch cords, fiber optic pigtails and fiber optic equipments, it offers the point-to-point connection in the fiber optic network.

The Application of Fiber Optic Adapter in Fiber Network Cabling


Fiber adapters are mainly used in Telecommuniation networks, LAN & WAN, Data processing networks and CATV network.

The Application of Fiber Optic Adapter in Fiber Network Cabling


Packaging and Shipping:


Fiber Optical Adapter Coupler LC/UPC - LC/UPC Simplex Single Mode Blue


Production


Fiber Optical Adapter Coupler LC/UPC - LC/UPC Simplex Single Mode Blue


Parameter of Fiber Optical Adapter Coupler LC/UPC - LC/UPC Simplex Single Mode Blue

Specification


Data

Unit

Adapter Type

SC/LC/FC/ST


Insertion Lose

≤0.2

dB

Interchangeability

≤0.2

dB

Repeatability

≤0.1

dB

Temperature

-40~+85
