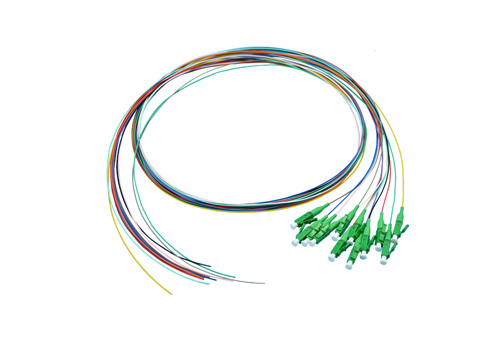

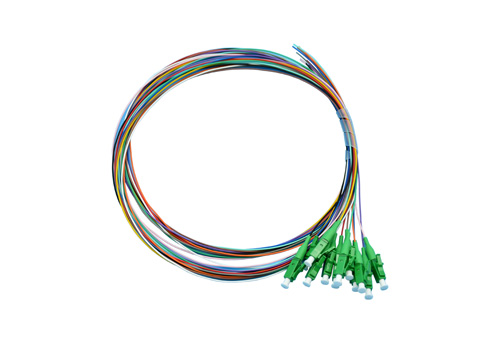

Fiber Optic Pigtail|12 core LC APC Single Mode G657A1 0.9mm Bundle Optical Pigtail LSZH PVC

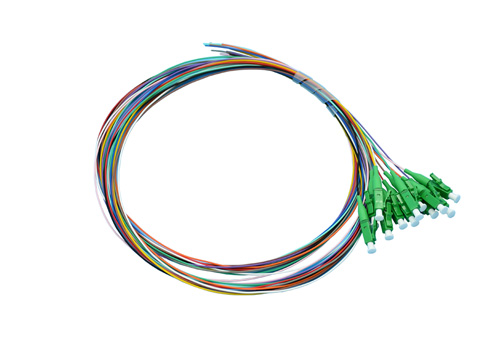

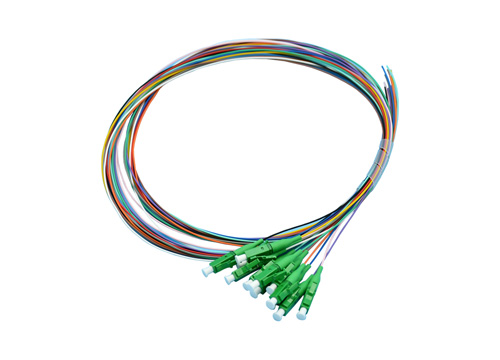

The LC APC 12 core bundle fiber optic pigtail consists of twelve individual fiber optic pigtails, each terminated with an LC APC connector on one end. The bundle fiber optic pigtail allows for flexibility in splicing or connecting to other fiber optic components as needed, making it an ideal choice for efficient optical cable management and installation. Whether it's for expanding your network infrastructure, enhancing data transmission capabilities, or streamlining telecommunications systems, the LC APC 12 core bundle fiber optic pigtail provides a dependable and customizable fiber connection solution to meet your unique demands.


Products
Description
FAQ
Specification
Reviews
Video

Fiber Optic Pigtail|12 core LC APC Single Mode G657A1 0.9mm Bundle Optical Pigtail LSZH PVC

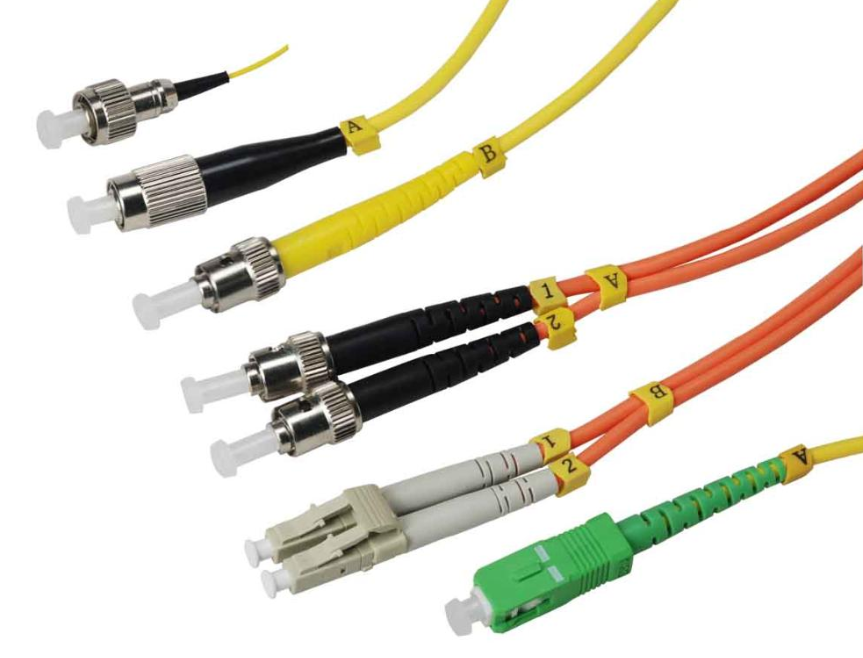

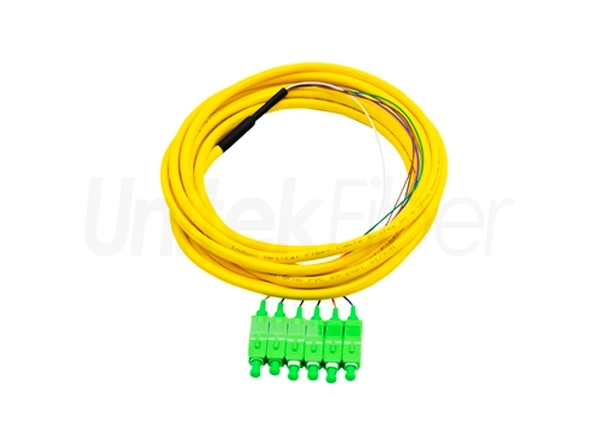

Fiber Connector Common Types for Fiber Optic Pigtails

Bundle fiber optic pigtails are available in a variety of fiber connector types, each offering specific features and advantages to meet different network requirements. The SC fiber connector is widely used due to its push-pull design and compatibility with both single mode and multimode optical fibers. The LC fiber connector, with its small form factor, is commonly used in high-density applications where space is limited. ST fiber connectors feature a bayonet-style coupling mechanism, making them suitable for industrial environments. FC fiber connectors, known for their threaded coupling mechanism, provide secure connections for critical applications. The selection of a specific fiber connector type depends on the equipment or network infrastructure being used and the specific application requirements.

Fiber Connector Common Types for Fiber Optic Pigtails

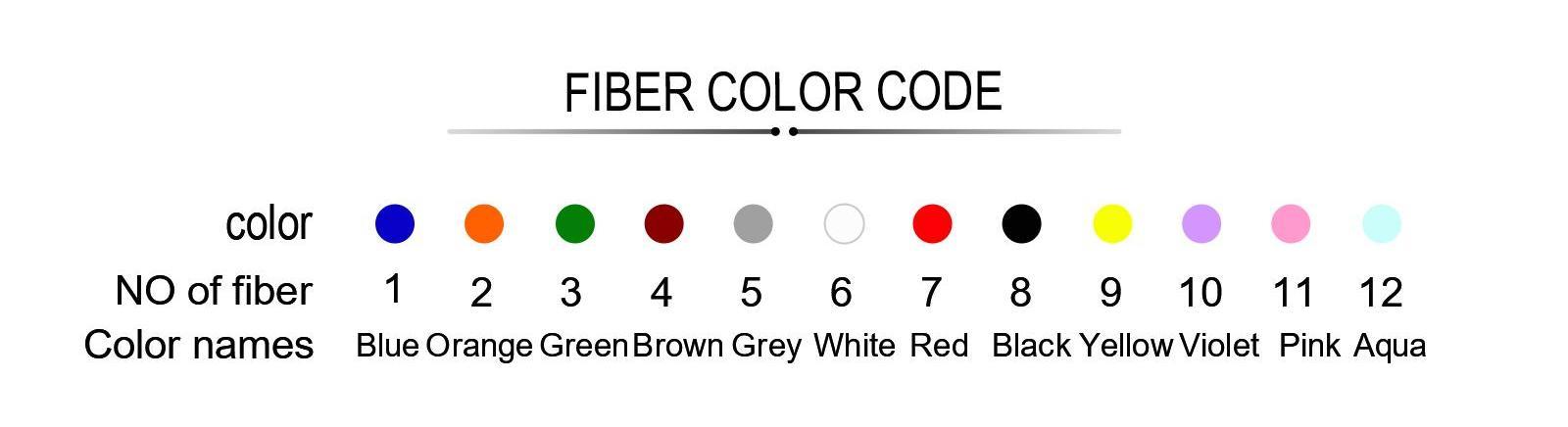

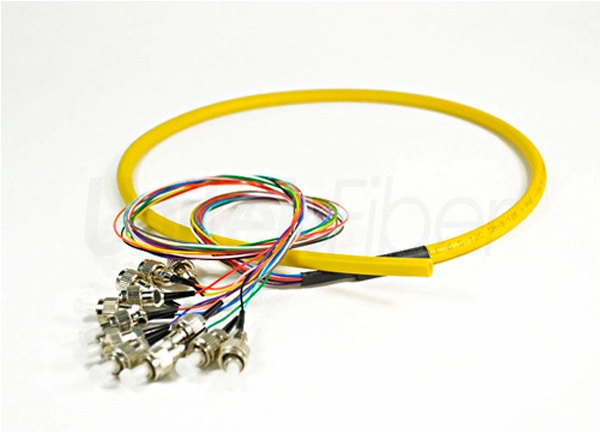

Understanding the Importance of Color Coding in Bundle Fiber Optic Pigtails

Color coding is an essential aspect of bundle fiber optic pigtails as it simplifies the identification and management of individual fibers. The TIA/EIA-598-B standard defines a 12 color standard color code for fiber optic cables, which applies to the coatings of the optical fiber bundles within the optical cables. For a 6 core bundle fiber optic pigtail, it's common to use either the first or last 6 colors from the standard color code list in a systematic manner. This method ensures consistent and organized identification of the optical fiber cores within the optical cable. When the capacity of the bundle fiber optic pigtail exceeds 12 fibers, the color codes are reused in a cyclical manner. Color coding eliminates confusion and reduces the potential for errors, enhancing the efficiency and accuracy of fiber optic connections. It also facilitates organization within complex systems and allows for easy tracing of specific optical fibers within optical cable assembly bundles, making it an essential feature of bundle fiber optic pigtails.

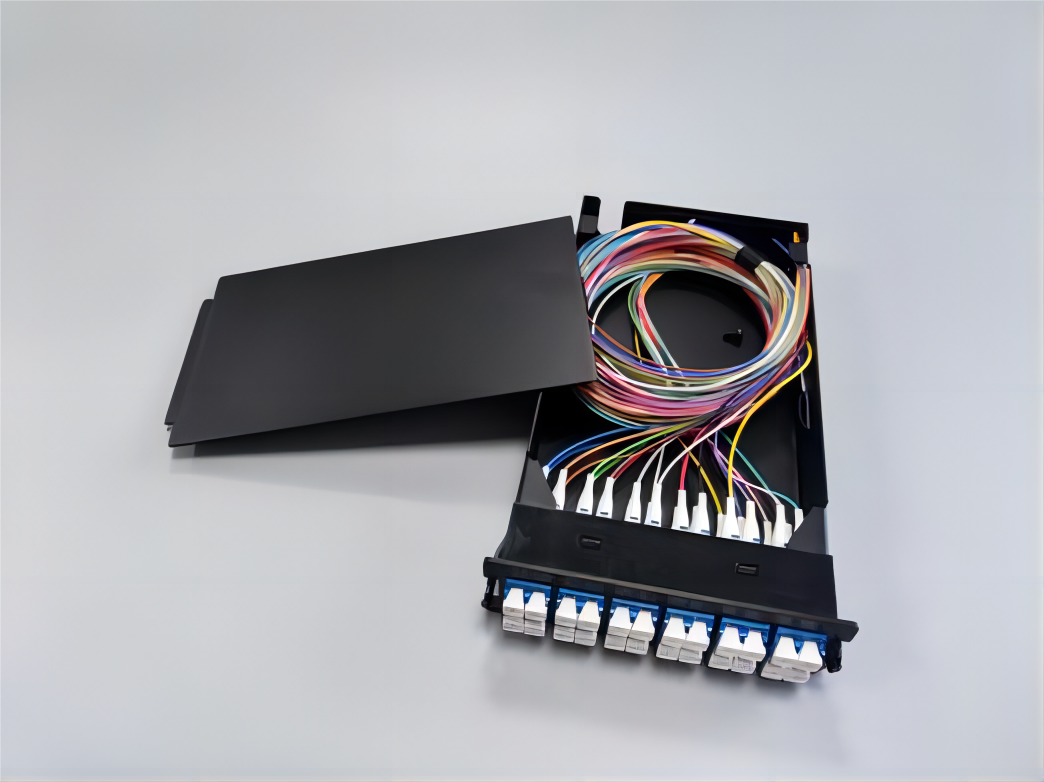

Versatile Applications of Bulk Fiber Optic Pigtails in Modern Communication Networks

Bundle fiber optic pigtails are essential for establishing efficient and reliable connections between fiber optic cables and equipment across a wide range of industries. They find applications in telecommunications, data centers, broadcasting, security systems, industrial automation, and healthcare etc. These fiber optic pigtails provide high-speed and low-latency communication, immunity to electromagnetic interference, and enable the transmission of high-resolution images and videos over long distances. The versatility, speed, and reliability of bundle fiber optic pigtails make them integral components of modern communication networks.

Versatile Applications of Bulk Fiber Optic Pigtails in Modern Communication Networks

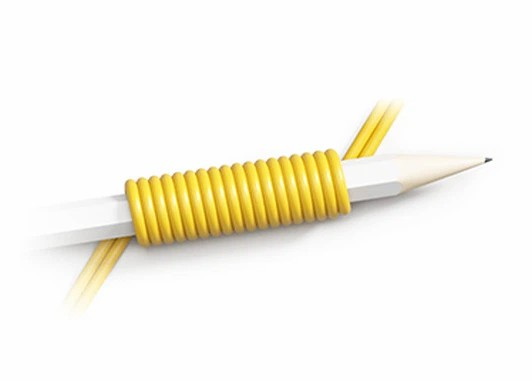

Improved Fusion Splicing Efficiency with Optical Fiber's Enhanced Bending Properties

The bundle fiber optic pigtails that utilize G657 optical fiber offer enhanced bending properties, making them well-suited for splicing applications. The G657 optical fiber has been specifically designed to withstand tighter bends without compromising optical performance. When used in bundle fiber optic pigtails, this optical fiber type allows for easier handling during splicing operations, reducing the risk of fiber breakage or signal loss. Its improved bending characteristics enable technicians to maneuver and position the optical fibers more effectively, resulting in reliable and consistent splices. Furthermore, the G657 optical fiber's superior bending performance helps prevent macrobending and microbending effects, ensuring the integrity of the optical signal and promoting long-term performance.

Improved Fusion Splicing Efficiency with Optical Fiber's Enhanced Bending Properties

Packing & Delivery

Packing & Delivery

What is a fiber optic pigtail?

The fiber optic pigtail is a pre-terminated fiber optic cable with a fiber connector on one end and exposed optical fiber on the other.

How do I choose the fiber connector type for my fiber optic pigtail?

The choice of fiber connector type depends on factors such as the network infrastructure, required density, optical fiber type (single mode or multimode), and specific application needs.

Can I customize the optical cable length of fiber optic pigtails?

Yes, Unitekfiber can offer customizable fiber optic cable lengths for fiber optic pigtails.

Can I use bulk fiber optic pigtails for fusion splicing?

Yes, bulk fiber optic pigtails are specifically designed for fusion splicing.

Are there any specific precautions to take when install fiber optic pigtails?

When installing fiber optic pigtails, it is important to avoid bending the fiber beyond its minimum bend radius, prevent contamination of the fiber connector end face, and protect the optical pigtails from excessive tension or strain.

Jacob
Jun 05, 2023

The color-coding of bundle fiber optic pigtail is a helpful feature that saves me time when identifying which fiber goes where.

Verified Purchase
Helpful 0
Jayden
Jun 05, 2023

The bundle fiber optic pigtail for management is excellent, and it's very simple to splice or connect to other fiber optic components.

Verified Purchase
Helpful 0
Gavin
Jun 05, 2023

The LC APC 12 core bundle fiber optic pigtail is easy to use, and the fiber optic connectors work flawlessly.

Verified Purchase
Helpful 0
Jeff
Jun 05, 2023

These fiber optic pigtails are top-notch in terms of quality and performance. I've used them in various networking projects, and they've never failed me.

Verified Purchase
Helpful 0
Frank
Dec 20, 2023

The fiber optic pigtail is fantastic, and the installation was quick and straightforward. It's a versatile product that works well for both large and small projects.

Verified Purchase
Helpful 0
