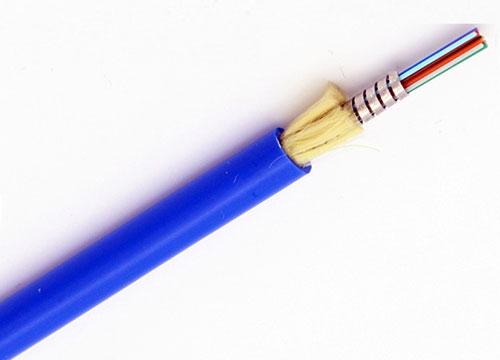

Distribution Armoured Fiber Optic Cable GJSFJV 6-24 Cores 0.6mm 0.9mm Tight Buffered LSZH PVC

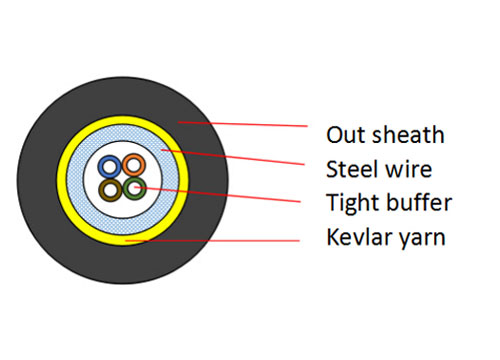

The structure of central tube distribution fiber optic cable is inside with 2~24 cores of 0.9mm or 0.6mm tight buffered fiber cables.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Distribution Armoured Fiber Optic Cable GJSFJV 6-24 cores 0.6mm 0.9mm Tight Buffered

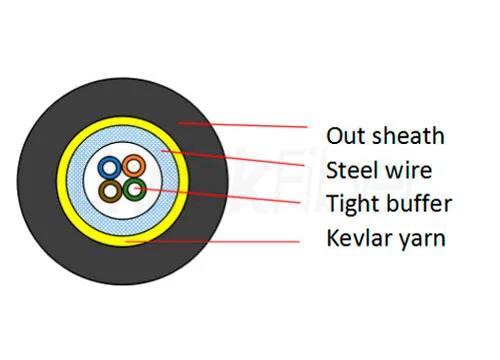

And the tight buffer fiber cables is wrapped with a steel tape and after steel tape there is a layer of Kevlar yarn as strength member .The cable outer jacket is completed with PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) material.


Features:


  • Good mechanical and environmental characteristics;

  • Flame retardant characteristics meets the requirements of relevant standards;

  • The mechanical characteristics meet the requirements of relevant standards;

  • Soft, flexible, easy to splice, and with big capacity data transmission;

  • Meet various requirements of market and clients.


Application:


  • Used in indoor cabling, especially used as breakout cable;

  • As pigtail of communication equipment;

  • Suitable for communication equipment served;

  • All-purpose mini indoor cable

  • Can use MPO, MTP connector.


Packaging & Shipping


Distribution Armoured Fiber Optic Cable GJSFJV 6-24 Cores 0.6mm 0.9mm Tight Buffered LSZH PVC


Parameter of Distribution Armoured Fiber Optic Cable GJSFJV 6-24 cores 0.6mm 0.9mm Tight Buffered LS

No. of cable

24

Fiber Model

G.652D

Strength Member

Material

Aramid yarn

Tight lines

Material

PVC

Diameter(±0.06)mm

0.9

Thickness(±0.03)mm

0.30

Outer Sheath

Material

PVC

Thickness(±0.1)mm

1.2

Cable Diameter(±0.2)mm

8.5

Cable Weight(±5)kg/km

73

Min. bending radius

Without Tension

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

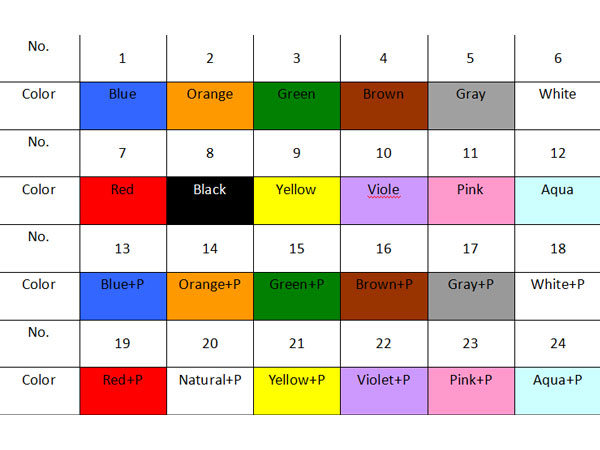

Fiber Colors

6-24cores Distribution Armoured Fiber Optic Cable GJSFJV 0.9mm


What is the fiber type for this indoor armored fiber optic cable?

We usually use G652D, G657A1, G657A2 fiber type, also can according to your request.

How many fiber cores for this indoor armored fiber optic cable?

2-24 Cores.

What's the outer jacket material for this indoor armored fiber optic cable?

The cable outer jacket is completed with PVC or LSZH (Low smoke, Zero halogen, Flame-retardant) material.

What's strength member for indoor armored fiber optic cable?

The strength members are usually Kevlar yarn and steel tape to support the whole fiber cable.

Why do indoor optical cables need to be armored?

In order to better protect the optic fiber cable, it has the effect of preventing moisture and anti-rodent.

May I have a sample order?

Yes! You are welcome to place sample order to test our superior quality and services.
