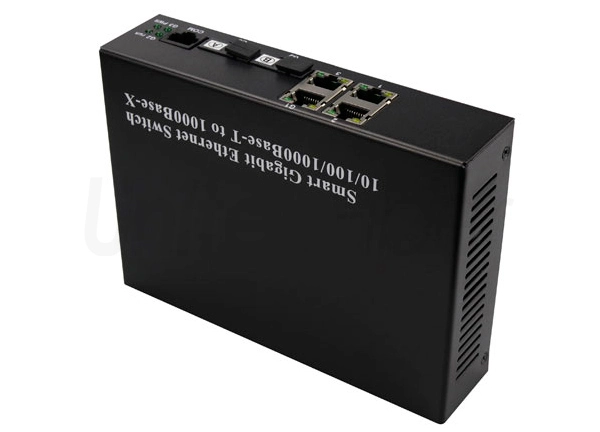

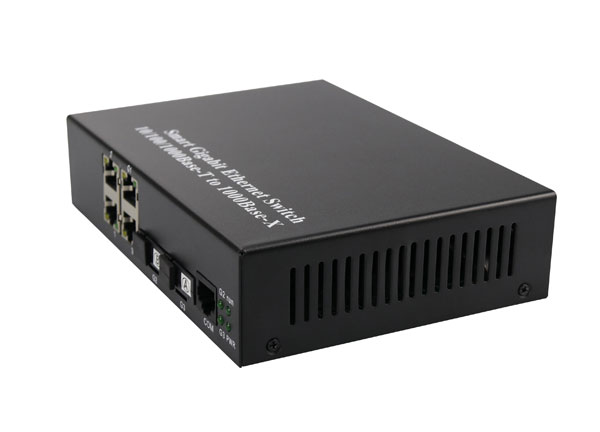

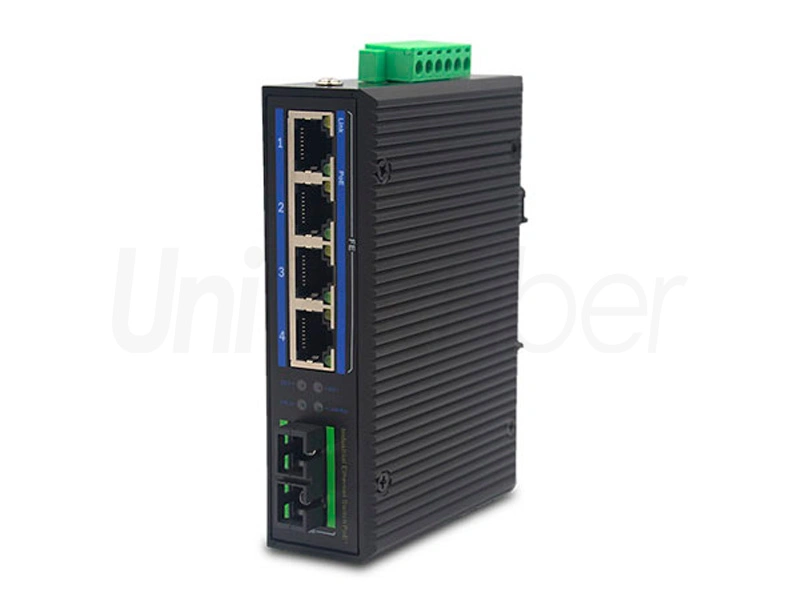

We are providing Ethernet Fiber Switch. This Fiber Ethernet switch has 4 10/100/1000M UTP ports and 2 1000M fiber portS. It converts 10/100/1000BASE-TX Fast Ethernet twisted-pair signals to 1000BASE-FX Fast Ethernet fiber signals. This converter has the ability to transmit up to 2 kilometers for multi-mode fiber and up to 120 kilometers for long-haul single mode fiber between a LAN switch, file server and another networking device. In addition, LED indicator lights fully monitor the converter's operational status making observation and diagnoses easy.
2 fiber ports, single or multi-mode, 4 RJ45 ports
1 or 2 fiber design
Converts optical/electrical Ethernet signals between 10/100/1000M UTP ports and 1000M optical fiber ports
10/100/1000M auto-negotiation in TP port, maximum speed to 20/200M (full-duplex)
Supports IEEE 802.3x full-duplex flow control and back pressure half-duplex flow control
Store and forward switching mechanism
Supports MAC self-learning
Automatic MDI/MDI-X configuration
LED link status indicator for activity, full/half duplex, speed, and power on diagnostic function
Model | UF-H2G4WS33-53OC |
Product | Gigabit 4+2 Switch |
Fixed port | 1*10/100/1000Base-TX RJ45 port (Data) 3*10/100Base-TX RJ45 port (Data) 2*1000M Optical fiber interface |
Console port | 1*console port |
Network Protocol | IEEE 802.3x IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z IEEE 802.3ad IEEE 802.3q ,IEEE 802.3q/pIEEE 802.1w,IEEE 802.1d ,IEEE 802.1SIEEE 802.3z 1000BASE-X STP(Spanning Tree Protocol) RSTP/MSTP( Rapid Spanning Tree Protocol) EPPS ring network protocol EAPS ring network protocol |
Port Specification | 10/100/1000BaseT(X)Auto |
Transmission Mode | Store and Forward(full wirespeed) |
Bandwidth | 20Gbps |
Packet Forwarding | 14.44Mpps |
MAC Address | 8K |
Buffer | 4.1M |
Transmission Distance | 10BASE-T : Cat3,4,5 UTP(≤250 meter) 100BASE-TX : Cat5 or later UTP(≤100 meter) 1000BASE-TX : Cat6 or later UTP(≤1000 meter) 1000BASE-SX:62.5μm/50μm MMF(2m~550m) 1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) |
FLASH | 128M |
RAM | 128M |
Watt | ≤24W |
LED Indicator | PWR: Power LED G2/G3:(Optical fiber interface LED) Port:(Green=10/100M LED+Orange=1000M LED) |

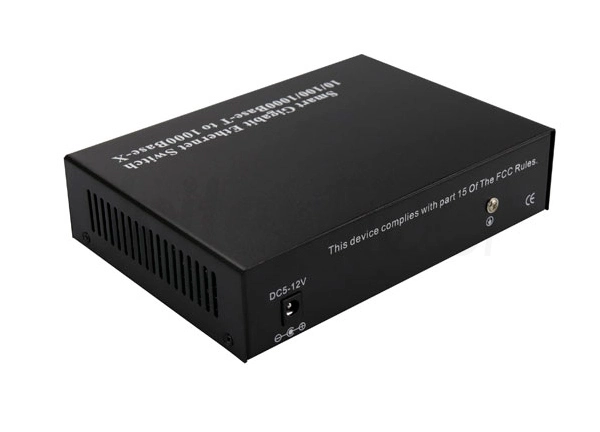

Power | Built-in power DC 24V 1A |
Operating Temperature/Humidity | -35~+85°C;5%~90% RH Non coagulation |
Storage Temperature/Humidity | -40~+75°C;5%~95% RH Non coagulation |
Product size/Packing size(L*W*H) | 169mm*120mm*40mm 270mm*162mm*55mm |
N.W/G.W(kg) | 0.5kg/0.8kg |
Installation | Desktop |
Lightning protection level | 3KV 8/20us; IP30 |
Certificate | CE mark, commercial;CE/LVD EN60950; |
Warranty | Whole device for 2 year(Accessories not included) |
Software Parameter :
The following are the main software functions, not all, if there is no function, please consult us first! / Support software development with customized requirements! | |
Protocol Standard | IEEE 802.3x IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z IEEE 802.3ad IEEE 802.3q,IEEE 802.3q/p IEEE 802.1w,IEEE 802.1d,IEEE 802.1S,IEEE 802.1X |
MAC Address | Support 16K MAC addresses;MAC address learning and aging |
VLAN | Port-based VLANs Up to 4096 VLAN support Voice VLAN,can configure QoS for voice data 802.1Q VLAN |
Spanning Tree | STP(Spanning tree protocol) RSTP(Rapid spanning tree protocol) MSTP(Rapid spanning tree protocol) EPPS(Ring network protocol) EAPS(Ring network protocol) 802.1x argumentation agreement |
Link Aggregation | Max 8 aggregation groups TRUNK , each supports 8 ports |
Port Mirror | Many-to-one port mirroring |
Loop Guard | Loop protection function, real-time detection, rapid alarm, accurate positioning, intelligent blocking, automatic recovery |
Port Isolation | Support downlink ports isolated from each other and communicate with uplink port |
Port Flow Control | Half duplex based back pressure control Full duplex based on PAUSE frame |
Line Rate | Support downlink ports isolated from each other and communicate with upstream port |
IGMP Snooping | IGMPv1/2/3 and MLDv1/2 GMRP Protocol Registration Multicast address management, multicast VLAN, multicast routing ports, static multicast addresses |
DHCP | DHCP Snooping |
Storm Suppression | Unknown unicast, multicast, unknown multicast, storm suppression of broadcast type Storm suppression based on bandwidth tuning and storm filtering |
Security | User port+ IP Address+ MAC Address ACL based on IP and MAC Security properties of port based MAC address quantities |
QOS | 802.1p port queue priority algorithm Cos/Tos,QOS sign WRR (Weighted Round Robin),Weighted priority rotation algorithm WRR,SP,WFQ,3 priority scheduling models |
Cable Sequence | Auto-MDIX; auto identification of straight-through cables and crossover cables |
Negotiation Mode | Port supports automatic negotiation ( self-negotiation transmission rate and duplex mode) |
System Maintenance | Upgrade package upload System log view WEB restore factory configuration |
Network Management | WEB NMS CLI management based on Telnet, TFTIP, Console SNMP V1/V2/V3 RMON V1/V2 RMON Management |
