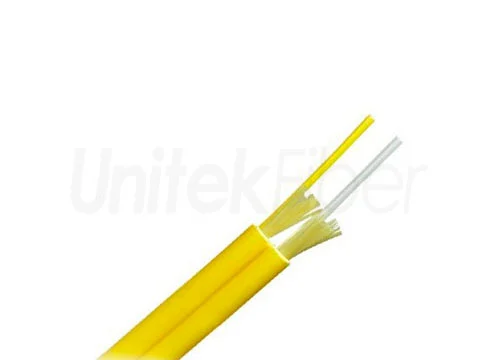

Duplex Zipcord Fiber Optic Cable GJFJV 2.0mm 3.0mm Simplex SM MM Corning G657 PVC & LSZH

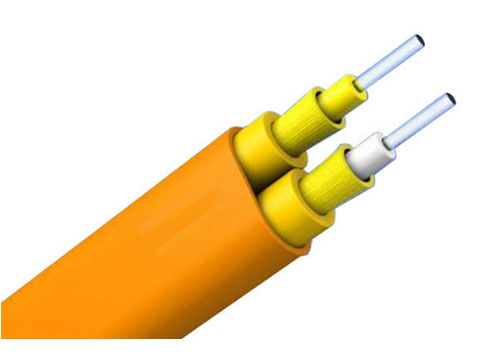

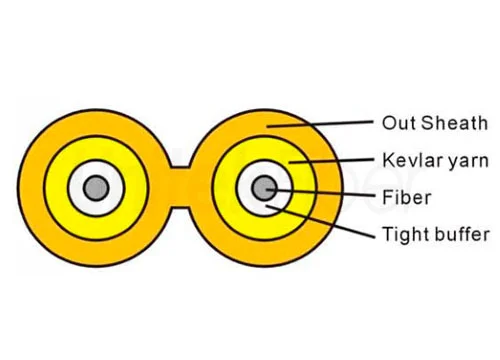

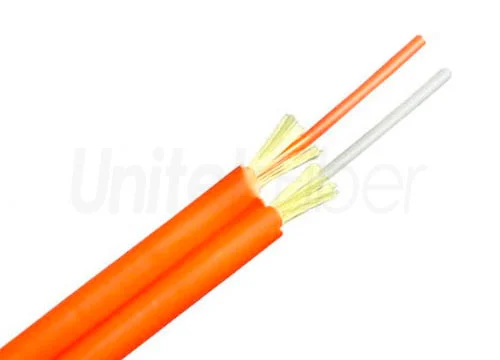

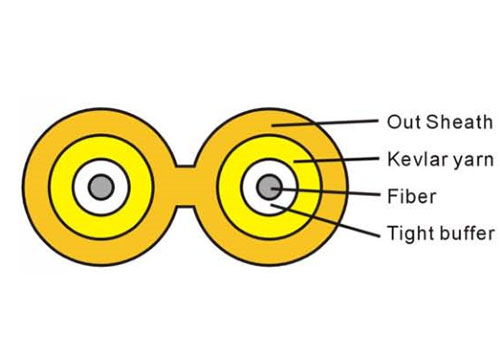

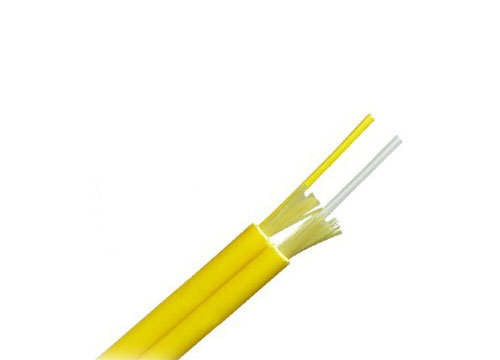

Duplex 2.0/3.0mm Fiber optical cable is a zipcord fiber cable paralleled two 2.0/3.0mm simplex cables together. This cable is mainly used for termination assembling.The cable is usually cut at different length and terminated with SC,LC,FC or ST connectors at the sides of the cable to become a patchcord.


Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Duplex Zipcord Fiber Optic Cable GJFJV 2.0mm 3.0mm Simplex SM MM Corning G657 PVC & L

Features:


  • High strength Kevlar yarn member

  • High quality tight buffered or loose tube.

  • Soft and easy to strip

  • Round construction


Application:


  • Adopted to Indoor distribution

  • As patchcord of communication equipment

  • Suitable for communication equipment served

  • Can be installed conveniently and operated simply


Packaging & Shipping

Duplex Zipcord Fiber Optic Cable GJFJV 2.0mm 3.0mm Simplex SM MM Corning G657 PVC & LSZH


Parameter of Duplex Zipcord Fiber Optic Cable GJFJV 2.0mm 3.0mm Simplex SM MM Corning G657 PVC & LSZ

No. of Cable

2

Fiber Model

G.652D

Tight buffer

Material

PVC

Diameter(±0.06)mm

0.9

Thickness(±0.03)mm

0.32

Inner Sheath

Material

PVC

Diameter(±0.06)mm

2.0

Thickness(±0.03)mm

0.35

Color

Yellow

Outer Sheath

Material

PVC

Thickness(±0.06)mm

0.6

Color

Yellow

Cable size(±0.2)mm

3.2×5.6

Cable Weight(±2)kg/km

24

Allowable Tensile Strength

Short Term

N

800

Long Term

300

Allowable Crush Resistance

Short Term

N/100mm

1000

Long Term

500

Min. bending radius

Without Tension

10×Cable-φ

Under Maximum Tension

20×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

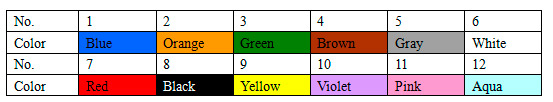

Fiber Color

Fiber Color

Is indoor fiber optic cable 3.0mm?

If you are asking about the outer diameters, we have many types of cable diameter, such as 2.0mm and 3.0mm.

What is the fiber type of indoor fiber optic cable?

We have single mode and multi mode indoor fiber cables as per your requests.

What are the features of indoor fiber optic cable?

Good mechanical and environmental characteristics, soft, flexible, easy to lay and splice, and with big capacity data transmission.

What color is the outer sheath of the indoor optical cable?

Usually, single mode fiber optic cable is yellow, multi-mode is orange, pink. We can produce according to your design.

I want to ask how many fiber cores in the indoor fiber optic cable?

UnitekFiber provides 2-288 fiber cores for the indoor fiber optic cable.

Do you offer guarantee for the products?

Yes, we offer 25 years warranty to our formal products.

Download

Reviews

Allen
Jul 14, 2022

Very good service and quality.

The fiber cable was very easy to pull both indoor & outdoor. It's not stiff, went thru conduits nicely.

Verified Purchase
Helpful 0
