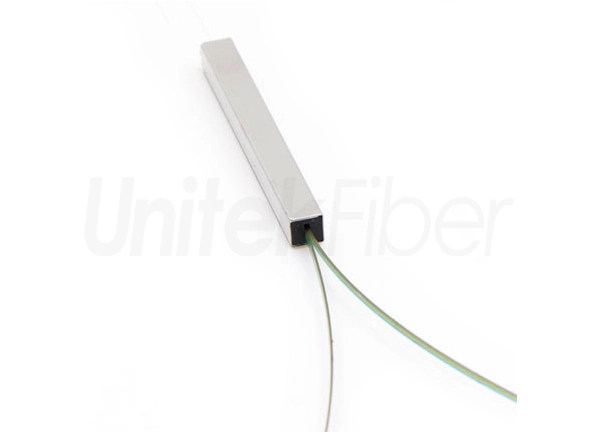

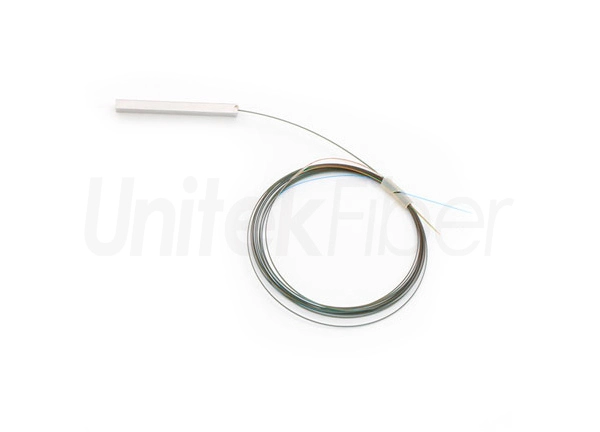

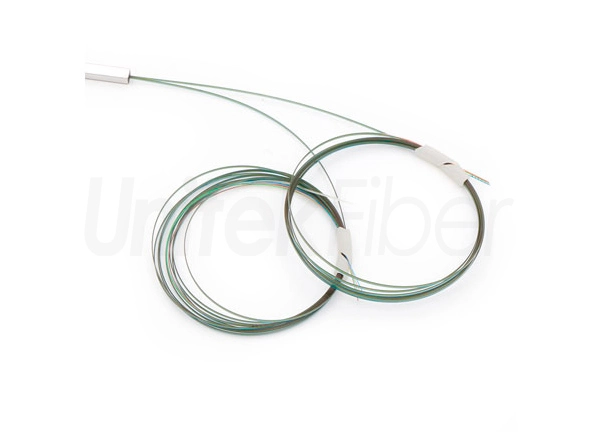

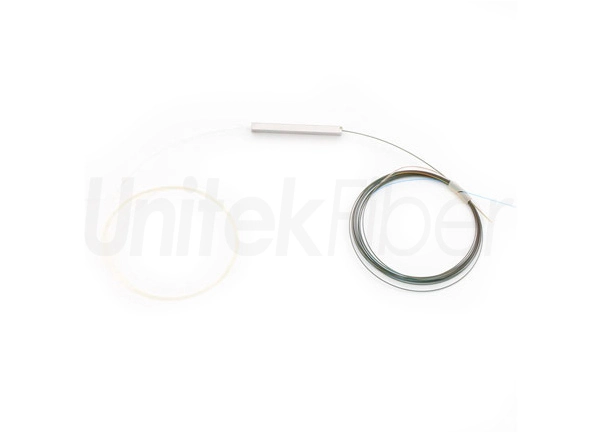

250um Bare fiber PLC Splitter without Connector

250um Bare fiber PLC splitter consists of PLC splitter chip and input, output optical fiber array in a square metal tube. The input and output parts are in 250um bare fibers.


Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

250um Bare fiber PLC Splitter without Connector

Features:


  • Low Insertion loss

  • Low PDL

  • Compact Design

  • Good channel-to-channel uniformity

  • Wide Operating Wavelength:

  • From 1260nm to 1650nm

  • Wide Operating Temperature:

  • High Reliability and Stability

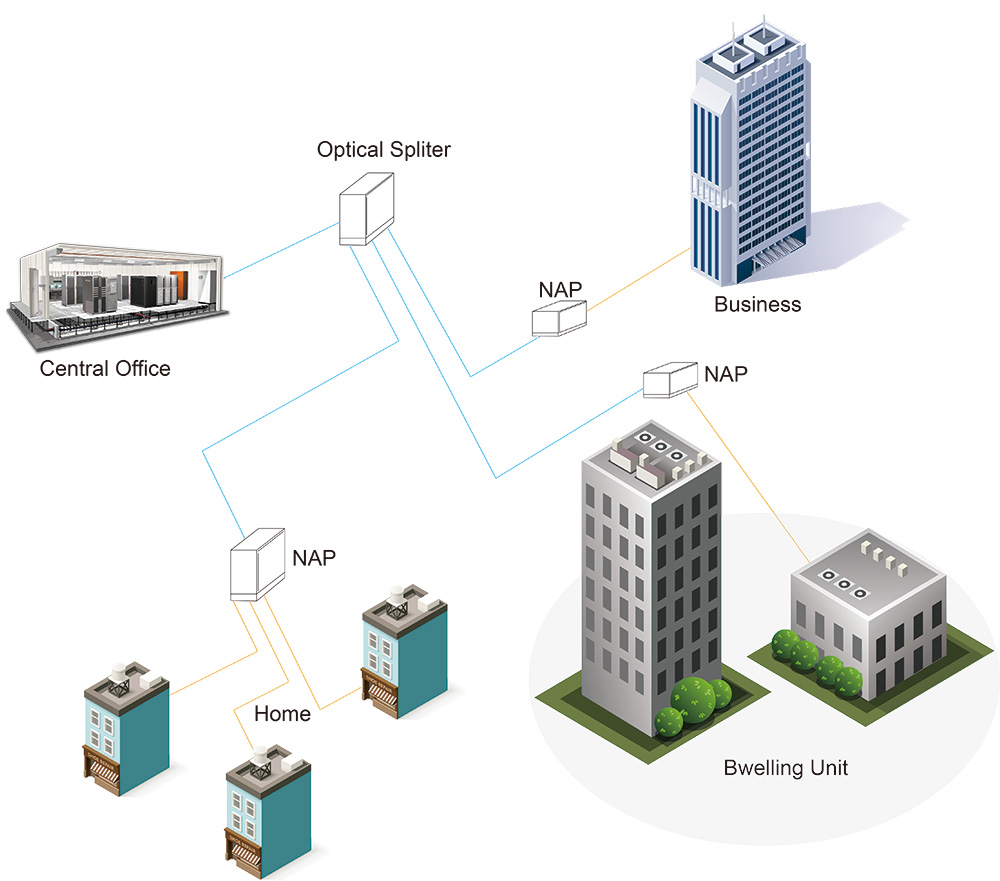

Applications:


  • FTTX Systems

  • PON Networks

  • CATV Links

  • Optical Signal Distribution


Compliance:


  • Telcordia GR-1209-CORE

  • Telcordia GR-1221-CORE

LGX Box PLC Spltter


Packaging and Shipping:


250um Bare fiber PLC Splitter without Connector


Production:


250um Bare fiber PLC Splitter without Connector


250um Bare fiber PLC Splitter without Connector

Table 1 – 1×N PLC Splitter

Parameters

1×2

1×4

1×6

1×8

1×12

1×16

1×32

1×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G657A or customer specified

Insertion Loss (dB)(Min/Max)

3.8/4.0

7.2/7.4

9.5/9.8

10.5/10.7

12.1/12.6

13.5/13.7

16.5/16.9

20.5/21.0

Loss Uniformity (dB)

0.6

0.6

1.0

0.8

1.1

1.2

1.5

2.5

Return Loss (dB)

55

55

55

55

55

55

55

55

Polarization Dependent Loss(dB)

0.2

0.2

0.3

0.3

0.3

0.3

0.3

0.4

Directivity (dB)

55

55

55

55

55

55

55

55

Operating Temperature(℃)

-40~+85

Storage Temperature(℃))

-40~+85

Operating Humidity

5% ~ 85% RH

Storage Humidity

5% ~ 85% RH

Device Dimension (mm)   (L×W×H)

40×4×4

40×4×4

40×4×4

40×4×4

60×7×4

60×7×4

60×7×4

60×12×6

Module Dimension (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

100×80×10

120×80×18

120×80×18

120×80×18

140×115×18

Mini-Module Dimension (mm)   (L×W×H)

60×7×4

60×7×4

60×7×4

60×7×4

60×7×4

60×12×4

80×20×6

100×40×6


Table 2 – 2×N PLC Splitter

Parameters

2×2

2×4

2×8

2×16

2×32

2×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G657A or customer specified

Insertion Loss (dB)(Min/Max)

3.9/4.2

7.5/7.8

11.2/11.5

14.2/14.5

17.2/17.7

21.0/21.5

Loss Uniformity (dB)

0.8

1.5

1.5

1.8

2.0

2.5

Return Loss (dB)

55

55

55

55

55

55

Polarization Dependent Loss(dB)

0.2

0.2

0.4

0.4

0.4

0.4

Directivity (dB)

55

55

55

55

55

55

Operating Temperature(℃))

-40~+85

Storage Temperature(℃))

-40~+85

Operating Humidity

5% ~ 85% RH

Storage Humidity

5% ~ 85% RH

Device Dimension (mm)   (L×W×H)

50×4×4

50×4×4

50×4×4

60×7×4

60×7×4

N/A

Module Dimension (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

120×80×18

120×80×18

140×115×18

Mini-Module Dimension (mm)   (L×W×H)

60×7×4

60×7×4

60×7×4

80×12×4

80×20×6

N/A
