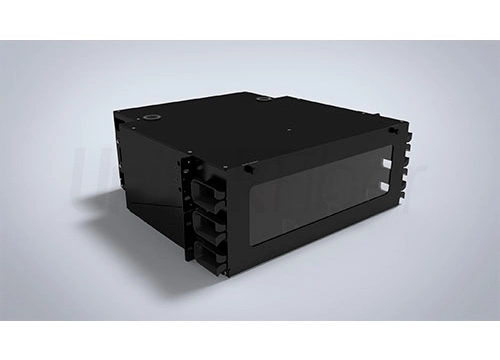

4U Rack Mount Optical Distribution Frame ODF 144 288 Fibers Patch Panel Box

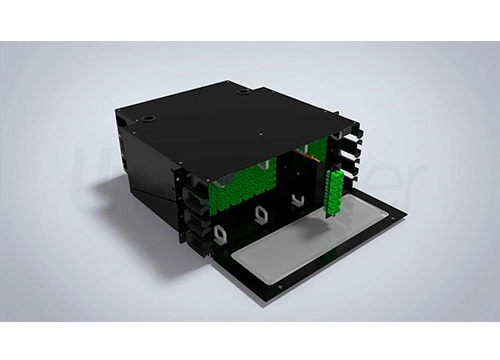

UnitekFiber supplies Fiber Optic Distribution Frame or Optical Patch Panel. Our rack mount ODF is in 4U designed and sliding structure. It is made of cold-rolled steel with electrostatic spraying.

Fiber Optic
Details
Parameter

Details of 4U Rack Mount Optical Distribution Frame ODF 144 288 Fibers Patch Panel Box

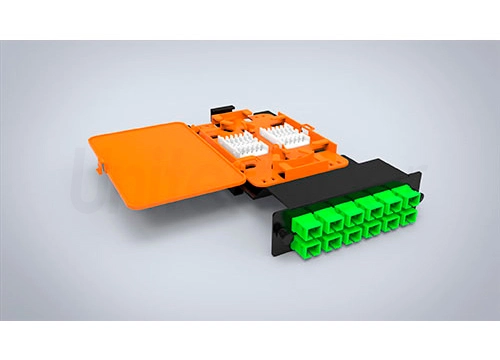

The ODF frame is loaded with adapter module cassettes.One adapter module cassette can be 12cores or 24cores and and is suitable for FC, SC, ST, LC, etc. adapters. 12pcs module cassettes cable be installed.The maximum fiber core is 288cores for our 4U rack mounted ODF box.It is easy to operate and maintain. The ODF box is widely used in distribution and end connection of indoor cables.


Structure:


  • Standard size, light weight and reasonable structure

  • Splice tray inside changeable

  • Can be used in 19'', 23'' standard distribution frame

  • Suitable for ribbon and single fiber

  • Various panel plate to fit different adapter interface

  • 24C, 36C, 48C, 72C, 96C optional, with or without fiber optic pigtails and adapters

  • Easy for management and operation

  • Customizable color and LOGO


Applications:


  • Telecommunications subscriber loop

  • Fiber to the home (FTTH)

  • LAN/WAN

  • CATV


Packaging & Shipping


4U Rack Mount Optical Distribution Frame ODF 144 288 Fibers Patch Panel Box


Production


4U Rack Mount Optical Distribution Frame ODF 144 288 Fibers Patch Panel Box


Parameter of 4U Rack Mount Optical Distribution Frame ODF 144 288 Fibers Patch Panel Box

Packing Information

Type

Size(cm)

Max capacity for 12cores/ tray

Suitable Adapters

Color

Outer carton diameter(cm)

4U

439*452.5*240

12/24

SC/ST/FC/LC

Black(RAL9005) Beige(RAL1001)

560*490*240
