MPO-MPO Trunk Cables OM3 Compatible with 40G, 100G SFP 12 24 Cores Connector

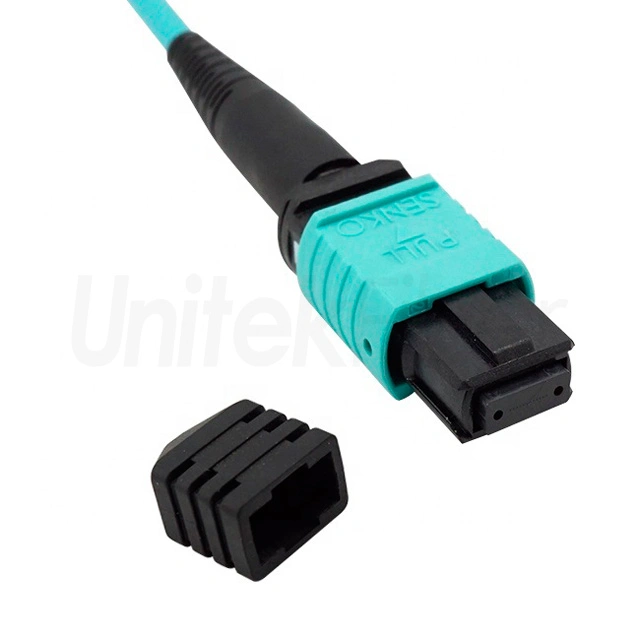

UnitekFiber supplies MPO-MPO trunk cables. A MTP/MPO connector is 12 cores and 24cores, but its size is smaller than SC connector. High precision, precision MT guide pins and pin holes ensure accuracy in fiber alignment.

Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Details of MPO-MPO Trunk Cables OM3 Compatible with 40G, 100G SFP 12 24 cores Connector

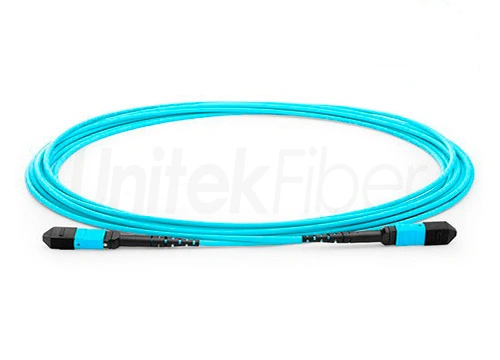

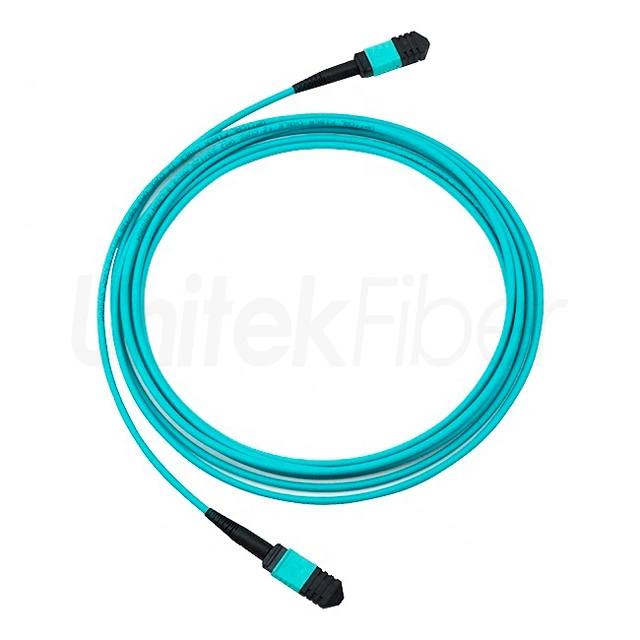

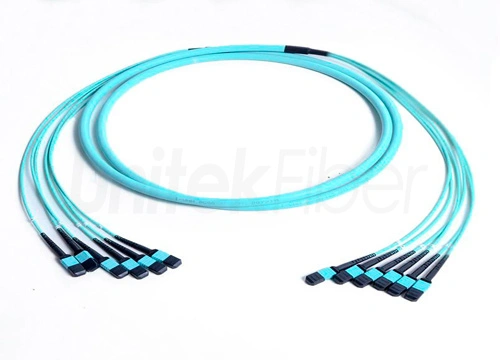

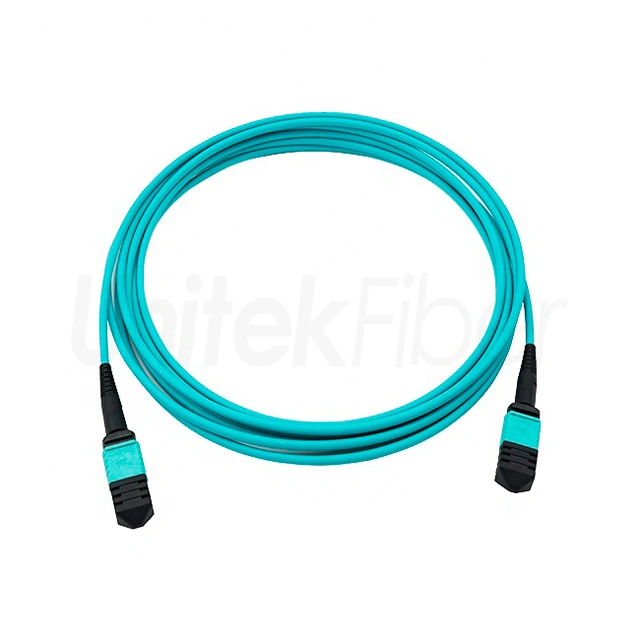

MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MPO connectors and Corning fiber, Multi Mode MPO/MTP cable is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.


Bulk Fiber Optic Cable


The MTP/MPO trunk cables can be single mode, OM3, OM4. MTP/MPO trunk cables is compatible with 40G,100GSFP,SFP+ and XFP converters.


Network Connectivity

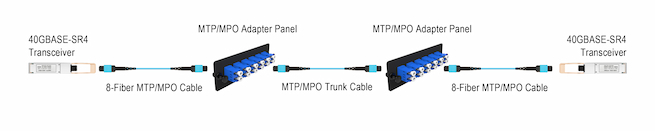

Base-12 MTP/MPO Cabling for 40G-40G Connection


Bulk Fiber Cable


The easiest parallel fiber optic transmission link of Base-8 MTP/MPO cabling is to directly connect two QSFP+ transceivers like 40GBASE-SR4 with an 8-fiber MTP/MPO cable. This type of direct connectivity is only suggested for short distances within a given row of racks or cabinets.



Product Highlights

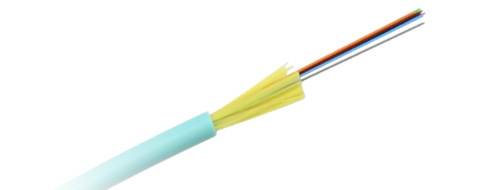

Perfect High-performance Fiber

Excellent bending and compression resistance make it an ideal choice for high density cabling


Buy Bulk Fiber Optic Cable





Bulk Fiber Optic Cable For Sale


Superior Workmanship Guarantees Stable Transmission


Custom Fiber Count


Bulk Single Mode Fiber Optic Cable

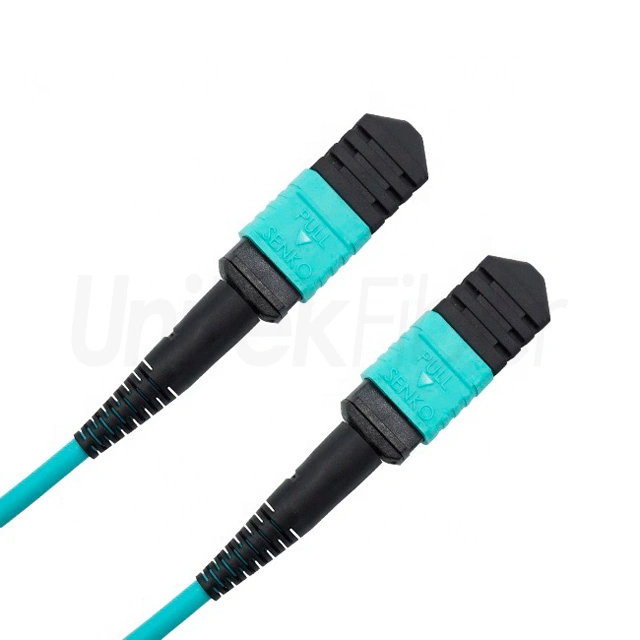

MPO connectors are the proven and trusted MPO style format,MTP/MPO cable offering state-of-the-art multi-fiber and mechanical performance

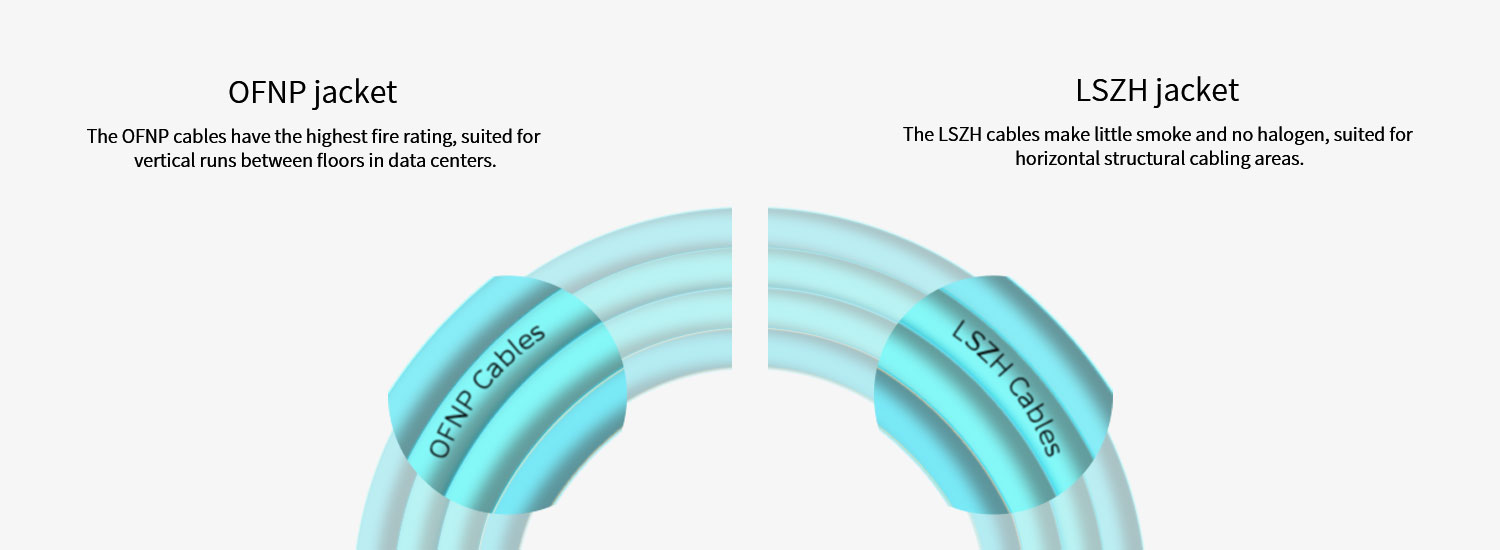

Custom Cable Jacket


Bulk Outdoor Fiber Optic Cable

Parameter of MPO-MPO Trunk Cables OM3 Compatible with 40G, 100G SFP 12 24 cores Connector

Model

SM

MM

Connector A: MPO/MTP

Connector Fiber Count

8, 12, 24, 48 Core

Polish

PC, APC

PC

Insertion Loss

Standard

≤0.70dB

≤0.50dB

Elite Low Loss

≤0.35dB

≤0.30dB

Return Loss

PC≥50dB, APC≥60dB

≥30dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

Connector B: LC, LC Uniboot, SC, FC, ST

Polish

PC, APC

PC

Insertion Loss

≤0.2dB

≤0.2dB

Return Loss

PC≥50dB,APC≥60dB

≥35dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

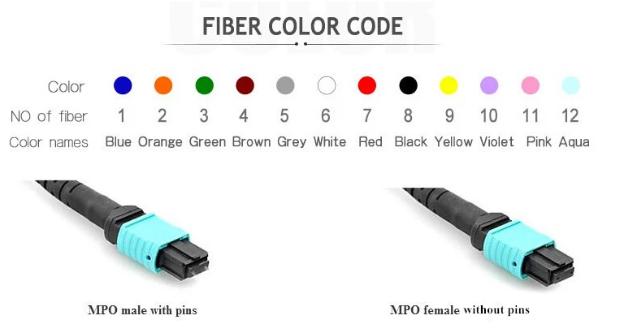

Fiber Color

Fiber Color

FAQ

Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
