Outdoor 2U Sliding Drawer Fiber Optic Termination Box 48 96 Ports

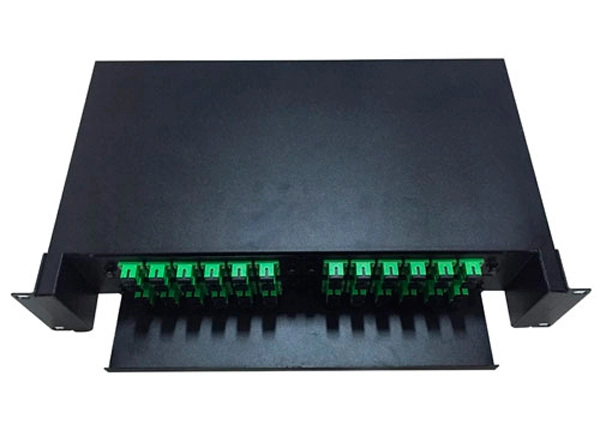

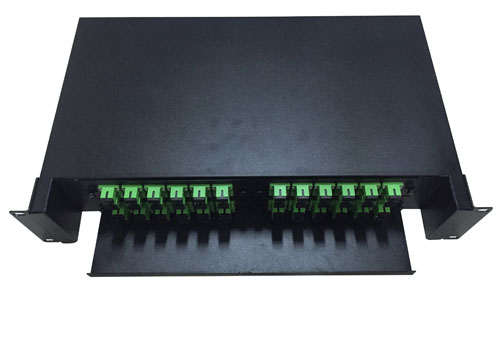

UnitekFiber provides 2U sliding drawer type fiber terminal box. It is made of metal in 19" standard structure. There are 2pcs of stainless steel rails at the sides of the box.

Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Outdoor 2U Sliding Drawer Fiber Optic Termination Box 48 96 Ports

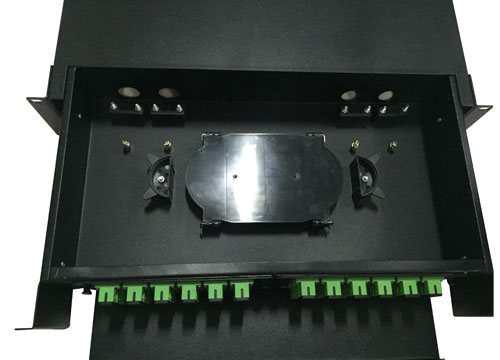

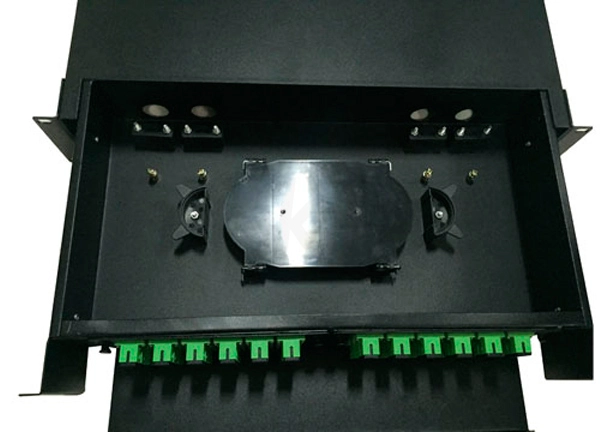

This design make the panel drawer easily pull out and push in.The fiber box can be loaded with FC,SC,ST,LC adapters. The maximum fiber cores for LC termination is 96 cores. 4 fiber cable entries is at the back of the panel and splice cassette is in the middle of the patch panel. It can be applied in branch connection of optical cable termination.


Features:


  • Rack mounting 19” standard size, light weight

  • Suitable for ribbon and single fiber

  • Various panel plate to fit different adapter interface

  • Front mark on the plate is easy for identification and operation

  • 24C, 36C, 48C, 96C,144C optional, with or without fiber optic pigtails and adapters

  • Easy for management and operation

  • Sprayed surface treatment process

  • Customizble color and LOGO


Applications:


  • Telecommunications subscriber loop

  • Fiber to the home (FTTH)

  • LAN/WAN

  • CATV


Packaging and Shipping


Outdoor 2U Sliding Drawer Fiber Optic Termination Box 48 96 Ports


Production


2U Sliding Drawer Type Fiber Terminal Box 48ports

Outdoor 2U Sliding Drawer Fiber Optic Termination Box 48 96 Ports

Packing Information

Type

Size(cm)

Max capacity

Outer carton diameter(cm)

Outer carton diameter

UF-JJ-CLC-1U

48.2*30*1U

24

48.5*42*35/5pcs

21

UF-JJ-CLC-2U

48.2*30*2U

72

49.5*34*54.5/4pcs

21.6

UF-JJ-CLC-3U

48.2*30*3U

96

50*35*54/3pcs

19.6
