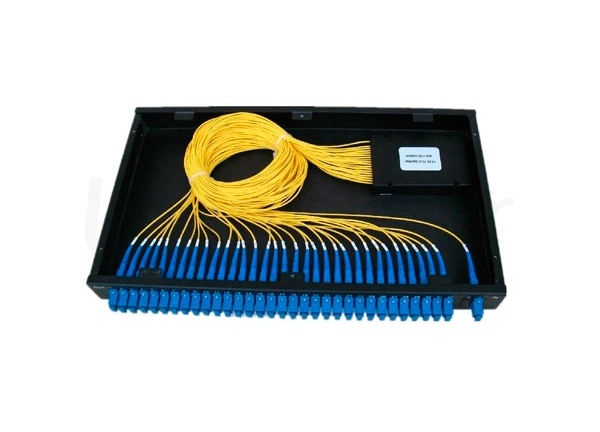

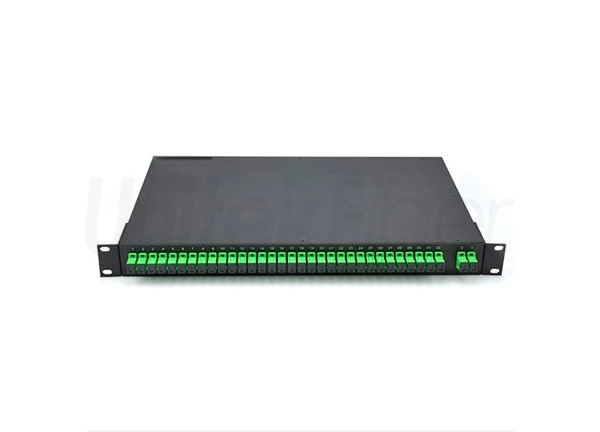

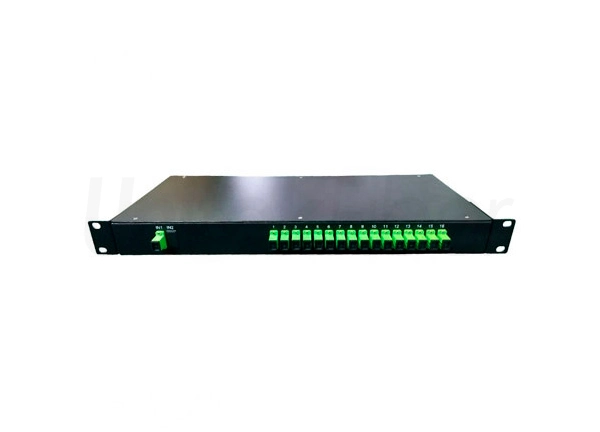

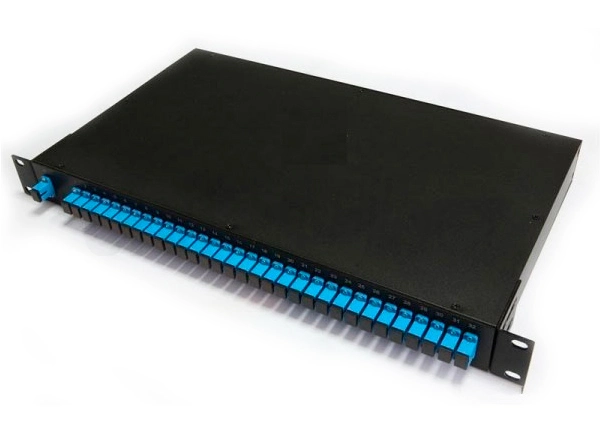

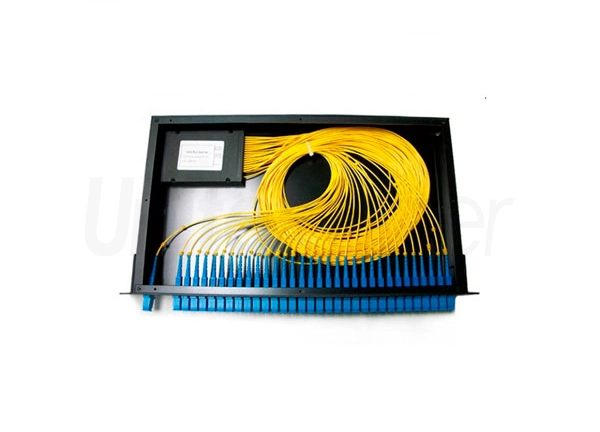

19 Inch Rack Chassis Optical PLC Splitter 1x8, 1x16, 1x32, 2x32

Features:


  • Low Insertion loss

  • Low PDL

  • Compact Design

  • Good channel-to-channel uniformity

  • Wide Operating Wavelength:

  • From 1260nm to 1650nm

  • Wide Operating Temperature:

  • High Reliability and Stability


Applications:


  • FTTX Systems

  • PON Networks

  • CATV Links

  • Optical Signal Distribution


Compliance:


  • Telcordia GR-1209-CORE

  • Telcordia GR-1221-CORE

LGX Box PLC Spltter


Packaging and Shipping:


19 Inch Rack Chassis Optical PLC Splitter 1x8, 1x16, 1x32, 2x32


Production:


19 Inch Rack Chassis Optical PLC Splitter 1x8, 1x16, 1x32, 2x32


19 Inch Rack Chassis Optical PLC Splitter 1x8, 1x16, 1x32, 2x32

Table 1 – 1×N PLC Splitter

Parameters

1×2

1×4

1×6

1×8

1×12

1×16

1×32

1×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G657A or customer specified

Insertion Loss (dB)(Min/Max)

3.8/4.0

7.2/7.4

9.5/9.8

10.5/10.7

12.1/12.6

13.5/13.7

16.5/16.9

20.5/21.0

Loss Uniformity (dB)

0.6

0.6

1.0

0.8

1.1

1.2

1.5

2.5

Return Loss (dB)

55

55

55

55

55

55

55

55

Polarization Dependent Loss(dB)

0.2

0.2

0.3

0.3

0.3

0.3

0.3

0.4

Directivity (dB)

55

55

55

55

55

55

55

55

Operating Temperature(℃)

-40~+85

Storage Temperature(℃))

-40~+85

Operating Humidity

5% ~ 85% RH

Storage Humidity

5% ~ 85% RH

Device Dimension (mm)   (L×W×H)

40×4×4

40×4×4

40×4×4

40×4×4

60×7×4

60×7×4

60×7×4

60×12×6

Module Dimension (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

100×80×10

120×80×18

120×80×18

120×80×18

140×115×18

Mini-Module Dimension (mm)   (L×W×H)

60×7×4

60×7×4

60×7×4

60×7×4

60×7×4

60×12×4

80×20×6

100×40×6


Table 2 – 2×N PLC Splitter

Parameters

2×2

2×4

2×8

2×16

2×32

2×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G657A or customer specified

Insertion Loss (dB)(Min/Max)

3.9/4.2

7.5/7.8

11.2/11.5

14.2/14.5

17.2/17.7

21.0/21.5

Loss Uniformity (dB)

0.8

1.5

1.5

1.8

2.0

2.5

Return Loss (dB)

55

55

55

55

55

55

Polarization Dependent Loss(dB)

0.2

0.2

0.4

0.4

0.4

0.4

Directivity (dB)

55

55

55

55

55

55

Operating Temperature(℃))

-40~+85

Storage Temperature(℃))

-40~+85

Operating Humidity

5% ~ 85% RH

Storage Humidity

5% ~ 85% RH

Device Dimension (mm)   (L×W×H)

50×4×4

50×4×4

50×4×4

60×7×4

60×7×4

N/A

Module Dimension (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

120×80×18

120×80×18

140×115×18

Mini-Module Dimension (mm)   (L×W×H)

60×7×4

60×7×4

60×7×4

80×12×4

80×20×6

N/A
