5-port 100M industrial Ethernet switch conforms to IEEE802.3, 10BASE-T and IEEE802.3u, 100BASE-TX standards. It provides 5 ports that support both 10Mbps and 100Mbps transmission rate. The 100BASETX working mode supports shielded or unshielded category 5 (and over 5 Class) twisted pair cable,the 10BASE-T working mode supports shielded or unshielded category 3 (and category 4, category 5, super category 5) twisted pair.
5 electrical PoE ports, built-in power
IEEE 802.3, IEEE 802.3u, IEEE 802.3af/at PoE compliant
Support PoE IP cameras, PoE WIFI AP, and PoE IP phones
Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure
Up to 30W per port (total power budget: 120W) for powering PoE-enabled devices
All ports support wire speed switching, jumbo frame transmission
Support upstream ports lightning protection
Dynamic power control to ensure stable output power (Enhanced)
Improved anti-interference capability, to solve problems in the installation of grounding devices (Enhanced, twice as good as other manufacturers' products)
Power-on in order of the PoE port, effectively reduce current strike, and reduce the transient voltage surge to PoE switch and other connected devices at the startup (Unique)
Reliable short-circuit protection to ensure safety (Enhanced)
Over-voltage and under-voltage protection (Some other manufacturers' products don't support this)

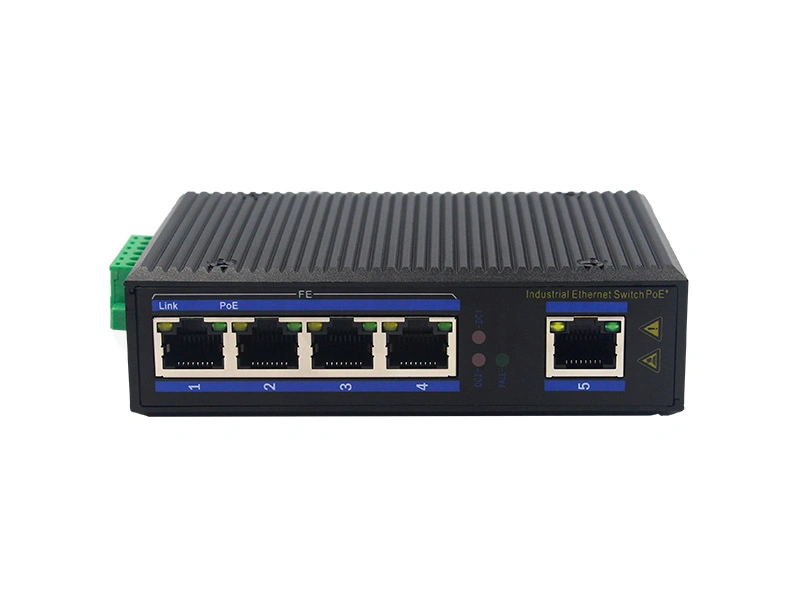

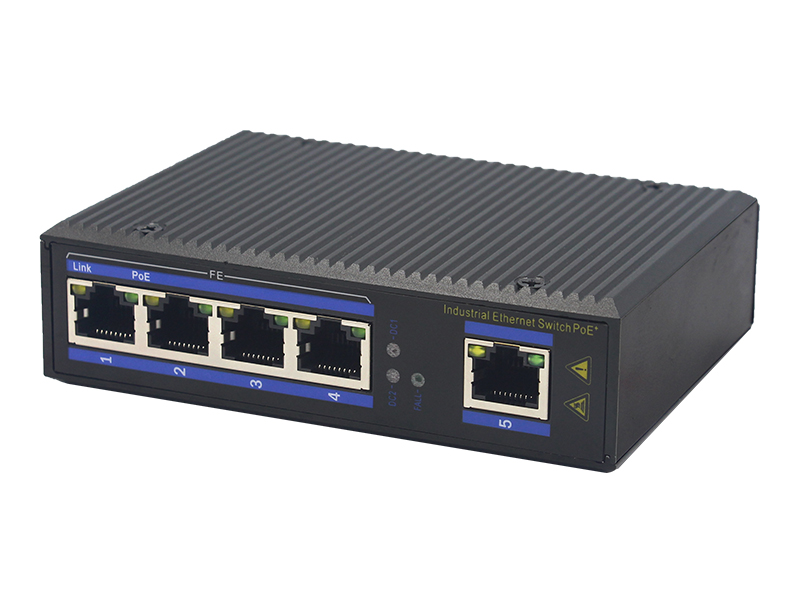

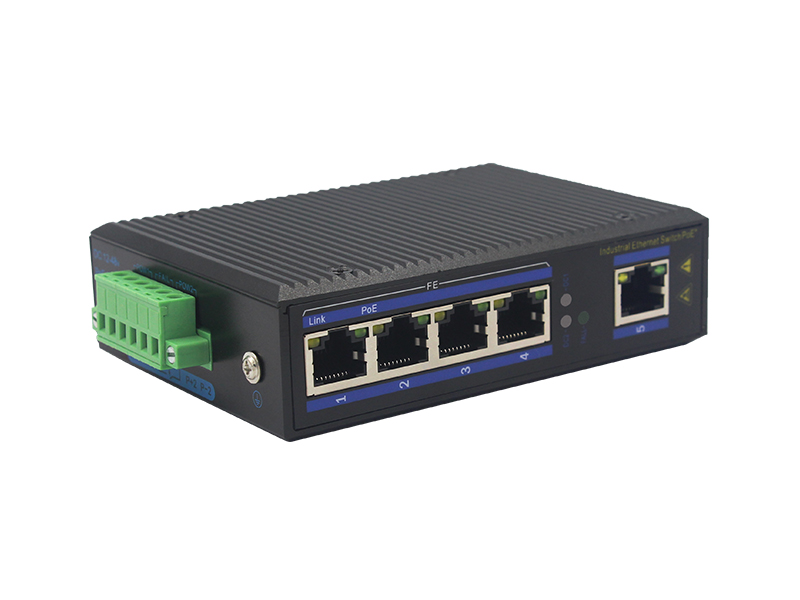

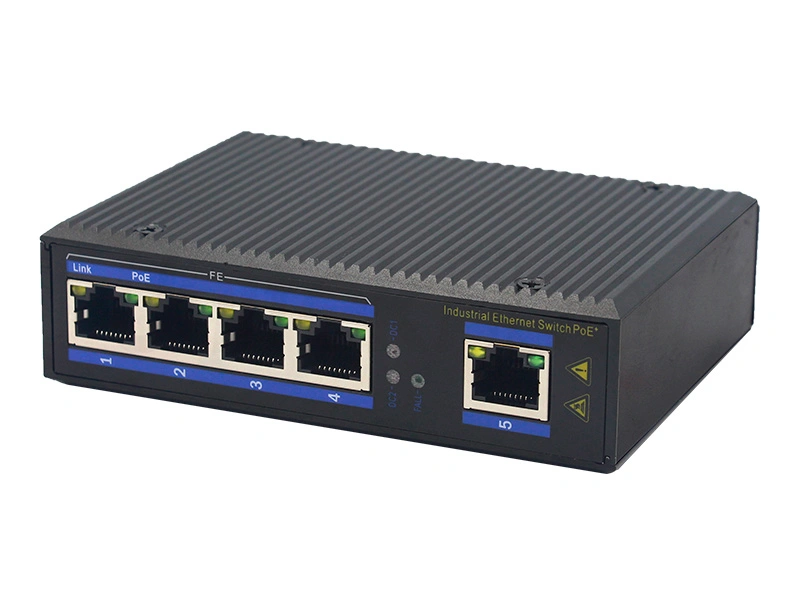

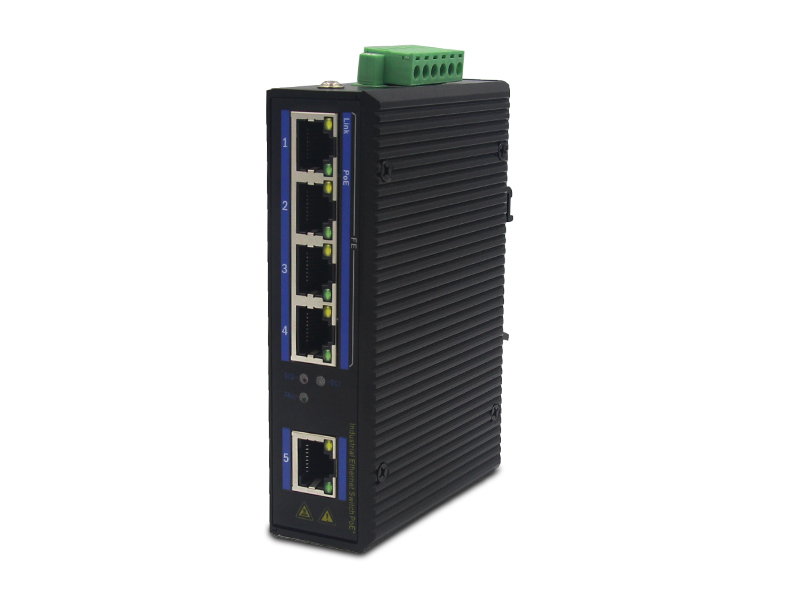

Product Name | 100M 5-port PoE Unmanaged Industrial-grade Ethernet Switch Din-rail 10/100Mbps WIFI |
Product Model | 100m 5 electrical unmanaged industrial PoE switch |
Product Description | 5xRJ45 ports, |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X;IEE802.3x; |
POE Standards | Standard PoE: IEEE802.3af/ IEEE802.3at |
PoE port: 1-4 ports support PoE | |
Output Power: Maximum power 15.4W (IEEE 802.3af) Maximum power 30W (IEEE 802.3at) POE port automatically recognizes af/at | |
Output voltage: DC48~57V | |
Power supply mode: 1/2+;3/6- | |
RJ45 Interface | 10/100BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive |
Copper Cable | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter)
|
Switch properties | MAC address table: 1K Packet buffer: 512K Exchange method: store-forward Power consumption:<3W |
Protection Level | IP40 |
LED indicator | Power indicator: PWR Interface indicator: electrical port (Link) |
Power Supply | Input voltage: DC48~57V (dual power supply redundant backup) Access terminal: Phoenix terminal Support dual power supply redundancy Support built-in overcurrent 4.0A protection Support reverse connection protection |
Working Environment | Working temperature: -40~85℃ ; Storage temperature: -40~85℃ Relative Humidity: 5%~95 %( no condensation) |
Industrial Standard | MI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: IEC(EN)61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC(EN)61000-4-3(RS): 10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT): Power cable: ±4kV; Data cable: ±2kV IEC(EN)61000-4-5(Surge): Power cable: ±4kV CM/±2kV DM; Data cable: ±2kV IEC(EN)61000-4-6 (Radio Frequency Conduction): 3V(10kHz～150kHz), 10V(150kHz～80MHz) IEC(EN)61000-4-16 (common mode conduction): 30V cont. 300V, 1s IEC(EN)61000-4-8 Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
Mechanical properties | Shell: metal material Installation: DIN rail and wall-mounted installation Weight: 0.36Kg Dimensions: 113 x 86 x 39mm (length x width x height) |
MTBF | 300,000 hours |
Warranty | 5 years |
