Direct Burry Fiber Optic Cable|GYTA53 Fiber Cable 24 Core SM Aluminum Armored Double Sheathed Loose Tube

GYTA53 fiber optic cable is with good waterproof, anti-side pressure and tensile properties, suitable for direct burial.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Direct Burry Fiber Optic Cable|GYTA53 Fiber Cable 24 core SM Aluminum Armored Double

Optical Cable for Sale

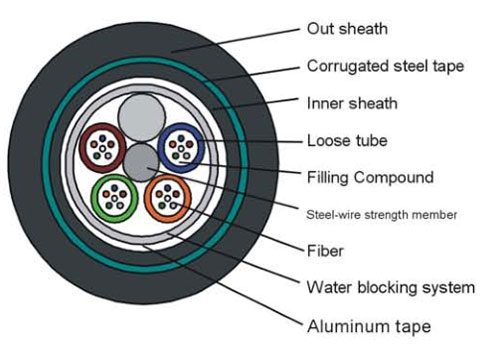

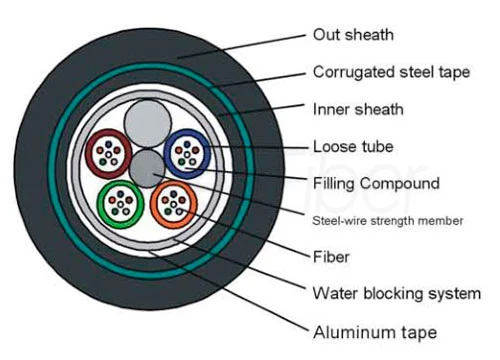

GYTA53 directly burried fiber optic cable is loose tube style, optical fiber cable wite metallic central strength member of steel wire/strand and mositure barrier inner sheathed. Cable protrcted by a corrugated steel armoring and black PE over sheath for protection against mechanical damage and temite or rodent attack, suitable for direct buried or aerial application.Tubes containe optical single mode or multimode fibers colour coded as per color coding scheme.


Optical Cable Price


The Fiber Cores of GYTA53 Fiber Cable is from 2 cores to 288 cores


Features of GYTA53 Fiber optic Cable


Fiber Optic Wire Cable

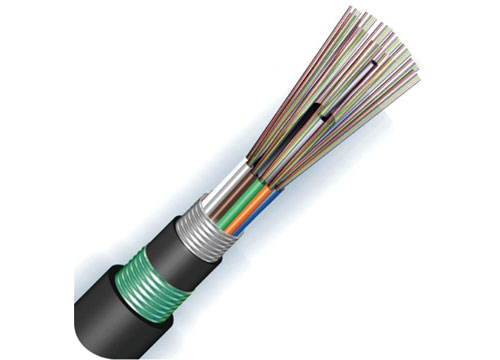

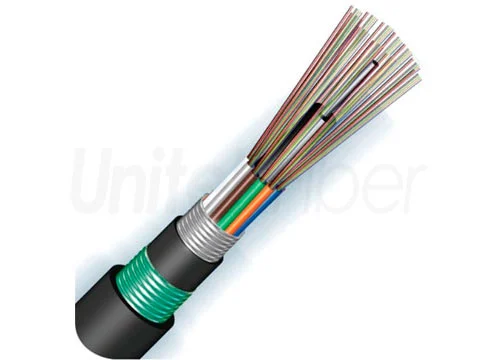

GYTA53 fiber optic cable is an double jacket double armored stranded loose tube outdoor cable. The loose tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube, which keeps the fiber stress-free while the cable is subjected to longitudinal stress. Corrugated steel tape armored and double PE sheath providing excellent crush resistance and rodent resistance. Metal strength member provides excellent strain performance.


Applications of GYTA53 Fiber optic Cable


Fiber Optic Wire for Sale


GYTA53 fiber optic cable is steel tape and aluminum tape armored and double sheath cables, they are suitable for installation in harsh environments where mechanical impact on the cable is to be expected. e.g. in direct buried application. They are also suitable for installation in ducts where the rodent resistance is to be expected or the moisture resistance is expected.


Professional Assistant For GYTA53 Fiber Optic Cabling System


Fo Cable Type


Packaging & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre

Parameter of Direct Burry Fiber Optic Cable|GYTA53 Fiber Cable 24 core SM Aluminum Armored Double Sh

No. of cable

12

24

48

Fiber Model

G.652D

Design

(StrengthMember+Tube&Filler)

1+5

Central Strength Member

Material

Steel Wire

Diameter(±0.5)mm

1.4

Loose Tube

Material

PBT

Diameter(±0.06)mm

1.72

1.72

2.0

Thickness(±0.03)mm

0.30

0.30

0.32

The Max.Core NO./Tube

6

6

12

Filler Rope

Material

LDPE

Diameter(±0.06)mm

1.7

1.7

2.0

NO.

3

1

1

Moisture Barrier

Material

Polymer CoatedAluminum Tape

Thickness(±0.03)mm

0.20

Inner

Sheath

Material

MDPE

Thickness(±0.2)mm

0.9

Armoring

Material

Polymer Coated  Steel Tape

Thickness(±0.2)mm

0.22

Water Bloaking Layer

Material

Filling Compound

Outer Sheath

Material

MDPE

Thickness(±0.2)mm

1.8

Cable Diameter(±0.5)mm

12.5

12.5

13.1

Cable Wetght(±10)kg/km

152

167

167

Attenuation

1310nm

0.35dB/ km

1550nm

0.21dB/ km

Min. bending radius

Without Tension

12.5×Cable-φ

Under Maximum Tension

25.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70


Fibre & Loose Tube Colors

Aluminum Double Sheathed Loose tube Fiber Cable(GYTA53)


What is Fiber Optic Direct-Burial Cable?

Fiber optic direct-burial cable is a cable that has passed insulation water absorption and crush-resistance tests.

Are these definitely for direct burial? Is this an armored cable?

Armored , you can directly bury just keep the ends clean.

Why can the direct buried optical cable be directly buried in the ground for installation?

Because direct bury fiber optic cable has steel tape or steel wire armored on the outside to protect the fiber optic cable.

Can I get this in 96core direct bury fiber optic cable?

Yes, you can. Please contact us with your request.

What is your delivery time?

Lead time is 15-20days, according to order quantities.

How will you deliver my goods to me?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
