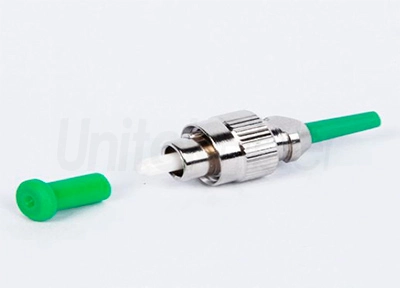

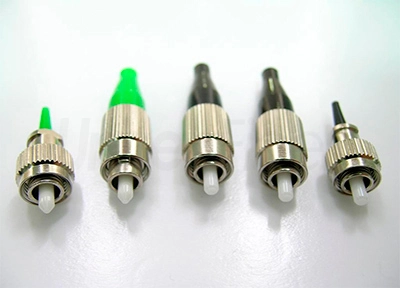

FC Fiber Optical Connector UPC APC 0.9mm, 2.0mm, 3.0mm Type A

UnitekFiber FC fiber optical connectors are in low insertion loss and back reflection loss. All our connectors are grade A types.

Fiber Optic
Details
Parameter

Details of FC Fiber Optical Connector UPC APC 0.9mm, 2.0mm, 3.0mm Type A

Features:


  • Low insertion loss and back reflection loss

  • Ferrule end surface pre-domed

  • Precision anti-rotation key and corrosion resistant body

  • Telcordia style boots

  • Free-floating ceramic ferrule


Applications:


  • Fiber Optic Telecommunications

  • FTTH (Fiber To The Home)

  • CATV & CCTV

  • Data Processing Networks

  • Telecom Equipment

  • Local Area Networks


Packaging & Shipping


FC Fiber Optical Connector UPC APC 0.9mm, 2.0mm, 3.0mm Type A


Production


FC Fiber Optical Connector UPC APC 0.9mm, 2.0mm, 3.0mm Type A

Parameter of FC Fiber Optical Connector UPC APC 0.9mm, 2.0mm, 3.0mm Type A


Insertion loss

SM

≤0.30 dB

MM

≤0.3dB



Return loss

MM

≥35dB

PC/UPC

≥50 dB

APC

≥60dB

Durability

<0.20 dB typical change, 1000 mating




Ferrule hole sizes

SM: 125.0+1/-0um

concentricity:≤1.0um

125.5+1/-0um

≤1.0um

126.0+1/-0um

≤1.0um

MM:125 um

Concentricity :1≤3 um

127 um

≤3 um

128 um

≤3 um

Operating temperature

-40~85
