Outdoor Fiber Cable|GYTA53 Optic Cable 48 Core G652D Double Armored and Double Sheathed Jacket PE

GYTA53 Optic fiber cable is a metal reinforcing member, loose tubes twisted filling type, aluminum-polyethylene adhesive inner sheath, longitudinal wrinkle steel belt armor, polyethylene sleeve communication outdoor optical cable, suitable for direct burial Pipeline.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

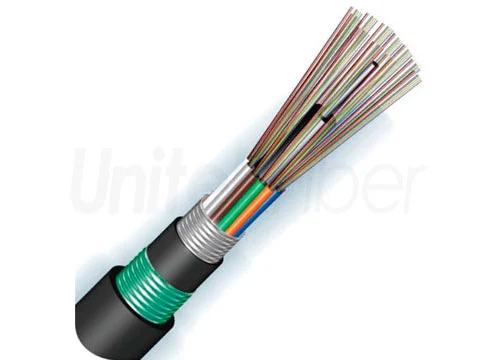

Outdoor Fiber Cable|GYTA53 Optic Cable 48 Core G652D Double Armored and Double Sheathed Jacket PE

Outdoor Fiber Cable|GYTA53 Optic Cable 48 Core G652D Double Armored and Double Sheathed Jacket PE

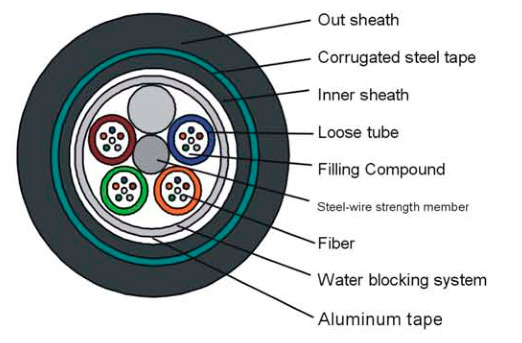

GYTA53 directly burried fiber optic cable is loose tube style, optical fiber cable wite metallic central strength member of steel wire/strand and mositure barrier inner sheathed. Cable protrcted by a corrugated steel armoring and black PE over sheath for protection against mechanical damage and temite or rodent attack, suitable for direct buried or aerial application.Tubes containe optical single mode or multimode fibers colour coded as per color coding scheme.

Optical Cable Price


The Fiber Cores of GYTA53 Fiber Cable is from 2 cores to 288 cores

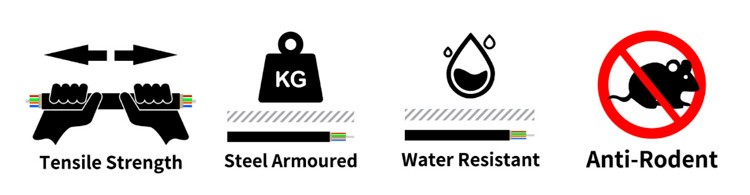

Features of GYTA53 Fiber optic Cable


Fiber Optic Wire Cable



GYTA53 fiber optic cable is an double jacket double armored stranded loose tube outdoor cable. The loose tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube, which keeps the fiber stress-free while the cable is subjected to longitudinal stress. Corrugated steel tape armored and double PE sheath providing excellent crush resistance and rodent resistance. Metal strength member provides excellent strain performance.

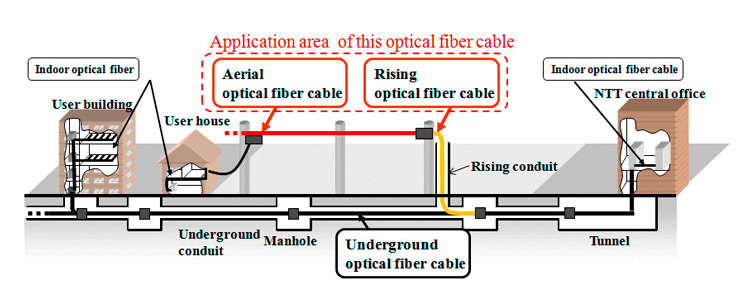

Applications of GYTA53 Fiber optic Cable


Fiber Optic Wire for Sale


GYTA53 fiber optic cable is steel tape and aluminum tape armored and double sheath cables, they are suitable for installation in harsh environments where mechanical impact on the cable is to be expected. e.g. in direct buried application. They are also suitable for installation in ducts where the rodent resistance is to be expected or the moisture resistance is expected.


Professional Assistant For GYTA53 Fiber Optic Cabling System


Fo Cable Type


Packaging & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre

Outdoor Fiber Cable|GYTA53 Optic Cable 48 Core G652D Double Armored and Double Sheathed Jacket PE

No. of cable

12

24

48

Fiber Model

G.652D

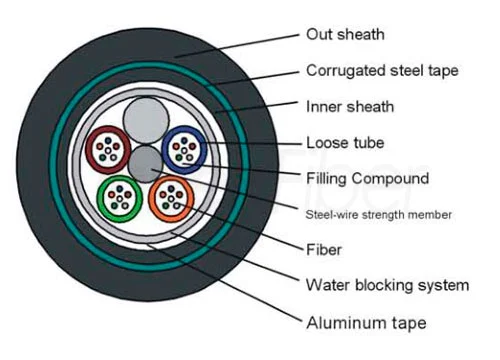

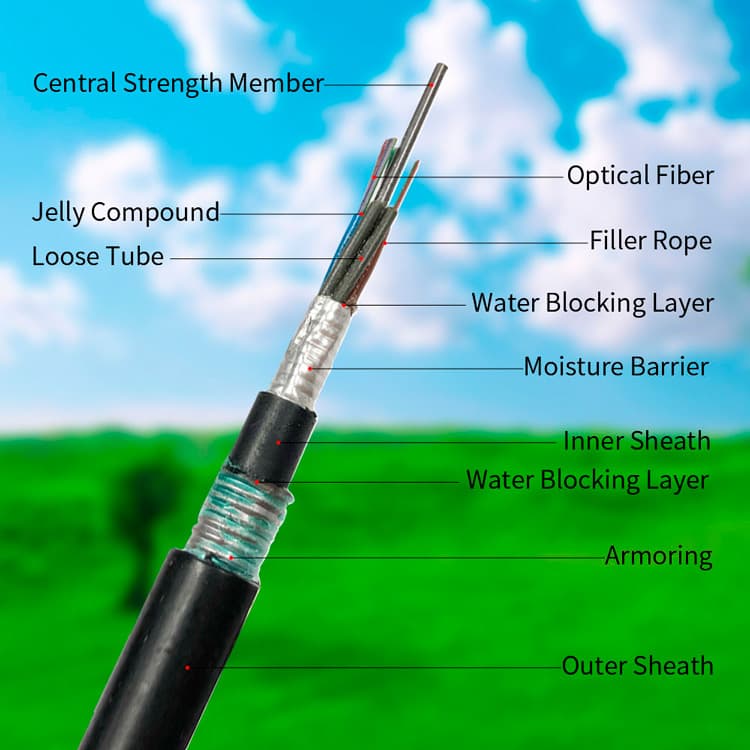

Design

(StrengthMember+Tube&Filler)

1+5

Central Strength Member

Material

Steel Wire

Diameter(±0.5)mm

1.4

Loose Tube

Material

PBT

Diameter(±0.06)mm

1.72

1.72

2.0

Thickness(±0.03)mm

0.30

0.30

0.32

The Max.Core NO./Tube

6

6

12

Filler Rope

Material

LDPE

Diameter(±0.06)mm

1.7

1.7

2.0

NO.

3

1

1

Moisture Barrier

Material

Polymer CoatedAluminum Tape

Thickness(±0.03)mm

0.20

Inner

Sheath

Material

MDPE

Thickness(±0.2)mm

0.9

Armoring

Material

Polymer Coated  Steel Tape

Thickness(±0.2)mm

0.22

Water Bloaking Layer

Material

Filling Compound

Outer Sheath

Material

MDPE

Thickness(±0.2)mm

1.8

Cable Diameter(±0.5)mm

12.5

12.5

13.1

Cable Wetght(±10)kg/km

152

167

167

Attenuation

1310nm

0.35dB/ km

1550nm

0.21dB/ km

Min. bending radius

Without Tension

12.5×Cable-φ

Under Maximum Tension

25.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

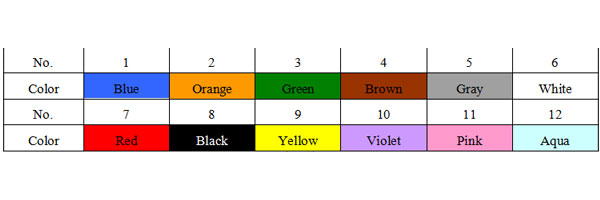

Fibre & Loose Tube Colors

Fibre & Loose Tube Colors


Do you have certificate for raw material?

Yes, with qualified ISO9001, ROHS, UL raw material suppliers.

What is the cable structure for this duct fiber optic cable?

This duct fiber optical cable is usually in Stranded loose tube structure.

How many cores for the duct fiber optical cable?

2-288cores.

What's the MOQ for duct fiber optic cable?

The MOQ of duct fiber optic cable is 2km.

Can you supply customized products and logo?

Yes, we supply OEM&ODM service, please feel free to contact us.
