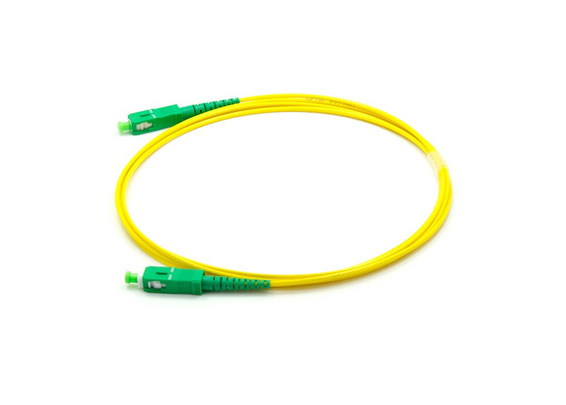

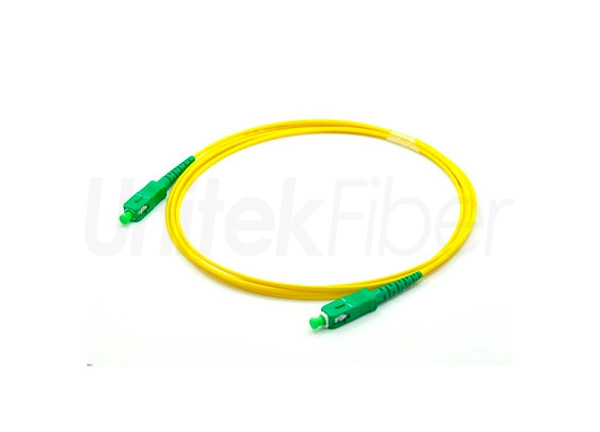

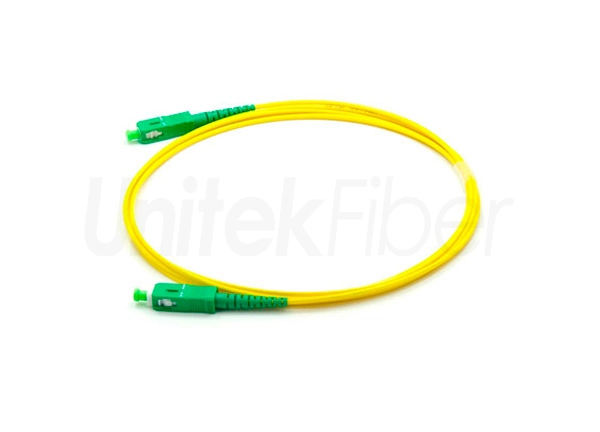

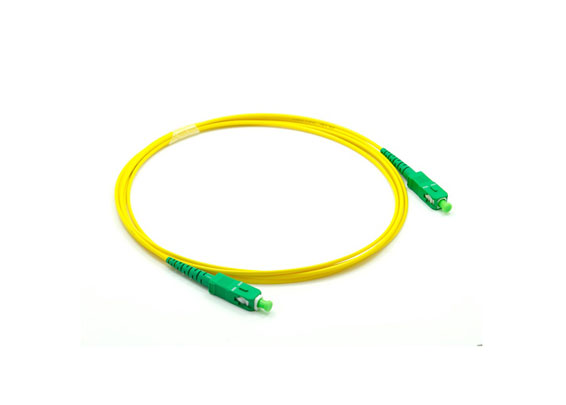

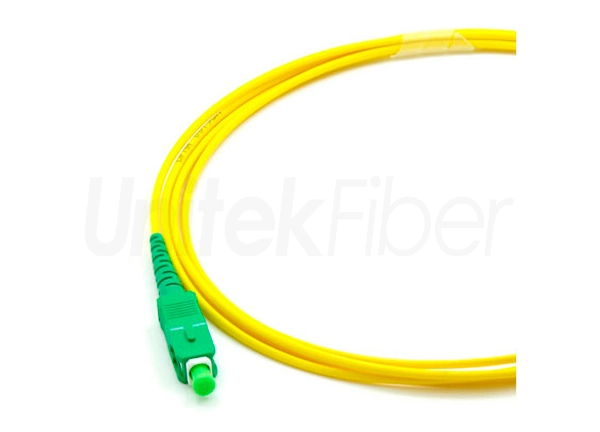

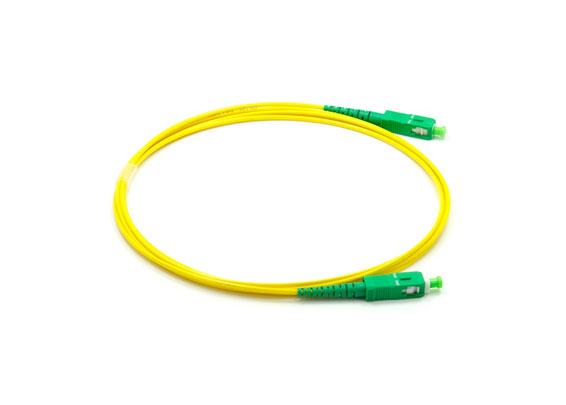

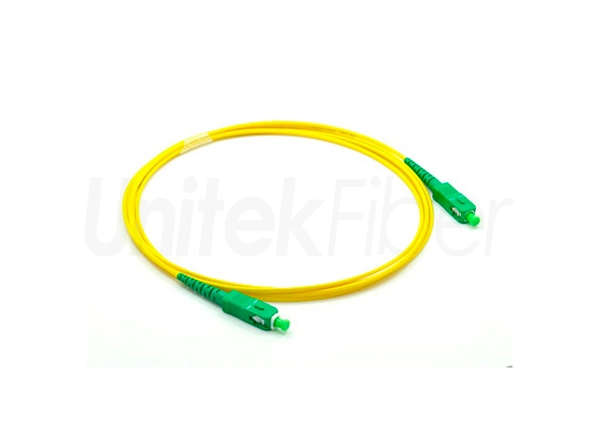

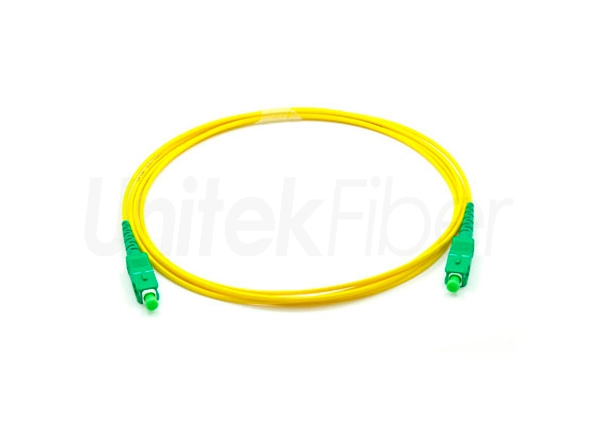

Optical fiber jumper refers to a section of optical fiber wiring equipped with LC, SC, FC, MTRJ or ST optical fiber connectors at each end. LC is a small size optical fiber connector and is the most commonly used cable. Fiber jumpers are also hybrid, with one type of connector at one end and another type of connector at the other end. Jumpers are used in the same way as jumpers and are used to connect terminal equipment or network hardware to a structured wiring system.
High reliability;
CE & RoHS compliant;
100% connectors tested;
Repeatability: >1000 times;
Deliery 100% passed products;
Insertion Loss(SM): Typical<0.2dB, Max<0.3dB;
Return Loss: UPC>50dB, APC>60dB;
Telecommunications
Local Area Network (LAN)
Fiber to the home (FTTH)
Optical patch panels
Testing Instruments
CATV
Item | Unit | FC,SC,LC | ST,MU | MT-RJ, MPO | E2000 | ||||||||
SM | MM | SM | MM | SM | MM | SM | |||||||
PC | UPC | APC | PC | UPC | PC | PC | PC | UPC | PC | PC | UPC | ||
Insertion loss(typical) | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 |
Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
Exchengeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
Cable Diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | ||||||||
Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.
Normally about 7 days after confirmation.
Normally 7-20 days depends on products and order quantities.
Yes, we provide customized service and can do artworks including printing, logo, etc. for you.
YES, OEM is welcomed.
Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
Economical, arrived fast, tested out with good numbers after installation. Stripping and polishing was normal.
