Sliding Type MPO & MTP Fiber Optical Patch Panel 96 Cores for Cabling Constructions

UnitekFiber supplies sliding type 96 cores MPO & MTP optical patch panel which can be applied in the computer center, computer room, database and other high-density cabling constructions.


Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Sliding Type MPO & MTP Fiber Optical Patch Panel 96 Cores for Cabling Constructions

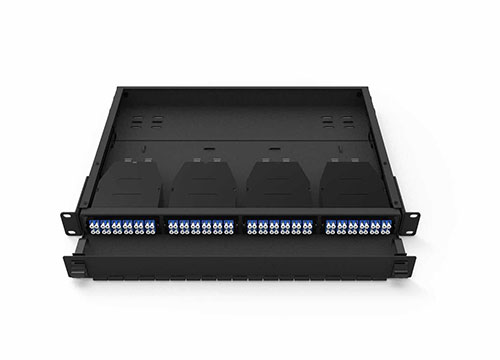

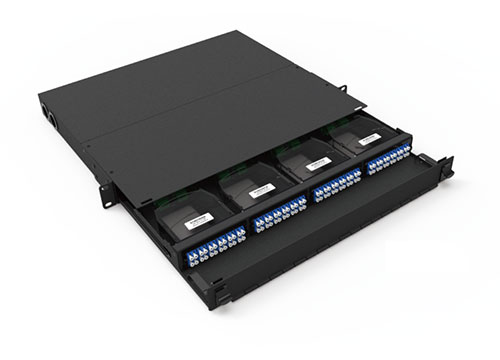

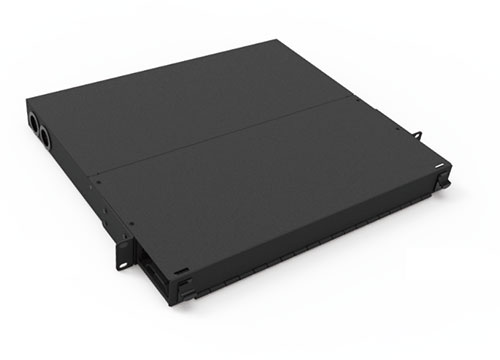

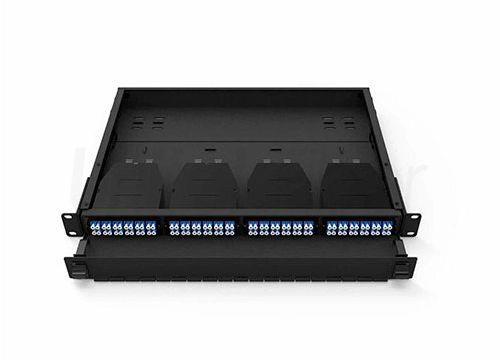

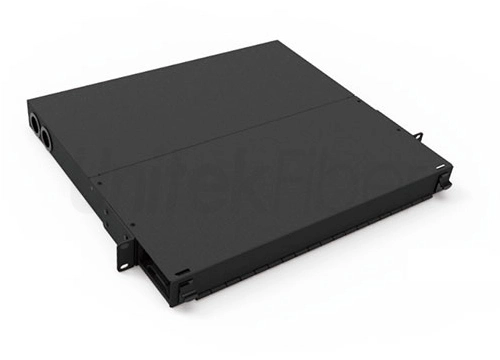

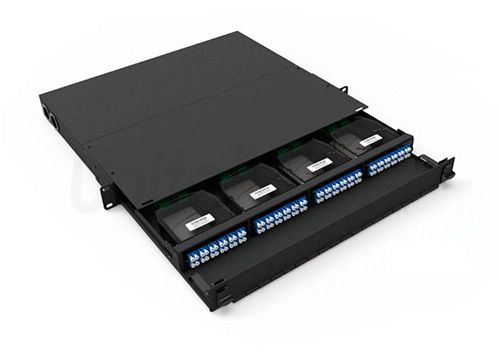

This MPO/MTP panel is a 19-inch standard type, with pull-out tray, two ABS rails on both sides of the panel box and front flaps at the front of the box. There are two kinds of fiber cable distribution methods : MPO/MTP module cassettes and melting fiber cables.

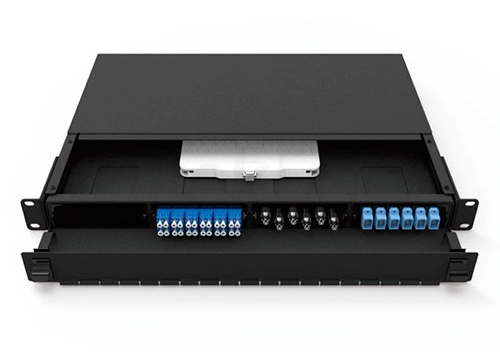

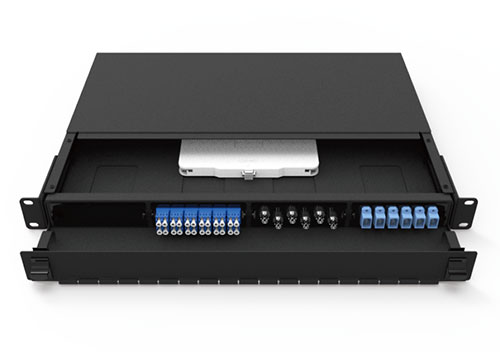

MPO/MTP module splitting or splice fiber splitting can be achieved by installing the MPO module cassettes or duplex LC, SC, ST and FC adapter plates and splice trays in the panel box. Our sliding type MPO/MTP optical panel apply in high-density telecommunication constructions and fusible fiber splitting cabling systems. At present, the mass production model is only 1U height, and it can accommodate up to 96 cores. It can be developed 2U, 3U and 4U products according to customer needs.


Features:


  • High density wiring application condition

  • Standard 19''

  • High-density, 1U 96 fibers

  • ABS sliding drawer, easily installed

  • Can be loaded ABS MPO module box or LC/SC/FC/ST adapters

  • Sprayed surface treatment process

  • Customizable color and LOGO


Application


  • Applied in the computer center and computer room

  • Suitable for high density date center and base station cabling construction.

  • Telecommunications subscriber loop

  • Fiber to the home (FTTH)

  • LAN/WAN

  • CATV


Packaging & Shipping


Sliding Type MPO & MTP Fiber Optical Patch Panel 96 Cores for Cabling Constructions

Production


Sliding Type MPO & MTP Fiber Optical Patch Panel 96 Cores for Cabling Constructions

Sliding Type MPO & MTP Fiber Optical Patch Panel 96 Cores for Cabling Constructions

Packing Information

Model

Product Size

(cm)

Max.Fiber

 Inner CTN (cm)

Outer CTN(cm)

Color


UF-SM96


48.26*42.3*4.4


96


51*45.5*5

52*47*28

Black(RAL9005)  Beige(RAL1001)
