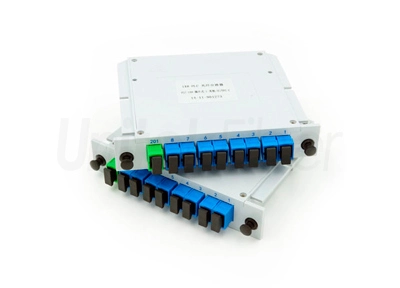

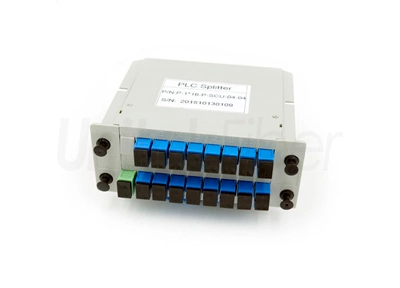

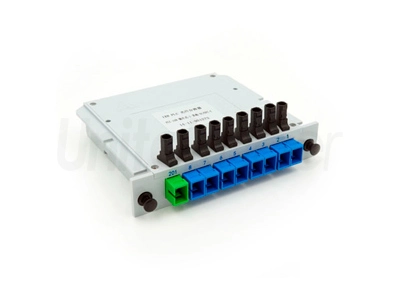

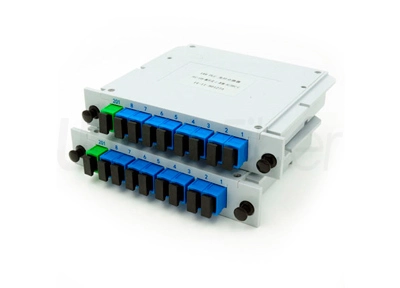

1X4,1x8 1X16 Terminal ABS LGX box Fiber Optic Splitter

The PLC Splitters is branching devices that is used to distribute optical signals to multiple locations for processing. It is designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Splitter is applied to distribute optical signals from Central Office (CO) to multiple premise locations.


Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

1X4,1x8 1X16 Terminal ABS LGX box Fiber Optic Splitter

Features:


lLow Insertion loss

lLow PDL

lCompact Design

lGood channel-to-channel uniformity

lWide Operating Wavelength:

lFrom 1260nm to 1650nm

lWide Operating Temperature:

lHigh Reliability and Stability


Applications:


lFTTX Systems

lPON Networks

lCATV Links

lOptical Signal Distribution


Compliance:


lTelcordia GR-1209-CORE

lTelcordia GR-1221-CORE

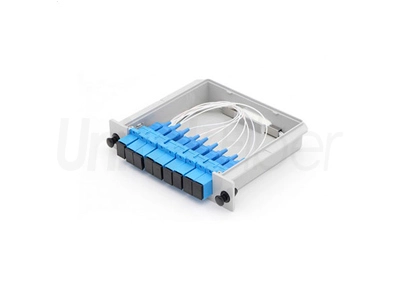

LGX Box PLC Spltter


Packaging and Shipping:


1X4,1x8 1X16 Terminal ABS LGX box Fiber Optic Splitter


Production:


1X4,1x8 1X16 Terminal ABS LGX box Fiber Optic Splitter

1X4,1x8 1X16 Terminal ABS LGX box Fiber Optic Splitter

Table 1 – 1×N PLC Splitter

Parameters

1×2

1×4

1×6

1×8

1×12

1×16

1×32

1×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G657A or customer specified

Insertion Loss (dB)(Min/Max)

3.8/4.0

7.2/7.4

9.5/9.8

10.5/10.7

12.1/12.6

13.5/13.7

16.5/16.9

20.5/21.0

Loss Uniformity (dB)

0.6

0.6

1.0

0.8

1.1

1.2

1.5

2.5

Return Loss (dB)

55

55

55

55

55

55

55

55

Polarization Dependent Loss(dB)

0.2

0.2

0.3

0.3

0.3

0.3

0.3

0.4

Directivity (dB)

55

55

55

55

55

55

55

55

Operating Temperature(℃)

-40~+85

Storage Temperature(℃))

-40~+85

Operating Humidity

5% ~ 85% RH

Storage Humidity

5% ~ 85% RH

Device Dimension (mm)   (L×W×H)

40×4×4

40×4×4

40×4×4

40×4×4

60×7×4

60×7×4

60×7×4

60×12×6

Module Dimension (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

100×80×10

120×80×18

120×80×18

120×80×18

140×115×18

Mini-Module Dimension (mm)   (L×W×H)

60×7×4

60×7×4

60×7×4

60×7×4

60×7×4

60×12×4

80×20×6

100×40×6


Table 2 – 2×N PLC Splitter

Parameters

2×2

2×4

2×8

2×16

2×32

2×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G657A or customer specified

Insertion Loss (dB)(Min/Max)

3.9/4.2

7.5/7.8

11.2/11.5

14.2/14.5

17.2/17.7

21.0/21.5

Loss Uniformity (dB)

0.8

1.5

1.5

1.8

2.0

2.5

Return Loss (dB)

55

55

55

55

55

55

Polarization Dependent Loss(dB)

0.2

0.2

0.4

0.4

0.4

0.4

Directivity (dB)

55

55

55

55

55

55

Operating Temperature(℃))

-40~+85

Storage Temperature(℃))

-40~+85

Operating Humidity

5% ~ 85% RH

Storage Humidity

5% ~ 85% RH

Device Dimension (mm)   (L×W×H)

50×4×4

50×4×4

50×4×4

60×7×4

60×7×4

N/A

Module Dimension (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

120×80×18

120×80×18

140×115×18

Mini-Module Dimension (mm)   (L×W×H)

60×7×4

60×7×4

60×7×4

80×12×4

80×20×6

N/A
